ASRock H610M-H2/M.2 M-ATX Motherboard
MPN H610M-H2-M-2 · Brand ASROCK · mATX
The ASRock H610M-H2/M.2 Micro-ATX motherboard supports 12th–14th Gen Intel Core processors on LGA1700, with DDR4 up to 3200MHz, dual 4K HDMI outputs, an M.2 PCIe Gen3 x4 slot, and 4 SATA3 ports for versatile budget builds
Inclusive of GST · GST invoice available
Overview
The ASRock H610M-H2/M.2 is a Micro-ATX motherboard built on Intel's H610 chipset and the LGA1700 socket, making it compatible with 12th, 13th, and 14th generation Intel Core processors. Designed for compact, budget-conscious desktop builds, it delivers a reliable foundation without compromising on essential connectivity or display flexibility. The board features a 3+1+1 phase power design using a digital PWM (Pulse-Width Modulation) architecture, which helps deliver stable CPU Vcore voltage and contributes to long-term platform reliability. Two DDR4 DIMM slots support dual-channel memory configurations with speeds up to 3200MHz and a maximum capacity of 64GB. The memory subsystem also supports Intel XMP 2.0 profiles and ECC UDIMM modules operating in non-ECC mode. For storage, there are four SATA3 ports alongside a single Ultra M.2 slot running at PCIe Gen3 x4, capable of peak sequential transfer speeds up to 32Gb/s — suitable for modern NVMe SSDs used as boot drives. Expansion is handled by one PCIe 4.0 x16 slot for a discrete graphics card and one PCIe 3.0 x1 slot for additional peripherals. Display output is provided by two HDMI ports on the rear panel, both supporting 4K at 60Hz, making multi-monitor setups straightforward without additional adapters. Audio is handled by the Realtek ALC897 codec delivering 7.1-channel HD audio. Networking is covered by a Realtek Gigabit LAN controller. Rear I/O includes two USB 3.2 Gen1 Type-A ports, four USB 2.0 ports, two HDMI ports, one RJ-45 LAN port, a PS/2 mouse/keyboard combo port, and HD audio jacks. Internal headers add two more USB 3.2 Gen1 ports and two more USB 2.0 ports via headers, plus front panel audio. ASRock's Auto Driver Installer pre-loads the LAN driver, simplifying the initial setup experience on systems without optical drives. Verified Specifications: - Form Factor: Micro-ATX - Socket: LGA1700 - Chipset: Intel H610 - CPU Support: 12th, 13th, 14th Gen Intel Core - Memory: 2x DDR4 DIMM, Dual Channel, up to 64GB, up to 3200MHz, XMP 2.0 - Storage: 4x SATA3, 1x Ultra M.2 (PCIe Gen3 x4, up to 32Gb/s) - Expansion: 1x PCIe 4.0 x16, 1x PCIe 3.0 x1 - Display: 2x HDMI (4K @ 60Hz) - Audio: Realtek ALC897 7.1 CH HD - LAN: Realtek Gigabit - USB (Rear): 2x USB 3.2 Gen1, 4x USB 2.0 - USB (Front Headers): 2x USB 3.2 Gen1, 2x USB 2.0 - Warranty: 3 Years

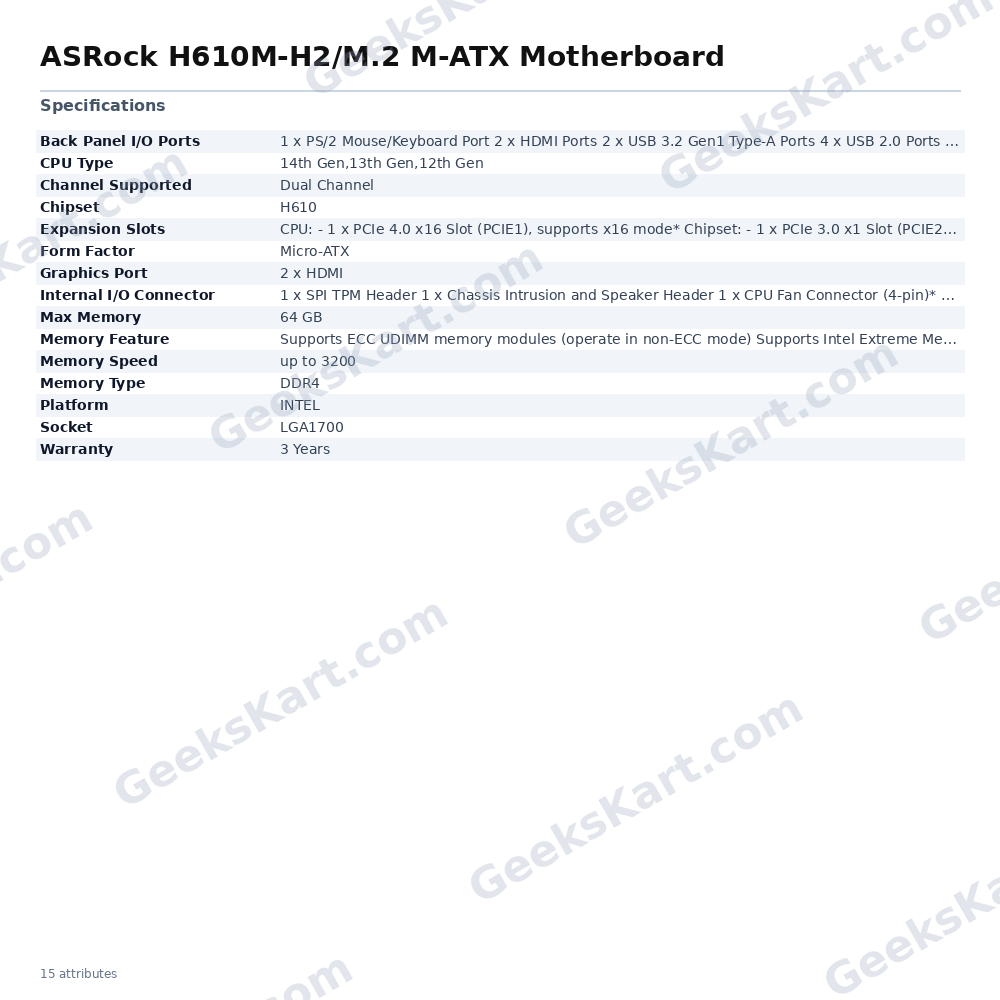

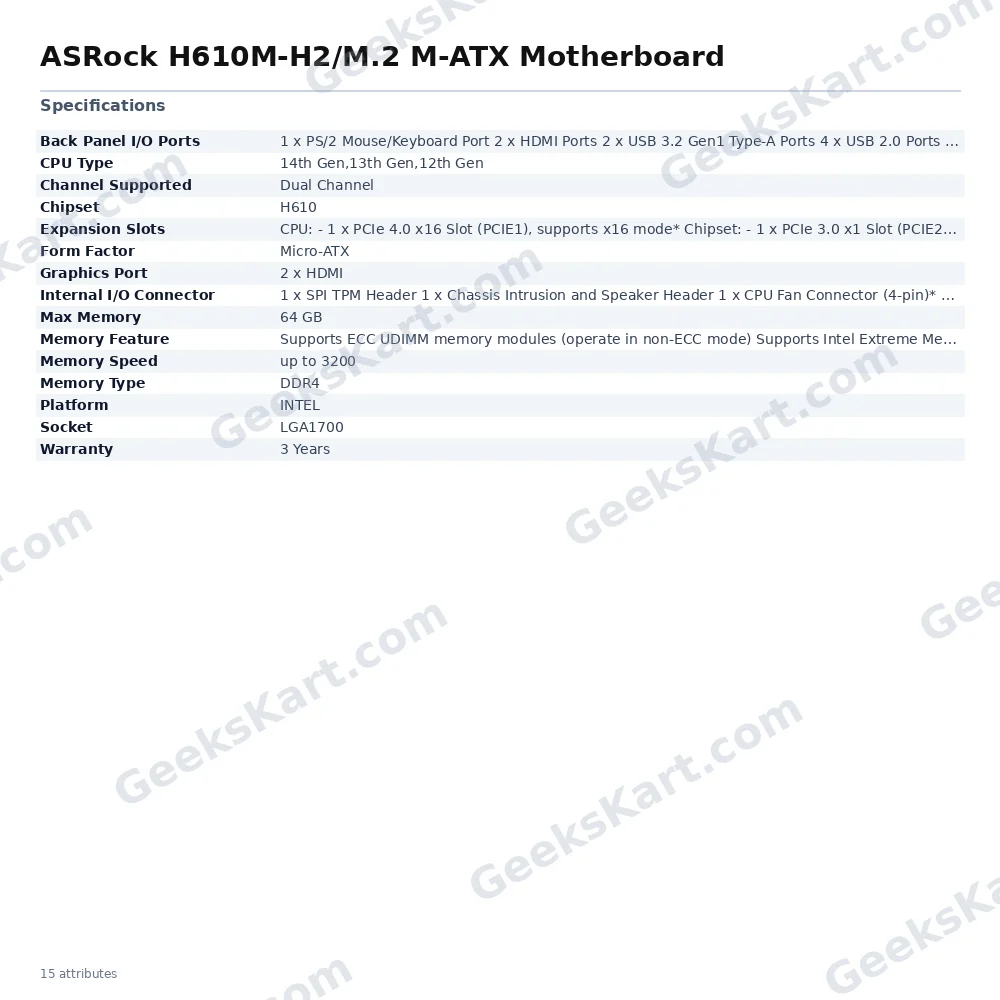

Datasheet
| Memory Type | DDR4 |
|---|---|
| Warranty | 3 Years |
| Form Factor | mATX |
| Chipset | H610 |
| Socket | LGA1700 |
| CPU Type | 14th Gen,13th Gen,12th Gen |
| Max Memory | 64 GB |
| Memory Speed | up to 3200 |
| Platform | INTEL |
| Graphics Port | 2 x HDMI |
| Memory Feature | Supports ECC UDIMM memory modules (operate in non-ECC mode) Supports Intel Extreme Memory Profile (XMP) 2.0 |
| Expansion Slots | CPU: – 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: – 1 x PCIe 3.0 x1 Slot (PCIE2)* * Supports NVMe SSD as boot disks |
| Channel Supported | Dual Channel |
| Back Panel I/O Ports | 1 x PS/2 Mouse/Keyboard Port 2 x HDMI Ports 2 x USB 3.2 Gen1 Type-A Ports 4 x USB 2.0 Ports 1 x RJ-45 LAN Port HD Audio Jacks: Line in / Front Speaker / Microphone |
| Internal I/O Connector | 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin)* 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) * CPU_FAN1 supports the fan power up to 1A (12W). ** CHA_FAN1/WP supports the fan power up to 2A (24W). CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use |
