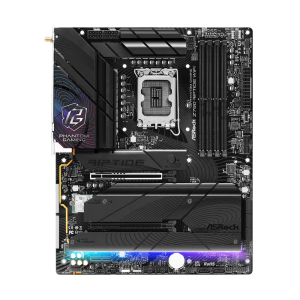

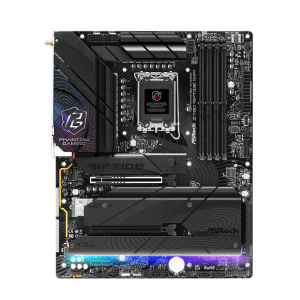

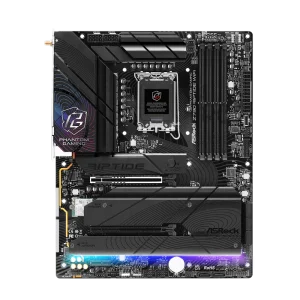

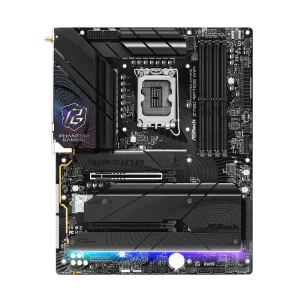

ASROCK Phantom Gaming Z790 Riptide Wifi7 DDR5 Intel Motherboard
MPN ASROCK-PHANTOM-GAMING-Z790-RAPTIDE-WIFI7-BLACK · Brand ASROCK · ATX
The ASRock Phantom Gaming Z790 Riptide WiFi 7 is an ATX motherboard for Intel LGA1700 CPUs featuring a 16+1+1 power phase design, PCIe 5.0 support, Wi-Fi 7 (802.11be), Killer 2.5G LAN, and five M.2 slots on an 8-layer server-grade PCB
Inclusive of GST · GST invoice available
Overview
The ASRock Phantom Gaming Z790 Riptide WiFi 7 is a full-size ATX motherboard built on the Intel Z790 chipset, designed to support Intel 12th, 13th, and 14th Generation Core processors in the LGA1700 socket. It ships in a classic black aesthetic that suits most gaming and enthusiast builds. Power delivery is handled by a 16+1+1 phase design rated at 90A per phase (Smart Power Stage) for the CPU VCore and GT domains, paired with enlarged heatsink armor and two 8-pin Hi-Density power connectors to sustain demanding loads. The board sits on an 8-layer, server-grade low-loss PCB that improves signal integrity across both the PCIe 5.0 bus and the high-speed memory subsystem. Memory support spans four DDR5 DIMM slots with a maximum capacity of 256 GB. Native speeds reach 4800 MHz in a single-rank, single-DIMM-per-channel configuration, scaling to 8000+ MHz (OC) with compatible Intel XMP 3.0 kits. AMD EXPO profiles are also recognised. Storage options are extensive: one PCIe Gen 5 x4 M.2 slot (128 Gb/s) sits on the CPU fabric alongside one PCIe Gen 4 x4 M.2 slot, while the chipset adds four more PCIe Gen 4 x4 M.2 slots and eight SATA3 6 Gb/s ports. RAID 0/1/5/10 is supported across both SATA and NVMe devices via Intel VMD. Connectivity is anchored by a 802.11be (Wi-Fi 7) 2×2 module covering 2.4 GHz, 5 GHz, and 6 GHz bands with 320 MHz channel bandwidth, Bluetooth 5.4, and MU-MIMO, complemented by a Killer E3100G 2.5 Gigabit wired LAN controller. The rear I/O panel provides HDMI 2.1 (4K 60 Hz), DisplayPort 1.4 with DSC (8K 60 Hz), two USB 3.2 Gen 2 Type-A, one USB 3.2 Gen 1 Type-C, four USB 3.2 Gen 1 Type-A (two of which are Lightning Gaming Ports with lower-latency controller routing), and two USB 2.0 ports. A front-panel USB 3.2 Gen 2×2 Type-C header (20 Gb/s) is included. Audio is handled by a Realtek ALC1220 codec delivering 7.1-channel HD audio with impedance sensing and Nahimic software support. RGB personalisation is available through one 12 V RGB header and three 5 V addressable RGB headers, managed via ASRock Polychrome SYNC software. An eDP 1.4 signal connector supports ASRock's optional 13.3-inch Side Panel Kit. Verifiable Specifications: - Form Factor: ATX, 12.0 in × 9.6 in (30.5 cm × 24.4 cm) - Chipset: Intel Z790 - CPU Socket: LGA1700 (12th / 13th / 14th Gen Intel Core) - Memory: 4 × DDR5 DIMM, up to 256 GB, up to 8000+ MHz (OC), XMP 3.0 - PCIe Slots: 1 × PCIe 5.0 x16 (CPU), 1 × PCIe 4.0 x16 (chipset, x4 mode), 1 × PCIe 3.0 x1 - M.2 Slots: 1 × PCIe 5.0 x4 (CPU), 4 × PCIe 4.0 x4 (1 CPU + 3 chipset) - SATA: 8 × SATA3 6 Gb/s - LAN: Killer E3100G 2.5 GbE - Wireless: Wi-Fi 7 802.11be, 2×2, 2.4/5/6 GHz; Bluetooth 5.4 - Audio: Realtek ALC1220, 7.1 CH HD - USB (Rear): 2 × USB 3.2 Gen 2 Type-A, 1 × USB 3.2 Gen 1 Type-C, 4 × USB 3.2 Gen 1 Type-A, 2 × USB 2.0 - Video Out: 1 × HDMI 2.1, 1 × DisplayPort 1.4 - PCB Layers: 8 - OS Support: Windows 10 64-bit / Windows 11 64-bit - Certifications: FCC, CE, ErP/EuP ready

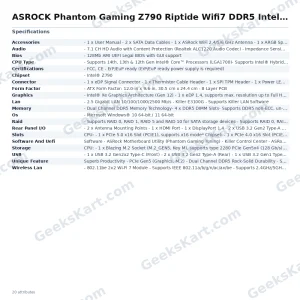

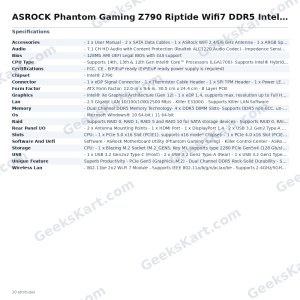

Datasheet
| Form Factor | ATX |
|---|---|
| Chipset | – Intel® Z790 |
| CPU Type | |
| Os | – Microsoft Windows® 10 64-bit / 11 64-bit |
| Lan | – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s – Killer E3100G – Supports Killer LAN Software |
| USB | – 1 x USB 3.2 Gen2x2 Type-C (Front) – 2 x USB 3.2 Gen2 Type-A (Rear) – 1 x USB 3.2 Gen1 Type-C (Rear) – 6 x USB 3.2 Gen1 Type-A (4 Rear, 2 Front) – 6 x USB 2.0 (2 Rear, 4 Front) * All USB ports support ESD Protection |
| Bios | – 128Mb AMI UEFI Legal BIOS with GUI support |
| Raid | – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices – Supports RAID 0, RAID 1 and RAID 5 and RAID 10 for M.2 NVMe storage devices |
| Audio | – 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) – Impedance Sensing on Rear Out port – Individual PCB Layers for R/L Audio Channel – Nahimic Audio |
| Slots | CPU: – 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: – 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* – 1 x PCIe 3.0 x1 Slot (PCIE3)* – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) – Supports AMD CrossFire™ * Supports NVMe SSD as boot disks If M.2_GEN5 is occupied, PCIE1 will downgrade to x8 mode |
| Memory | – Dual Channel DDR5 Memory Technology- 4 x DDR5 DIMM Slots- Supports DDR5 non-ECC, un-buffered memory up to 8000+(OC)*- Max. capacity of system memory: 256GB- Supports Intel® Extreme Memory Profile (XMP) 3.0* 1DPC 1R Up to 8000+ MHz (OC), 4800 MHz Natively.1DPC 2R Up to 6800+ MHz (OC), 4400 MHz Natively.2DPC 1R Up to 6000+ MHz (OC), 4000 MHz Natively.2DPC 2R Up to 5600+ MHz (OC), 3600 MHz Natively |
| Storage | CPU: – 1 x Blazing M.2 Socket (M.2_GEN5, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 8 x SATA3 6.0 Gb/s Connectors * Supports Intel® Volume Management Device (VMD) Supports NVMe SSD as boot disks If M.2_GEN5 is occupied, PCIE1 will downgrade to x8 mode |
| Graphics | – Intel® Xe Graphics Architecture (Gen 12) – 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz – 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz * Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated |
| Connector | – 1 x eDP Signal Connector – 1 x Thermistor Cable Header – 1 x SPI TPM Header – 1 x Power LED and Speaker Header – 1 x RGB LED Header* – 3 x Addressable LED Headers** – 1 x CPU Fan Connector (4-pin)*** – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** – 1 x Chassis Fan Connector (4-pin)***** – 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****** – 1 x 24 pin ATX Power Connector – 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) – 1 x Front Panel Audio Connector – 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) – 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) * Supports in total up to 12V/3A, 36W LED Strip ** Support in total up to 5V/3A, 15W LED Strip *** CPU_FAN1 supports the fan power up to 1A (12W). **** CPU_FAN2/WP supports the fan power up to 2A (24W). ***** CHA_FAN5 supports the fan power up to 1A (12W). ****** CHA_FAN1~4/WP support the fan power up to 2A (24W). CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use |
| Accessories | – 1 x User Manual – 2 x SATA Data Cables – 1 x ASRock WiFi 2.4/5/6 GHz Antenna – 1 x ARGB Splitter Cable – 1 x Thermistor Cable |
| Wireless Lan | – 802.11be 2×2 Wi-Fi 7 Module – Supports IEEE 802.11a/b/g/n/ac/ax/be – Supports 2.4GHz/5GHz/6GHz frequency band* – Supports 320MHz channel bandwidth with 6GHz frequency band* – 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology – Supports Bluetooth 5.4 – Supports MU-MIMO *Wi-Fi 7 (6GHz band) will be supported by Microsoft Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available |
| Certifications | – FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required) |

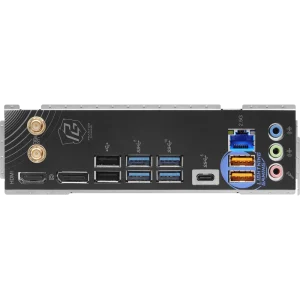

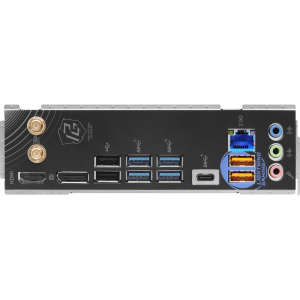

| Rear Panel I/O | – 2 x Antenna Mounting Points – 1 x HDMI Port – 1 x DisplayPort 1.4 – 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) – 1 x USB 3.2 Gen1 Type-C Port – 4 x USB 3.2 Gen1 Type-A Ports (USB32_56 are Lightning Gaming Ports.) – 2 x USB 2.0 Ports – 1 x RJ-45 LAN Port – HD Audio Jacks: Line in / Front Speaker / Microphone |
| Unique Feature | Superb Productivity – PCIe Gen5 (Graphics, M.2) – Dual Channel DDR5 Rock-Solid Durability – Server-Grade Low-Loss PCB – 16+1+1 Power Phase, 90A SPS for VCore+GT with Enlarged Heatsink Armor – Flexible Integrated I/O Shield – 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Connectivity – Killer 2.5G LAN, 802.11be Wi-Fi 7 Module – ASRock Lightning Gaming Ports EZ Update – ASRock Auto Driver Installer EZ Troubleshooter – ASRock Post Status Checker |
| Software And Uefi | Software – ASRock Motherboard Utility (Phantom Gaming Tuning) – Killer Control Center – ASRock Polychrome SYNC* UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock My Favorites in UEFI – ASRock Auto Driver Installer – ASRock Instant Flash – ASRock Easy RAID Installer *These utilities can be downloaded from ASRock Live Update & APP Shop |
