Features of ASROCK RX 580 Phantom Gaming D OC 8GB
Polychrome SYNC

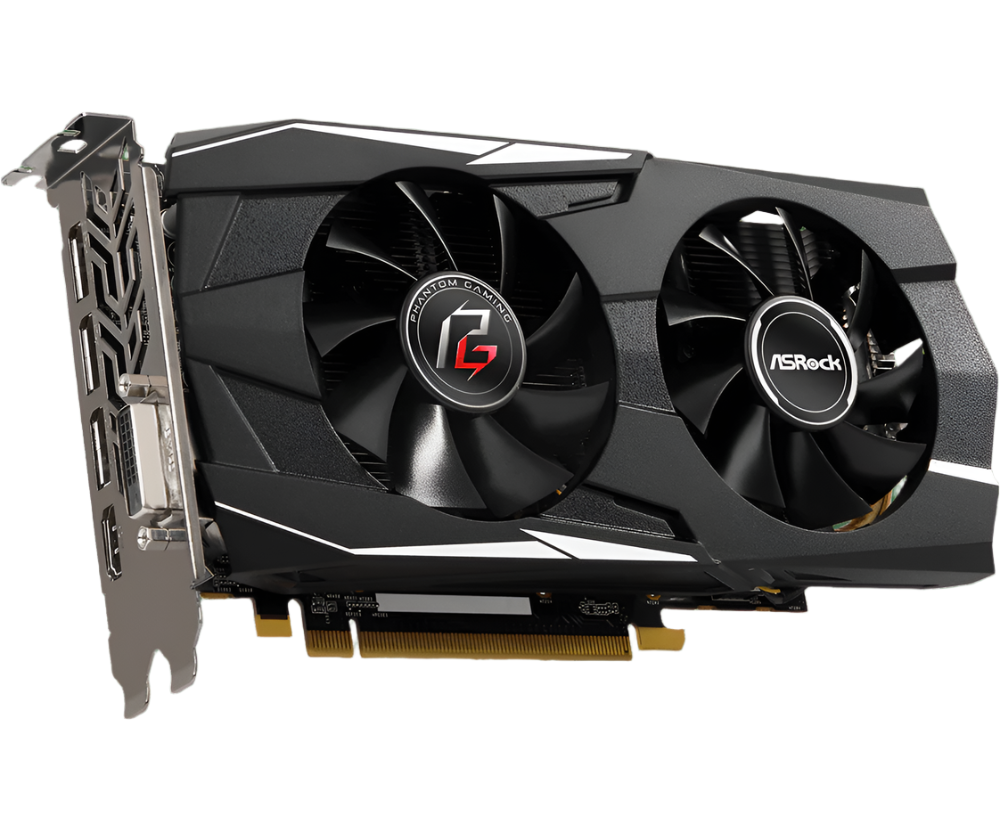

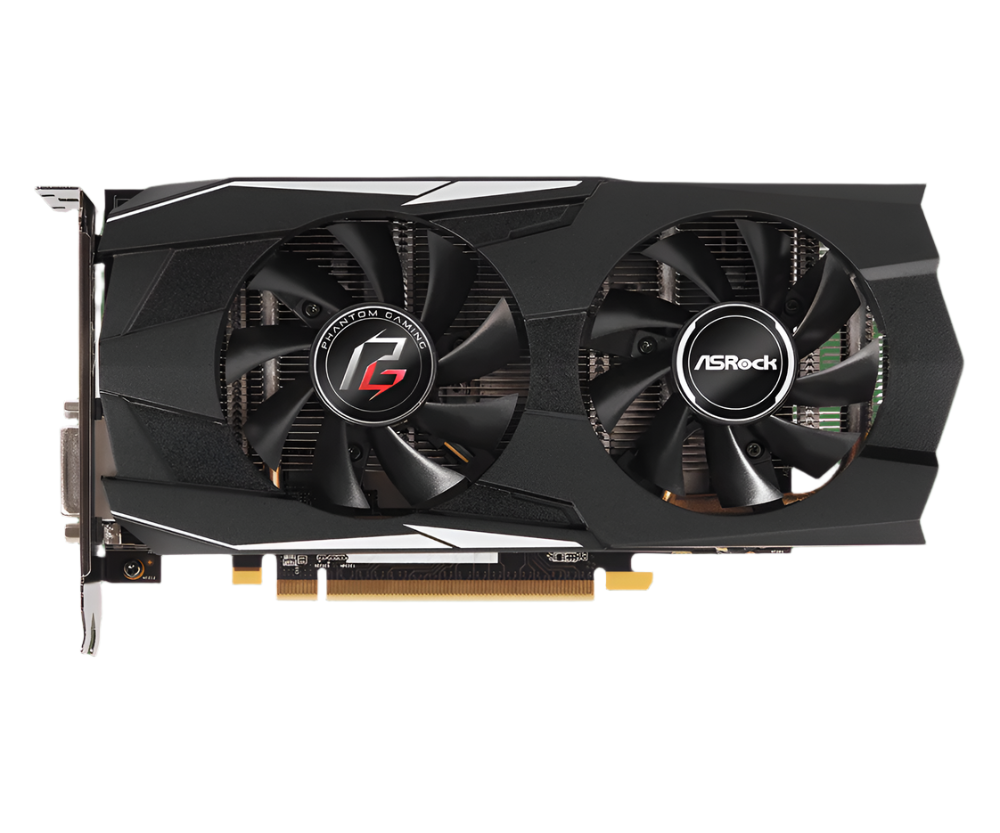

Dual Fan Design
Two fans that provide strong cooling performance and make your gaming rig stay cool. It’s optimized for delivering excellent gaming experience with stylish and streamlined design
XXL Aluminum Alloy Heatsink & Heatpipe Design
Under the stylish and streamlined dual fan design is the anodized and huge aluminum heatsink, heatpipe along with more than enough fins that take heat from the GPU, effectively improve heat dissipation and promote overall performance significantly.
Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
Composite Heatpipe
Combined with grooved and copper powder sintered interfaces, the composite heatpipe design efficiently improve thermal transfer of heat between two solid interfaces and increase cooling capacity up to 30%.
Radeon FreeSync™ 2 HDR
Get ready to experience smooth brilliant HDR gaming. Enjoy vibrant HDR content while eliminating image tears and choppiness for effortlessly smooth gameplay. Low Frame-Rate Compensation, Low Latency, Plug and Play and HDR Ready. That’s Radeon
Radeon FreeSync™ 2 HDR
Get ready to experience smooth brilliant HDR gaming. Enjoy vibrant HDR content while eliminating image tears and choppiness for effortlessly smooth gameplay. Low Frame-Rate Compensation, Low Latency, Plug and Play and HDR Ready. That’s Radeon
8K Resolution Support
The ASROCK Radeon RX 580 Phantom Gaming D OC 8GB AMD Graphics Card Not only can handles 4K graphics but also supports the next generation 8K video output for the ultimate visual experience.

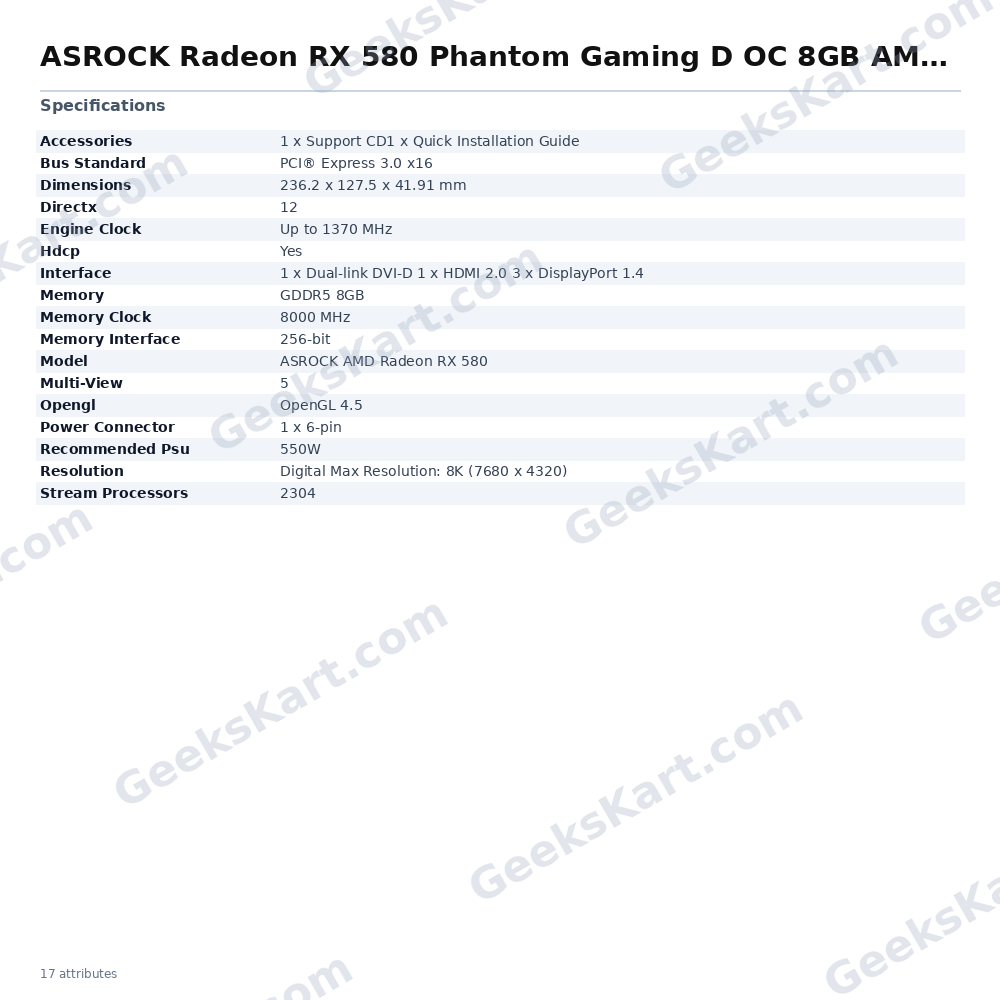

Specifications of ASROCK RX 580 Phantom Gaming D OC 8GB
| Model | ASROCK AMD Radeon RX 580 |
| Bus Standard | PCI® Express 3.0 x16 |
| DirectX | 12 |
| OpenGL | OpenGL 4.5 |
| Memory | GDDR5 8GB |
| Engine Clock | Up to 1370 MHz |
| Stream Processors | 2304 |
| Memory Clock | 8000 MHz |
| Memory Interface | 256-bit |
| Resolution | Digital Max Resolution: 8K (7680 x 4320) |

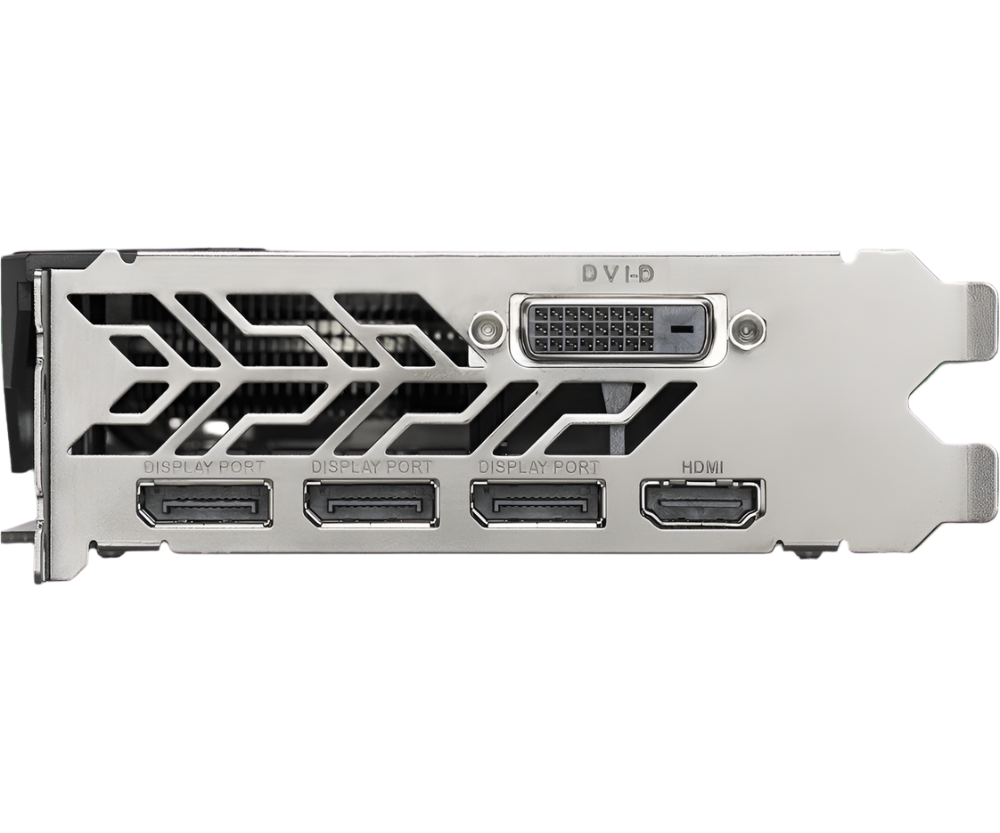

| Interface | 1 x Dual-link DVI-D 1 x HDMI 2.0 3 x DisplayPort 1.4 |
| HDCP | Yes |
| Multi-view | 5 |
| Recommended PSU | 550W |
| Power Connector | 1 x 6-pin |
| Accessories | 1 x Support CD 1 x Quick Installation Guide |
| Dimensions | 236.2 x 127.5 x 41.91 mm |
