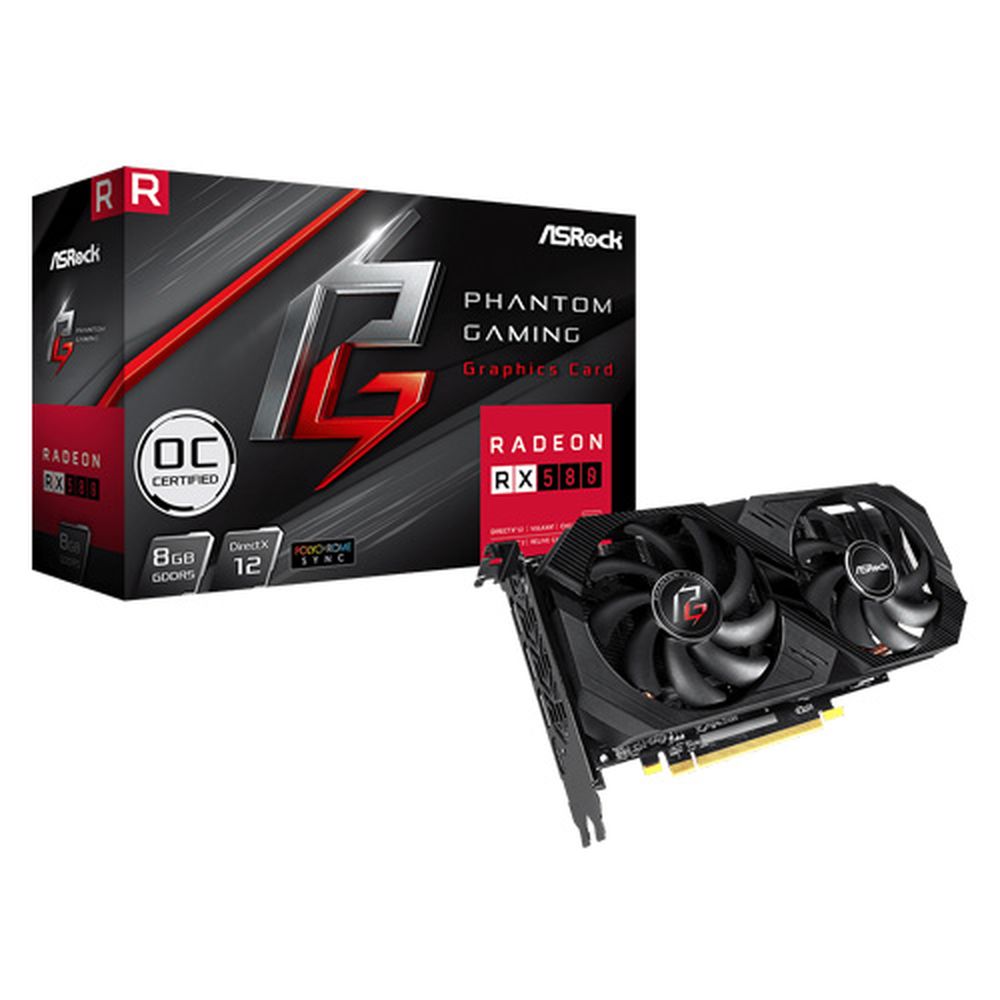

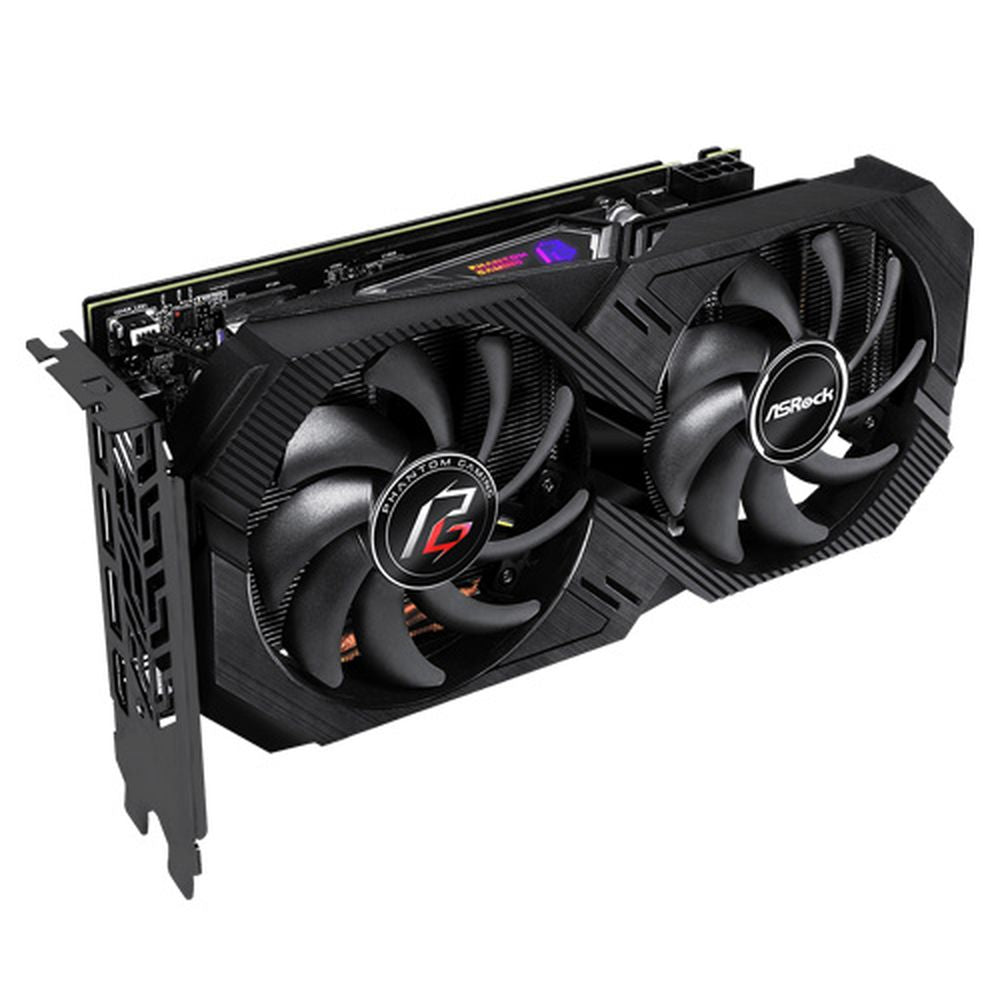

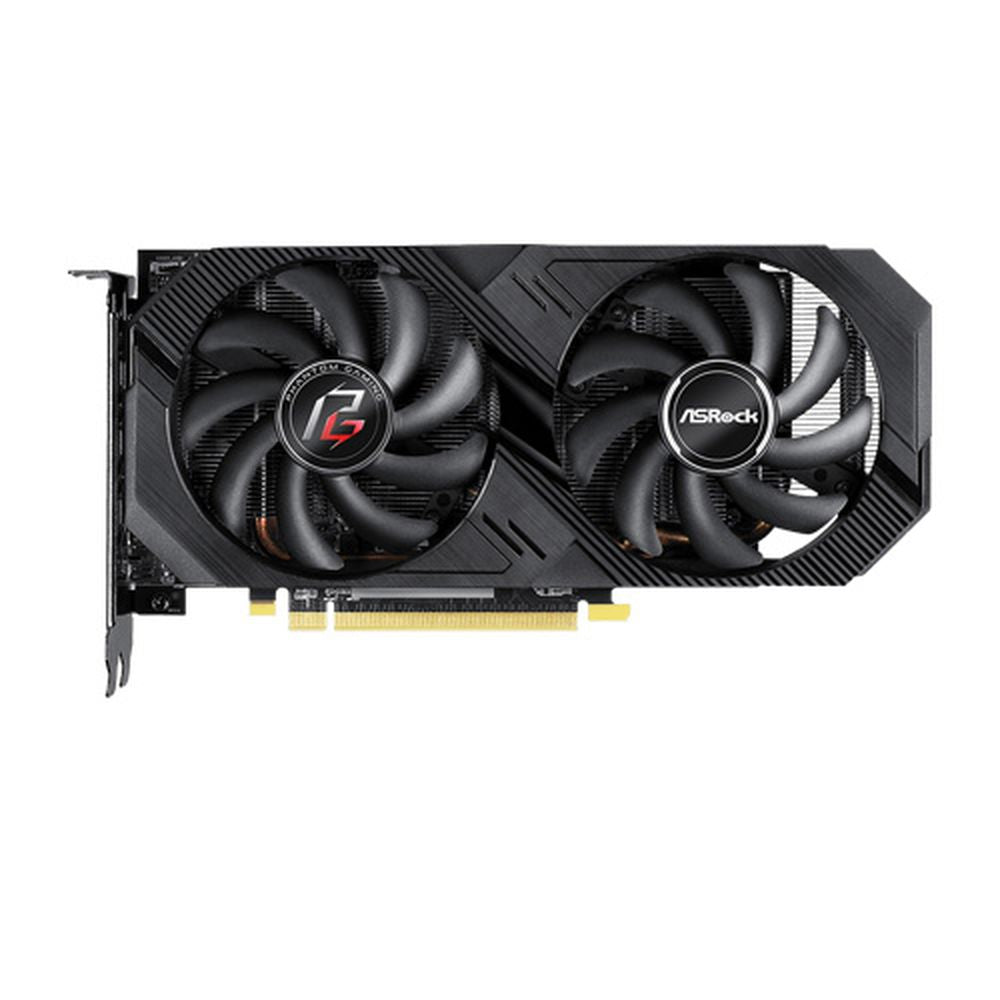

ASROCK Radeon RX 580 Phantom Gaming U OC 8GB AMD Graphic Card
MPN ASROCK-RX-580-PHANTOM-GAMING · Brand ASROCK
Features of ASROCK Radeon RX 580 Phantom Gaming U OC 8GB AMD Graphic Card Polychrome SYNC - High Performance Composite Heatpipes - Support 8K Resolution - Graphic Outputs: 3 DisplayPort, HDMI ASRock Tweak Utility - Temperature and Fan Speed Monitoring - Core / Memory Clock Tweak - Core / Memory Voltage Tweak Specifications of ASROCK Radeon RX 580 Phantom Gaming U OC 8GB AMD Graphic Card Graphics Engine AMD Radeon RX 580 Bus Standard PCI Express x16 Gen3 DirectX 12 OpenGL 4.5 Memory GDDR6 8GB Eng
Inclusive of GST · GST invoice available
Overview
Features of ASROCK Radeon RX 580 Phantom Gaming U OC 8GB AMD Graphic Card
- Polychrome SYNC
- High Performance Composite Heatpipes
- Support 8K Resolution
- Graphic Outputs: 3 DisplayPort, HDMI - ASRock Tweak Utility
- Temperature and Fan Speed Monitoring
- Core / Memory Clock Tweak
- Core / Memory Voltage Tweak
Specifications of ASROCK Radeon RX 580 Phantom Gaming U OC 8GB AMD Graphic Card
| Graphics Engine | AMD Radeon RX 580 |
| Bus Standard | PCI Express x16 Gen3 |
| DirectX | 12 |
| OpenGL | 4.5 |
| Memory | GDDR6 8GB |
| Engine Clock | - Up to 1355 MHz |
| Stream Processors | 2304 |
| Memory Clock | 8000 MHz |
| Memory Interface | 256-bit |
| Resolution | Digital Max Resolution: 8K (7680 x 4320) |

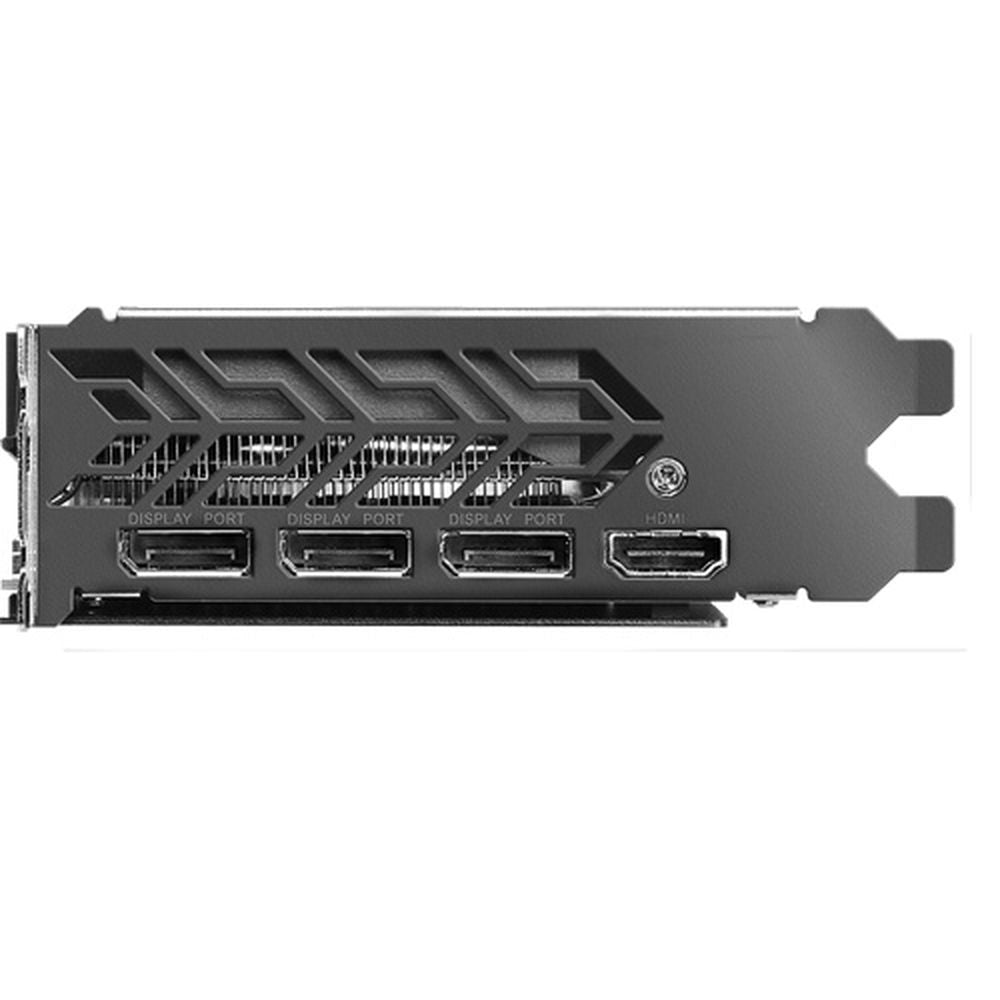

| Interface | - 1 x HDMI 2.0 - 3 x Display Port 1.4 |
| HDCP | Yes |
| Multi-view | 4 |
| Recommended PSU | 550W |
| Power Connector | 1 x 8-Pin |
| Accessories | - 1 x Support CD - 1 x Quick Installation Guide |
| Dimensions | - 240.35 x 128.54 x 41.91 mm |
Datasheet
| Hdcp | Yes |
|---|---|
| Memory | GDDR6 8GB |
| Opengl | 4.5 |
| Directx | 12 |
| Dimensions | – 240.35 x 128.54 x 41.91 mm |
| Multi-View | 4 |
| Accessories | – 1 x Support CD – 1 x Quick Installation Guide |
| Bus Standard | PCI Express x16 Gen3 |
| Engine Clock | – Up to 1355 MHz |
| Graphics Engine | AMD Radeon RX 580 |
| Power Connector | 1 x 8-Pin |
| Memory Interface | 256-bit |
| Stream Processors | 2304 |
| Interface | – 1 x HDMI 2.0 – 3 x Display Port 1.4 |
| Memory Clock | 8000 MHz |
| Recommended PSU | 550W |
| Resolution | Digital Max Resolution: 8K (7680 x 4320) |
