ASROCK Radeon RX 6600 Challenger ITX 8GB AMD Graphic Card
MPN ASROCK-AMD-RADEON-RX-6600-CHALLENGER-ITX-8G-fc1c23 · Brand ASROCK
FEATURES Of ASROCK RADEON RX 6600 Challenger ITX 8GB Clock: GPU / Memory Boost Clock: Up to 2491 MHz Game Clock: Up to 2044 MHz Base Clock: 1626 MHz Key Specifications ASROCK RADEON RX 6600 Challenger ITX 8GB 128-bit GDDR6 AMD RDNA™ 2 Architecture PCI® Express 4.0 Support 1 x 8-pin Power Connectors ‧2 x DisplayPort™ 1.4 with DSC / HDMI™ 2.1 VRR / HDMI™ 2.0 Key Features Single Fan Design Stylish Metal Backplate Striped Axial Fan Ultra-fit Heatpipe 0dB Silent Cooling Diversion Holes Single Fan Des
Inclusive of GST · GST invoice available
Overview
FEATURES Of ASROCK RADEON RX 6600 Challenger ITX 8GB
Clock: GPU / Memory
- Boost Clock: Up to 2491 MHz
- Game Clock: Up to 2044 MHz
- Base Clock: 1626 MHz
Key Specifications
- ASROCK RADEON RX 6600 Challenger ITX
- 8GB 128-bit GDDR6
- AMD RDNA™ 2 Architecture
- PCI® Express 4.0 Support
- 1 x 8-pin Power Connectors

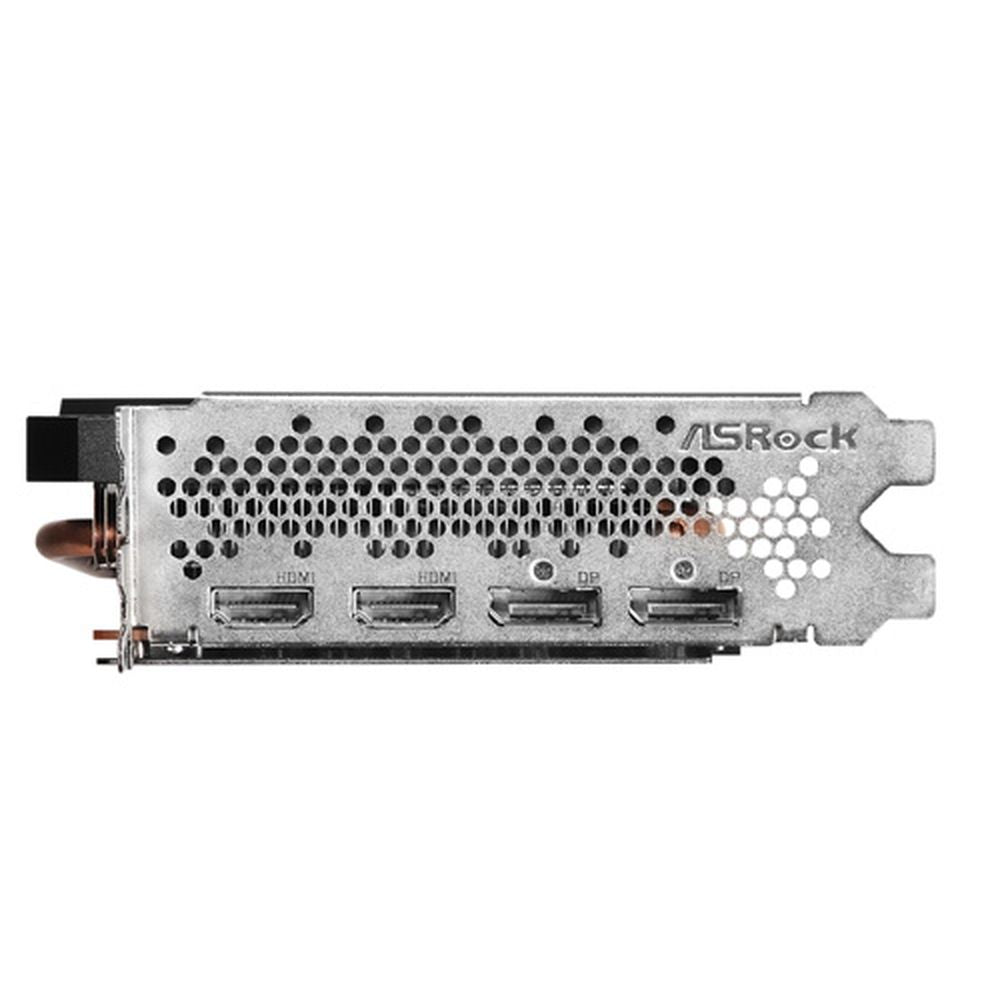

- ‧2 x DisplayPort™ 1.4 with DSC /
- HDMI™ 2.1 VRR / HDMI™ 2.0
Key Features

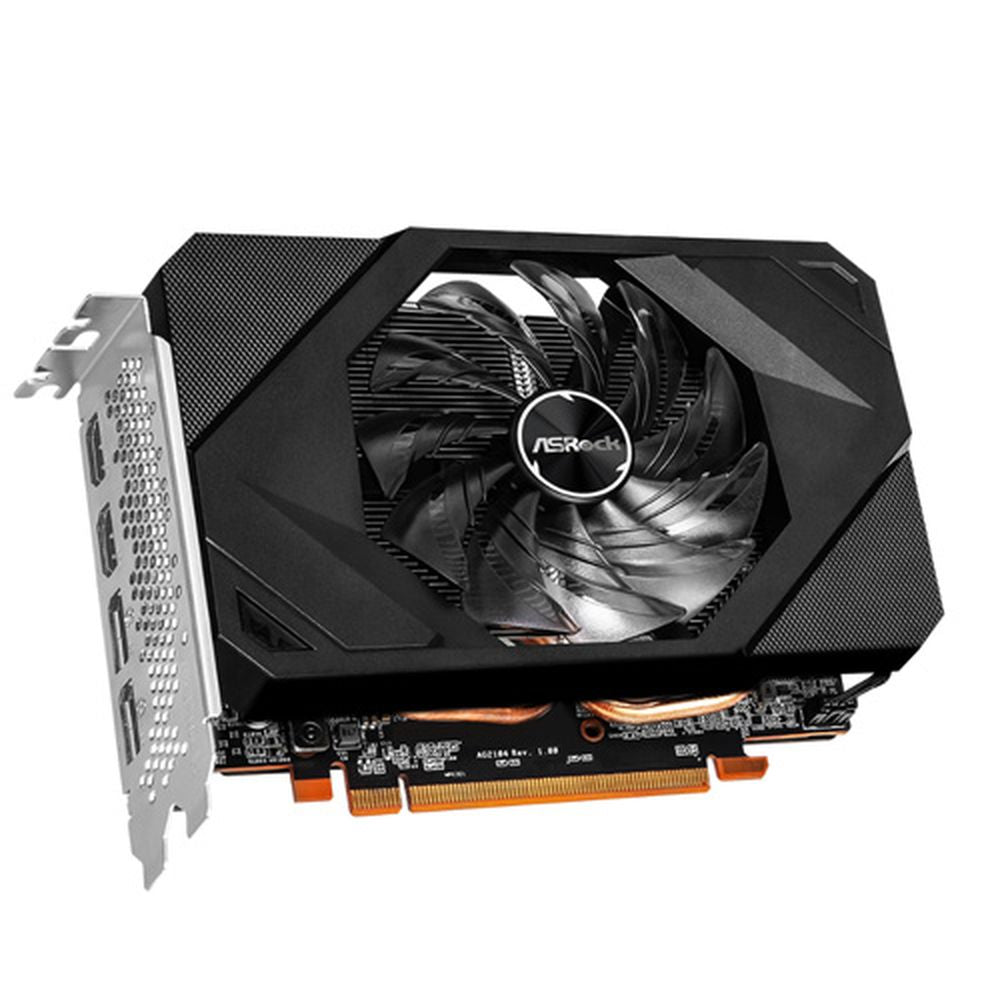

- Single Fan Design

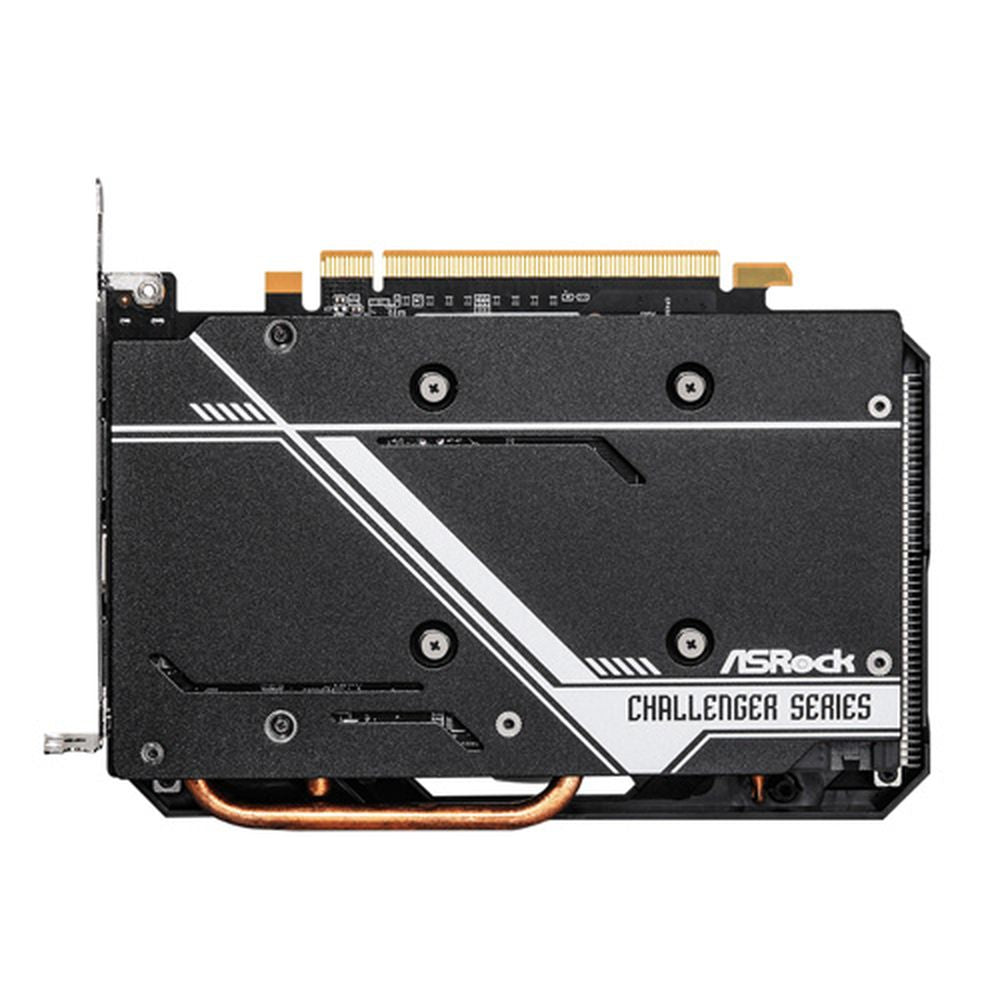

- Stylish Metal Backplate
- Striped Axial Fan
- Ultra-fit Heatpipe
- 0dB Silent Cooling
- Diversion Holes
Single Fan Design For Optimized Cooling Efficiency.
Striped Ring Fan Designed For Enhanced Airflow
ASRock all new Striped Ring Fan get more lateral intake and to provide better airflow through the cooling array.
Spin For Cooling, Stop For Silence.
Ultra-fit Heatpipe Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
Maximize the Thermal Capacity.
Nano Thermal Paste for Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.
Premium Thermal Pad for Better Heat Transfer.
The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.
Precise Screw Torque for Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
Specifications Of ASROCK RADEON RX 6600 Challenger ITX 8GB
| Model | ASROCK RADEON RX 6600 Challenger ITX 8GB |
| Brand | ASRock |
| Color | Black |
| Graphics Engine | AMD Radeon™ RX 6600 |
| Bus Standard | PCI® Express 4.0 |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Memory | 8GB GDDR6 |
| Engine Clock | Boost Clock:Up to 2491 MHz |
| Game Clock: 2226 MHz | |
| Stream Processors | 1792 |
| Memory Clock | 14 Gbps |
| Memory Interface | 128-bit |
| Resolution | Digital Max Resolution: 7680×4320 |
| Interface | 1 x HDMI™ 2.1 VRR / 1 x HDMI™ 2.0 |
| 2 x DisplayPort™ 1.4 with DSC | |
| HDCP | Yes |
| Multi-view | 4 |
| Recommended PSU | 500W |
| Power Connector | 1 x 8-pin |
| Accessories | 1 x Quick Installation Guide |
| Dimensions | 179 x 124 x 40 mm |
| Warranty | 3 Years |
Datasheet
| Warranty | 3 Years |
|---|---|
| Color | Black |
| Interface | 1 x HDMITM 2.1 VRR / 1 x HDMITM 2.0 |
| Memory Clock | 14 Gbps |
| Recommended PSU | 500W |
| Resolution | Digital Max Resolution: 7680×4320 |
| Hdcp | Yes |
| Model | ASROCK RADEON RX 6600 Challenger ITX 8GB |
| Memory | 8GB GDDR6 |
| Opengl | 4.6 |
| Directx | 12 Ultimate |
| Dimensions | 179 x 124 x 40 mm |
| Multi-View | 4 |
| Accessories | 1 x Quick Installation Guide |
| Bus Standard | PCI® Express 4.0 |
| Engine Clock | Boost Clock:Up to 2491 MHz |
| Graphics Engine | AMD Radeon™ RX 6600 |
| Power Connector | 1 x 8-pin |
| Memory Interface | 128-bit |
| Stream Processors | 1792 |
