Features Of ASRock RX 6700 XT Challenger D 12GB
Clock: GPU / Memory
Boost Clock: Up to 2581 MHz / 16 Gbps
Game Clock: Up to 2424 MHz / 16 Gbps
Base Clock: 2321 MHz / 16 Gbps
Key Specification
ASROCK Radeon RX 6700 XT Challenger D
12GB 192-bit GDDR6
AMD RDNA™ 2 Architecture
DirectX 12 Ultimate
PCI® Express 4.0 Support
2 x 8-pin Power Connectors

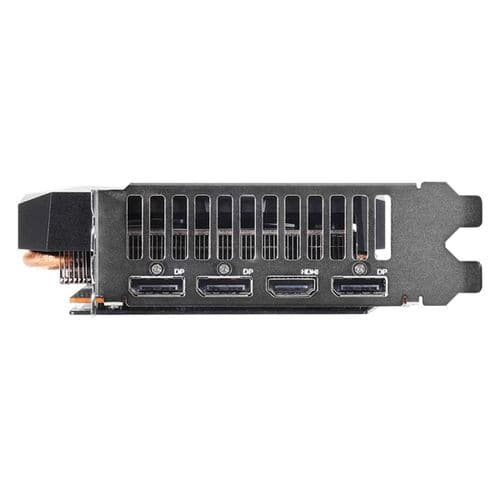

3 x DisplayPort™ 1.4 with DSC / 1 x HDMI™ 2.1 VRR
Key Features
Dual Fan Design
Striped Axial Fan
Ultra-fit Heatpipe
Stylish Metal Backplate
0dB Silent Cooling
Super Alloy Graphics Card

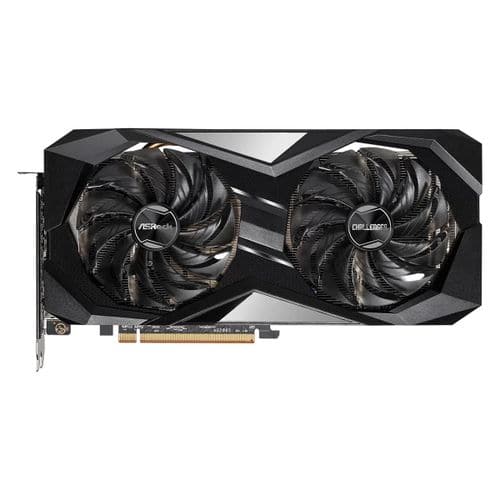

Dual Fan Design
Two fans that provide strong cooling performance and make your gaming rig stay cool. It’s optimized for delivering excellent gaming experience with stylish and streamlined design.
Solid, Fancy, Cool.

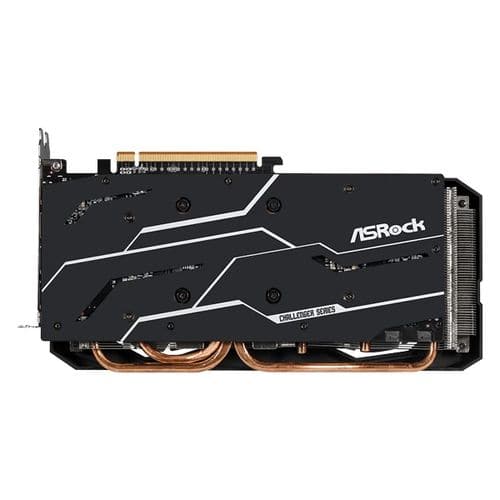

Designed to avoid PCB bending. The fancy outlook makes the graphics card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.
Designed For Enhanced Airflow.
ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.
Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.
Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.
Better Heat Transfer.
The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.
Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
Dr.MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 60A continuous current for each phase, thus providing improved thermal result and superior performance.
Premium 60A Power Choke
Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Nichicon 12K Black Caps
Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.
2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.
Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock’s high-end graphics card.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.
Pro and Easy-to-Use Tuning Utility.
Provides the smart fan speed control and instant performance tweaking
8K Resolution Support
Not only can it handles 4K graphics but also supports the next generation 8K video output for the ultimate visual experience.
PCI® Express 4.0 Support
This graphics card features PCI® Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI® Express 3.0. Get ready for the next generation of PC gaming.
AMD Eyefinity Technology
AMD Eyefinity technology expands the traditional limits of desktop computing by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive.
Powerhouse Performance for 1440p
AMD Radeon™ RX 6700 XT graphics cards deliver serious 1440p gaming and ultra-high frame rates. Get up to 40 high-performance compute units, groundbreaking AMD Infinity Cache, and up to 12GB of dedicated GDDR6 memory. Experience new levels of gaming performance with AMD Smart Access Memory technology when you pair an AMD Radeon™ RX 6700 XT graphics card with an AMD Ryzen™ 5000 Series desktop processor.
Vivid Visuals
With immersive gaming technologies and support for DirectX® 12 Ultimate, AMD Radeon™ RX 6700 XT graphics cards draw you into the action. Experience 1440p gaming with realistic lighting, shadows, and reflections along with rich detail, thanks to DirectX® Raytracing (DXR), variable rate shading (VRS), and AMD FidelityFX features, optimized for AMD RDNA™ 2 architecture.
One Gaming DNA for PCs and Consoles
AMD RDNA™ 2 architecture is the foundation of next-generation gaming PCs and consoles. It is the bedrock of the upcoming revolution in PC gaming graphics and cloud gaming. AMD RDNA™ 2 elevates and unifies visual effects and gameplay across multi-gaming platforms, like no other graphics architecture before.
Elevated Experiences
Level up to ultimate responsiveness and smooth gaming with low-latency gaming technology from AMD Radeon™ Anti-Lag and AMD Radeon™ Boost.1, 2 Enhance your gaming experience with the latest HDMI™ 2.1 VRR technology, with over 1300 AMD FreeSync™ gaming displays3 to choose and support for motherboards with PCIe® 4.0 technology.
Specifications Of ASRock RX 6700 XT Challenger D 12GB
| MODEL | Radeon RX 6700 XT Challenger D |
| CHIPSET | AMD RADEON |
| GPU | RX 6700 XT |
| PCI EXPRESS | 4.0 |
| GPU BASE CLOCK | 2321 MHz |
| GPU BOOST CLOCK | Boost Clock: Up to 2581 MHz |
| Game Clock: Up to 2424 MHz | |
| MEMORY CLOCK | 16 Gbps |
| MEMORY SIZE | 12 GB |
| MEMORY INTERFACE | 192-BIT |
| MEMORY TYPE | GDDR6 |
| DIRECT X SUPPORT | 12 |
| OPEN GL | 4.6 |
| PORTS | HDMI: Yes 1 x HDMI 2.1 |
| DisplayPort: Yes 3 x DisplayPort 1.4 | |
| HDCP Support Yes (2.3) | |
| RESOLUTION | 7680×4320 |
| CROSS FIRE-X SUPPORTED | Yes |
| COOLER | Dual-Fan |
| SOFTWARE | Drivers and Software |
| PACKAGE CONTENTS | Graphics Card, User Manual |
| POWER CONNECTORS | 2 x 8-pin |
| WARRANTY | 2 Years |
| NOTE** | ***Features, Price and Specifications are subject to change without notice. |
