Features of ASROCK RX 7600 Challenger OC 8GB
- Dual Fan Design
- Stylish Metal Backplate
- Striped Axial Fan
- Ultra-fit Heatpipe
- 0dB Silent Cooling
- Super Alloy Graphics Card
- 8GB GDDR6
- DirectX 12 Ultimate
- PCI Express 4.0 Support
- 1 x 8-pin Power Connector

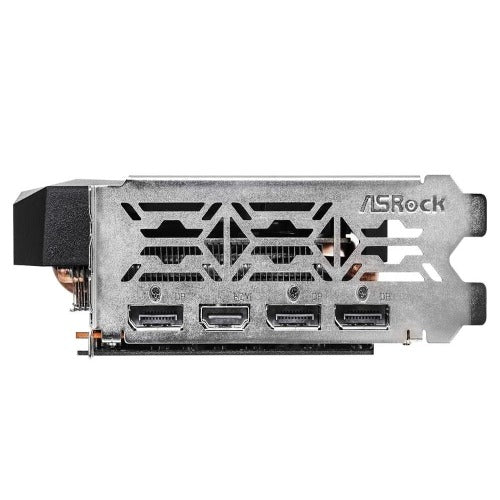

- 3 x DisplayPort 1.4 with DSC / 1 x HDMI 2.1 VRR
- Boost Clock: Up to 2695 MHz / 18 Gbps
- Game Clock: 2280 MHz / 18 Gbps
- Base Clock: 1770 MHz / 18 Gbps

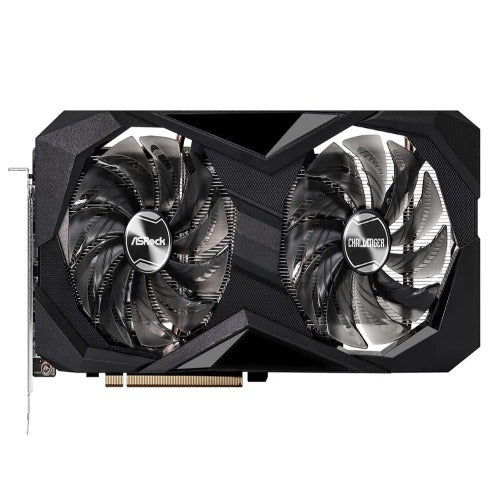

Dual Fan Design
The ASROCK Radeon RX 7600 Challenger OC features Two fans that provide strong cooling performance and make your gaming rig stay cool. It’s optimized for delivering excellent gaming experience with stylish and streamlined design.
Stylish Metal Backplate – Solid, Fancy, Cool.
Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.
Striped Axial Fan – Designed For Enhanced Airflow.
ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.
0dB Silent Cooling – Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
Ultra-fit Heatpipe – Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
Nano Thermal Paste – Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.
Premium Thermal Pad – Better Heat Transfer.
The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.
Precise Screw Torque – Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics card to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 50A continuous current for each phase, thus providing improved thermal result and superior performance.
Premium 90A Power Choke
Compared to traditional chokes, ASRock’s premium 90A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card.
2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.
Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock’s high-end graphics card.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.
ASRock Tweak 2.0 – Pro and Easy-to-Use Tuning Utility.
Provides the smart fan speed control and instant performance tweaking.
8K Resolution Support
Not only can it handles 4K graphics but also supports the next generation 8K video output for the ultimate visual experience.
PCI® Express 4.0 Support
This graphics card features PCI® Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI® Express 3.0. Get ready for the next generation of PC gaming.
AMD Eyefinity Technology
AMD Eyefinity technology expands the traditional limits of desktop computing by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive.
BREAKTHROUGH PERFORMANCE
AMD Radeon™ RX 7600 graphics card set a new level of performance for gamers and streamers. Featuring unified AMD RDNA™ 3 compute units, and blazing fast clock speeds, to enable advanced high refresh rate gaming performance at 1080p.
BREATHTAKING VISUALS
Discover new levels of fidelity and ultra-fast gameplay with High-Performance Rendering, a combination of compute-based AMD FideltyFX™ features and upscaling technologies, to deliver world-class visuals with remarkable performance. Further immerse yourself with the AMD Radiance Display™ Engine and DisplayPort™ 2.14 to experience up to 68 billion colors for video playback at up to 8K. Deliver enhanced visual quality to your audience when streaming and recording using the improved encoders, together with integrated AI and content adaptive machine learning technology to enable better looking and crisper visuals when streaming.
BETTER TOGETHER
Combine an AMD Radeon™ RX 7600 graphics card and AMD Ryzen™ processors to activate AMD smart technologies3. You can unleash outstanding performance to give you an edge in the game. Advance your AMD Radeon™ RX 7000 Series graphics card with the AMD Software: Adrenalin Edition™ application, featuring bulletproof drivers, for the best PC gaming experiences.
UPSIZE PERFORMANCE. – MAXIMIZE FIDELITY
AMD FidelityFX™ Super Resolution technology1 takes upscaling technology to the next level. Providing incredible image quality while boosting framerates in supported games.
AMD Radeon™ Super Resolution (RSR)2 leverages FSR technology on the driver level, giving you upscaled performance benefits across thousands of games.
AMD Radeon™ Super Resolution (RSR)2 leverages FSR technology on the driver level, giving you upscaled performance benefits across thousands of games.

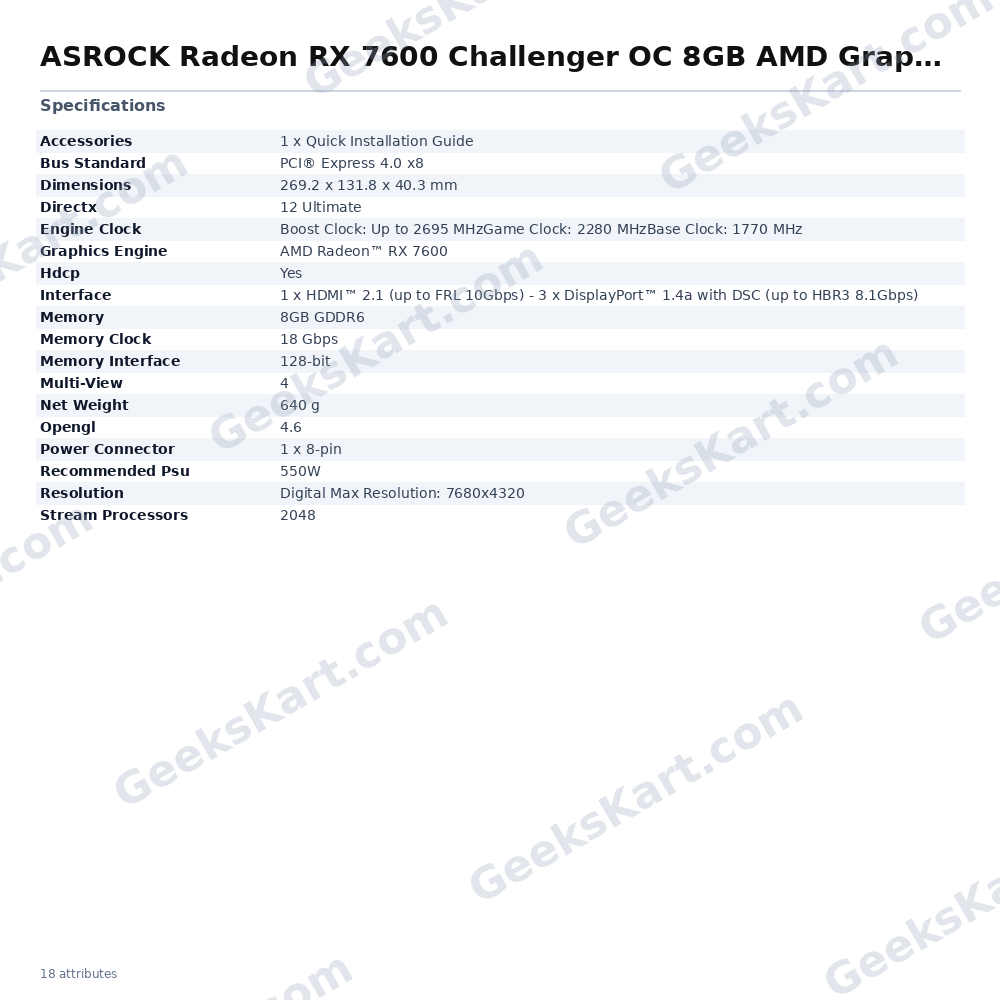

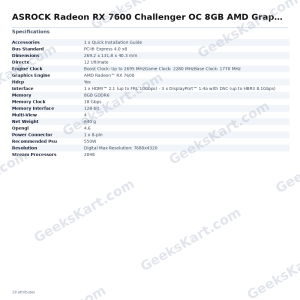

Specifications Of ASROCK RX 7600 Challenger OC 8GB
| Graphics Engine | AMD Radeon™ RX 7600 |
| Bus Standard | PCI® Express 4.0 x8 |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Memory | 8GB GDDR6 |
| Engine Clock | Boost Clock: Up to 2695 MHz Game Clock: 2280 MHz Base Clock: 1770 MHz |
| Stream Processors | 2048 |
| Memory Clock | 18 Gbps |
| Memory Interface | 128-bit |
| Resolution | Digital Max Resolution: 7680×4320 |
| Interface | 1 x HDMI™ 2.1 (up to FRL 10Gbps) – 3 x DisplayPort™ 1.4a with DSC (up to HBR3 8.1Gbps) |
| HDCP | Yes |
| Multi-view | 4 |
| Recommended PSU | 550W |
| Power Connector | 1 x 8-pin |
| Accessories | 1 x Quick Installation Guide |
| Dimensions | 269.2 x 131.8 x 40.3 mm |
| Net Weight | 640 g |
