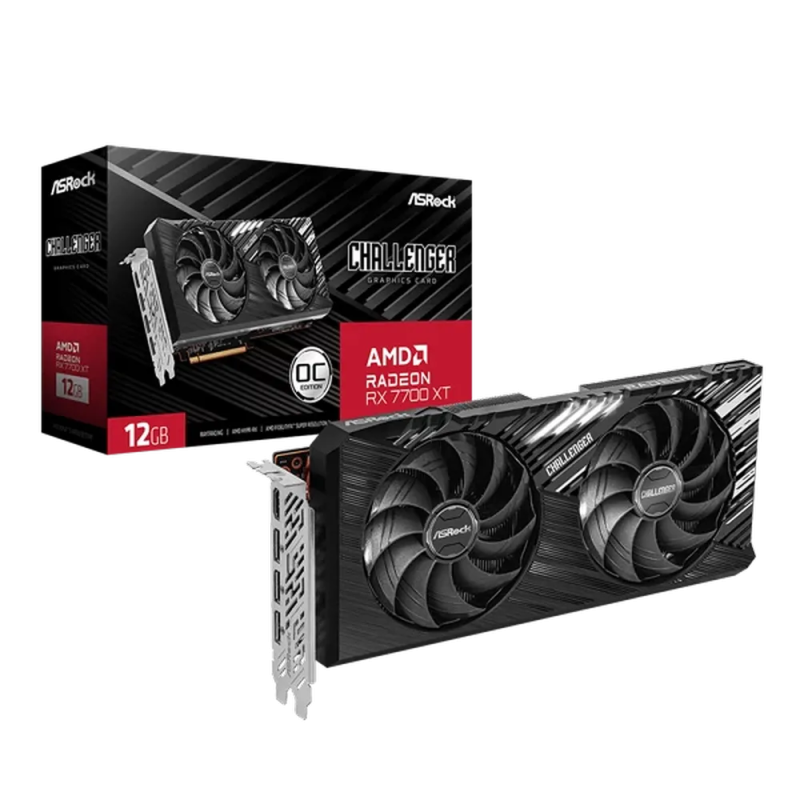

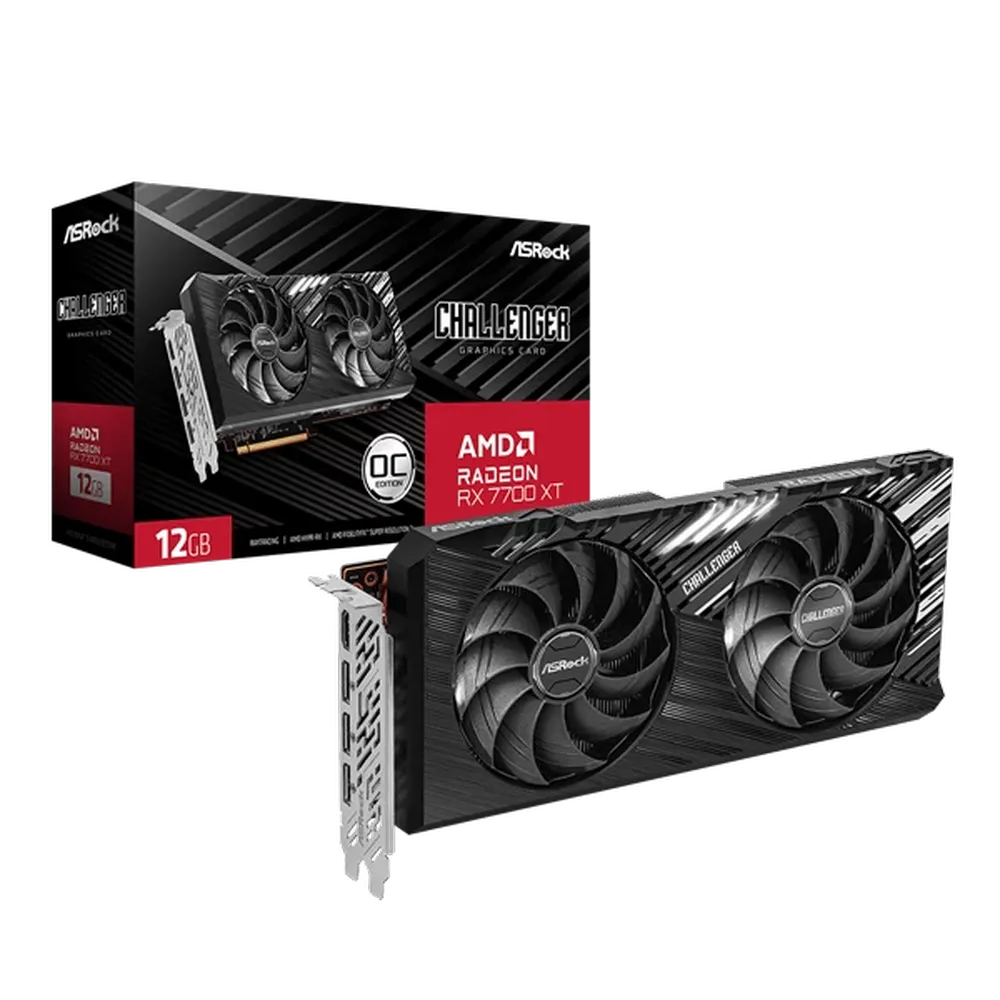

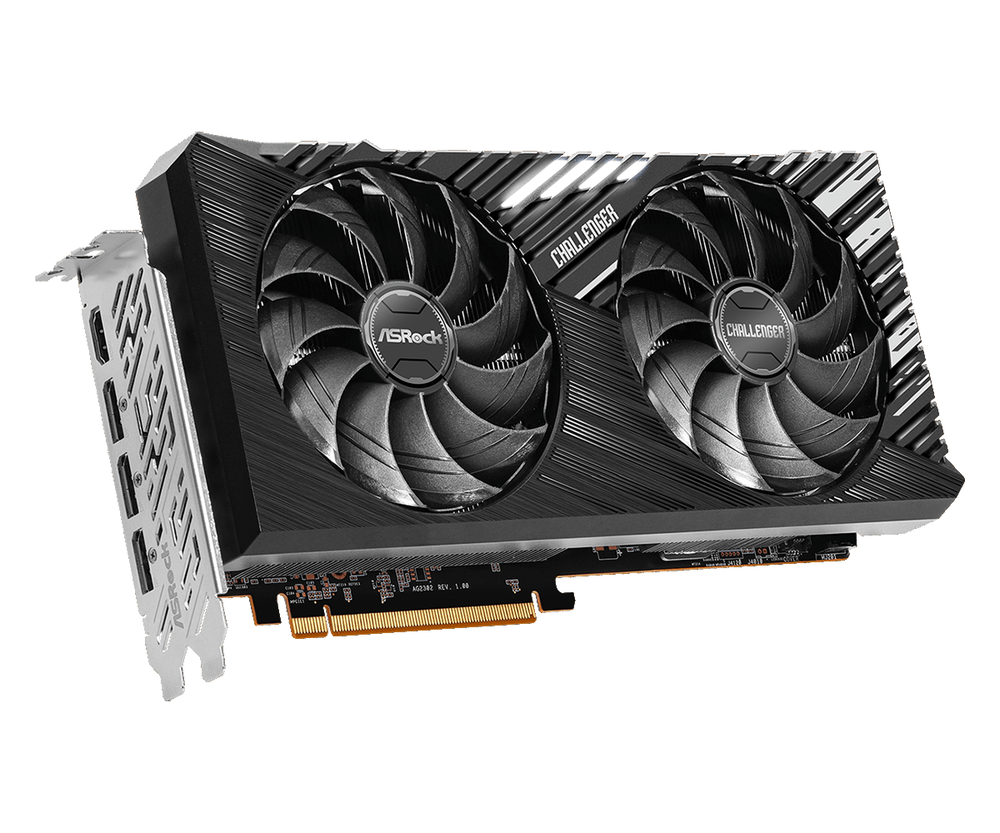

ASROCK Radeon RX 7700 XT Challenger OC 12GB AMD Graphic Card
MPN ASROCK-RX-7700-XT-CHALLENGER-OC · Brand ASROCK
Features Of ASROCK Radeon RX 7700 XT Challenger OC 12GB Clock: GPU / Memory Boost Clock*: Up to 2584 MHz / 18 Gbps Game Clock**: 2226 MHz / 18 Gbps Key Specification ASROCK Radeon RX 7700 XT Challenger OC 12GB GDDR6 on 192-bit Memory Bus 54 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators) 48MB AMD Infinity Cache™ technology Microsoft® DirectX® 12 Ultimate PCI® Express4.0 Support 2 x 8-pin Power Connector Output: 3 x DisplayPort™ 2.1***, 1 x HDMI® 2.1 Key Features Dual Fan Design Stylish Metal
Inclusive of GST · GST invoice available
Overview
Features Of ASROCK Radeon RX 7700 XT Challenger OC 12GB
Clock: GPU / Memory
- Boost Clock*: Up to 2584 MHz / 18 Gbps
- Game Clock**: 2226 MHz / 18 Gbps
Key Specification
- ASROCK Radeon RX 7700 XT Challenger OC
- 12GB GDDR6 on 192-bit Memory Bus
- 54 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators)
- 48MB AMD Infinity Cache™ technology
- Microsoft® DirectX® 12 Ultimate
- PCI® Express4.0 Support
- 2 x 8-pin Power Connector
- Output: 3 x DisplayPort™ 2.1***, 1 x HDMI® 2.1
Key Features
- Dual Fan Design
- Stylish Metal Backplate
- Striped Ring Fan
- Ultra-fit Heatpipe
- LED Indicator
- 0dB Silent Cooling
- Super Alloy Graphics Card

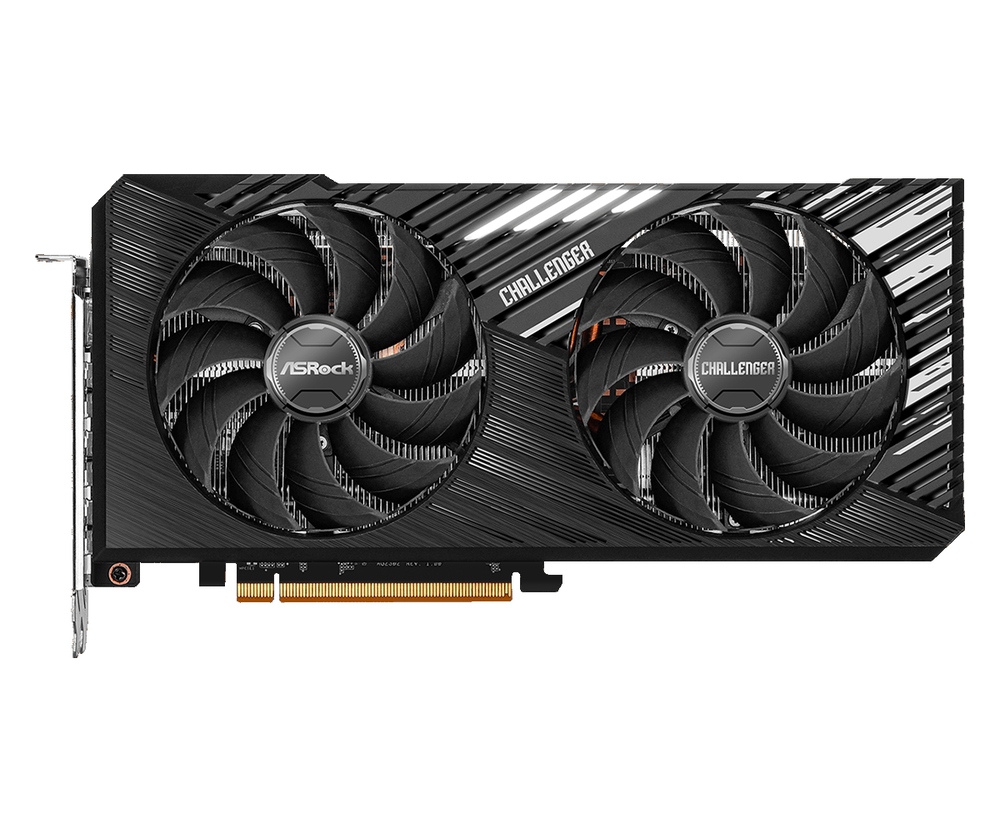

Dual Fan Design
Two fans that provide strong cooling performance and make your gaming rig stay cool. It’s optimized for delivering excellent gaming experience with stylish and streamlined design.

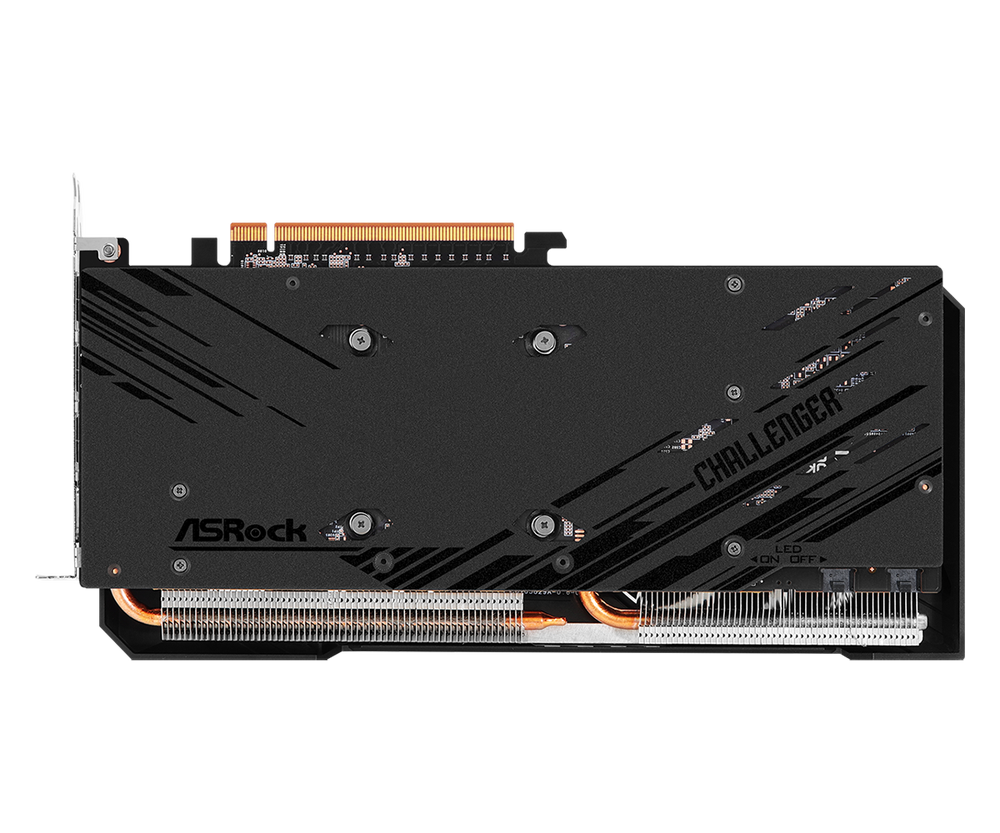

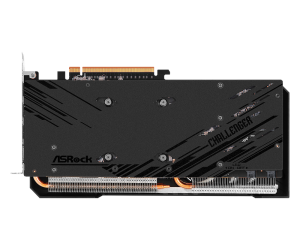

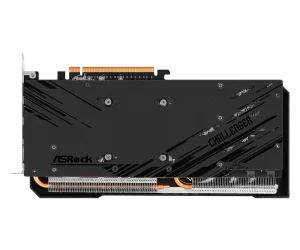

Stylish Metal Backplate Solid, Fancy, Cool.
Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.
Striped Ring Fan Designed For Enhanced Airflow
ASRock’s all new Striped Ring Fan get more lateral intake and to provide better airflow through the cooling array.

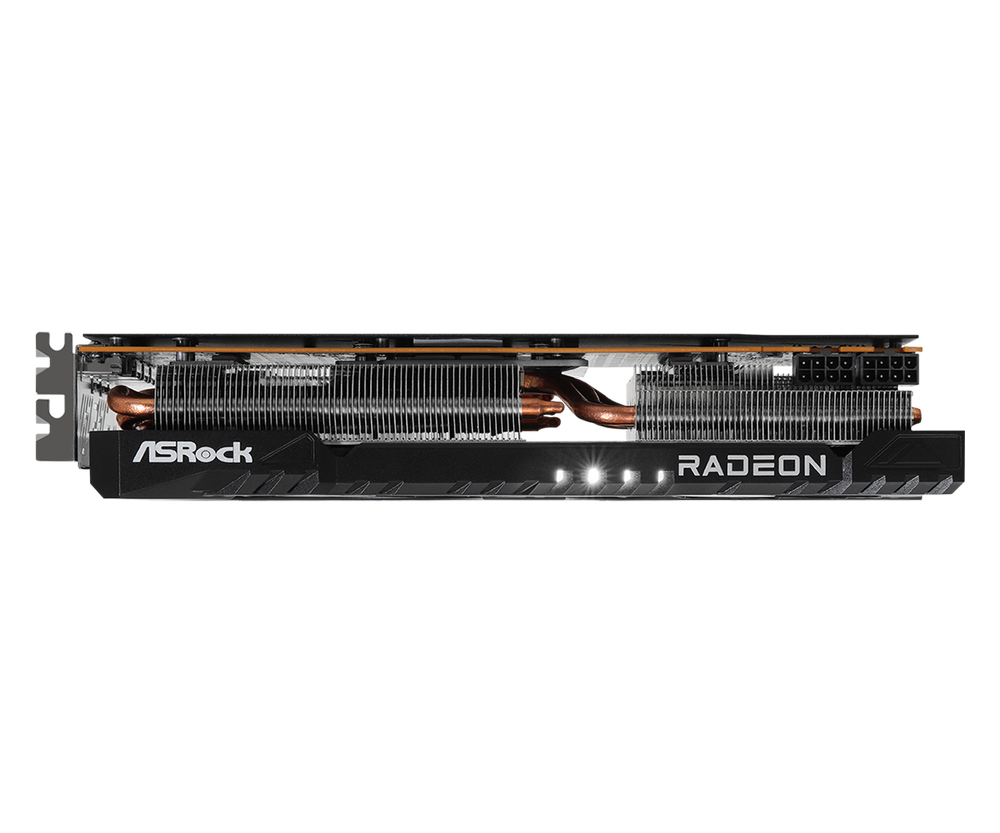

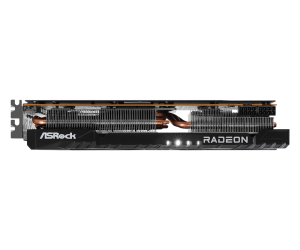

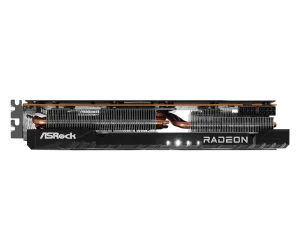

LED Indicators More Decoration. More Beauty.
LED indicator embellished the graphics card to make it more beautiful.
0dB Silent Cooling Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
Specifications:
| Model | ASROCK AMD Radeon™ RX 7700 XT Graphics |
| Bus Standard | - PCI® Express4.0 x16 |
| DirectX | - 12 Ultimate |
| OpenGL | -4.6 |
| Memory | - GDDR6 12GB |
| Engine Clock | - Boost Clock: 2584 MHz - Game Clock: 2226 MHz |
| Stream Processors | -3456 |
| Compute Units | -54 |
| Memory Clock | - 18Gbps |
| Memory Interface | - 192-bit |
| Resolution | - Digital Max Resolution: 7680x4320 |
| Interface | - 1 x HDMI™ 2.1 (up to FRL 12Gbps) |
| - 3 x DisplayPort™ 2.1 with DSC (up to UHBR3 13.5Gbps)* | |
| HDCP | - Yes |
| Multi-view | -4 |
| Recommended PSU | - 750W |
| Power Connector | - 2 x 8-pin |
| Accessories | - 1 x Quick Installation Guide |
| Dimensions | - 266x130x51 mm |
| Net Weight | -985g |
Datasheet
| Interface | – 1 x HDMI™ 2.1 (up to FRL 12Gbps) |
|---|---|
| Memory Clock | – 18Gbps |
| Recommended PSU | – 750W |
| Resolution | – Digital Max Resolution: 7680×4320 |
| Hdcp | – Yes |
| Model | ASROCK AMD Radeon™ RX 7700 XT Graphics |
| Memory | – GDDR6 12GB |
| Opengl | -4.6 |
| Directx | – 12 Ultimate |
| Dimensions | – 266x130x51 mm |
| Multi-View | -4 |
| Net Weight | -985g |
| Accessories | – 1 x Quick Installation Guide |
| Bus Standard | – PCI® Express4.0 x16 |
| Engine Clock | – Boost Clock: 2584 MHz- Game Clock: 2226 MHz |
| Compute Units | -54 |
| Power Connector | – 2 x 8-pin |
| Memory Interface | – 192-bit |
| Stream Processors | -3456 |
