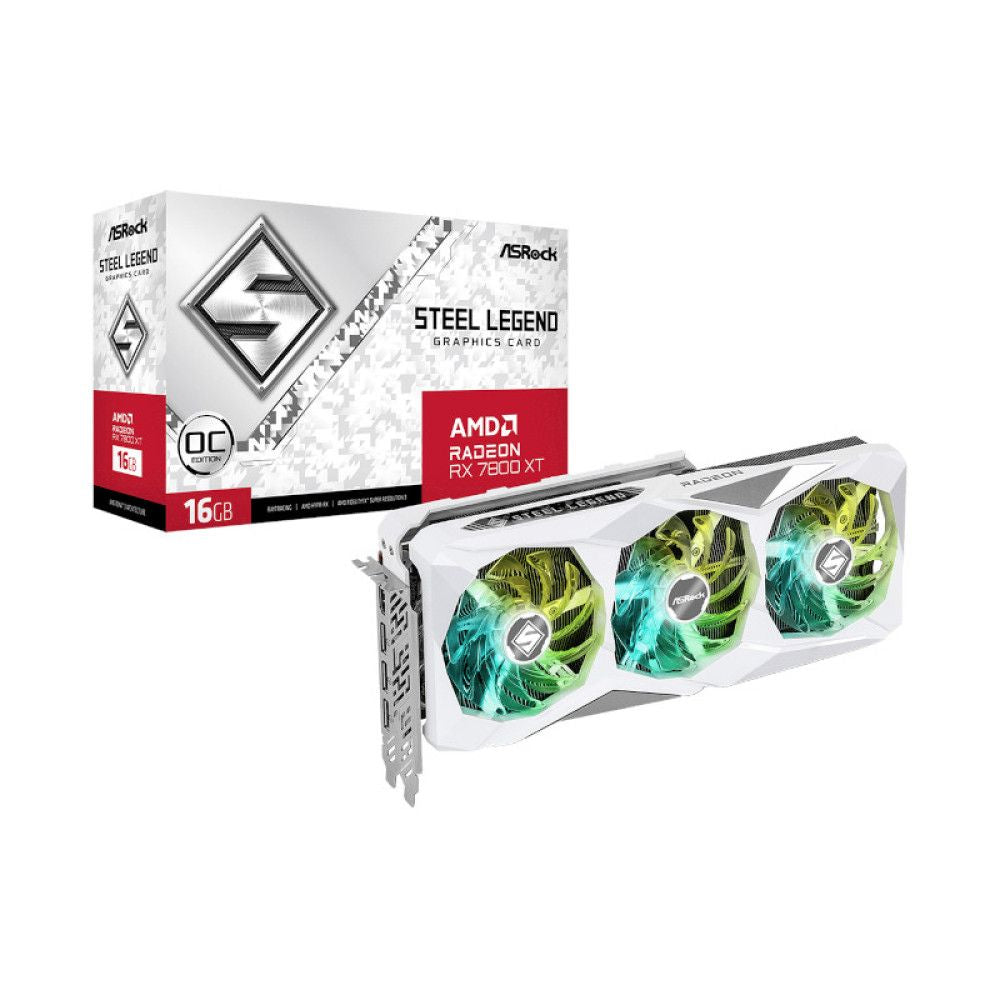

ASROCK Radeon RX 7800 XT Steel Legend OC 16GB AMD Graphic Card
MPN ASROCK-RX-7800-XT-STEEL-LEGEND-OC · Brand ASROCK
Features of ASROCK Radeon RX 7800 XT Steel Legend OC 16GB AMD Graphic Card Boost Clock*: Up to 2520 MHz / 19.5 Gbps Game Clock**: 2213 MHz / 19.5 Gbps Key Specification ASROCK Radeon RX 7800 XT Steel Legend OC graphics card 16GB GDDR6 on 256-Bit Memory Bus 60 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators) 64MB AMD Infinity Cache™ technology Microsoft® DirectX® 12 Ultimate PCI® Express 4.0 Support 2 x 8-pin Power Connectors 3 x DisplayPort™ 2.1***, 1 x HDMI™ 2.1 Key Features Polychrome SYNC
Inclusive of GST · GST invoice available
Overview
Features of ASROCK Radeon RX 7800 XT Steel Legend OC 16GB AMD Graphic Card
- Boost Clock*: Up to 2520 MHz / 19.5 Gbps
- Game Clock**: 2213 MHz / 19.5 Gbps
Key Specification
- ASROCK Radeon RX 7800 XT Steel Legend OC graphics card
- 16GB GDDR6 on 256-Bit Memory Bus
- 60 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators)
- 64MB AMD Infinity Cache™ technology
- Microsoft® DirectX® 12 Ultimate
- PCI® Express 4.0 Support
- 2 x 8-pin Power Connectors
- 3 x DisplayPort™ 2.1***, 1 x HDMI™ 2.1
Key Features
- Polychrome SYNC
- Triple Fan Design

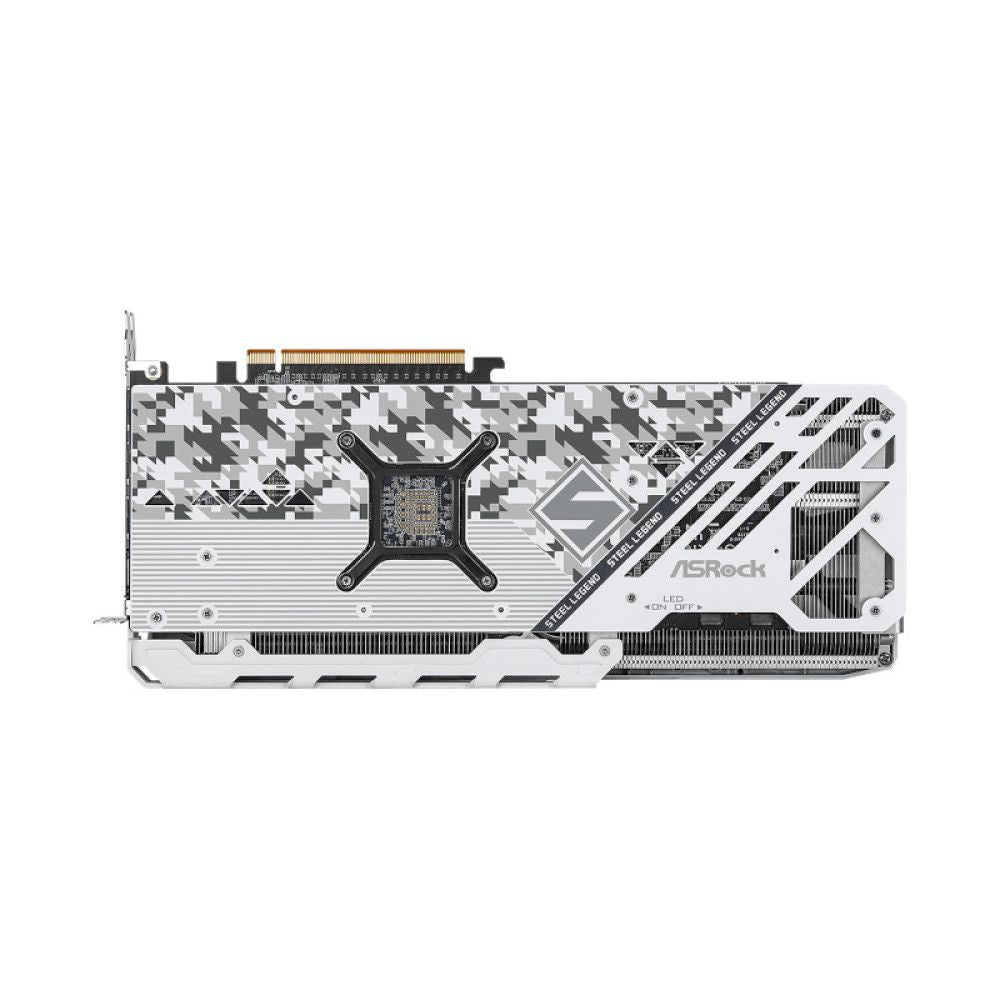

- Stylish Metal Backplate
- Reinforced Metal Frame
- Striped Axial Fan
- Air Deflecting Fin
- Ultra-fit Heatpipe
Specifications of ASROCK Radeon RX 7800 XT Steel Legend OC 16GB AMD Graphic Card
| Graphics Engine | AMD Radeon RX 7800 XT ( RX7800XT-SL-16GO ) |
| Bus Standard | PCI® Express 4.0 x16 |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Memory | GDDR6 16GB |
| Engine Clock | Boost Clock*: Up to 2520 MHz Game Clock**: 2213 MHz *Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. **Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. |
| Stream Processors | 3840 |
| Memory Clock | 19.5 Gbps |
| Memory Interface | 256-bit |
| Resolution | Digital Max Resolution: 7680x4320 |
| Interface | 3 x DisplayPort™ 2.1* 1 x HDMI™ 2.1 *DisplayPort (DP) 2.1 on any one or two ports. DisplayPort (DP) 1.4a on any and up to 3 ports simultaneously. |
| HDCP | Yes |
| Multi-view | 4 |
| Recommended PSU | 800W |
| Power Connector | 2 x 8-pin |
| Accessories | 1 x Quick Installation Guide |
| Dimensions | 304 x 131 x 56 mm, 2.8-slot |
| Net Weight | 1242 g |
| Warranty | 2 years |
| Note* | Price, feature and specifications are subject to change without notice |

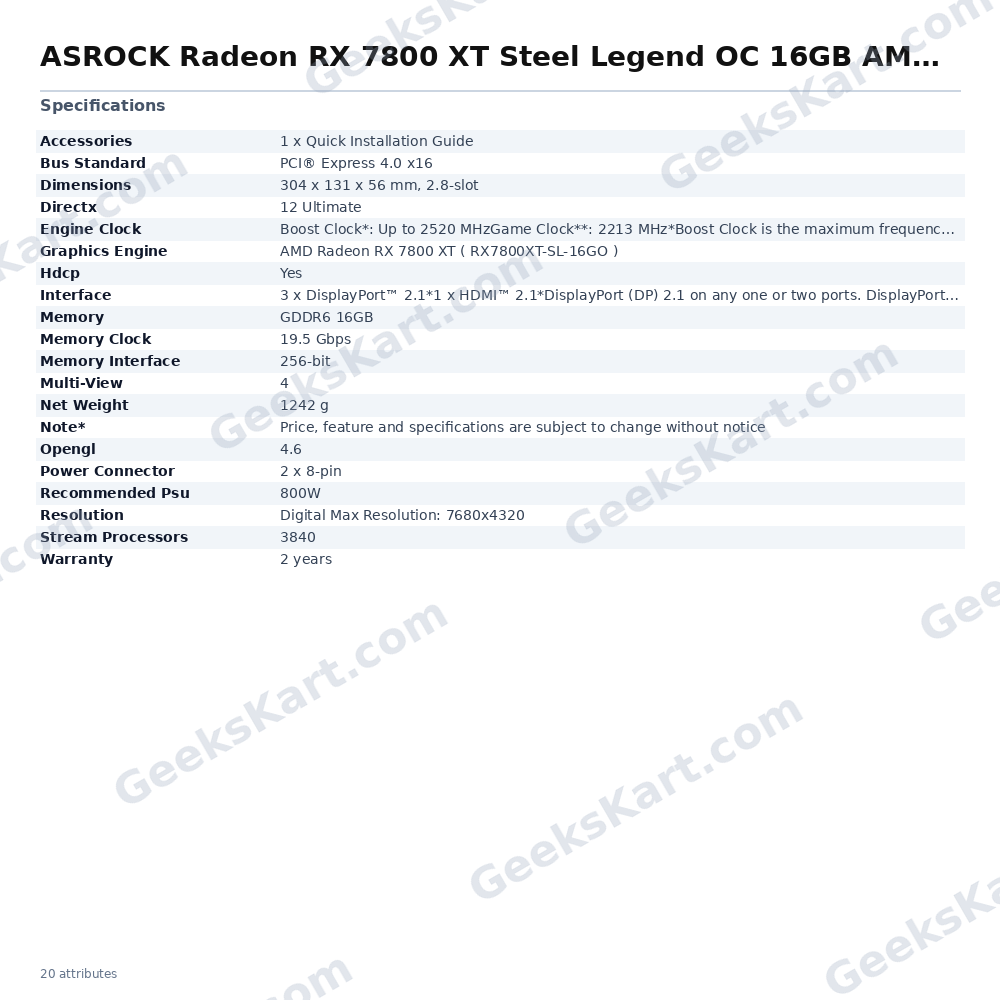

Datasheet
| Warranty | 2 Years |
|---|---|
| Interface | 3 x DisplayPort™ 2.1*1 x HDMI™ 2.1*DisplayPort (DP) 2.1 on any one or two ports. DisplayPort (DP) 1.4a on any and up to 3 ports simultaneously |
| Memory Clock | 19.5 Gbps |
| Recommended PSU | 800W |
| Resolution | Digital Max Resolution: 7680×4320 |
| Hdcp | Yes |
| Note* | Price, feature and specifications are subject to change without notice |
| Memory | GDDR6 16GB |
| Opengl | 4.6 |
| Directx | 12 Ultimate |
| Dimensions | 304 x 131 x 56 mm, 2.8-slot |
| Multi-View | 4 |
| Net Weight | 1242 g |
| Accessories | 1 x Quick Installation Guide |
| Bus Standard | PCI® Express 4.0 x16 |
| Engine Clock | Boost Clock*: Up to 2520 MHzGame Clock**: 2213 MHz*Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.**Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary |
| Graphics Engine | AMD Radeon RX 7800 XT ( RX7800XT-SL-16GO ) |
| Power Connector | 2 x 8-pin |
| Memory Interface | 256-bit |
| Stream Processors | 3840 |
