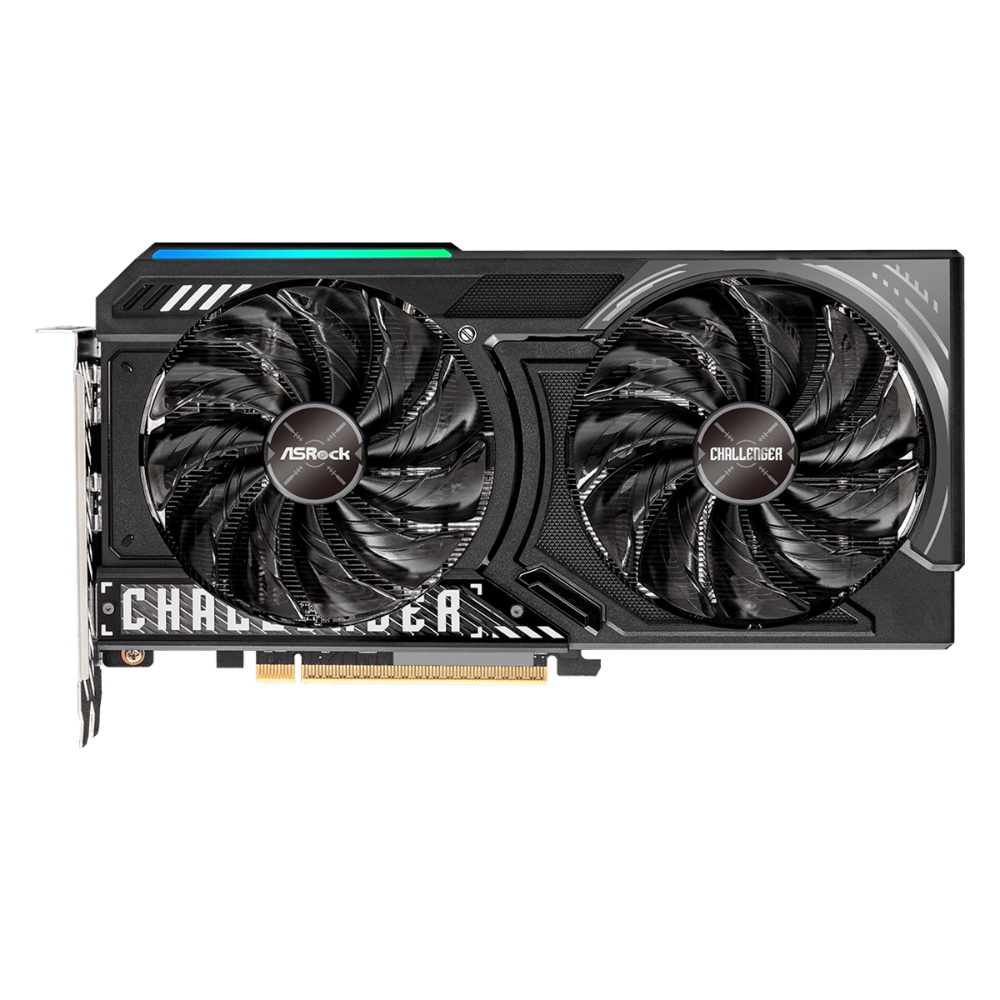

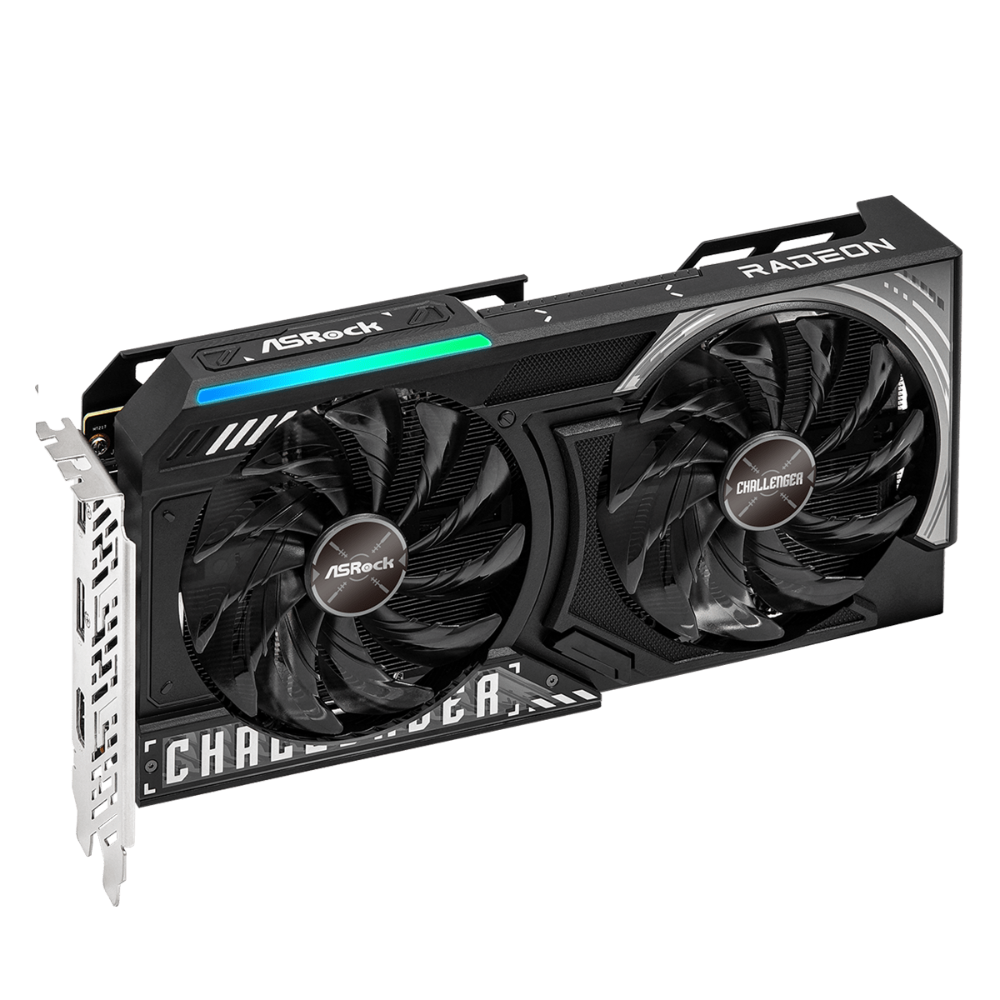

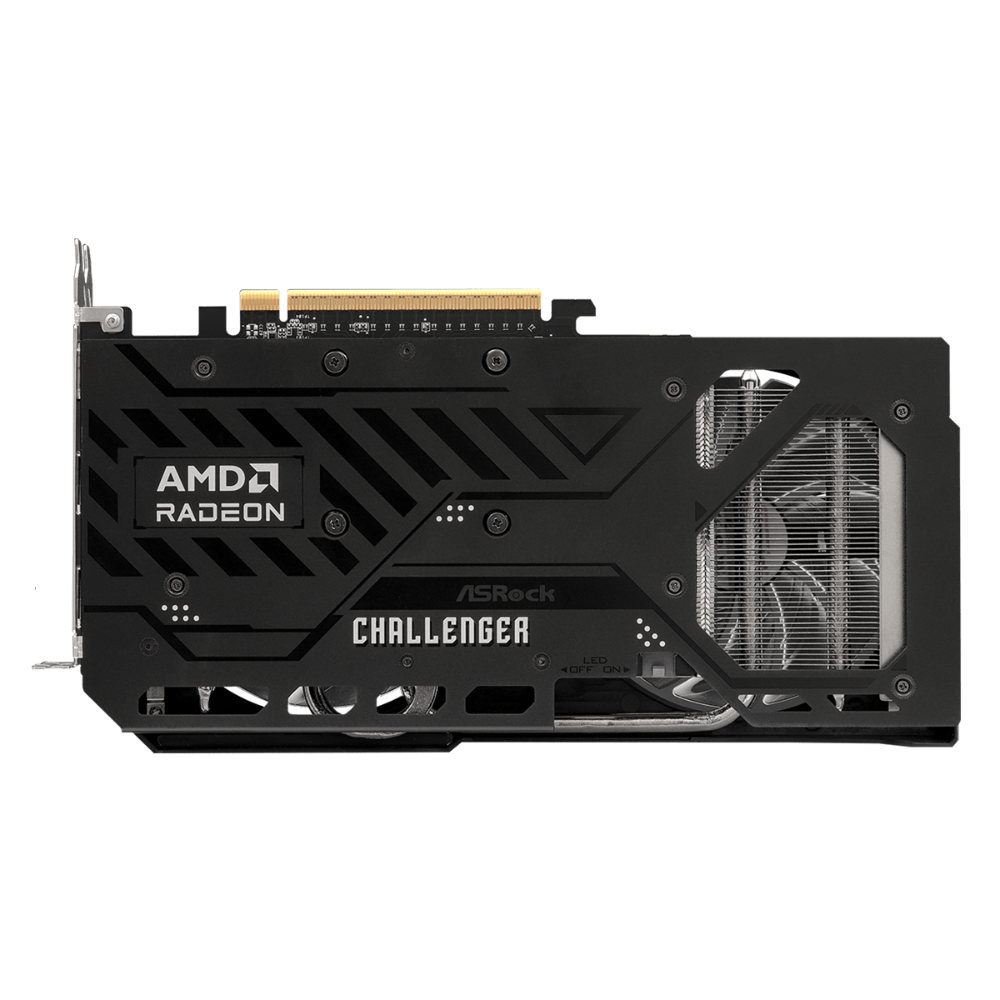

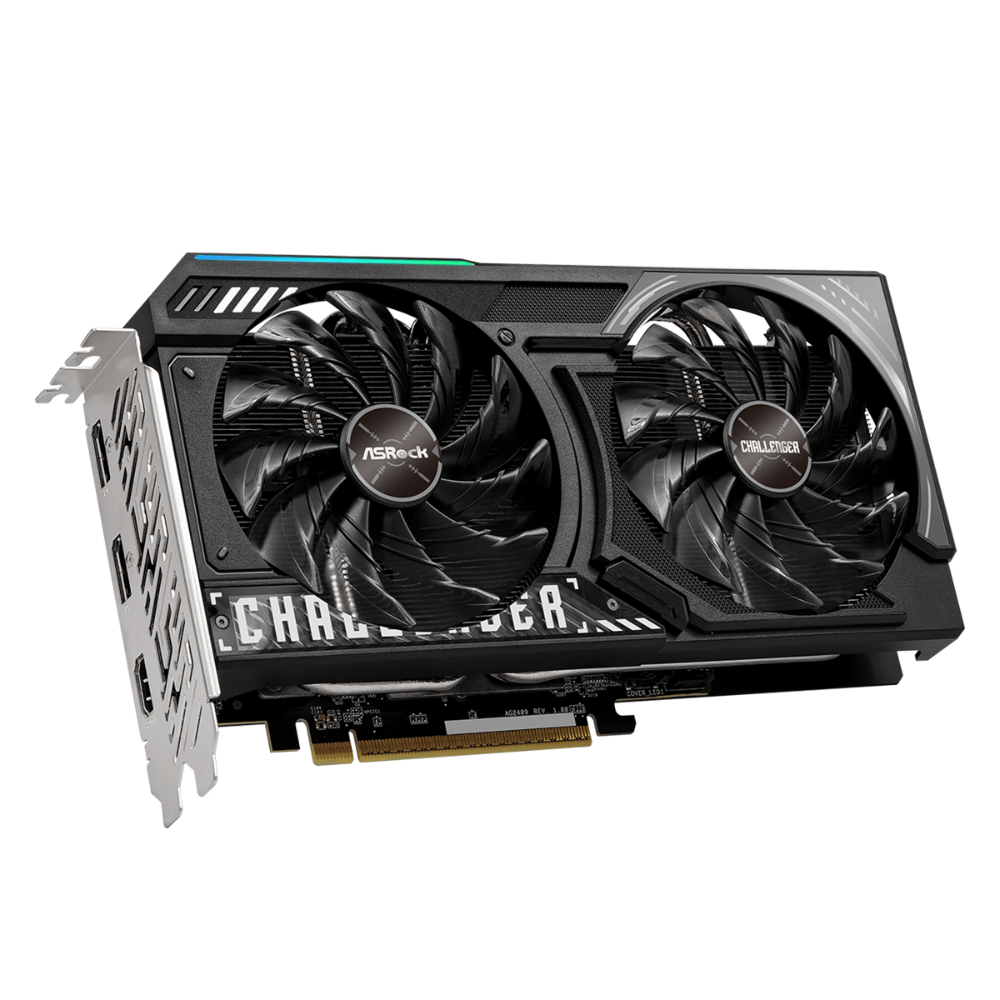

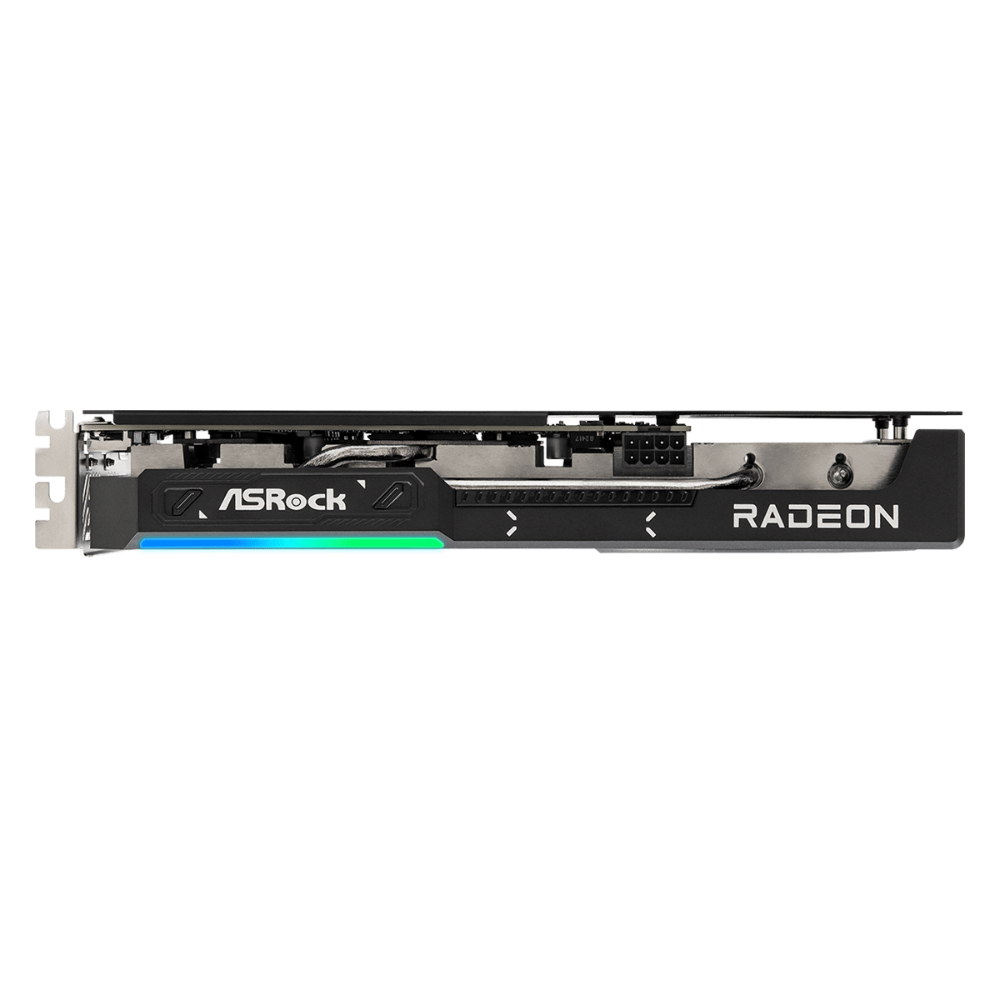

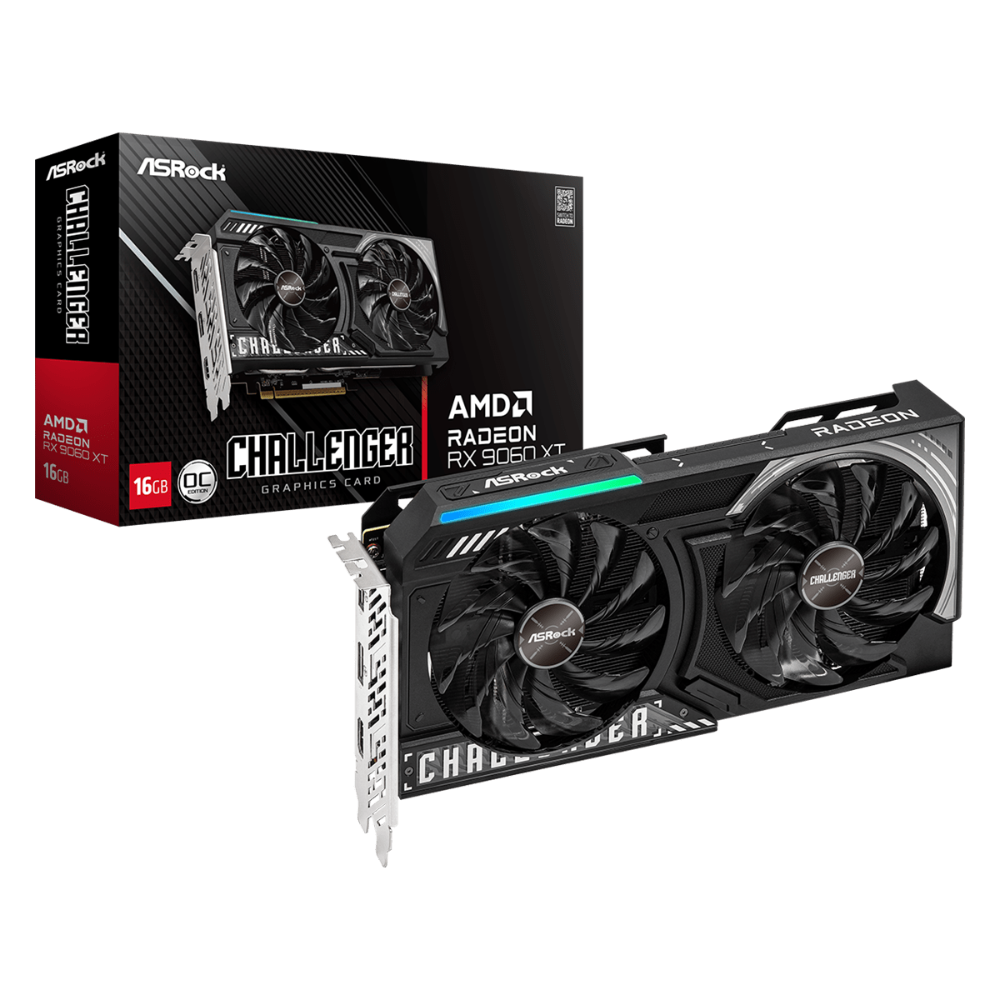

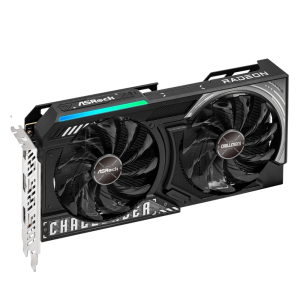

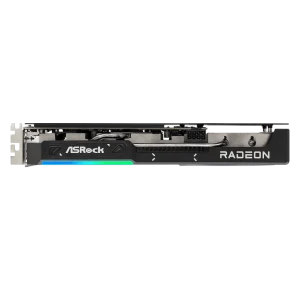

ASROCK Radeon RX 9060 XT Challenger OC 16GB AMD Graphic Card
MPN ASROCK-RX-9060-XT-CHALLENGER-OC-16GB-BLACK · Brand ASROCK
The ASRock Radeon RX 9060 XT Challenger OC 16GB delivers AMD RDNA 4 performance with 2048 stream processors, 16 GB GDDR6 memory, a 3290 MHz boost clock, PCIe 5.0 support, and a dual-fan 0 dB cooling system for capable 1440p gaming
Inclusive of GST · GST invoice available
Overview
The ASRock Radeon RX 9060 XT Challenger OC 16GB is a mid-range to upper-mid-range AMD graphics card built on the RDNA 4 architecture, targeting smooth 1440p gaming performance. Carrying the model number RX9060XT-CL-16GO, it features 2048 stream processors across 32 compute units, clocked at a game clock of 2700 MHz and a boost clock of 3290 MHz, making it a capable option for demanding modern titles at high resolutions. Equipped with 16 GB of GDDR6 memory on a 128-bit interface running at 20 Gbps, the card delivers ample video memory for high-resolution textures and future-ready workloads. The PCIe 5.0 x16 bus standard ensures compatibility with the latest AM5 and LGA1851 platforms, while AMD Smart Access Memory support further optimises bandwidth when paired with compatible AMD Ryzen processors. ASRock's Challenger OC cooling solution uses a dual-fan design with custom Striped Axial fans engineered to improve airflow via their structured fan blades. Ultra-fit heatpipes are consolidated to maximise contact with the GPU baseplate, complemented by high-density metal welding between pipes and fin stacks. Nano thermal paste and premium thermal pads cover both the GPU die and board components, while a stylish metal backplate adds structural rigidity and assists with heat dissipation from the card's rear side. A 0 dB silent mode stops the fans entirely during low-load or idle scenarios for near-silent desktop use. LED indicators with a physical on/off LED switch allow aesthetic customisation without software dependency. The display output configuration includes one HDMI 2.1b port and two DisplayPort 2.1a ports, supporting up to three simultaneous displays at a maximum digital resolution of 7680×4320 (8K). HDCP support is included. The card supports DirectX 12 Ultimate and OpenGL 4.6, and is compatible with AMD FidelityFX Super Resolution 4 (FSR 4) ML-powered upscaling and AMD HYPR-RX one-click optimisation via AMD Software: Adrenaline Edition. Verified Specifications: - GPU: AMD Radeon RX 9060 XT (RDNA 4) - Stream Processors: 2048 | Compute Units: 32 - Boost Clock: 3290 MHz | Game Clock: 2700 MHz - Memory: 16 GB GDDR6, 128-bit, 20 Gbps - Bus: PCIe 5.0 x16 - Outputs: 1x HDMI 2.1b, 2x DisplayPort 2.1a (max 3 displays, up to 7680×4320) - DirectX 12 Ultimate | OpenGL 4.6 | HDCP: Yes - Power Connector: 1x 8-pin | Recommended PSU: 550W - Dimensions: 249 x 132 x 41 mm | Weight: 645 g

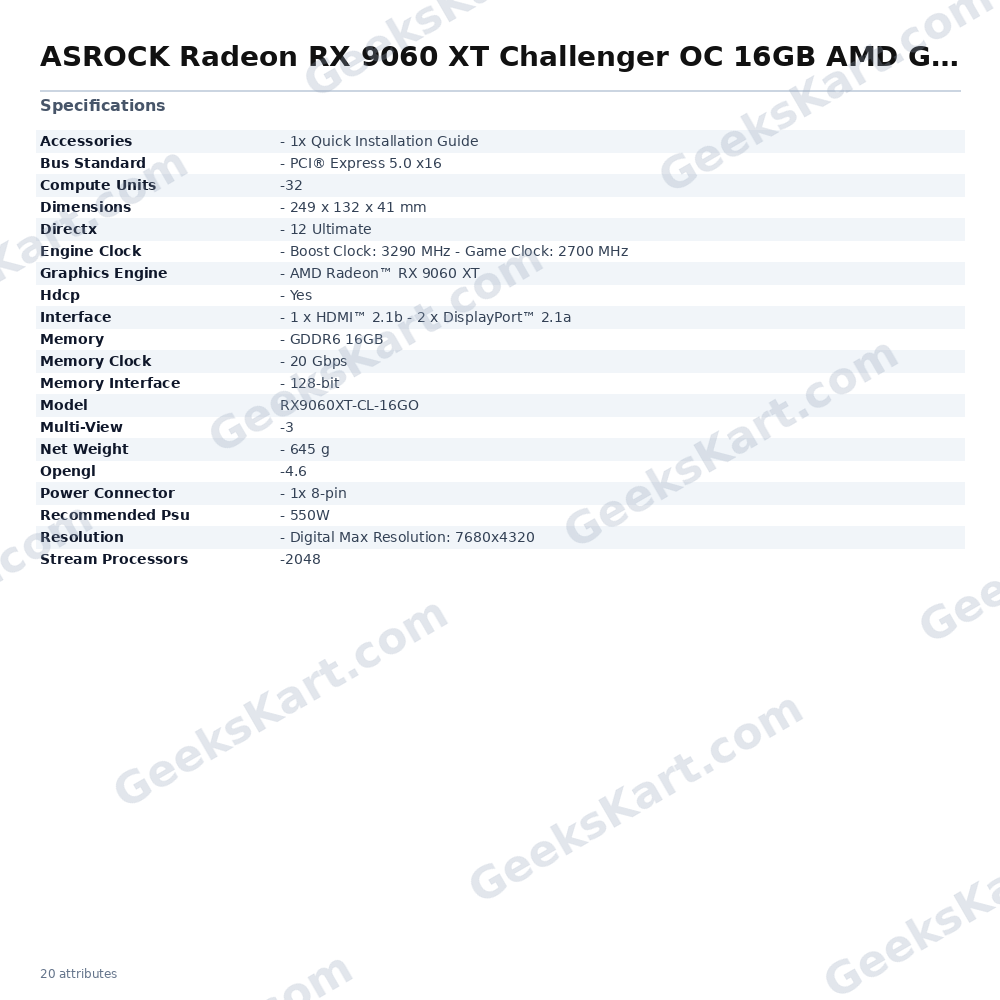

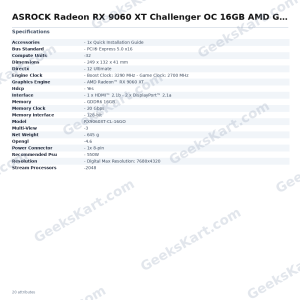

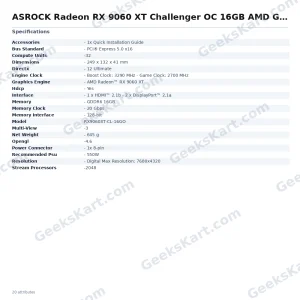

Datasheet
| Hdcp | – Yes |
|---|---|
| Memory | – GDDR6 16GB |
| Opengl | -4.6 |
| Directx | – 12 Ultimate |
| Model | RX9060XT-CL-16GO |
| Dimensions | – 249 x 132 x 41 mm |
| Multi-View | -3 |
| Net Weight | – 645 g |
| Accessories | – 1x Quick Installation Guide |
| Bus Standard | – PCI® Express 5.0 x16 |
| Engine Clock | – Boost Clock: 3290 MHz – Game Clock: 2700 MHz |
| Compute Units | -32 |
| Graphics Engine | – AMD Radeon™ RX 9060 XT |
| Power Connector | – 1x 8-pin |
| Memory Interface | – 128-bit |
| Stream Processors | -2048 |
| Interface | – 1 x HDMI™ 2.1b – 2 x DisplayPort™ 2.1a |
| Memory Clock | – 20 Gbps |
| Recommended PSU | – 550W |
| Resolution | – Digital Max Resolution: 7680×4320 |
