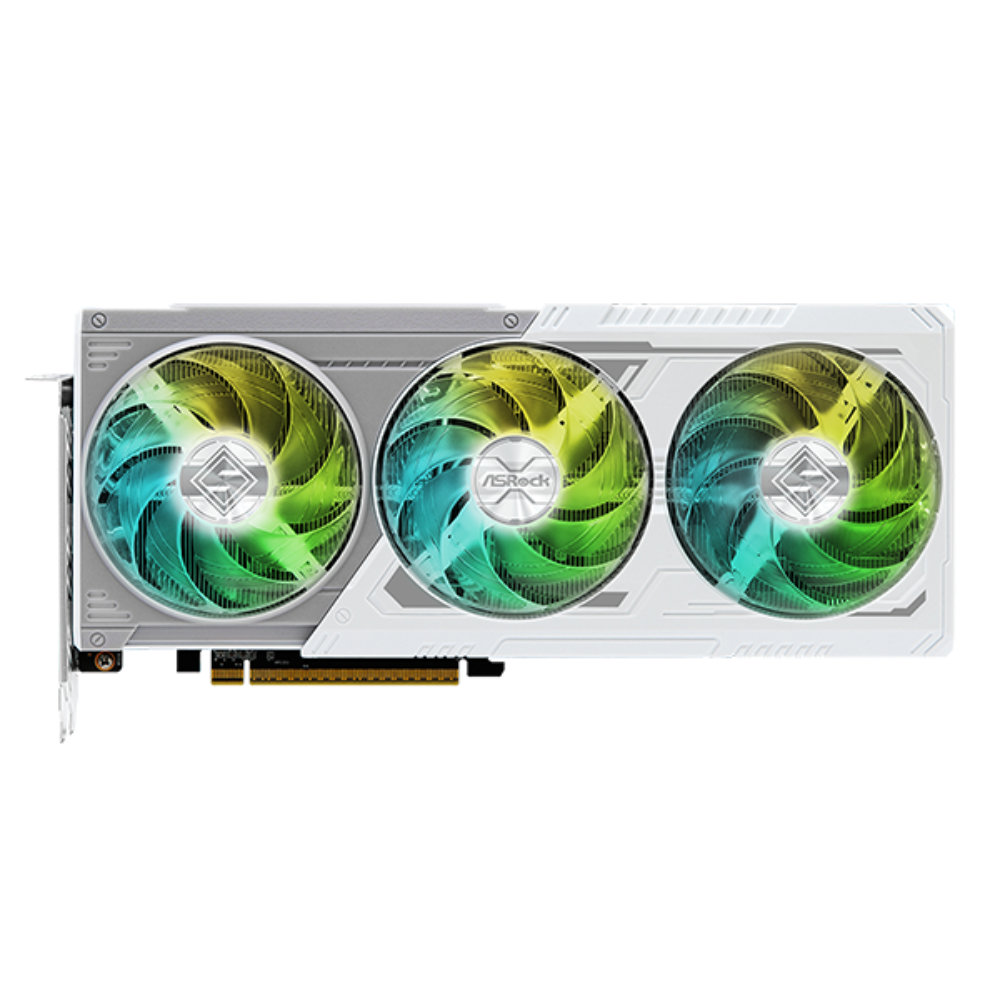

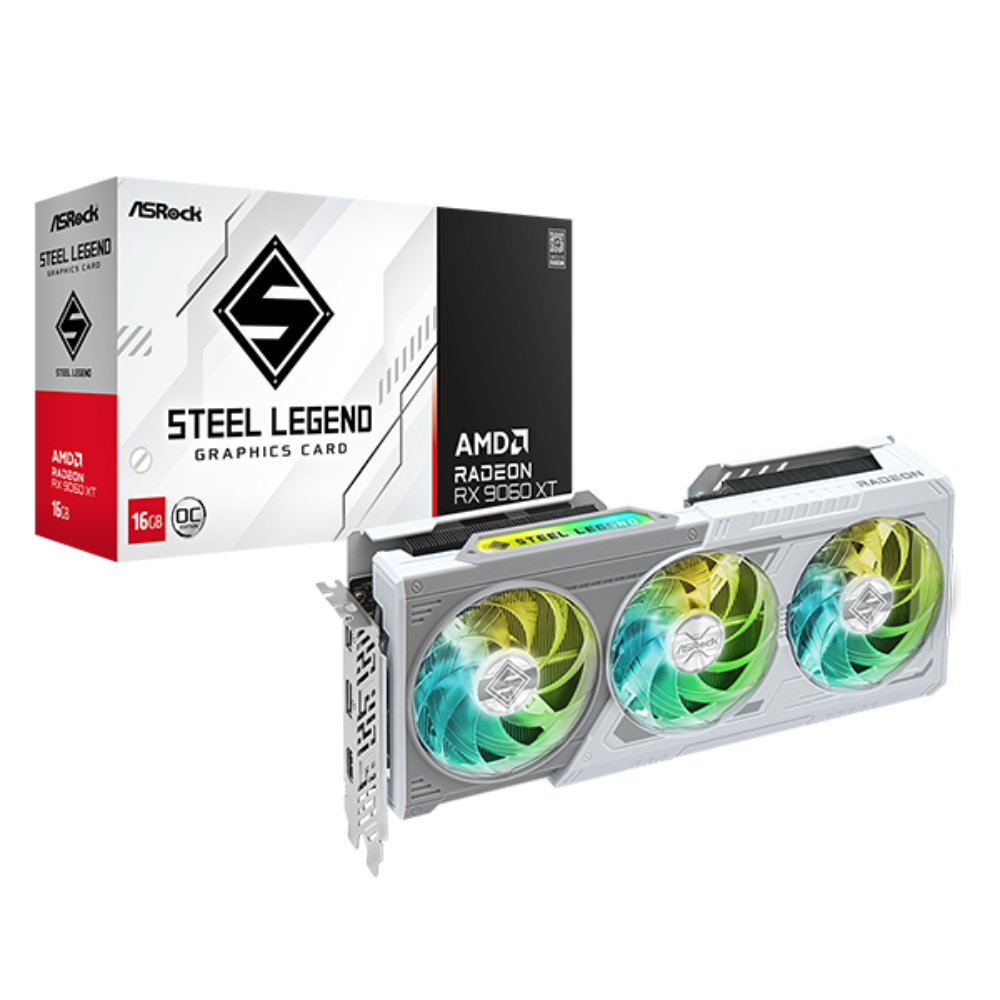

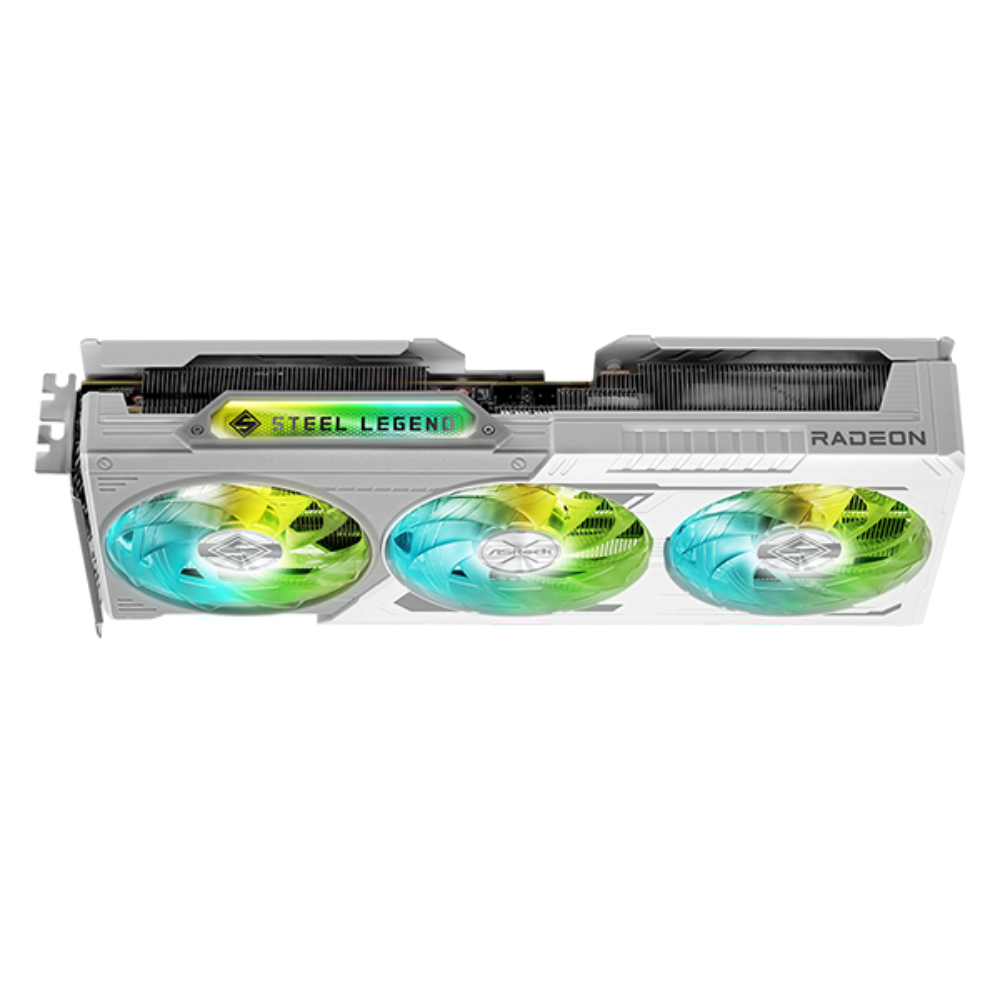

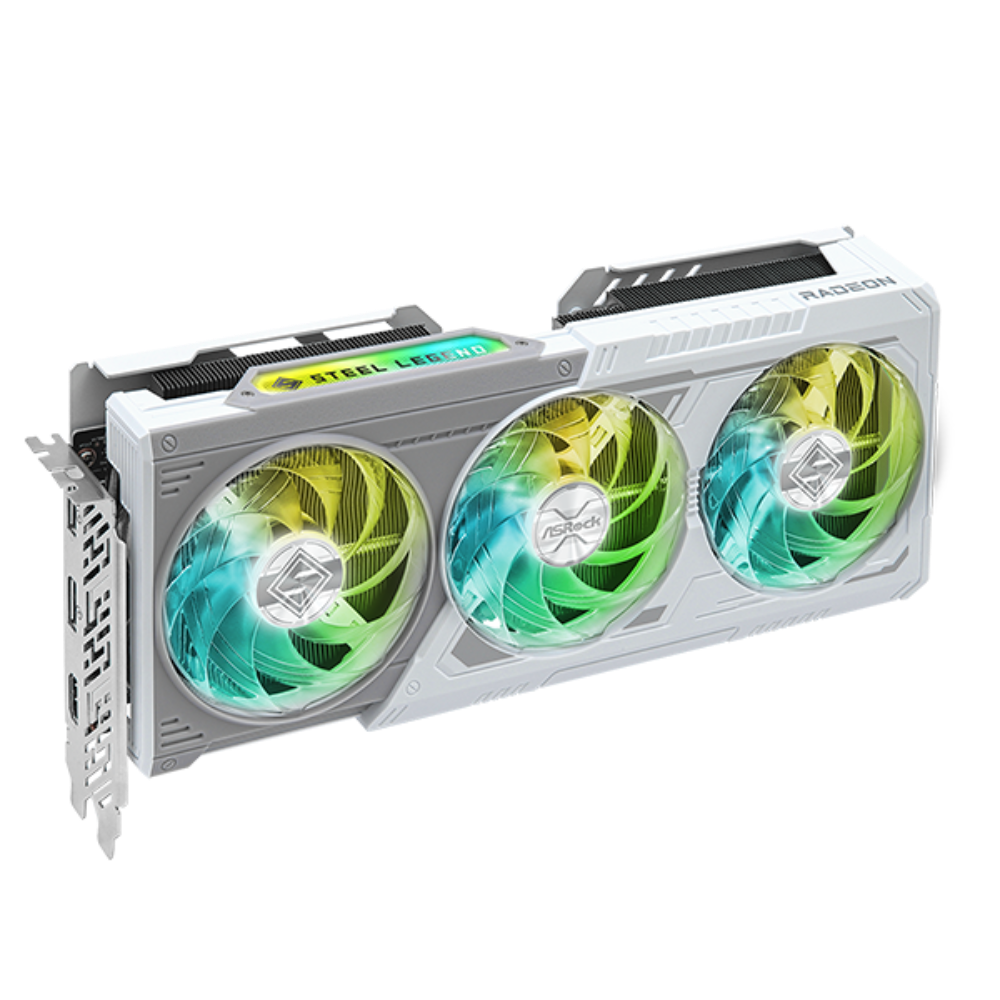

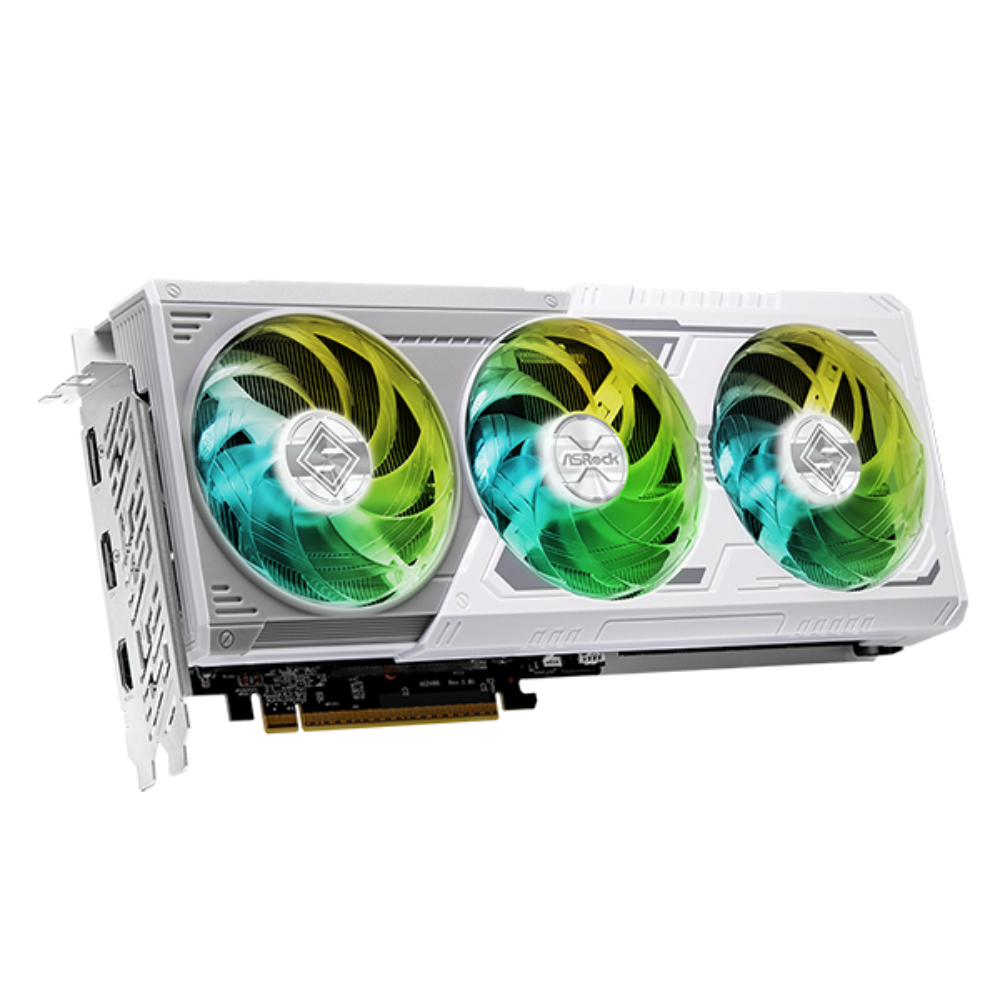

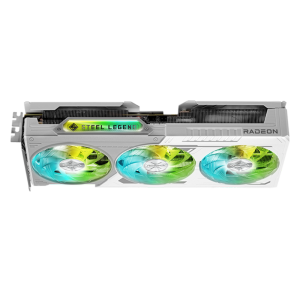

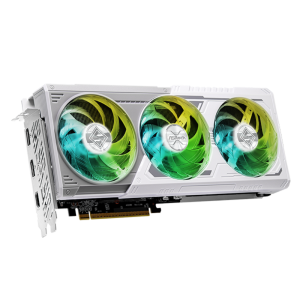

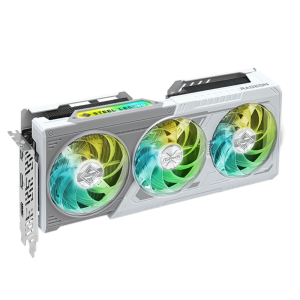

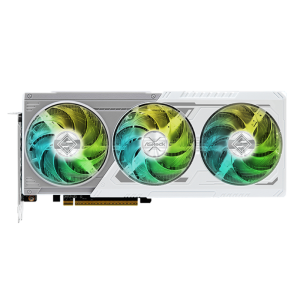

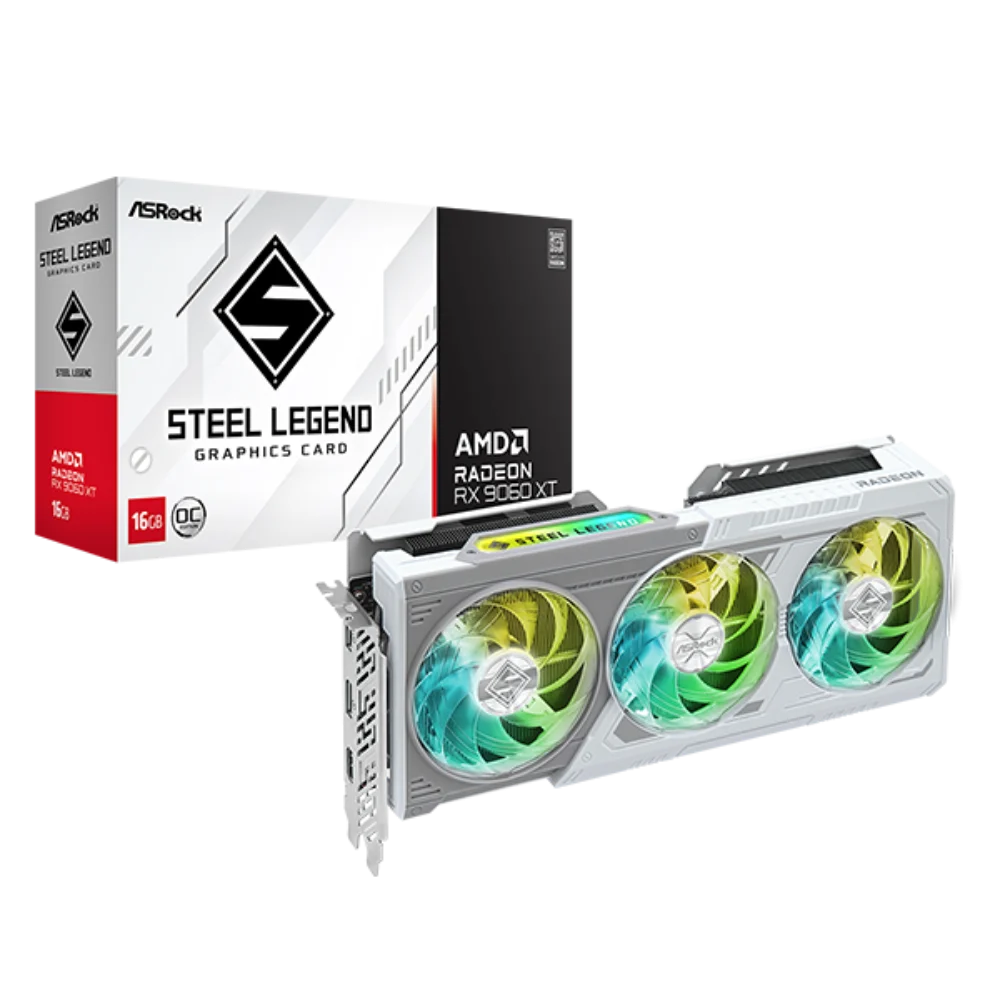

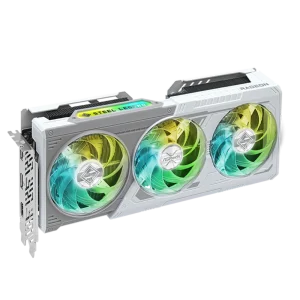

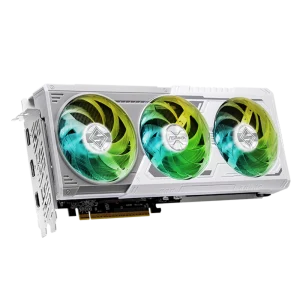

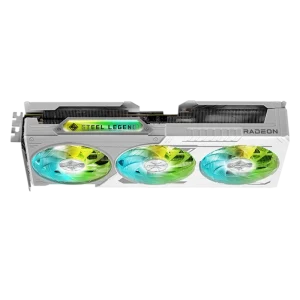

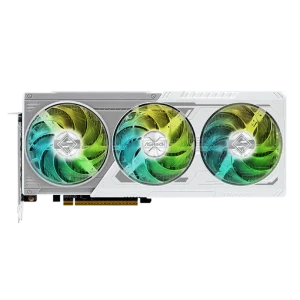

ASROCK Radeon RX 9060 XT Steel Legend OC 16GB AMD Graphic Card
MPN ASROCK-RX-9060-XT-STEEL-LEGEND-OC-16GB-WHITE · Brand ASROCK
The ASRock Radeon RX 9060 XT Steel Legend OC 16GB pairs AMD RDNA 4 architecture with 16 GB GDDR6, a 3320 MHz boost clock, and a triple-fan thermal solution for smooth 1440p gaming with PCIe 5.0 connectivity
Inclusive of GST · GST invoice available
Overview

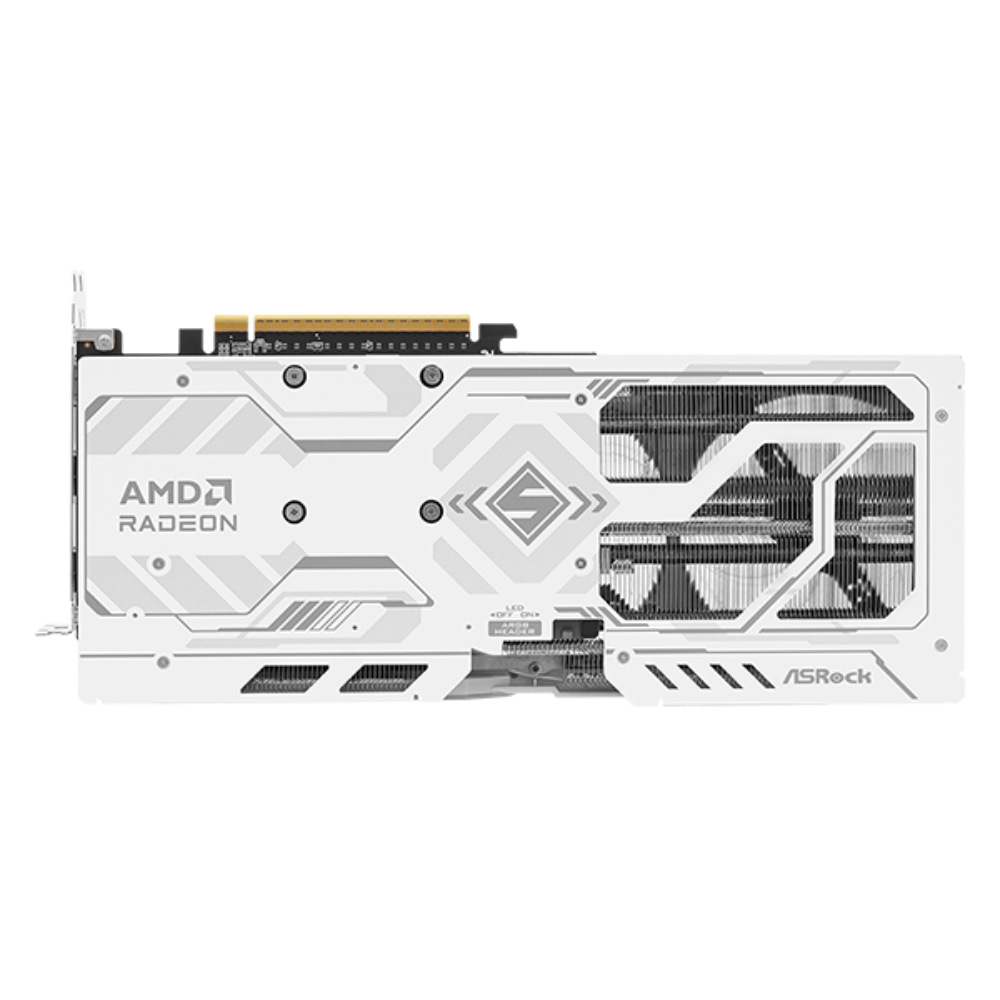

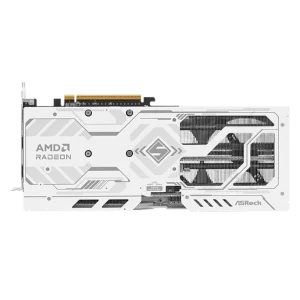

The ASRock Radeon RX 9060 XT Steel Legend OC 16GB is a mid-range to upper-mid graphics card built on AMD's RDNA 4 architecture, delivering capable 1440p gaming performance with a large 16 GB GDDR6 memory buffer. It carries model number RX9060XT-SL-16GO and is designed to pair naturally with ASRock's own motherboard ecosystem thanks to integrated Polychrome SYNC RGB lighting that can be coordinated with compatible ASRock boards. The cooling solution is a standout feature of the Steel Legend OC. A triple-fan array uses ASRock's Striped Ring Fan blades to draw in more lateral airflow through the heatsink array. V-shaped air-deflecting fins and V-shaped air vents direct that flow efficiently across the copper-based heatsink, while consolidated ultra-fit heatpipes maximise contact between each pipe and the GPU baseplate. A nickel-plated copper base heatsink makes direct contact with the GPU die to accelerate heat transfer. High-density metal welding seals the gap between the heatpipes and stacked aluminium fins for more effective heat dissipation overall. When thermals allow, the 0 dB silent cooling mode stops the fans entirely for a quieter idle experience. A stylish metal backplate completes the build, helping prevent PCB flex and adding secondary cooling via rear-side thermal pads. RGB enthusiasts will appreciate the integrated ARGB LEDs, a dedicated LED on/off switch, and an ARGB header that lets you daisy-chain additional ARGB strips or devices directly from the card. On the software side, AMD's RDNA 4 architecture introduces second-generation hardware ray-tracing units and dedicated AI accelerators. FidelityFX Super Resolution 4 (FSR 4) uses machine-learning upscaling to recover frame rates with minimal image-quality loss, while AMD HYPR-RX bundles Anti-Lag, Radeon Super Resolution, and Radeon Boost into a single one-click toggle via AMD Software: Adrenaline Edition. The display output configuration supports up to three simultaneous monitors through two DisplayPort 2.1a and one HDMI 2.1b connector, with a maximum digital resolution of 7680×4320 (8K). PCIe 5.0 x16 ensures the card is ready for current-generation AM5 and Intel platforms, and AMD Smart Access Memory is supported when paired with a compatible Ryzen processor. Verified Specifications: - GPU: AMD Radeon RX 9060 XT (RDNA 4) - Stream Processors: 2048 - Memory: 16 GB GDDR6, 128-bit interface, 20 Gbps effective speed - Boost Clock: up to 3320 MHz | Game Clock: 2780 MHz - Bus Interface: PCI Express 5.0 x16 - Display Outputs: 2× DisplayPort 2.1a, 1× HDMI 2.1b (max 3 displays) - Max Digital Resolution: 7680×4320 - Power Connector: 1× 8-pin - Recommended PSU: 550 W - Dimensions: 298 × 131 × 51 mm, 2.55-slot - Net Weight: 967 g - DirectX: 12 Ultimate | OpenGL: 4.6 - Model No: RX9060XT-SL-16GO

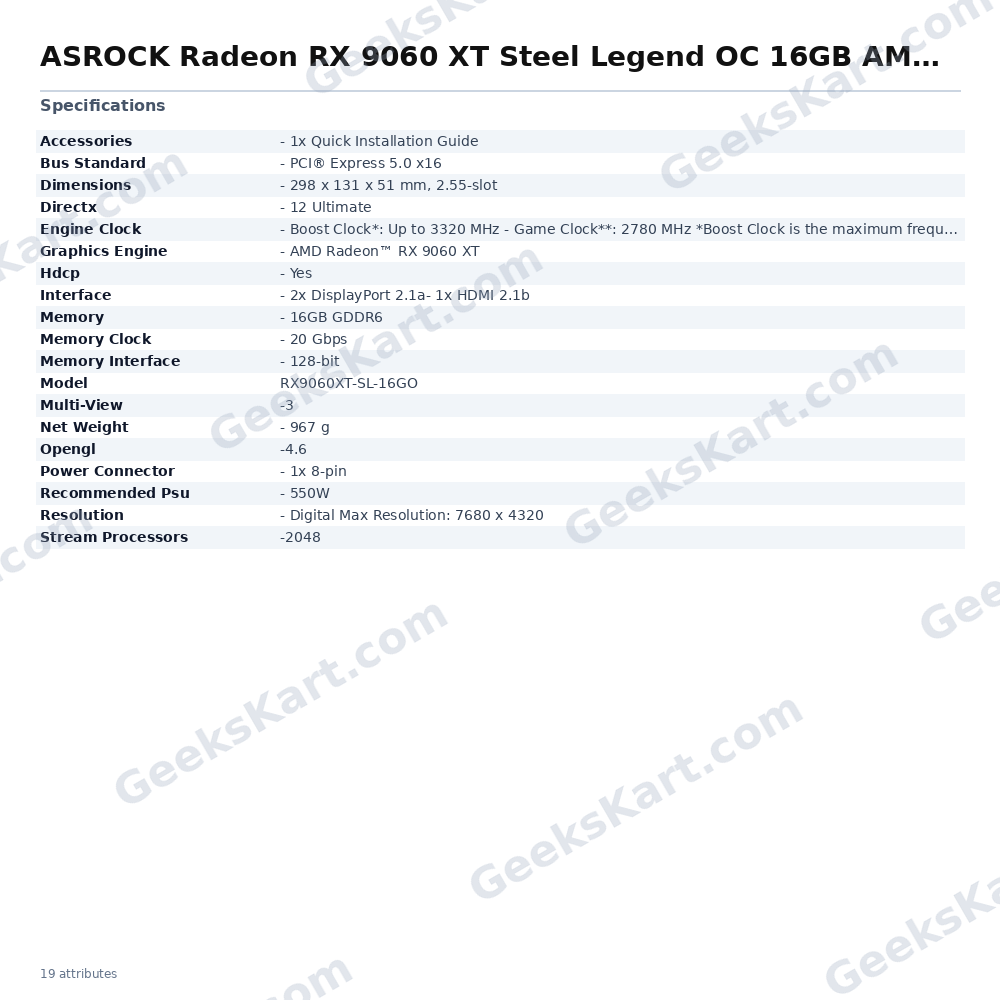

Datasheet
| Hdcp | – Yes |
|---|---|
| Memory | – 16GB GDDR6 |
| Opengl | -4.6 |
| Directx | – 12 Ultimate |
| Model | RX9060XT-SL-16GO |
| Dimensions | – 298 x 131 x 51 mm, 2.55-slot |
| Multi-View | -3 |
| Net Weight | – 967 g |
| Accessories | – 1x Quick Installation Guide |
| Bus Standard | – PCI® Express 5.0 x16 |
| Engine Clock | – Boost Clock*: Up to 3320 MHz – Game Clock**: 2780 MHz *Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. **Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary |
| Graphics Engine | – AMD Radeon™ RX 9060 XT |
| Power Connector | – 1x 8-pin |
| Memory Interface | – 128-bit |
| Stream Processors | -2048 |
| Interface | – 2x DisplayPort 2.1a- 1x HDMI 2.1b |
| Memory Clock | – 20 Gbps |
| Recommended PSU | – 550W |
| Resolution | – Digital Max Resolution: 7680 x 4320 |
