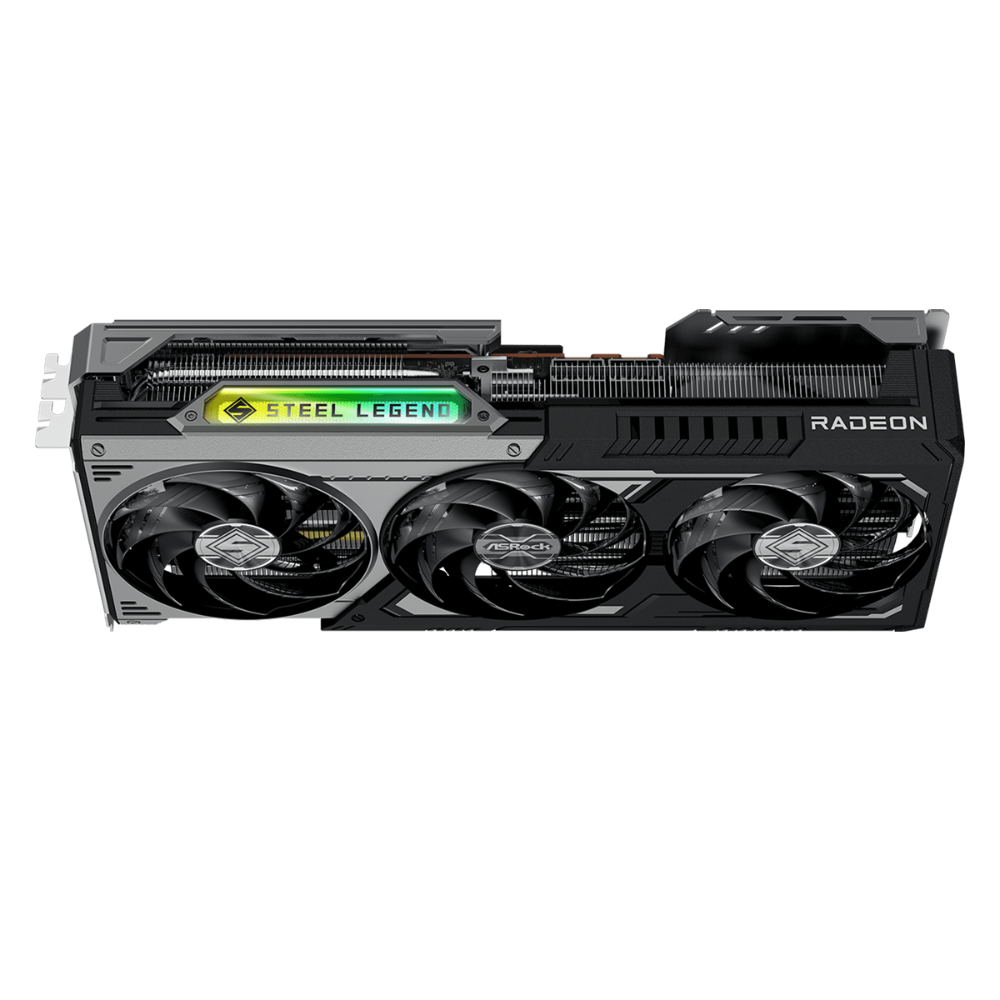

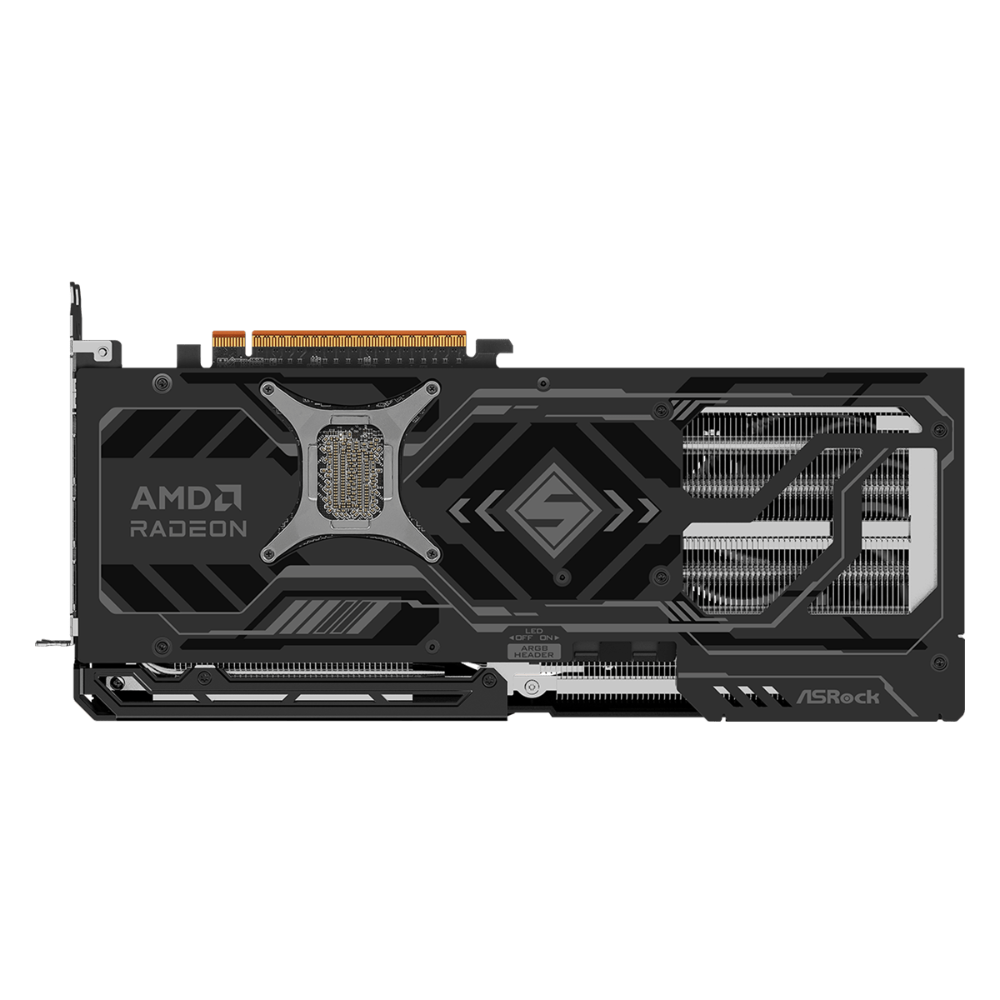

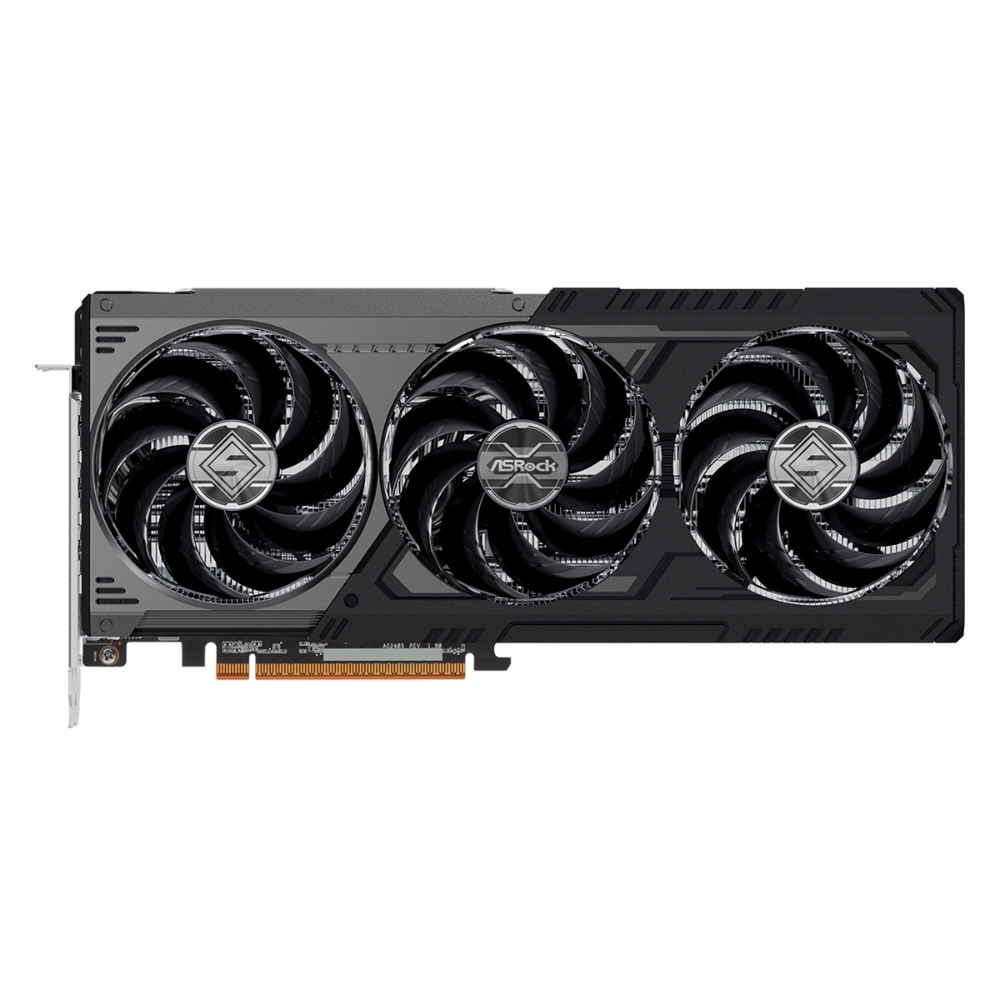

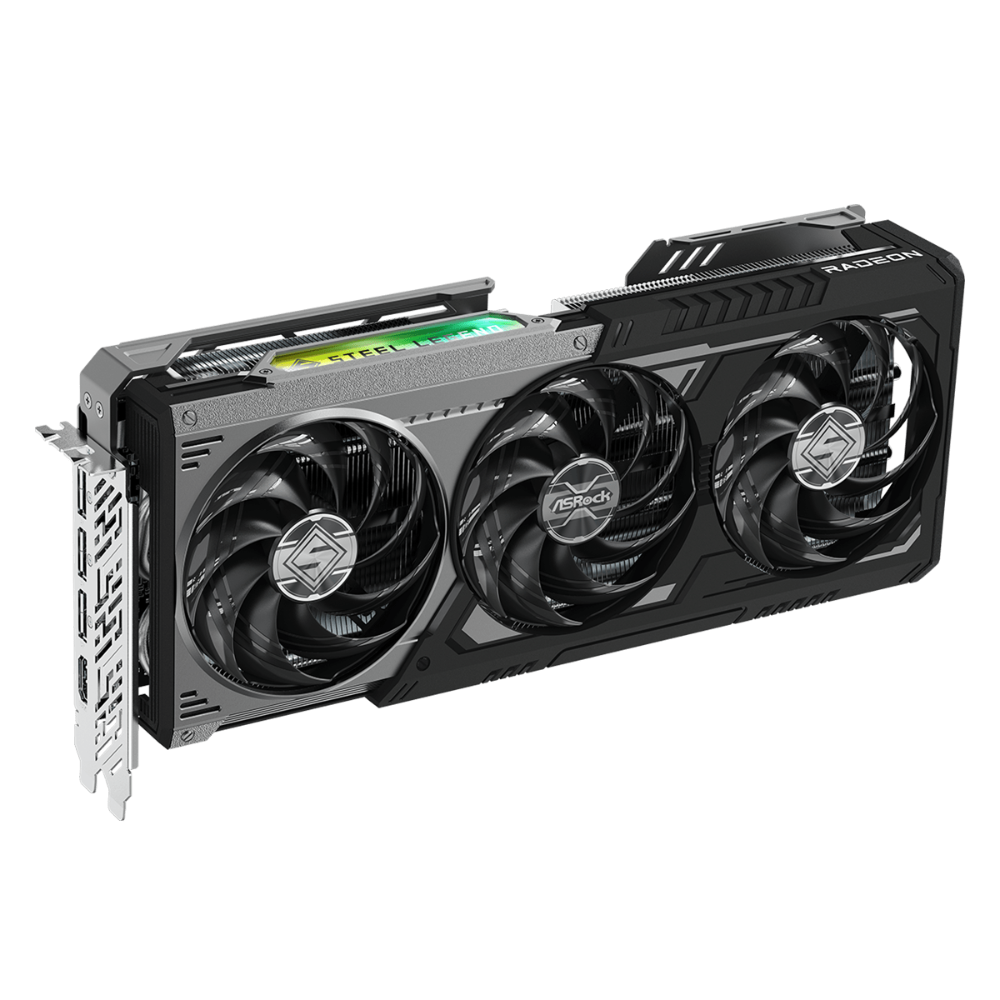

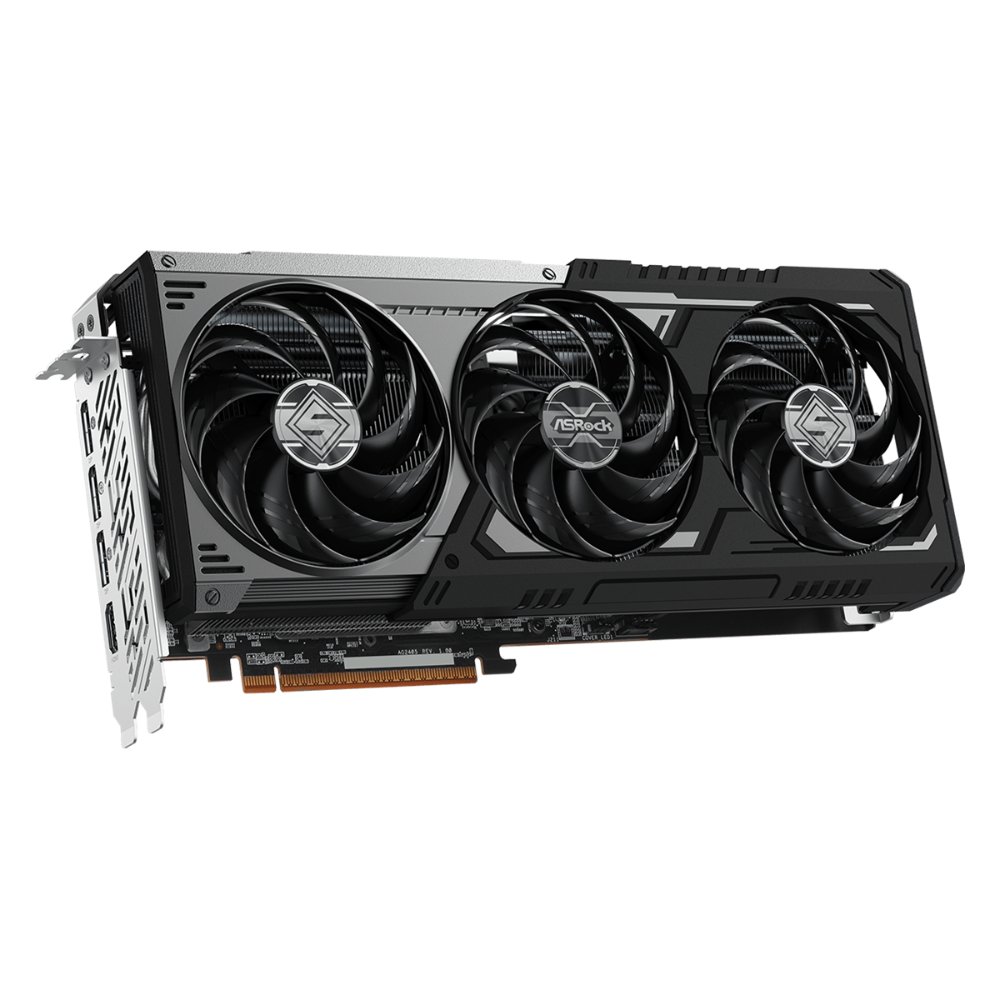

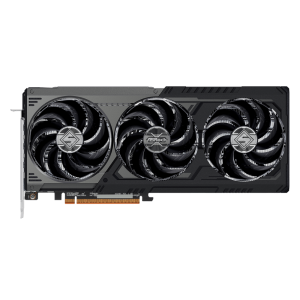

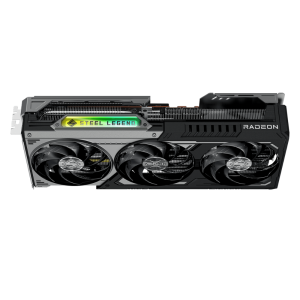

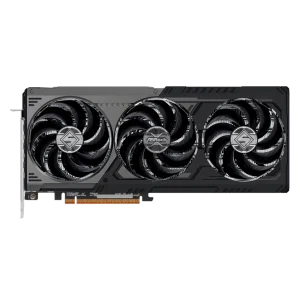

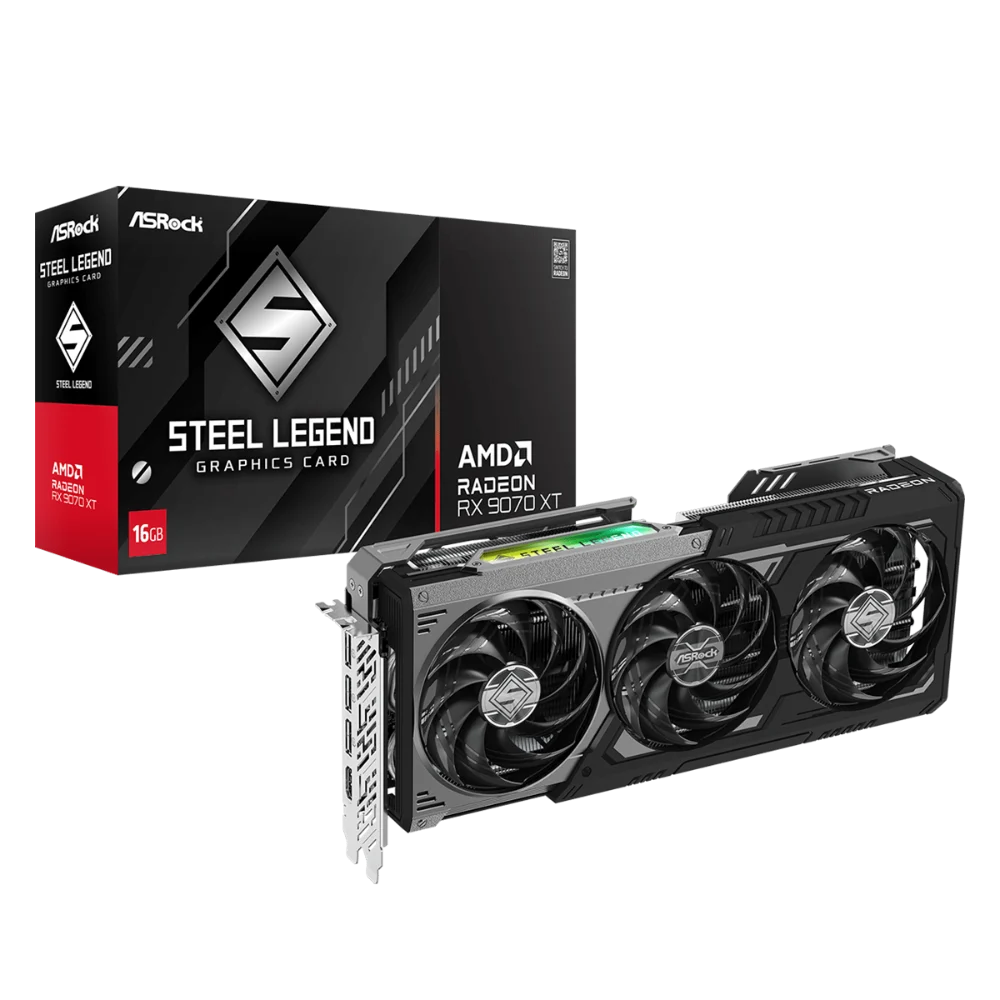

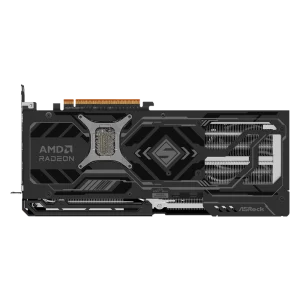

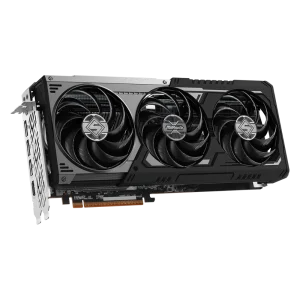

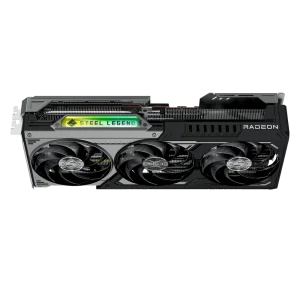

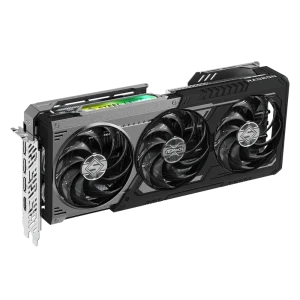

The ASRock Radeon RX 9070 XT Steel Legend Dark is a high-performance discrete graphics card built on AMD’s Radeon RX 9070 XT GPU. It carries 16 GB of GDDR6 memory across a 256-bit interface running at 20 Gbps, giving it substantial memory bandwidth for demanding 1440p and 4K workloads. The GPU core features 4096 stream processors with a boost clock of up to 2970 MHz and a game clock of 2400 MHz, enabling fluid frame rates across modern titles. Connectivity is handled by a PCIe 5.0 x16 interface, ensuring the card is ready for current-generation platforms. Four simultaneous displays can be driven through three DisplayPort 2.1a and one HDMI 2.1b output, with support for resolutions up to 7680 x 4320 (8K). DirectX 12 Ultimate and OpenGL 4.6 compatibility are confirmed. ASRock’s Steel Legend Dark cooler houses three fans using the brand’s Striped Ring Fan design for improved lateral airflow intake. The 0 dB silent cooling mode allows the fans to stop completely at low temperatures, eliminating noise during light workloads. Inside the cooler, ultra-fit heatpipes are consolidated to maximise contact with the GPU baseplate, and a nickel-plated copper base heatsink directly contacts the die to improve thermal transfer. High-density metal welding seals gaps between pipes and stacked fins, while premium thermal pads transfer heat from memory and VRM components to the heatsink. Structurally, a reinforced metal frame and a stylish metal backplate with premium thermal pads help prevent PCB flex under the card’s 1155 g mass. Air-deflecting fins with V-shaped cuts guide airflow through the cooling array more efficiently. Polychrome SYNC ARGB LEDs are integrated into the shroud, and a dedicated ARGB header allows additional strips or devices to be connected; an LED on/off switch provides quick control without software. Power is supplied through two 8-pin connectors, with a recommended PSU rating of 800 W. The card occupies a 2.9-slot footprint and measures 298 mm (L) × 131 mm (W) × 58 mm (H), making it compatible with most mid-tower and full-tower cases. Verifiable Specifications: • GPU: AMD Radeon RX 9070 XT (model RX9070XT-SLD-16G) • Stream Processors: 4096 • Memory: 16 GB GDDR6, 256-bit interface, 20 Gbps • Boost Clock: up to 2970 MHz | Game Clock: 2400 MHz • Bus: PCIe 5.0 x16 • Outputs: 3× DisplayPort 2.1a, 1× HDMI 2.1b • Max Resolution: 7680 × 4320 • Multi-display: 4 screens • Power connectors: 2× 8-pin | Recommended PSU: 800 W • Dimensions: 298 × 131 × 58 mm | Weight: 1155 g • Slot: 2.9-slot • DirectX 12 Ultimate | OpenGL 4.6 | HDCP supported
ZOTAC GAMING GeForce RTX 5070 Solid 12GB Nvidia Graphic Card
₹82,795.00

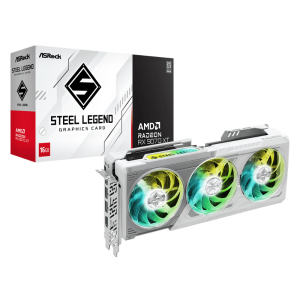

ASROCK Radeon RX 9070 XT Steel Legend White 16GB AMD Graphic Card
₹84,750.00

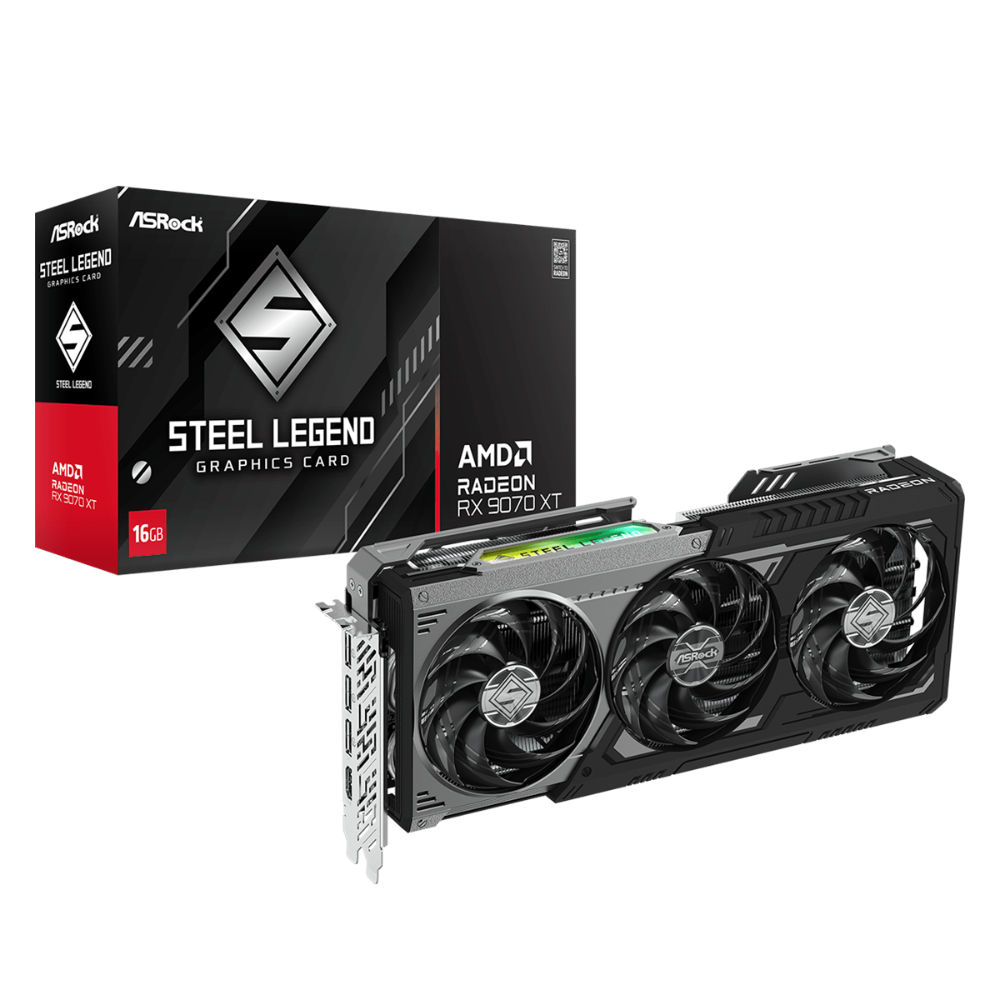

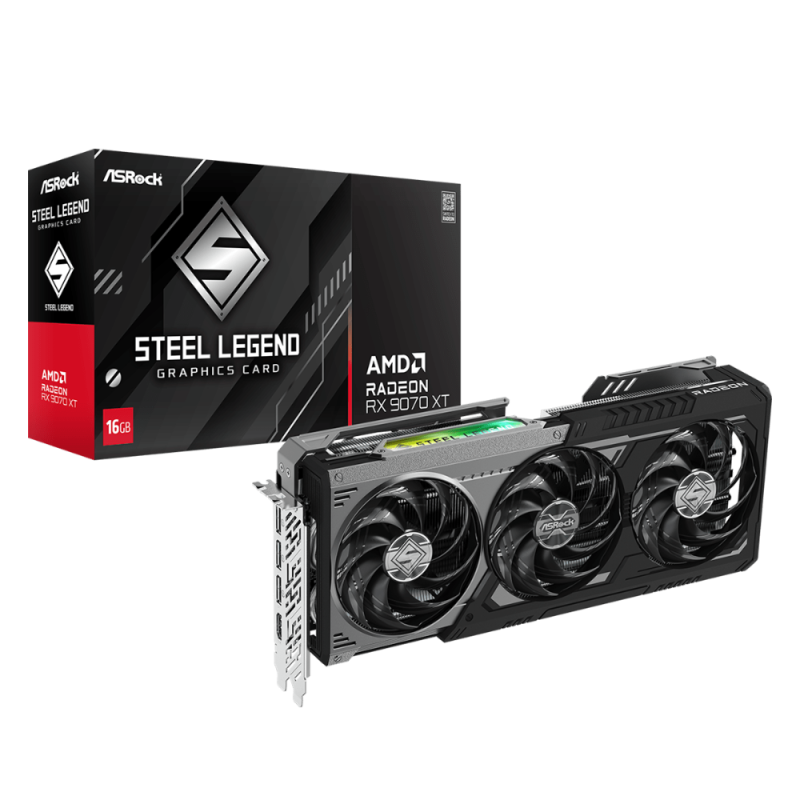

ASROCK Radeon RX 9070 XT Steel Legend Dark 16GB AMD Graphic Card
₹84,045.00
The ASRock Radeon RX 9070 XT Steel Legend Dark pairs 16 GB of GDDR6 memory and 4096 stream processors with a triple-fan cooler, PCIe 5.0 connectivity, and Polychrome SYNC ARGB lighting for high-performance 1440p and 4K gaming

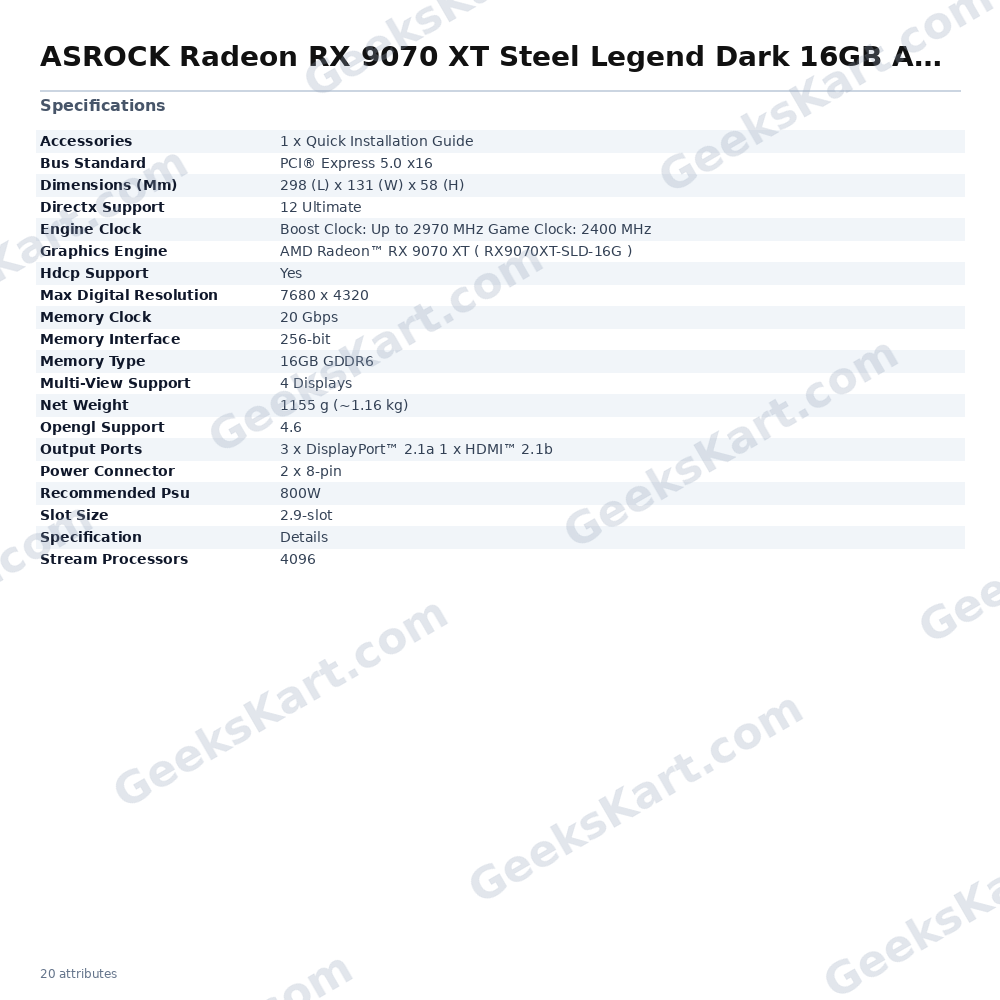

Additional information
| Slot Size | 2.9-slot |
|---|---|
| Net Weight | 1155 g (~1.16 kg) |
| Accessories | 1 x Quick Installation Guide |
| Bus Standard | PCI® Express 5.0 x16 |
| Engine Clock | Boost Clock: Up to 2970 MHz Game Clock: 2400 MHz |
| Hdcp Support | Yes |
| Output Ports | 3 x DisplayPort™ 2.1a 1 x HDMI™ 2.1b |
| Specification | Details |
| Opengl Support | 4.6 |
| Dimensions (Mm) | 298 (L) x 131 (W) x 58 (H) |
| Directx Support | 12 Ultimate |
| Graphics Engine | AMD Radeon™ RX 9070 XT ( RX9070XT-SLD-16G ) |
| Power Connector | 2 x 8-pin |
| Memory Interface | 256-bit |
| Stream Processors | 4096 |
| Multi-View Support | 4 Displays |
| Max Digital Resolution | 7680 x 4320 |
| Memory Type | GDDR6 |
| Memory Clock | 20 Gbps |
| Recommended PSU | 800W |
