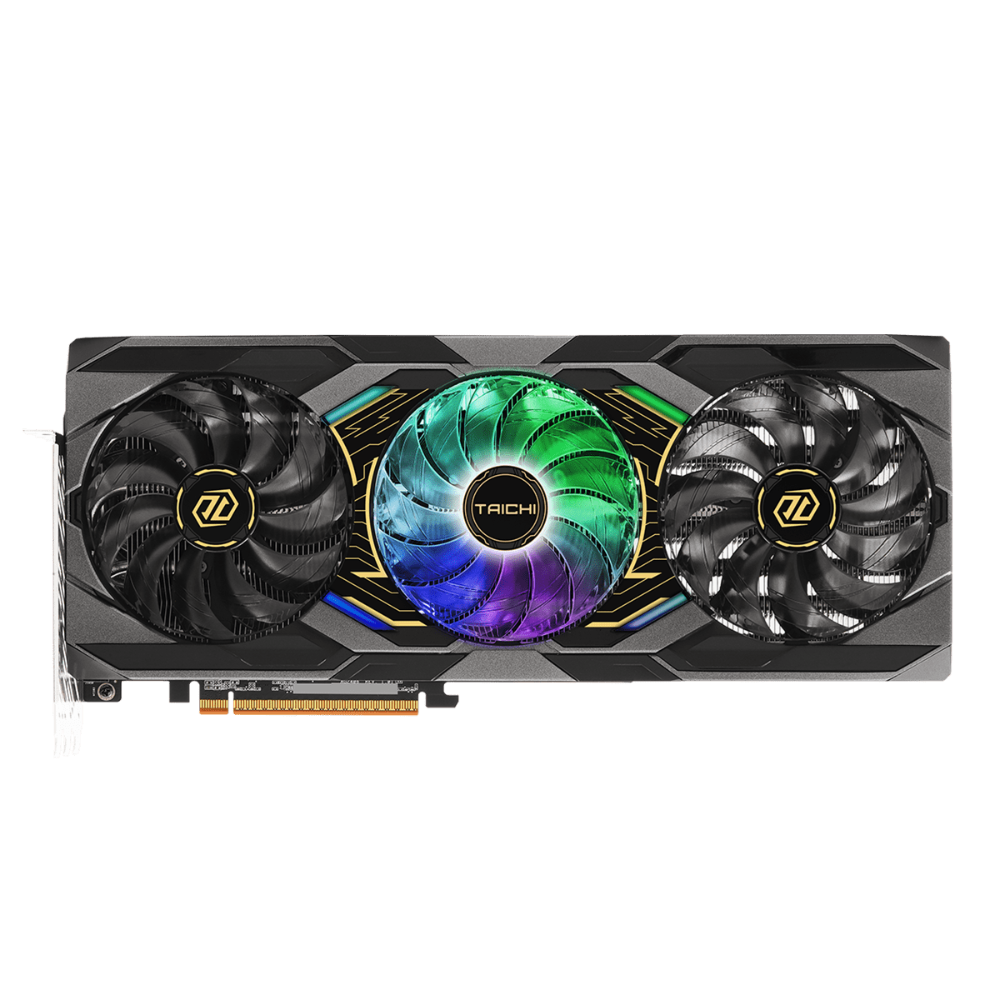

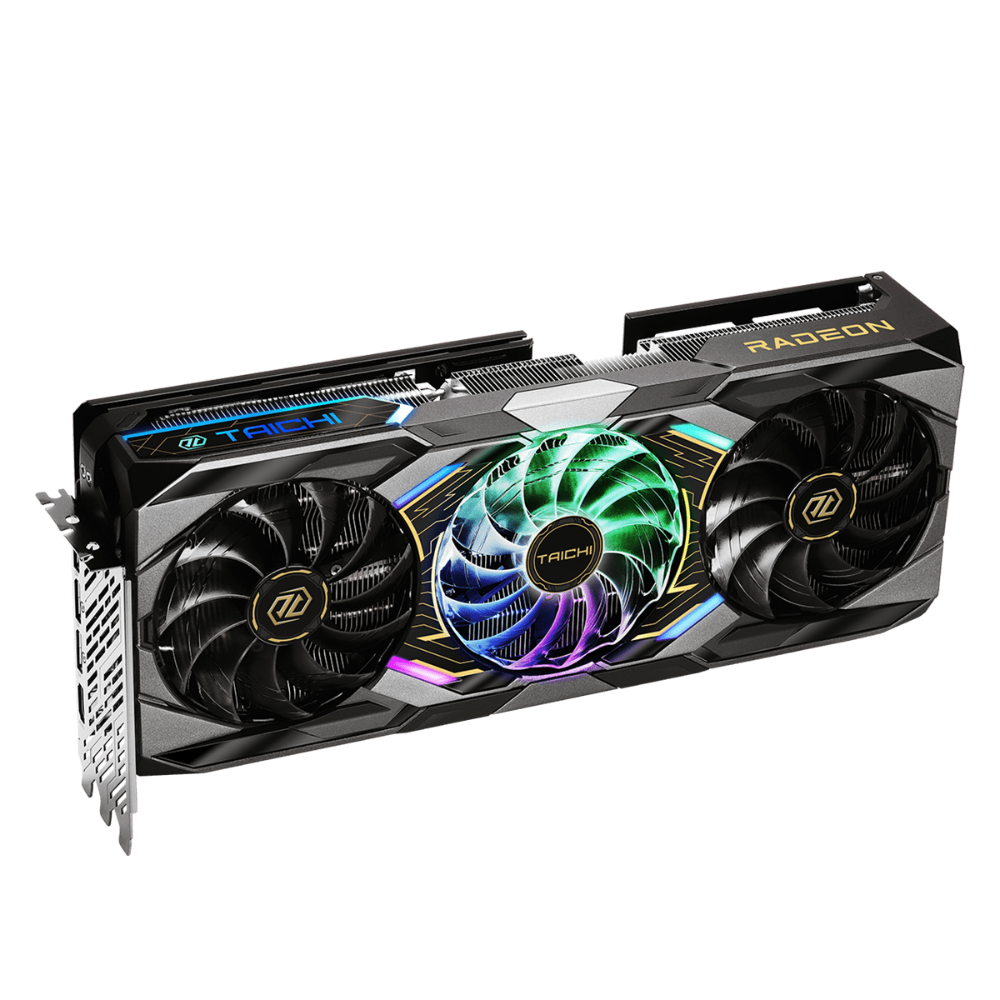

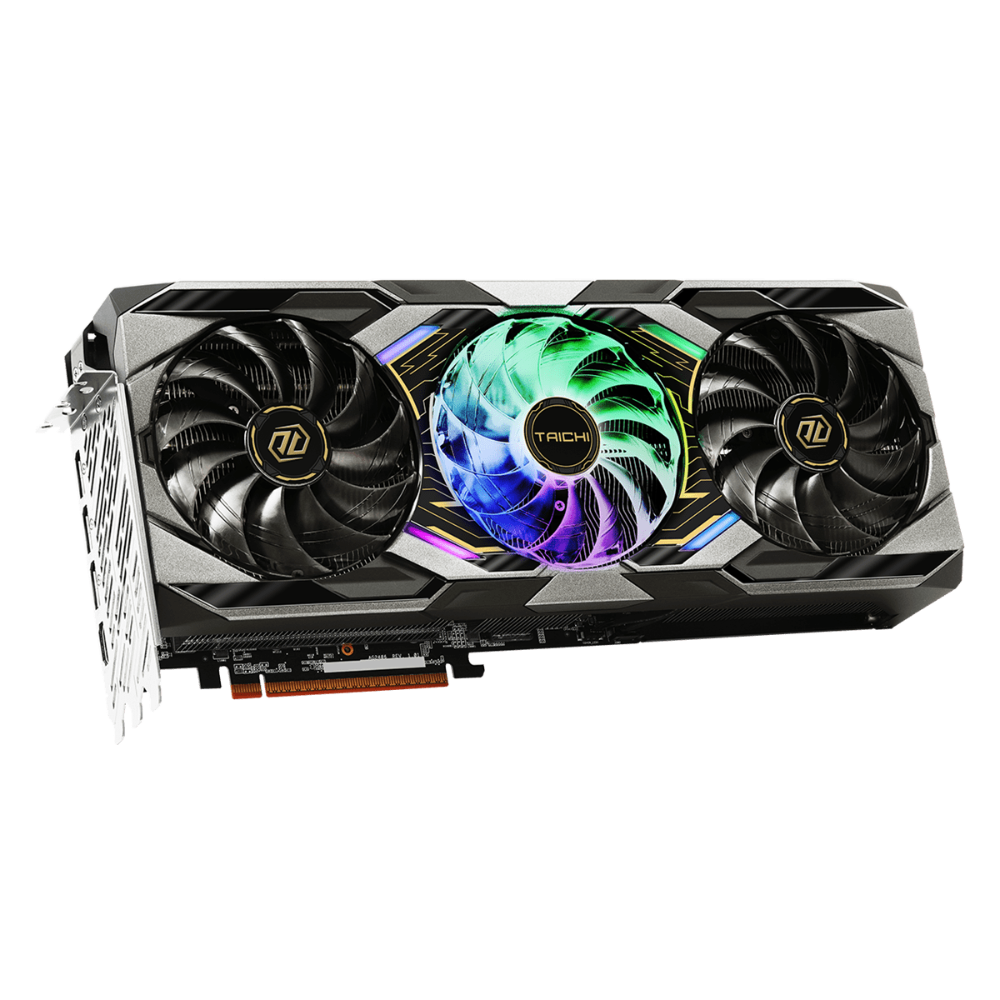

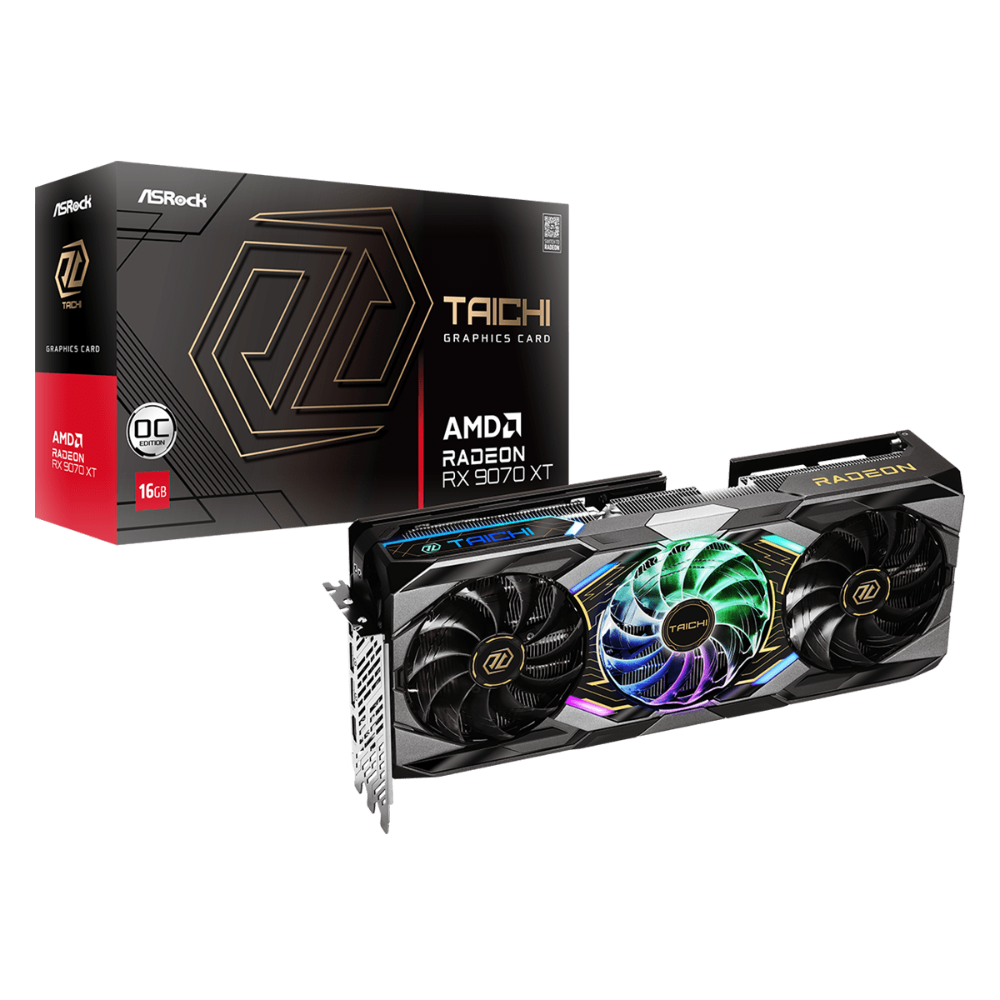

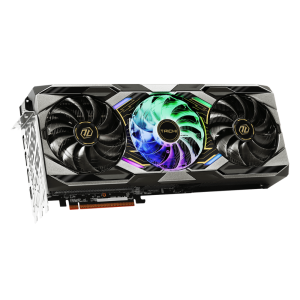

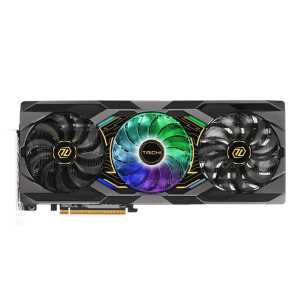

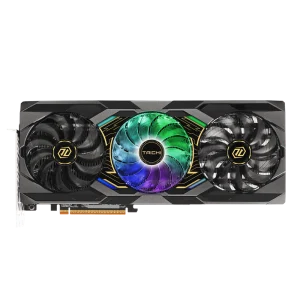

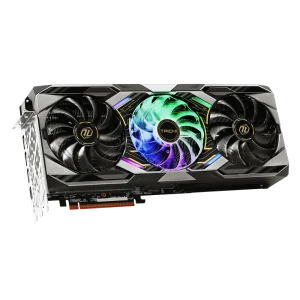

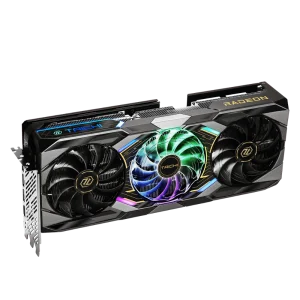

Features of ASROCK Radeon RX 9070 XT Taichi OC 16GB AMD Graphic Card
Reverse Spin
The center fan spins reversely to lower turbulence and enhance air dispersion through the heatsink.
Taichi 3X Cooling System
Crafted for the best balance between the thermal efficiency and silence by all the details improved.
Striped Ring Fan
ASRock’s all new Striped Ring Fan get more lateral intake and to provide better airflow through the cooling array.
0dB Silent Cooling
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
Air Deflecting Fin
Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.
Ultra-fit Heatpipe
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
Nickel-plated Copper Base
With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.
High-density Metal Welding
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.
Honeywell PTM7950
Honeywell PTM7950 phase-change thermal pad can effectively fill the gaps between the GPU and the thermal module, enabling the graphics card to provide excellent heat dissipation, reliability and longevity under high loads.
Precise Screw Torque
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
Polychrome SYNC
With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.
LED Switch
You can switch LED on or off depends on the scenarios or your need.
ARGB Pin-header
With the ARGB pin-header, it can connect ARGB strips/devices to make the lighting effects more rich and vivid.
16 Power Phase Design with SPS
Featuring 16 power phases with SPS components to raise maximum current to GPU and memory to offer enhanced performance.

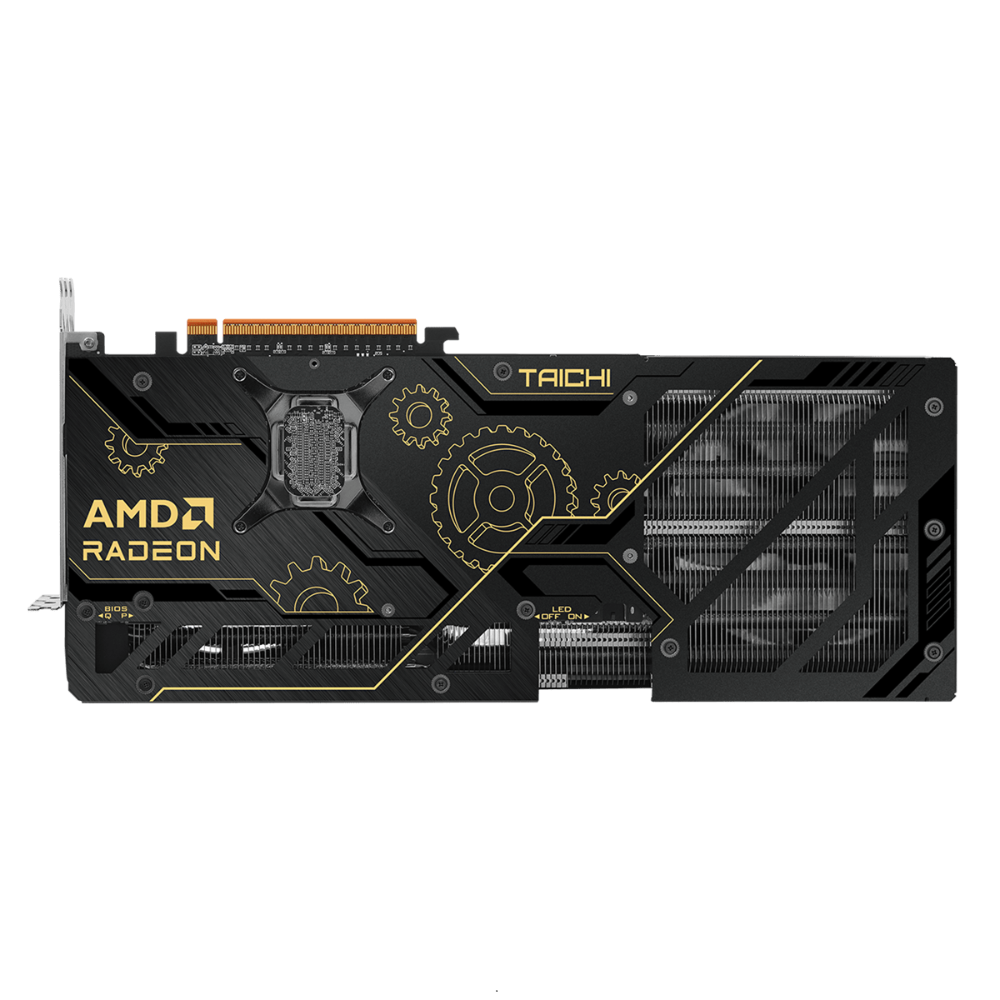

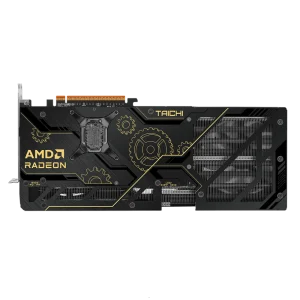

Stylish Metal Backplate
Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.
Dual BIOS
Dual BIOS design allows users choose preferred setting by switching between the P(Performance) BIOS and Q(Quiet) BIOS.

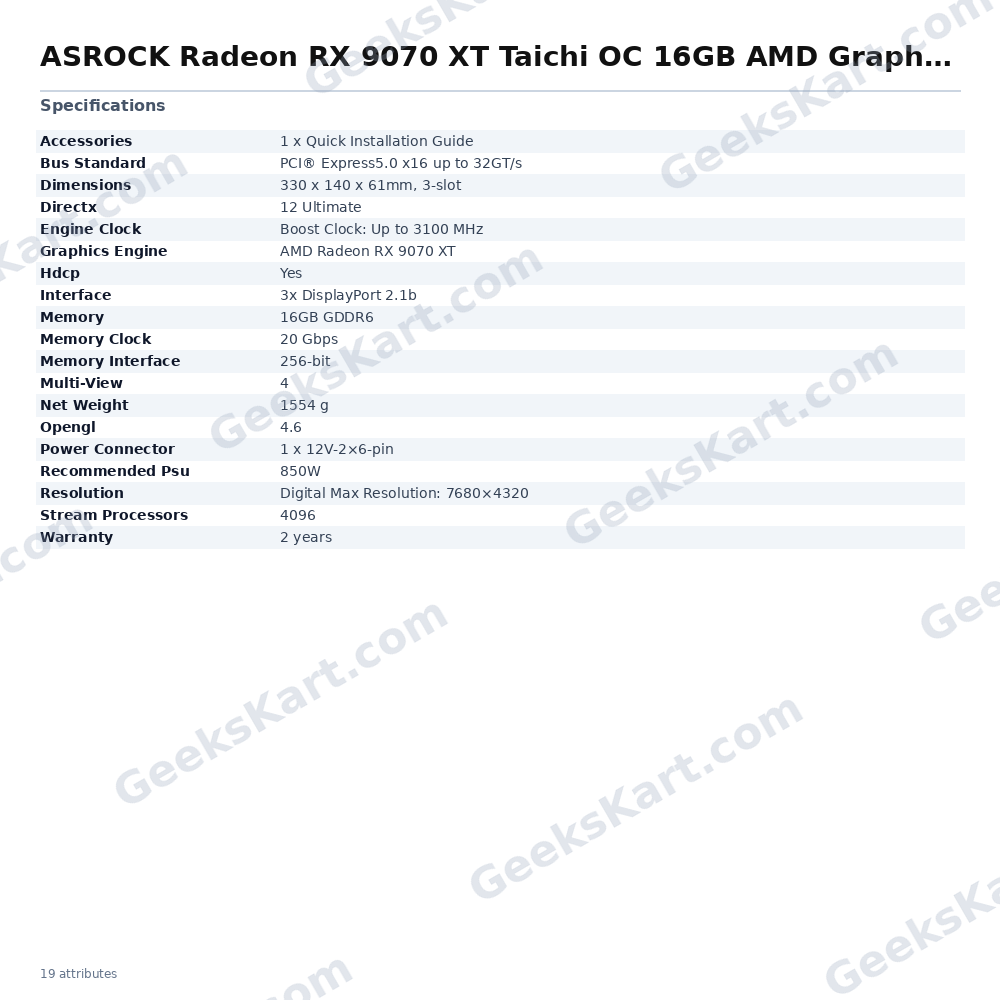

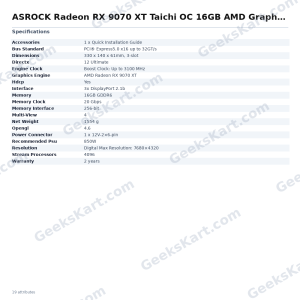

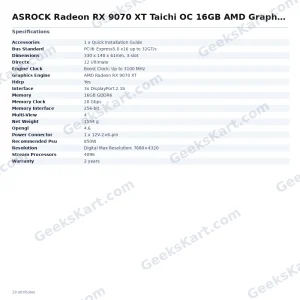

Specifications of ASROCK Radeon RX 9070 XT Taichi OC 16GB AMD Graphic Card
| Graphics Engine | AMD Radeon RX 9070 XT |
| Bus Standard | PCI® Express5.0 x16 up to 32GT/s |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Memory | 16GB GDDR6 |
| Engine Clock | Boost Clock: Up to 3100 MHz |
| Game Clock: 2570 MHz | |
| Stream Processors | 4096 |
| Memory Clock | 20 Gbps |
| Memory Interface | 256-bit |
| Resolution | Digital Max Resolution: 7680×4320 |
| Interface | 3x DisplayPort 2.1b |
| 1x HDMI 2.1b | |
| HDCP | Yes |
| Multi-view | 4 |
| Recommended PSU | 850W |
| Power Connector | 1 x 12V-2×6-pin |
| Accessories | 1 x Quick Installation Guide |
| 1 x 16Pin to 3×8 Pin Power Cable | |
| 1 x Graphics Card Stand | |
| Dimensions | 330 x 140 x 61mm, 3-slot |
| Net Weight | 1554 g |
| Warranty | 2 years |
