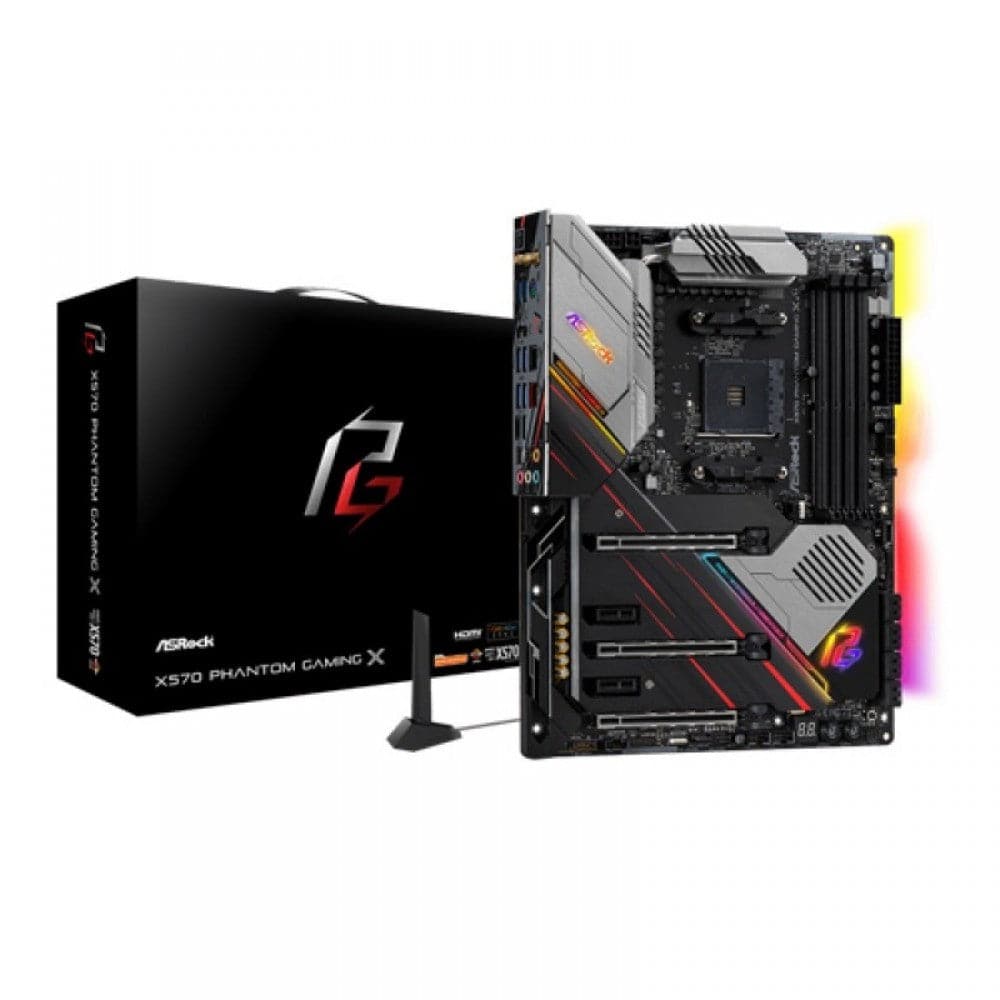

ASROCK X570 Phantom Gaming X DDR4 AMD Motherboard
MPN ASROCK-X570-PG-X · Brand ASROCK · ATX
The ASRock X570 Phantom Gaming X is an AMD AM4 ATX motherboard featuring PCIe 4.0, Intel Wi-Fi 6, dual LAN (2.5G + 1G), three Hyper M.2 slots, a 14-phase power design, and Realtek ALC1220 7.1-channel HD audio
Inclusive of GST · GST invoice available
Overview

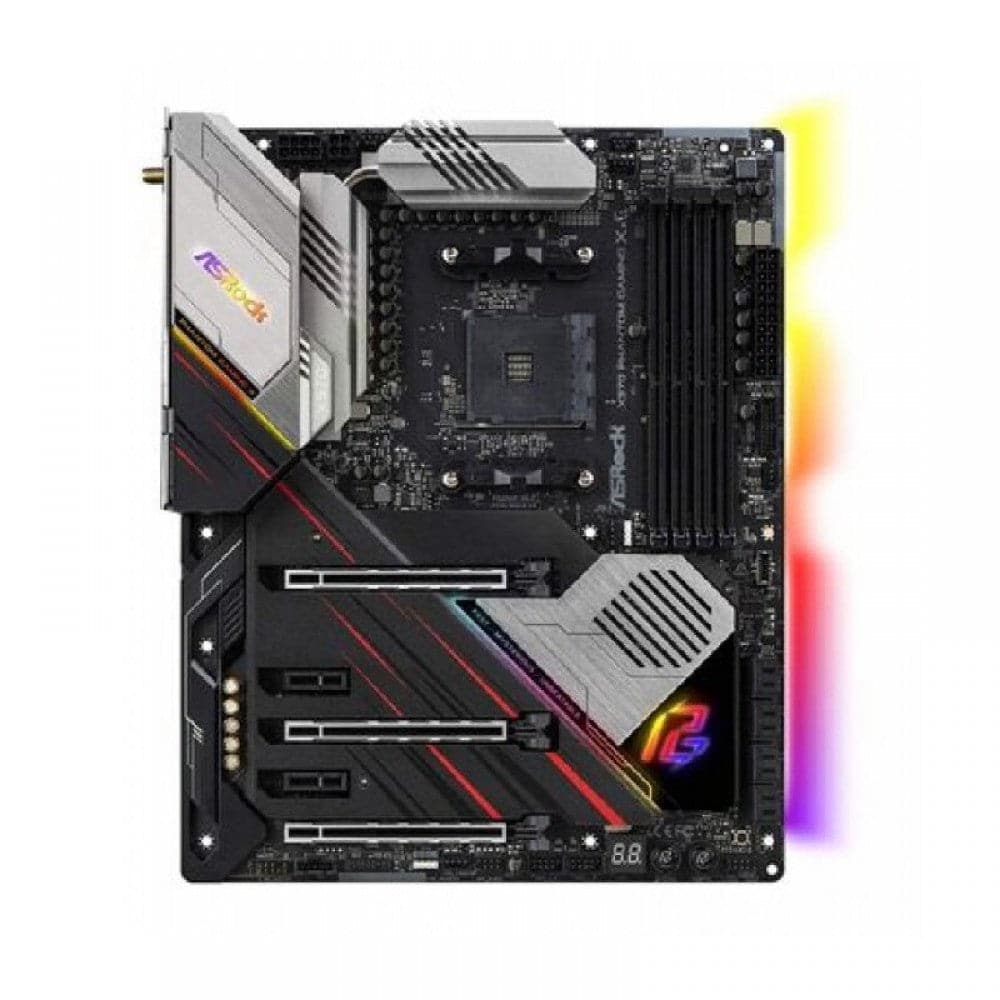

The ASRock X570 Phantom Gaming X is a full-size ATX motherboard built on the AMD X570 chipset for the AM4 socket, compatible with AMD Ryzen 2000 and 3000 series processors. Designed for enthusiast builders and power users, it combines PCIe 4.0 connectivity, high-speed wireless, and premium audio into a single platform. At the heart of the board sits a 14-phase power delivery system using Intersil Digital PWM and 50A Dr.MOS components, with Hi-Density power connectors (24-pin, 8-pin, and 4-pin) capable of supplying an additional 300W to the CPU. The XXL Aluminum Alloy heatsink with heat-pipe design ensures sustained thermal performance under demanding workloads. For storage, three Hyper M.2 slots (M2_1, M2_2, M2_3) each support PCIe Gen4 x4 NVMe drives at up to 64 Gb/s when paired with Matisse (Ryzen 3000) processors, alongside eight SATA3 6.0 Gb/s connectors with RAID 0, 1, and 10 support. Note that occupying M2_3 disables the PCIE5 slot. Networking is covered by a dual-LAN setup: a Phantom Gaming 2.5 Gigabit port (Dragon RTL8125AG) and an Intel Gigabit port (I211AT), plus an Intel Wi-Fi 6 802.11ax module delivering up to 2.4 Gbps over dual-band 2.4/5 GHz with Bluetooth 5.0 and MU-MIMO support. Memory support extends to four DDR4 DIMM slots with a maximum capacity of 128 GB, with Matisse CPUs supporting speeds up to DDR4 4666+ (OC). ECC unbuffered modules are also supported (varies by CPU). Expansion slots include three PCIe 4.0 x16 slots (with Matisse), two PCIe 4.0 x1 slots, and support for NVIDIA NVLink, Quad SLI, and AMD 3-Way CrossFireX. Audio is handled by the Realtek ALC1220 codec delivering 7.1-channel HD audio with Nichicon Fine Gold Series capacitors, an NE5532 headset amplifier supporting up to 600-ohm headsets, PCB isolate shielding, and compatibility with Creative Sound Blaster Cinema 5. USB connectivity on the rear panel includes one USB 3.2 Gen2 Type-A (10 Gb/s), one USB 3.2 Gen2 Type-C (10 Gb/s), and six USB 3.2 Gen1 ports, complemented by a front-panel USB 3.2 Gen2 Type-C header. ASRock Polychrome SYNC RGB lighting control, a Dr. Debug LED diagnostic display, BIOS Flashback, and a Clear CMOS button round out the feature set. Verified Specifications: - Socket: AMD AM4 | Chipset: AMD X570 - Form Factor: ATX, 12.0 in x 9.6 in (30.5 cm x 24.4 cm) - Memory: 4 x DDR4 DIMM, Dual Channel, max 128 GB; up to DDR4 4666+ (OC) with Matisse CPUs - PCIe Slots: 3 x PCIe 4.0 x16, 2 x PCIe 4.0 x1 (Matisse) - M.2: 3 x Hyper M.2 (PCIe Gen4 x4, up to 64 Gb/s with Matisse) - SATA: 8 x SATA3 6.0 Gb/s with RAID 0/1/10 - LAN: 1 x 2.5 GbE (Dragon RTL8125AG) + 1 x 1 GbE (Intel I211AT) - Wireless: Intel Wi-Fi 6 802.11ax (2.4 Gbps), Bluetooth 5.0 - Audio: Realtek ALC1220, 7.1 CH HD, NE5532 amplifier (up to 600 Ohm) - Rear USB: 1x USB 3.2 Gen2 Type-A, 1x USB 3.2 Gen2 Type-C, 6x USB 3.2 Gen1 - Power: 14-phase, 50A Dr.MOS, Intersil Digital PWM - Certifications: FCC, CE, ErP/EuP ready - Warranty: 3 Years

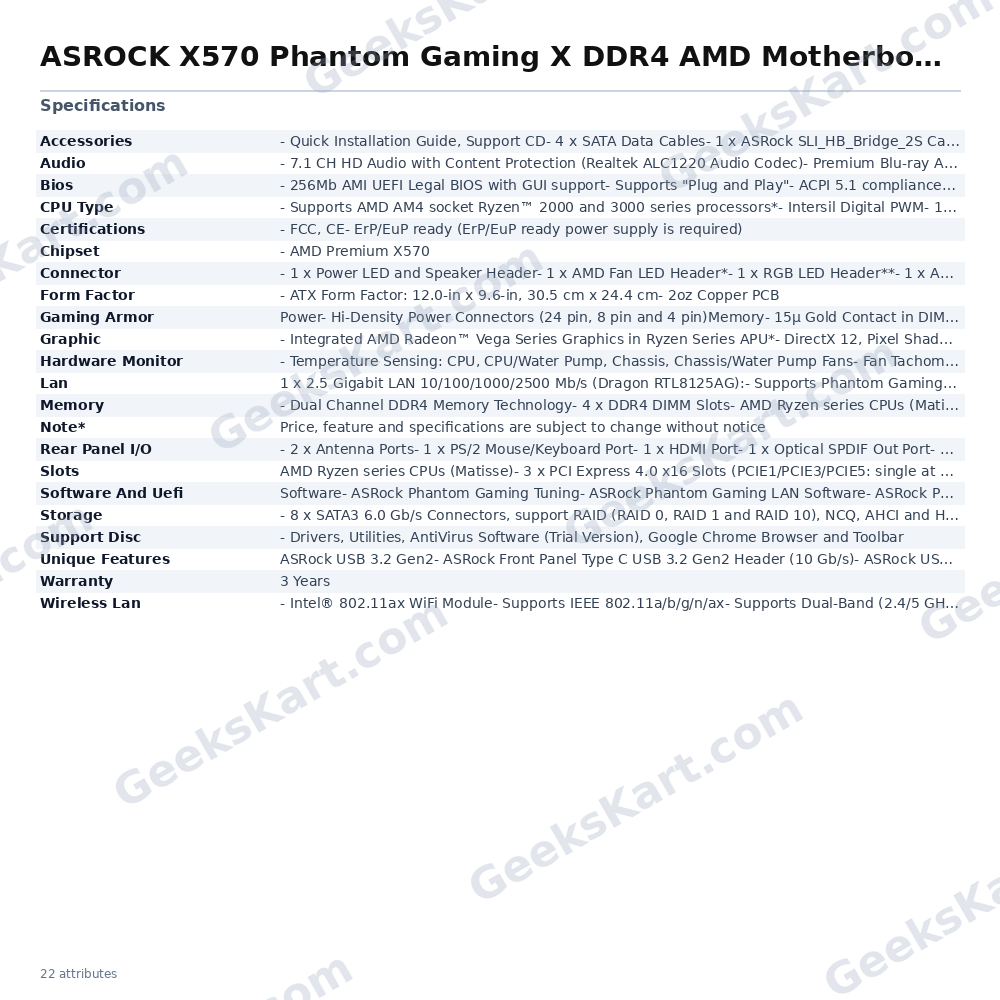

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | – AMD Premium X570 |
| CPU Type | – Supports AMD AM4 socket RyzenTM 2000 and 3000 series processors*- Intersil Digital PWM- 14 Power Phase design- Capable of providing extra 300W for CPU- Supports ASRock Hyper BCLK Engine II |
| Lan | 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125AG):- Supports Phantom Gaming LAN Software- Smart Auto Adjust Bandwidth Control- Visual User Friendly UI- Visual Network Usage Statistics- Optimized Default Setting for Game, Browser, and Streaming Modes- User Customized Priority Control- Supports Wake-On-LAN- Supports Lightning/ESD Protection- Supports Energy Efficient Ethernet 802.3az- Supports PXE 1 x Intel® Gigabit LAN 10/100/1000 Mb/s (1 x Intel® I211AT):- Supports Wake-On-LAN- Supports Lightning/ESD Protection- Supports Energy Efficient Ethernet 802.3az- Supports PXE |
| Bios | – 256Mb AMI UEFI Legal BIOS with GUI support- Supports "Plug and Play"- ACPI 5.1 compliance wake up events- Supports jumperfree- SMBIOS 2.3 support- CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP, Voltage Multi-adjustment |
| Audio | – 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)- Premium Blu-ray Audio support- Supports Surge Protection- Nichicon Fine Gold Series Audio Caps- NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)- Pure Power-In- Direct Drive Technology- PCB Isolate Shielding- Impedance Sensing on Rear Out port- Individual PCB Layers for R/L Audio Channel- Gold Audio Jacks- 15μ Gold Audio Connector- Supports Creative Sound Blaster™ Cinema 5 |
| Note* | Price, feature and specifications are subject to change without notice |
| Slots | AMD Ryzen series CPUs (Matisse)- 3 x PCI Express 4.0 x16 Slots (PCIE1/PCIE3/PCIE5: single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3); triple at x8 (PCIE1) / x8 (PCIE3) / x4 (PCIE5))*AMD Ryzen series CPUs (Pinnacle Ridge)- 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE5: single at Gen3x16 (PCIE1); dual at Gen3x8 (PCIE1) / Gen3x8 (PCIE3); triple at Gen3x8 (PCIE1) / Gen3x8 (PCIE3) / Gen4x4 (PCIE5))*AMD Ryzen series CPUs (Picasso)- 1 x PCI Express 3.0 x16 Slot (single at x8 (PCIE1))*- 1 x PCI Express 4.0 x16 Slot (single at x4 (PCIE5))*- 2 x PCI Express 4.0 x1 Slots- Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™**- Supports NVIDIA® Quad SLI™ and SLI™***- Supports NVIDIA® NVLink™ with dual NVIDIA® GeForce RTX series graphics cards***- 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax module (on the rear I/O)- 15μ Gold Contact in VGA PCIe Slot (PCIE1)*Supports NVMe SSD as boot disks**3-Way CrossFireX™ is only supported with Ryzen Series CPUs (Matisse and Pinnacle Ridge).***NVIDIA® NVLink™ Bridge does not come with the package. Please purchase it from NVIDIA® if necessary.This feature is only supported with Ryzen Series CPUs (Matisse and Pinnacle Ridge) |
| Memory | – Dual Channel DDR4 Memory Technology- 4 x DDR4 DIMM Slots- AMD Ryzen series CPUs (Matisse) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*- AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*- AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*- Max. capacity of system memory: 128GB**- Supports Extreme Memory Profile (XMP) memory modules- 15μ Gold Contact in DIMM Slots*For Ryzen Series CPUs (Picasso), ECC is only supported with PRO CPUs |
| Graphic | – Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*- DirectX 12, Pixel Shader 5.0- Shared memory default 2GB. Max Shared memory supports up to 16GB.**- Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant HDMI monitor is required)- Supports HDR (High Dynamic Range) with HDMI 2.0- Supports HDCP 2.2 with HDMI 2.0 Port- Supports 4K Ultra HD (UHD) playback with HDMI 2.0 Port- Supports Microsoft® PlayReady*Actual support may vary by CPU**The Max shared memory 16GB requires 32GB system memory installed |
| Storage | – 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso)*- 1 x Hyper M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s)*- 1 x Hyper M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s)**If M2_3 is occupied, PCIE5 slot will be disabledSupports NVMe SSD as boot disksSupports ASRock U.2 KitSupport RAID 0/1/10 |
| Connector | – 1 x Power LED and Speaker Header- 1 x AMD Fan LED Header*- 1 x RGB LED Header**- 1 x Addressable LED Header***- 1 x CPU Fan Connector (4-pin)****- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)******- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)- 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)- 1 x AMD LED Fan USB Header- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC Card R2.0 only)- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)- 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection)- 1 x Dr. Debug with LED- 1 x Power Button with LED- 1 x Reset Button with LED- 1 x Clear CMOS Button- 1 x SPI TPM Header********The AMD Fan LED Header is compatible with a regular RGB LED stripe.**Supports in total up to 12V/3A, 36W LED Strip***Supports in total up to 5V/3A, 15W LED Strip****The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.*****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.******The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.*******Please refer to the link for further information: https://asrock.com/mb/spec/product.asp?Model=TPM-SPI |
| Accessories | – Quick Installation Guide, Support CD- 4 x SATA Data Cables- 1 x ASRock SLI_HB_Bridge_2S Card- 1 x ASRock WiFi 2.4/5 GHz Antenna- 1 x ASRock Screwdriver- 3 x Screws for M.2 Sockets- 2 x Standoffs for M.2 Sockets |
| Gaming Armor | Power- Hi-Density Power Connectors (24 pin, 8 pin and 4 pin)Memory- 15μ Gold Contact in DIMM SlotsVGA Card- 15μ Gold Contact in VGA PCIe Slot (PCIE1)Internet- Phantom Gaming 2.5G LAN- Intel® LANCooling- XXL Aluminum Alloy Heatsink- Heat Pipe DesignAudio- Creative Sound Blaster™ Cinema 5 |
| Support Disc | – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Wireless Lan | – Intel® 802.11ax WiFi Module- Supports IEEE 802.11a/b/g/n/ax- Supports Dual-Band (2.4/5 GHz)- Supports WiFi6 802.11ax (2.4Gbps)- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology- Supports Bluetooth 5.0 + High speed class II- Supports MU-MIMO |
| Certifications | – FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required) |

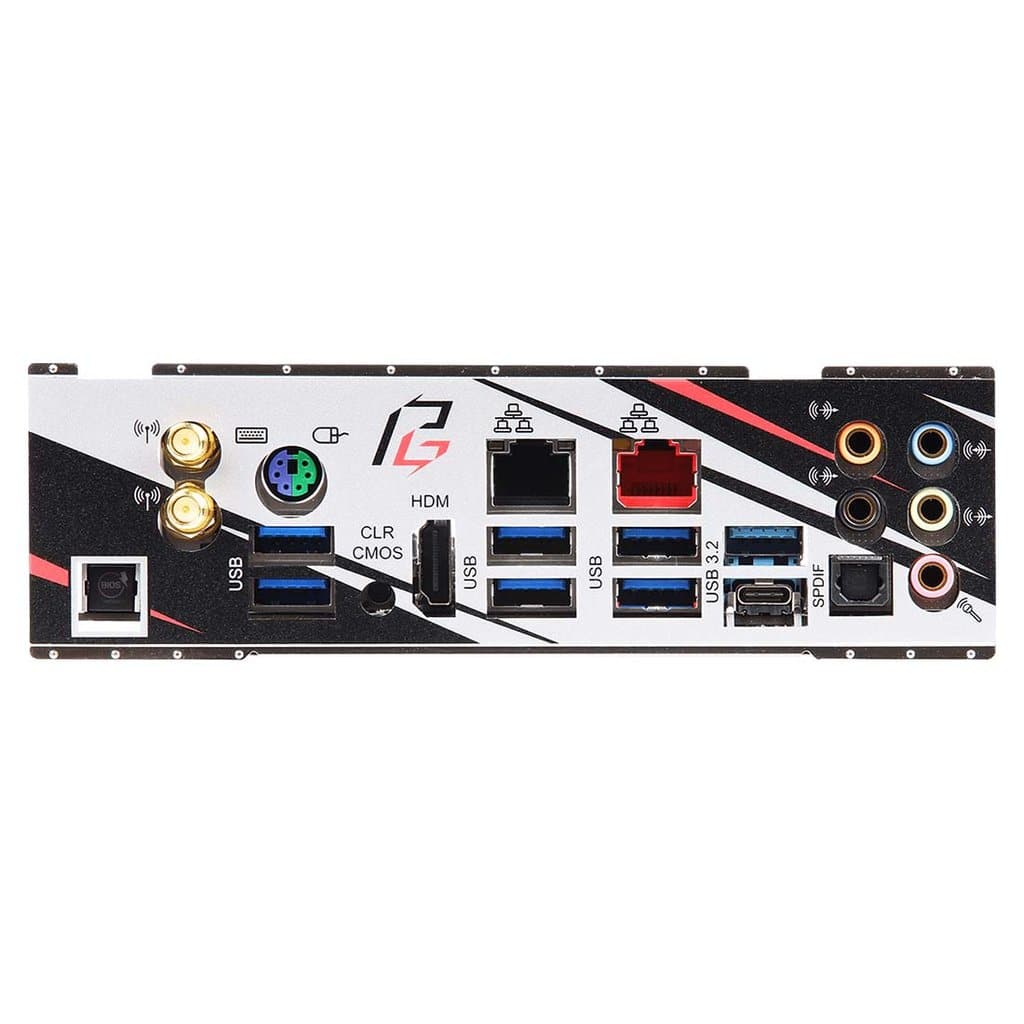

| Rear Panel I/O | – 2 x Antenna Ports- 1 x PS/2 Mouse/Keyboard Port- 1 x HDMI Port- 1 x Optical SPDIF Out Port- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)- 6 x USB 3.2 Gen1 Ports (Supports ESD Protection)*- 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)- 1 x Clear CMOS Button- 1 x BIOS Flashback Button- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)*Ultra USB Power is supported on USB3_5_6 ports.ACPI wake-up function is not supported on USB3_5_6 ports |
| Unique Features | ASRock USB 3.2 Gen2- ASRock Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)ASRock Super Alloy- XXL Aluminum Alloy Heatsink- Premium 60A Power Choke- 50A Dr.MOS- Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)- Combo Caps (Nichicon 12K Black Caps)- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)- I/O Armor- Matte Black PCB- High Density Glass Fabric PCB- 2oz Copper PCBASRock Phantom Gaming 2.5G LANIntel® 802.11ax WiFiASRock Steel Slot Gen4ASRock Full Coverage M.2 HeatsinkASRock Hyper M.2 (PCIe Gen4x4 & SATA3)ASRock Ultra USB PowerASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop |
| Hardware Monitor | – Temperature Sensing: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans- Fan Tachometer: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, PREM VDDCR_SOC, +1.8V, VDDP |
| Software And Uefi | Software- ASRock Phantom Gaming Tuning- ASRock Phantom Gaming LAN Software- ASRock Polychrome SYNC- ASRock XFast LANUEFI- ASRock Full HD UEFI- ASRock Instant Flash*These utilities can be downloaded from ASRock Live Update & APP Shop |
