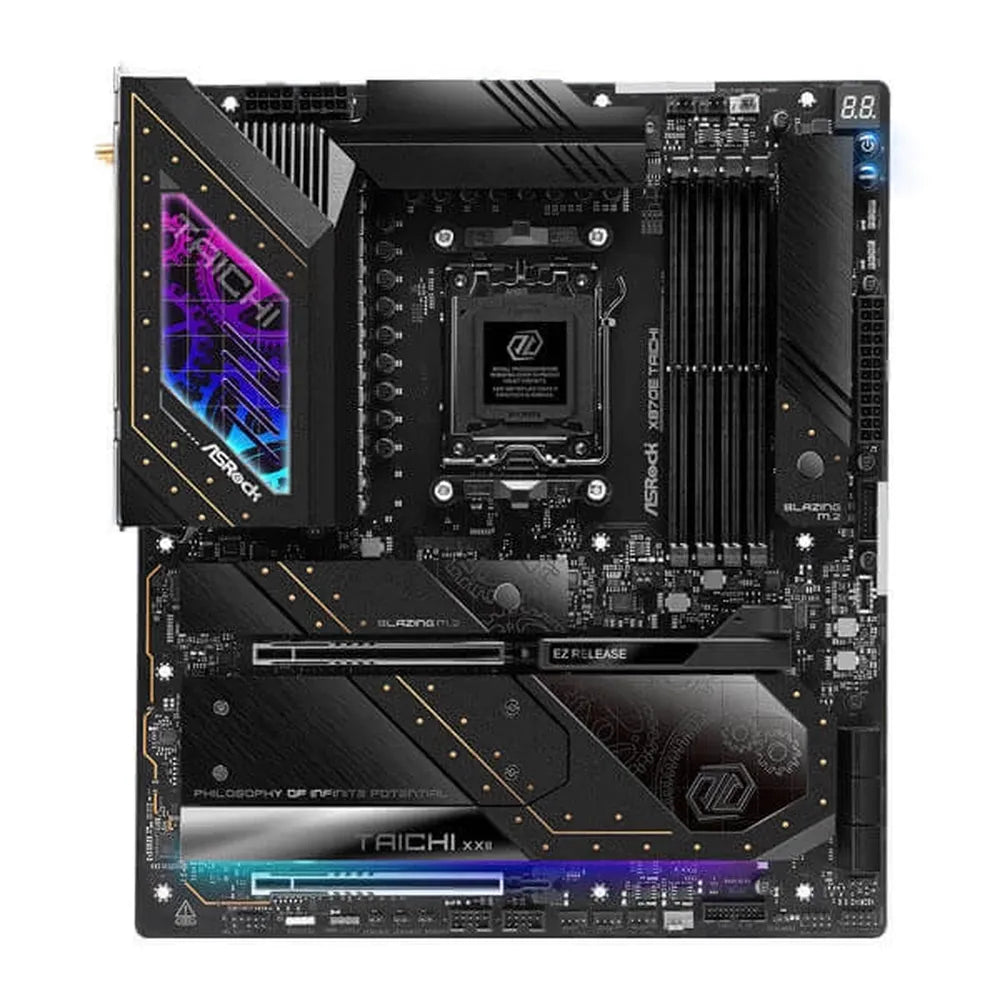

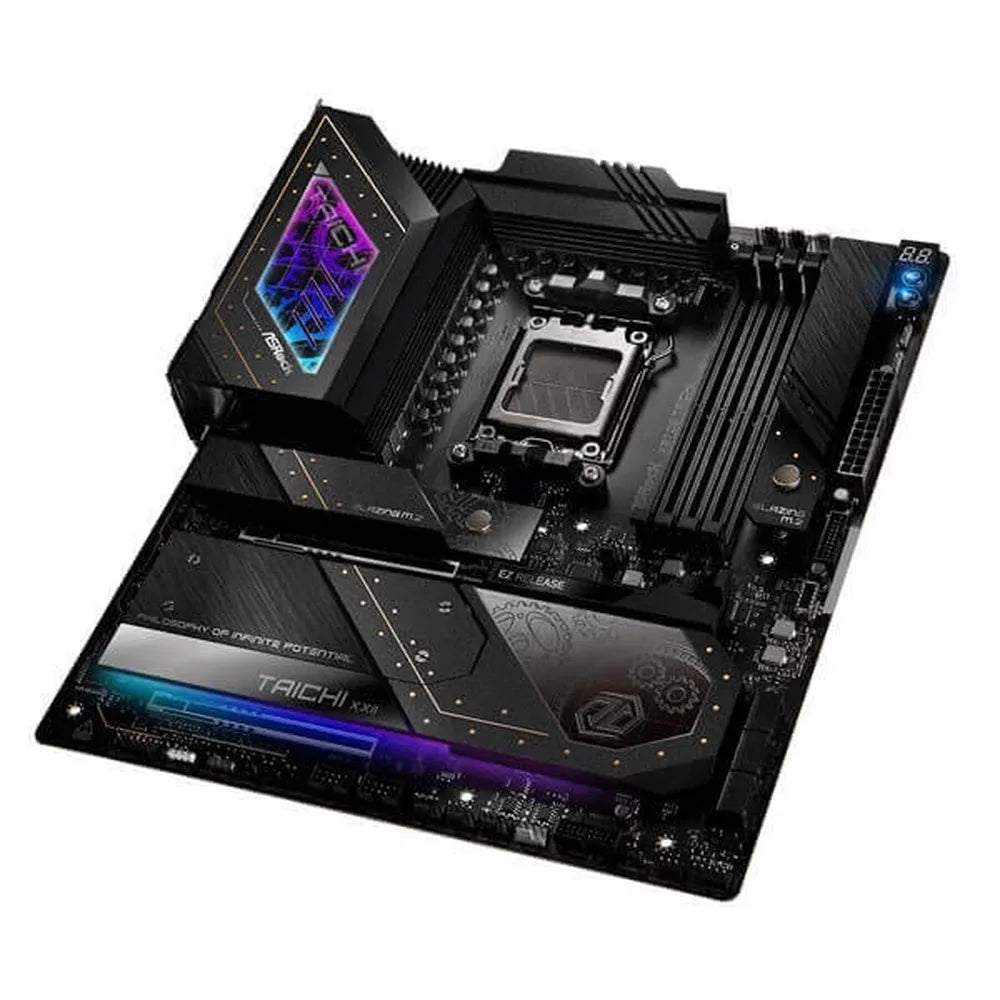

ASROCK X870E Taichi Wifi DDR5 AMD Motherboard
MPN ASROCK-X870E · Brand ASROCK · E-ATX
The ASRock X870E Taichi WiFi DDR5 is a premium EATX AM5 motherboard featuring PCIe 5.0 for both graphics and M.2 storage, Wi-Fi 7, dual USB4 40Gb/s ports, and a 24+2+1 phase VRM with 110A SPS — built for AMD Ryzen 9000/8000/7000 series CPUs
Inclusive of GST · GST invoice available
Overview
The ASRock X870E Taichi WiFi is a flagship EATX motherboard built on the AMD X870E chipset, designed to support AMD Socket AM5 processors including Ryzen 9000, 8000, and 7000 series. It is engineered for enthusiasts and power users who demand maximum performance, comprehensive connectivity, and long-term reliability from their platform. At the heart of its power delivery sits a robust 24+2+1 phase configuration rated at 110A SPS for VCore and SOC, paired with ASRock Hi-Density Power connectors. These connectors are engineered to handle the elevated current demands of CPU overclocking more safely than standard 8-pin and ATX 24-pin designs. The board uses a server-grade low-loss PCB with 8 layers and 2oz copper, which improves signal integrity and supports both PCIe 5.0 graphics and M.2 storage, while also contributing to enhanced memory overclocking headroom. Storage capabilities are extensive: one Blazing M.2 slot (M2_1) operates at PCIe Gen 5 x4, delivering up to 128 Gb/s bandwidth, while three additional Hyper M.2 slots run at PCIe Gen 4 x4 (64 Gb/s each). Six SATA3 6.0 Gb/s connectors round out the storage options, with RAID 0, 1, and 10 support for both SATA and NVMe devices. The memory subsystem supports four DDR5 DIMM slots in dual-channel configuration, with a maximum capacity of 256GB and speeds up to DDR5-8200+ (OC). Both XMP and EXPO profiles are supported for straightforward overclocking. Connectivity is a major strength of this board. Two rear USB4 Type-C ports deliver 40 Gb/s each, alongside five USB 3.2 Gen2 Type-A ports and a front-panel USB 3.2 Gen2x2 Type-C header at 20 Gb/s. The integrated 802.11be Wi-Fi 7 module supports 2.4GHz, 5GHz, and 6GHz bands with 160MHz channel bandwidth and Bluetooth 5.4. Wired networking is handled by a Realtek RTL8126 5 Gigabit LAN controller. Audio is delivered through a Realtek ALC4082 codec paired with an ESS SABRE9219 DAC rated at 130dB SNR, WIMA capacitors for rear outputs, and direct drive technology on the front headphone port supporting headsets up to 600 Ohm. Nahimic Audio software is also included. Verified Specifications: Model: X870E-TAICHI | Chipset: AMD X870E | Socket: AM5 | Form Factor: EATX (12.0 x 10.5 in / 30.5 x 26.7 cm) | PCB: 8 Layer, 2oz Copper | Memory: 4x DDR5 DIMM, max 256GB, up to DDR5-8200+ (OC), XMP/EXPO | PCIe: 2x PCIe 5.0 x16 (CPU) | M.2: 1x PCIe 5.0 x4 (128 Gb/s), 3x PCIe 4.0 x4 (64 Gb/s) | SATA: 6x SATA3 6.0 Gb/s | USB: 2x USB4 Type-C 40Gb/s (rear), 1x USB 3.2 Gen2x2 Type-C 20Gb/s (front) | LAN: 5GbE Realtek RTL8126 | Wi-Fi: 802.11be Wi-Fi 7, BT 5.4 | Audio: ALC4082 + ESS SABRE9219 DAC (130dB SNR) | VRM: 24+2+1 phase, 110A SPS | Warranty: 3 Years | OS: Windows 10/11 64-bit

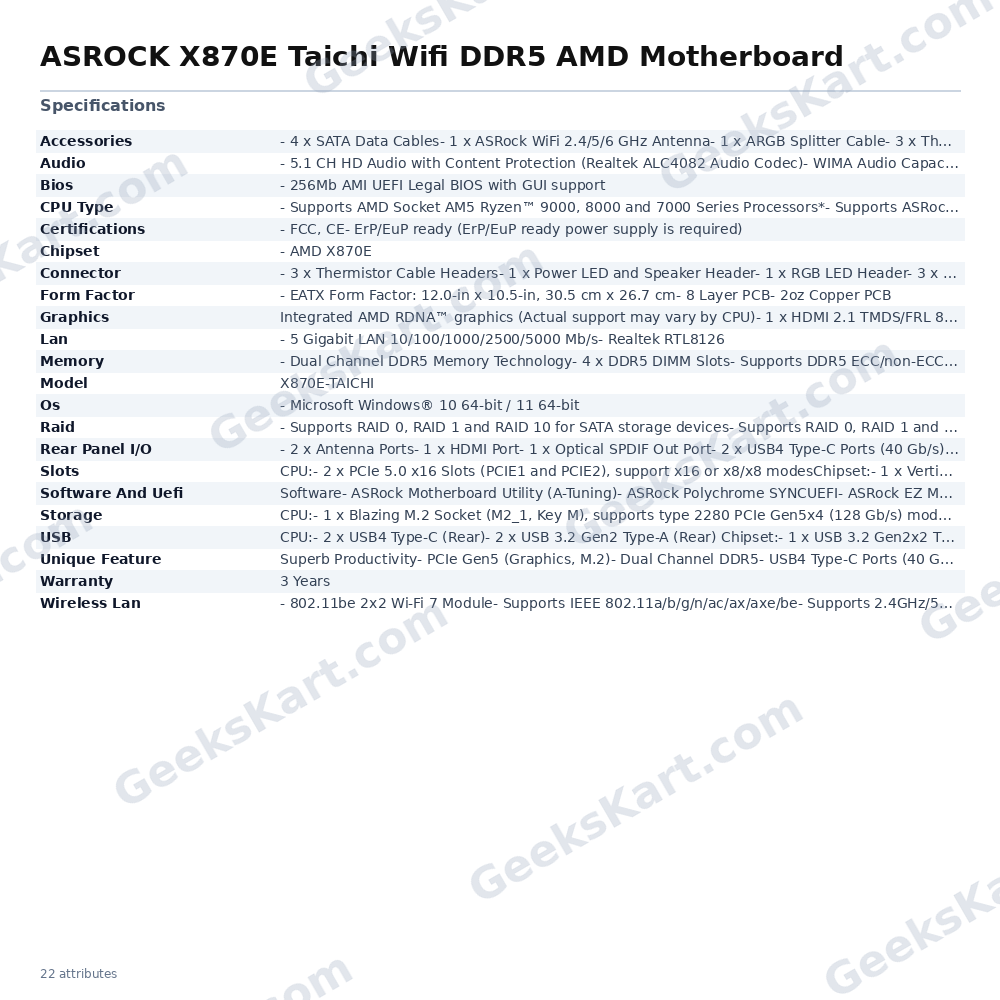

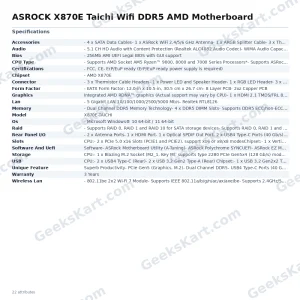

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | E-ATX |
| Chipset | – AMD X870E |
| CPU Type | – Supports AMD Socket AM5 RyzenTM 9000, 8000 and 7000 Series Processors*- Supports ASRock Hyper BCLK Engine |
| Os | – Microsoft Windows® 10 64-bit / 11 64-bit |
| Lan | – 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s- Realtek RTL8126 |
| USB | CPU:- 2 x USB4 Type-C (Rear)- 2 x USB 3.2 Gen2 Type-A (Rear) Chipset:- 1 x USB 3.2 Gen2x2 Type-C (Front)- 3 x USB 3.2 Gen2 Type-A (Rear)- 7 x USB 3.2 Gen1 Type-A (3 Rear, 4 Front)- 6 x USB 2.0 (2 Rear, 4 Front) |
| Bios | – 256Mb AMI UEFI Legal BIOS with GUI support |
| Raid | – Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
| Audio | – 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)- WIMA Audio Capacitors (For Rear Outputs)- ESS SABRE9219 DAC for Rear Panel Audio (130dB SNR)- Individual PCB Layers for R/L Audio Channel- Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets)- Nahimic Audio |
| Slots | CPU:- 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modesChipset:- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module- Supports AMD CrossFire™ |
| Memory | – Dual Channel DDR5 Memory Technology- 4 x DDR5 DIMM Slots- Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC)- Max. capacity of system memory: 256GB- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| Storage | CPU:- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) modeChipset:- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode- 6 x SATA3 6.0 Gb/s Connectors |
| Graphics | Integrated AMD RDNA™ graphics (Actual support may vary by CPU)- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz- 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz |
| Connector | – 3 x Thermistor Cable Headers- 1 x Power LED and Speaker Header- 1 x RGB LED Header- 3 x Addressable LED Headers- 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)- 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)- 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)- 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)- 1 x Dr. Debug with LED- 1 x Power Button with LED- 1 x Reset Button with LED |

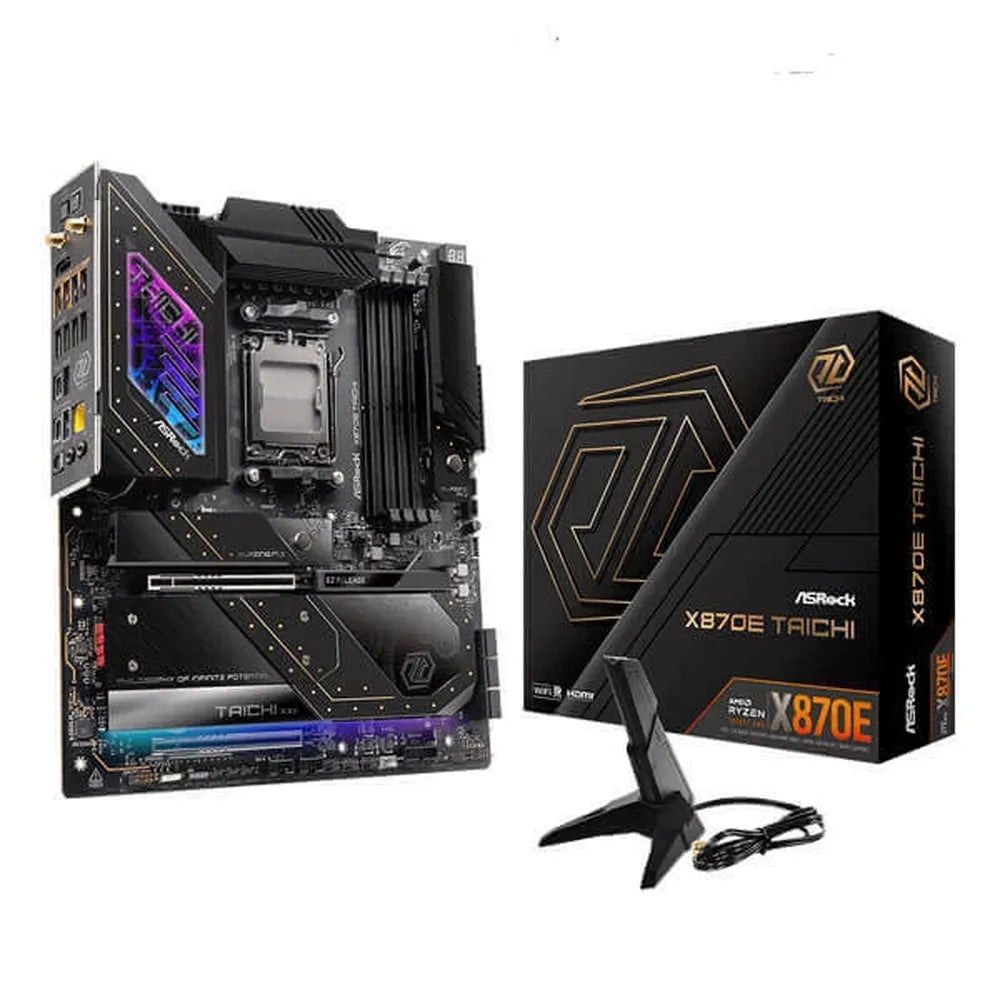

| Accessories | – 4 x SATA Data Cables- 1 x ASRock WiFi 2.4/5/6 GHz Antenna- 1 x ARGB Splitter Cable- 3 x Thermistor Cables |
| Model | X870E-TAICHI |
| Wireless Lan | – 802.11be 2×2 Wi-Fi 7 Module- Supports IEEE 802.11a/b/g/n/ac/ax/axe/be- Supports 2.4GHz/5GHz/6GHz frequency band- Supports 160MHz channel bandwidth with 6GHz* frequency band- 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology- Supports Bluetooth 5.4- Supports MU-MIMO |
| Certifications | – FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required) |
| Rear Panel I/O | – 2 x Antenna Ports- 1 x HDMI Port- 1 x Optical SPDIF Out Port- 2 x USB4 Type-C Ports (40 Gb/s)- 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_12 are Lightning Gaming Ports.)- 3 x USB 3.2 Gen1 Type-A Ports (USB32_34 supports Ultra USB Power.)- 2 x USB 2.0 Ports- 1 x RJ-45 LAN Port- 1 x Clear CMOS Button- 1 x BIOS Flashback Button- 1 x Line Out Jack (Gold Audio Jack)- 1 x Microphone Input Jack (Gold Audio Jack) |
| Unique Feature | Superb Productivity- PCIe Gen5 (Graphics, M.2)- Dual Channel DDR5- USB4 Type-C Ports (40 Gb/s)Rock-Solid Durability- Server-Grade Low-Loss PCB- 24+2+1 Power Phase, 110A SPS for VCore+SOC with Enlarged Heatsink Armor- Flexible Integrated I/O Shield- 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)Ultrafast Connectivity- 5G LAN, 802.11be Wi-Fi 7 Module- ASRock Lightning Gaming PortsEZ Update- BIOS Flashback Button- ASRock Auto Driver Installer |
| Software And Uefi | Software- ASRock Motherboard Utility (A-Tuning)- ASRock Polychrome SYNCUEFI- ASRock EZ Mode- ASRock Full HD UEFI- ASRock Auto Driver Installer- ASRock Instant Flash |
