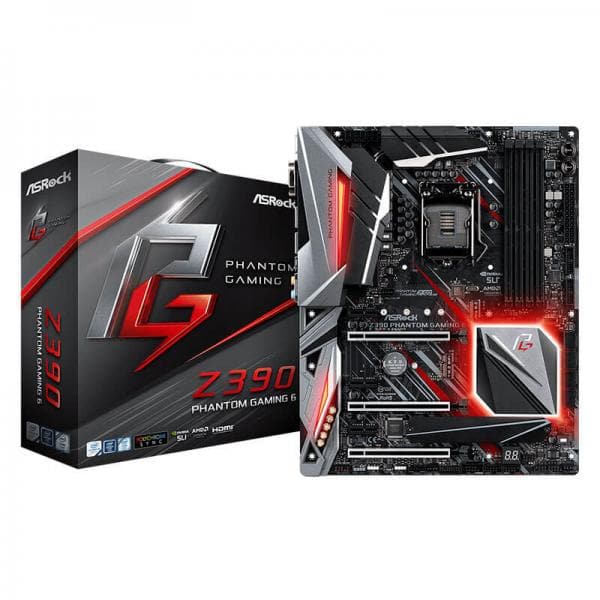

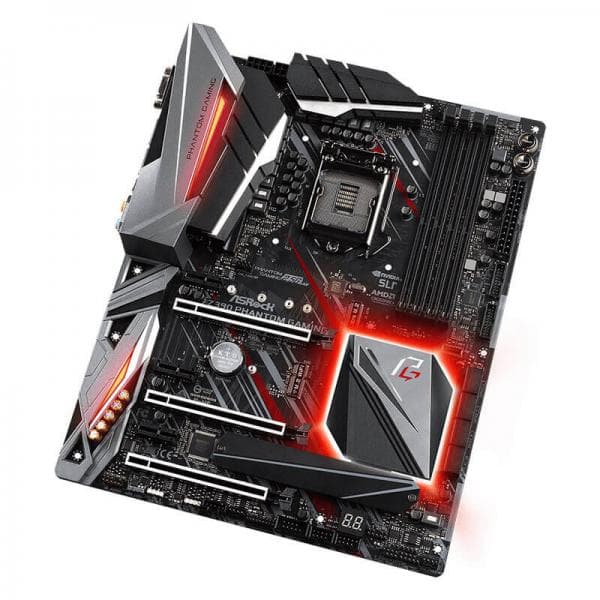

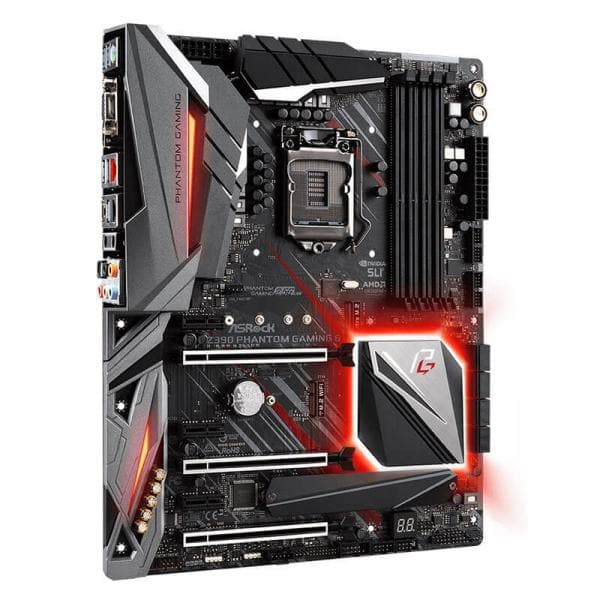

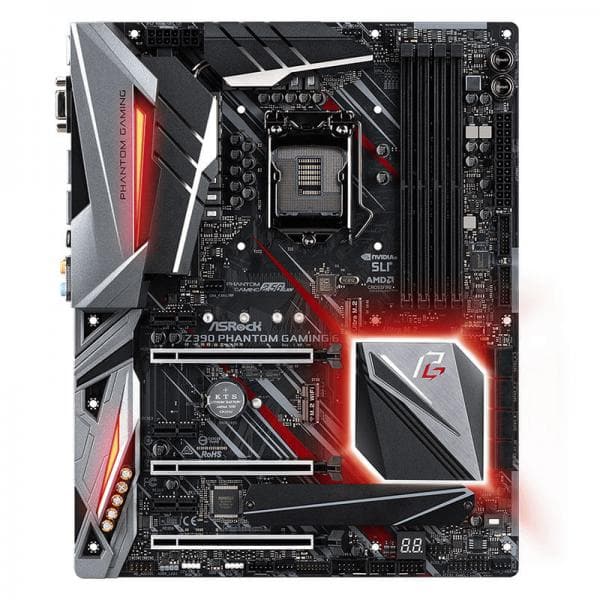

ASROCK Z390 Phantom Gaming 6 DDR4 Intel Motherboard
MPN ASROCK-Z390-PHANTOM-GAMING-6 · Brand ASROCK · ATX
The ASRock Z390 Phantom Gaming 6 is an ATX motherboard for 8th/9th Gen Intel Core CPUs, featuring dual-LAN (2.5G + 1G), dual M.2 slots, 7.1-channel HD audio, and ASRock Polychrome SYNC RGB lighting
Inclusive of GST · GST invoice available
Overview
The ASRock Z390 Phantom Gaming 6 is a full-size ATX motherboard built on Intel's Z390 chipset, designed to support both 8th and 9th Generation Intel Core processors via the LGA 1151 socket. With a 12-phase digital power design featuring premium 60A power chokes, Dual-Stack MOSFETs, and Nichicon 12K capacitors, the board delivers stable power delivery suited to demanding workloads and overclocking with Intel K-series unlocked CPUs. ASRock's BCLK Full-range Overclocking and Hyper BCLK Engine II give enthusiasts granular control over clock tuning. Memory support spans four DDR4 DIMM slots with a maximum capacity of 64 GB, running speeds from 2133 MHz up to 4300 MHz (OC) with XMP 2.0 compatibility. Storage is handled by eight SATA3 6 Gb/s ports (six chipset-native with RAID 0/1/5/10 support, plus two via ASMedia ASM1061) and two Ultra M.2 sockets (M2_1 and M2_2), each supporting PCIe Gen3 x4 (up to 32 Gb/s) or SATA3, with Intel Optane memory compatibility. Networking stands out with a dual-LAN configuration: a 2.5 Gigabit port (Realtek Dragon RTL8125AG) with Phantom Gaming LAN bandwidth-management software alongside a standard Intel I219V Gigabit port. The rear I/O also includes USB 3.1 Gen2 Type-A and Type-C ports at 10 Gb/s, four USB 3.1 Gen1 ports, D-Sub, HDMI 1.4, and DisplayPort 1.2 outputs. Audio is handled by a Realtek ALC1220 codec delivering 7.1-channel HD audio with a 120 dB SNR DAC, an NE5532 headset amplifier supporting headphones up to 600 Ohm, Nichicon Fine Gold audio capacitors, PCB isolation shielding for left/right channel separation, and Creative Sound Blaster Cinema 5 software support. Expansion slots include three PCIe 3.0 x16 slots (single x16, dual x8/x8, triple x8/x8/x4), three PCIe 3.0 x1 slots, and a Key-E M.2 socket for optional WiFi/BT modules. Multi-GPU configurations supporting NVIDIA Quad SLI, NVLink (RTX series), and AMD Quad CrossFireX are accommodated. RGB customisation is managed through ASRock Polychrome SYNC via two 12V RGB headers and one 5V addressable RGB header. Verifiable Specifications: - Form Factor: ATX, 30.5 cm x 24.4 cm - Chipset: Intel Z390 - CPU Socket: LGA 1151 (8th and 9th Gen Intel Core) - Memory: 4x DDR4 DIMM, max 64 GB, DDR4-4300 (OC), XMP 2.0 - Storage: 8x SATA3 6 Gb/s, 2x Ultra M.2 PCIe Gen3 x4 / SATA3 - LAN: 1x 2.5 GbE (RTL8125AG) + 1x 1 GbE (Intel I219V) - USB: 2x USB 3.1 Gen2 (Type-A + Type-C, 10 Gb/s), 9x USB 3.1 Gen1 - Audio: Realtek ALC1220, 7.1 CH, 120 dB SNR - Display Outputs: D-Sub (1920x1200@60Hz), HDMI 1.4 (4096x2160@30Hz), DisplayPort 1.2 (4096x2304@60Hz) - BIOS: Dual 128 Mb AMI UEFI (Main + Backup) - Warranty: 3 Years

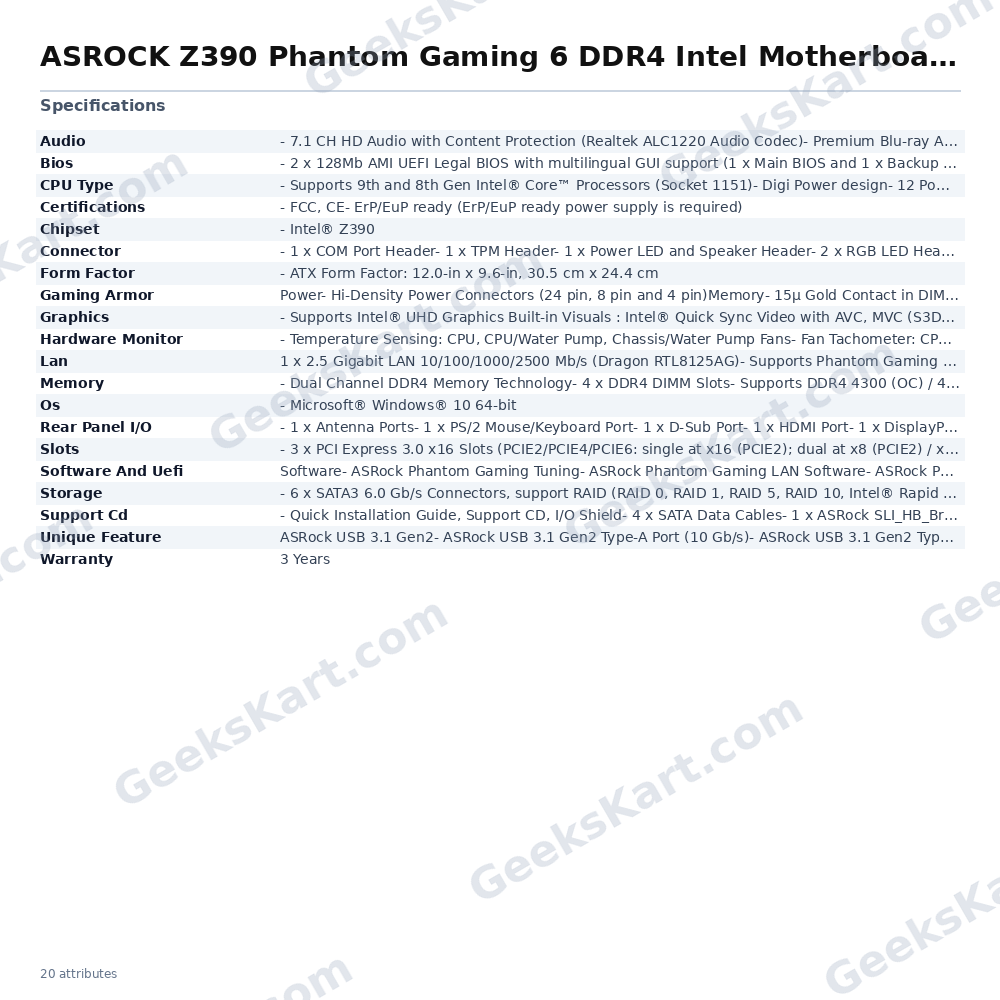

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | – Intel® Z390 |
| CPU Type | |
| Os | – Microsoft® Windows® 10 64-bit |
| Lan | 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125AG)- Supports Phantom Gaming LAN Software- Smart Auto Adjust Bandwidth Control- Visual User Friendly UI- Visual Network Usage Statistics- Optimized Default Setting for Game, Browser, and Streaming Modes- User Customized Priority Control- Supports Wake-On-LAN- Supports Lightning/ESD Protection- Supports Energy Efficient Ethernet 802.3az- Supports PXE1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V)- Supports Wake-On-LAN- Supports Lightning/ESD Protection- Supports Energy Efficient Ethernet 802.3az- Supports PXE |
| Bios | – 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)- Supports Secure Backup UEFI Technology- ACPI 6.0 Compliant wake up events- SMBIOS 2.7 Support- CPU Core/Cache, GT, DRAM, PCH 1.0V, VCCIO, VCCST, VCCSA, VCCPLL, CPU Internal PLL, GT PLL, Ring PLL, System Agent PLL, Memory Controller PLL Voltage Multi-adjustment |
| Audio | – 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)- Premium Blu-ray Audio support- Supports Surge Protection- Nichicon Fine Gold Series Audio Caps- 120dB SNR DAC with Differential Amplifier- NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)- Pure Power-In- Direct Drive Technology- PCB Isolate Shielding- Impedance Sensing on Rear Out port- Individual PCB Layers for R/L Audio Channel- RGB LED- Gold Audio Jacks- 15μ Gold Audio Connector- Supports Creative Sound Blaster™ Cinema 5 |
| Slots | – 3 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4/PCIE6: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE4); triple at x8 (PCIE2) / x8 (PCIE4) / x4 (PCIE6))*- 3 x PCI Express 3.0 x1 Slots (Flexible PCIe)- Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™- Supports NVIDIA® Quad SLI™ and SLI™- Supports NVIDIA® NVLink™ with dual NVIDIA® GeForce RTX series graphics cards**- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel® CNVi (Integrated WiFi/BT)- 15μ Gold Contact in VGA PCIe Slot (PCIE2)*Supports NVMe SSD as boot disks**NVIDIA® NVLink™ Bridge does not come with the package. Please purchase it from NVIDIA® if necessary |
| Memory | – Dual Channel DDR4 Memory Technology- 4 x DDR4 DIMM Slots- Supports DDR4 4300 (OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666/2400/2133 non-ECC, un-buffered memory- Supports ECC UDIMM memory modules (operate in non-ECC mode)- Max. capacity of system memory: 64GB*- Supports Intel® Extreme Memory Profile (XMP) 2.0- 15μ Gold Contact in DIMM Slots*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation |
| Storage | – 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 16), NCQ, AHCI and Hot Plug*- 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**- 1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)***M2_1, SATA3_0 and SATA3_1 share lanes. If either one of them is in use, the others will be disabled.M2_2, SATA3_4 and SATA3_5 share lanes. If either one of them is in use, the others will be disabled.**Supports Intel® Optane™ TechnologySupports NVMe SSD as boot disksSupports ASRock U.2 Kit |
| Graphics | – Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics- DirectX 12- HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only)- Three graphics output options: D-Sub, HDMI and DisplayPort 1.2- Supports Triple Monitor- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz- Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096×2304) @ 60Hz- Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)- Supports HDCP 2.2 with HDMI 1.4 and DisplayPort 1.2 Ports- Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.2 Ports*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated |
| Connector | – 1 x COM Port Header- 1 x TPM Header- 1 x Power LED and Speaker Header- 2 x RGB LED Headers*- 1 x Addressable LED Header**- 1 x CPU Fan Connector (4-pin)***- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)- 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)- 1 x Thunderbolt™ AIC Connector (5-pin)- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Intel® Z390) (Supports ESD Protection)- 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)- 1 x Front Panel Type C USB 3.1 Gen1 Header (Intel® Z390) (Supports ESD Protection)- 1 x Performance Mode / Easy OC Header- 1 x Dr. Debug with LED- 1 x Power Button with LED- 1 x Reset Button with LED*Support in total up to 12V/3A, 36W LED Strip**Supports in total up to 5V/3A, 15W LED Strip***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.*****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use |
| Support Cd | – Quick Installation Guide, Support CD, I/O Shield- 4 x SATA Data Cables- 1 x ASRock SLI_HB_Bridge_2S Card- 3 x Screws for M.2 Sockets |
| Gaming Armor | Power- Hi-Density Power Connectors (24 pin, 8 pin and 4 pin)Memory- 15μ Gold Contact in DIMM SlotsVGA Card- 15μ Gold Contact in VGA PCIe Slot (PCIE2)Internet- Phantom Gaming 2.5G LANCooling- XXL Aluminum Alloy Heatsink- Heat Pipe DesignAudio- Creative Sound Blaster™ Cinema 5 |
| Certifications | – FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required) |

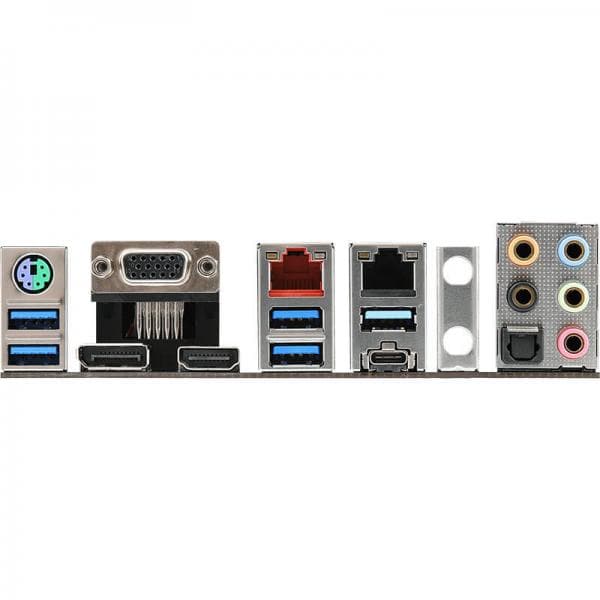

| Rear Panel I/O | – 1 x Antenna Ports- 1 x PS/2 Mouse/Keyboard Port- 1 x D-Sub Port- 1 x HDMI Port- 1 x DisplayPort 1.2- 1 x Optical SPDIF Out Port- 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)- 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)- 4 x USB 3.1 Gen1 Ports (Intel® Z390) (Supports ESD Protection)- 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) |
| Unique Feature | ASRock USB 3.1 Gen2- ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s)- ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s)ASRock Super Alloy- XXL Aluminum Alloy Heatsink- Premium 60A Power Choke- Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)- Dual-Stack MOSFET (DSM)- Combo Caps (Nichicon 12K Black Caps)- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)- I/O Armor- Matte Black PCB- High Density Glass Fabric PCBASRock Phantom Gaming 2.5G LANASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) TechnologyASRock Steel SlotsASRock Full Coverage M.2 HeatsinkASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)ASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop |
| Hardware Monitor | – Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Voltage monitoring: 12V, 5V, 3.3V, CPU Vcore, DRAM, VPPM, PCH 1.0V, VCCSA, VCCST, VCCIO |
| Software And Uefi | Software- ASRock Phantom Gaming Tuning- ASRock Phantom Gaming LAN Software- ASRock Polychrome SYNC- ASRock Key MasterUEFI- ASRock EZ Mode- ASRock Full HD UEFI- ASRock My Favorites in UEFI- ASRock Instant Flash- ASRock Internet Flash- ASRock Easy RAID Installer*These utilities can be downloaded from ASRock Live Update & APP Shop |
