ASROCK Z390 Phantom Gaming SLi/Ac Wifi DDR4 Intel Motherboard
MPN ASROCK-Z390-PHANTOM-GAMING · Brand ASROCK · ATX

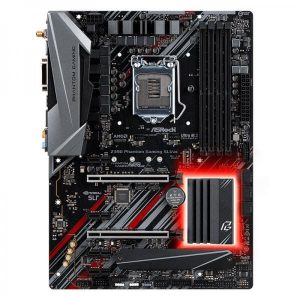

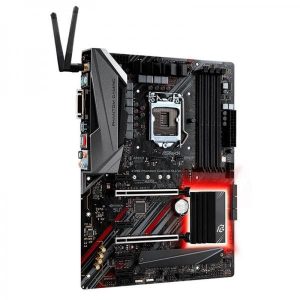

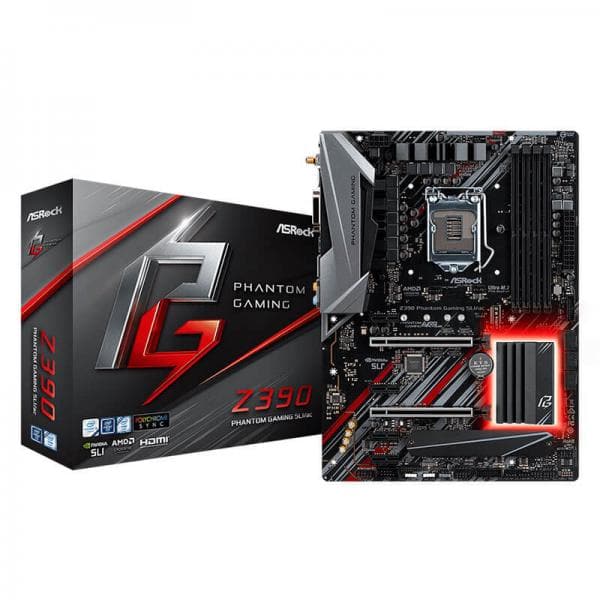

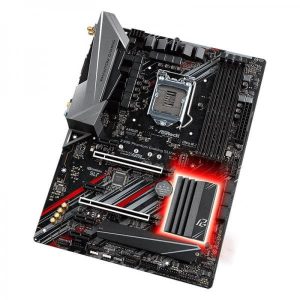

The ASRock Z390 Phantom Gaming SLI/AC is a full ATX motherboard with Intel Z390 chipset, support for 8th/9th Gen Intel Core CPUs, 2.5G LAN, dual-band 802.11ac WiFi, DDR4-4300(OC), dual M.2 NVMe slots, and ASRock Polychrome SYNC RGB
Inclusive of GST · GST invoice available
Overview
The ASRock Z390 Phantom Gaming SLI/AC is a full-size ATX motherboard built on Intel's Z390 chipset, designed to accommodate 8th and 9th Generation Intel Core processors via Socket LGA1151. The board measures 12.0 x 8.8 inches (30.5 x 22.4 cm) and ships with a Sapphire Black PCB finished in High Density Glass Fabric construction, which reduces layer gaps to help resist electrical shorts caused by humidity. Memory support spans four DDR4 DIMM slots in dual-channel configuration, accommodating up to 64 GB of non-ECC unbuffered memory. Speeds from the standard JEDEC 2133/2400/2666 MHz all the way to DDR4-4300 (OC) are supported, with full Intel XMP 2.0 compatibility for enthusiast memory kits. Gold-plated 15-micron contacts are used on both the DIMM and primary PCIe x16 slots. Networking is a standout feature: a Realtek Dragon RTL8125AG chip delivers 2.5 Gigabit Ethernet (10/100/1000/2500 Mb/s) with Phantom Gaming LAN software for traffic prioritisation across game, browser, and streaming modes. Wireless connectivity is handled by an Intel 802.11ac module supporting dual-band 2.4 GHz and 5 GHz operation at up to 433 Mbps, paired with Bluetooth 4.2. For expansion, the board provides two PCIe 3.0 x16 slots—running at x16 single or x8/x8 dual—alongside four PCIe 3.0 x1 slots. NVIDIA Quad SLI, NVIDIA NVLink (RTX series), and AMD Quad CrossFireX are all supported. Storage is served by six SATA3 6 Gb/s ports with RAID 0/1/5/10 support and two Ultra M.2 sockets (both PCIe Gen3 x4 at up to 32 Gb/s and SATA3), with Intel Optane Memory compatibility. USB connectivity includes two USB 3.1 Gen2 ports on the rear I/O (one Type-A, one Type-C with ReDriver), four USB 3.1 Gen1 rear ports, and additional headers for four Gen1 and three USB 2.0 front-panel ports. Display outputs via integrated graphics are HDMI 1.4 (4K at 30 Hz) and DVI-D (up to 1920×1200 at 60 Hz). Audio is handled by a Realtek ALC892 codec delivering 7.1-channel HD audio with Nichicon Fine Gold Series capacitors and Blu-ray audio support. The board features ASRock Polychrome SYNC with two RGB headers (12 V/3 A) and one addressable RGB header (5 V/3 A) for LED customisation. Power delivery uses a 10-phase digital PWM design with premium 45 A power chokes and Nichicon 12K Black Caps rated for at least 12,000 hours. The board carries a 3-year manufacturer warranty and is FCC and CE certified. Verifiable Specifications: - Chipset: Intel Z390 - Socket: LGA1151 (8th and 9th Gen Intel Core) - Form Factor: ATX, 30.5 x 22.4 cm - Memory: 4x DDR4 DIMM, max 64 GB, up to DDR4-4300 (OC), XMP 2.0 - Expansion: 2x PCIe 3.0 x16, 4x PCIe 3.0 x1 - Storage: 6x SATA3, 2x Ultra M.2 (PCIe Gen3 x4 / SATA3) - LAN: 2.5 Gigabit (RTL8125AG) - WiFi: Intel 802.11ac dual-band + Bluetooth 4.2 - USB rear: 2x Gen2 (Type-A + Type-C), 4x Gen1 - Audio: Realtek ALC892, 7.1 CH HD - Power phases: 10-phase digital PWM - Warranty: 3 years
Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | – Intel® Z390 |
| CPU Type | |
| Os | – Microsoft® Windows® 10 64-bit |
| Lan | – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s- Dragon RTL8125AG- Supports Phantom Gaming LAN Software- Smart Auto Adjust Bandwidth Control- Visual User Friendly UI- Visual Network Usage Statistics- Optimized Default Setting for Game, Browser, and Streaming Modes- User Customized Priority Control- Supports Wake-On-LAN- Supports Lightning/ESD Protection- Supports Energy Efficient Ethernet 802.3az- Supports PXE |
| Bios | – 128Mb AMI UEFI Legal BIOS with multilingual GUI support- ACPI 6.0 Compliant wake up events- SMBIOS 2.7 Support- CPU Vcore, DRAM, PCH 1.0V, VCCIO, VCCST, VCCSA Voltage Multi-adjustment |
| Audio | – 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)- Premium Blu-ray Audio support- Supports Surge Protection- Nichicon Fine Gold Series Audio Caps |
| Slots | – 2 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE4))*- 4 x PCI Express 3.0 x1 Slots (Flexible PCIe)- Supports AMD Quad CrossFireX™ and CrossFireX™- Supports NVIDIA® Quad SLI™ and SLI™- Supports NVIDIA® NVLink™ with dual NVIDIA® GeForce RTX series graphics cards**- 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)- 15μ Gold Contact in VGA PCIe Slot (PCIE2)*Supports NVMe SSD as boot disks**NVIDIA® NVLink™ Bridge does not come with the package. Please purchase it from NVIDIA® if necessary |
| Memory | – Dual Channel DDR4 Memory Technology- 4 x DDR4 DIMM Slots- Supports DDR4 4300 (OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666/2400/2133 non-ECC, un-buffered memory- Supports ECC UDIMM memory modules (operate in non-ECC mode)- Max. capacity of system memory: 64GB*- Supports Intel® Extreme Memory Profile (XMP) 2.0- 15μ Gold Contact in DIMM Slots*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation |
| Storage | – 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 16), NCQ, AHCI and Hot Plug*- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**- 1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)***If M2_1 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled.If M2_2 is occupied by a SATA-type M.2 device, SATA3_5 will be disabled.**Supports Intel® Optane™ TechnologySupports NVMe SSD as boot disksSupports ASRock U.2 Kit |
| Graphics | – Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics- DirectX 12- HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only)- Dual graphics output: Support DVI-D and HDMI ports by independent display controllers- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz- Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)- Supports HDCP 2.2 with DVI-D and HDMI 1.4 Ports- Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated |
| Connector | – 1 x COM Port Header- 1 x TPM Header- 1 x Power LED and Speaker Header- 2 x RGB LED Headers*- 1 x Addressable LED Header**- 1 x CPU Fan Connector (4-pin)***- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****- 1 x 24 pin ATX Power Connector- 1 x 8 pin 12V Power Connector- 1 x Front Panel Audio Connector- 1 x Thunderbolt™ AIC Connector (5-pin)- 2 x USB 2.0 Headers (Supports 3 USB 2.0 ports) (Supports ESD Protection)- 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection)- 1 x Performance Mode / Easy OC Header*Support in total up to 12V/3A, 36W LED Strip**Supports in total up to 5V/3A, 15W LED Strip***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.*****CHA_FAN2/WP supports the water cooler fan of maximum 2A (24W) fan power.CHA_FAN1/WP and CHA_FAN3/WP support the water cooler fan of maximum 1A (12W) fan power.CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use |
| Support Cd | – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories | – Quick Installation Guide, Support CD, I/O Shield- 2 x SATA Data Cables- 1 x ASRock SLI_HB_Bridge_2S Card- 2 x ASRock WiFi 2.4/5 GHz Antennas- 2 x Screws for M.2 Sockets |
| Gaming Armor | Memory- 15μ Gold Contact in DIMM SlotsVGA Card- 15μ Gold Contact in VGA PCIe Slot (PCIE2)Internet- Phantom Gaming 2.5G LANCooling- XXL Aluminum Alloy Heatsink |
| Wireless Lan | – Intel® 802.11ac WiFi Module- Supports IEEE 802.11a/b/g/n/ac- Supports Dual-Band (2.4/5 GHz)- Supports high speed wireless connections up to 433Mbps- Supports Bluetooth 4.2 / 3.0 High speed class II |
| Certifications | – FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required) |
| Rear Panel I/O | – 2 x Antenna Ports- 1 x PS/2 Mouse/Keyboard Port- 1 x DVI-D Port- 1 x HDMI Port- 1 x Optical SPDIF Out Port- 1 x USB 3.1 Gen2 Type-A Port (ReDriver) (Supports ESD Protection)- 1 x USB 3.1 Gen2 Type-C Port (ReDriver) (Supports ESD Protection)- 4 x USB 3.1 Gen1 Ports (Intel® Z390) (Supports ESD Protection)- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone |
| Unique Feature | ASRock Super Alloy- Premium 45A Power Choke- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)- I/O Armor- Sapphire Black PCB- High Density Glass Fabric PCBASRock Phantom Gaming 2.5G LANIntel® 802.11ac WiFiASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) TechnologyASRock Steel SlotsASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)ASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop |
| Hardware Monitor | – Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Voltage monitoring: 12V, 5V, 3.3V, CPU Vcore, DRAM, VPPM, PCH 1.0V, VCCSA, VCCST |
| Software And Uefi | Software- ASRock Phantom Gaming Tuning- ASRock Phantom Gaming LAN Software- ASRock Polychrome SYNC- ASRock Key MasterUEFI- ASRock EZ Mode- ASRock Full HD UEFI- ASRock My Favorites in UEFI- ASRock Instant Flash- ASRock Internet Flash- ASRock Easy RAID Installer*These utilities can be downloaded from ASRock Live Update & APP Shop |
