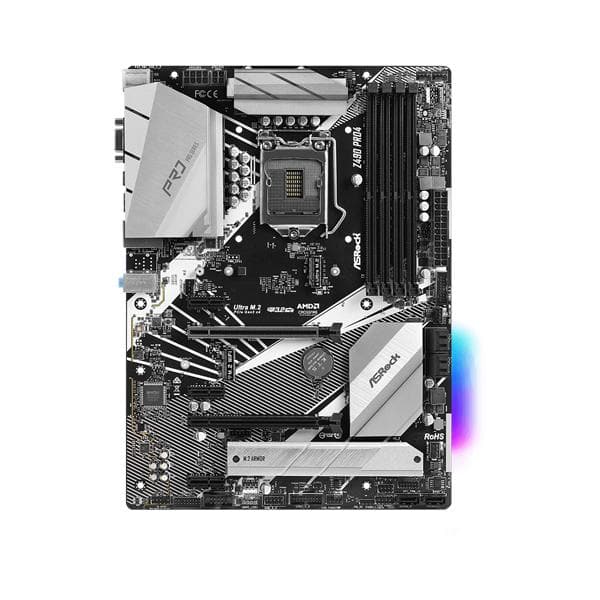

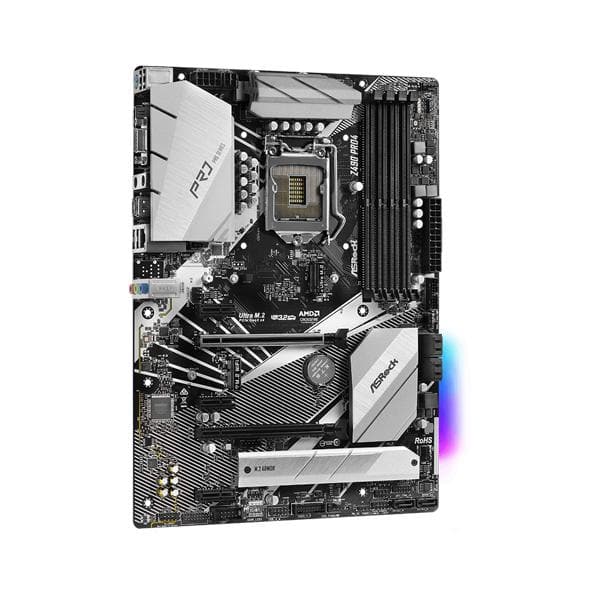

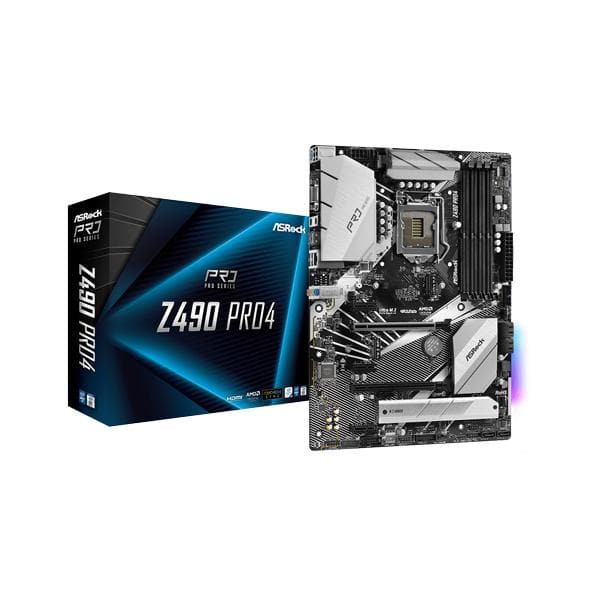

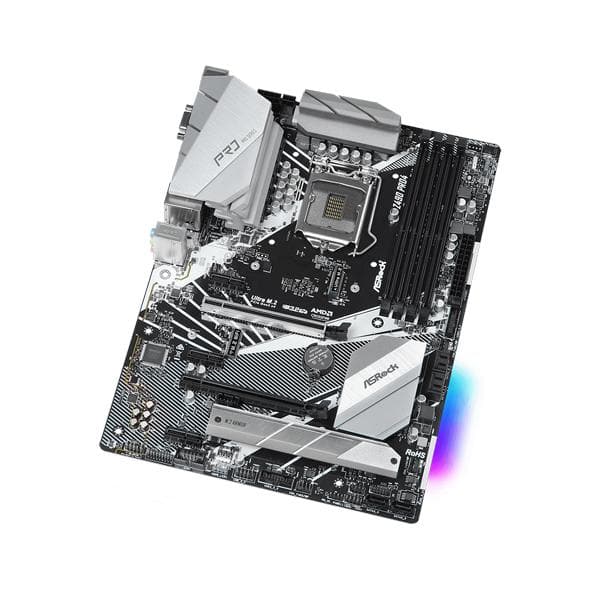

The ASRock Z490 Pro4 is an ATX form factor motherboard built on the Intel Z490 chipset, designed exclusively for 10th Generation Intel Core processors using the LGA 1200 socket. It measures 12.0 x 8.8 inches (30.5 x 22.4 cm) and features a solid capacitor design with a Sapphire Black PCB finish. Power delivery is handled by a 10-phase digital VRM incorporating ASRock’s Premium 50A Power Choke, which the manufacturer states provides up to three times improved saturation current compared to conventional chokes. The board supports Intel Turbo Boost Max 3.0 Technology, Intel K-Series unlocked CPUs, and ASRock BCLK Full-range Overclocking, as well as ASRock Base Frequency Boost (BFB) Technology for non-K processors. Memory support covers four DDR4 DIMM slots in dual-channel configuration with a maximum capacity of 128 GB. Native speeds run from DDR4-2133 up to DDR4-2933, with XMP 2.0 profiles enabling overclocked operation up to DDR4-4400+. Storage options include six SATA3 6.0 Gb/s connectors supporting RAID 0/1/5/10 via Intel RST 17, plus two Ultra M.2 sockets (M2_1: type 2260/2280; M2_2: type 2260/2280/22110), both capable of PCIe Gen3 x4 (up to 32 Gb/s) or SATA3. Both M.2 slots are covered by ASRock’s Full Coverage M.2 Heatsink. Expansion slots comprise two PCIe 3.0 x16 slots (single GPU at x16; dual GPU at x16/x4) and three PCIe 3.0 x1 slots, supporting AMD Quad CrossFireX and CrossFireX configurations. An M.2 Key-E socket accommodates a type-2230 Wi-Fi/BT module or Intel CNVi. Audio is delivered by a Realtek ALC1200 codec providing 7.1-channel HD audio with PCB isolate shielding, individual PCB layers for left/right channels, and Nahimic Audio software. Networking uses an Intel I219V Gigabit LAN controller with Wake- LAN, Energy Efficient Ethernet 802.3az, and full spike protection. Rear I/O includes one USB 3.2 Gen2 Type-A (10 Gb/s), one USB 3.2 Gen2 Type-C (10 Gb/s), two USB 3.2 Gen1 Type-A, two USB 2.0, one HDMI 1.4 (up to 4K@30Hz), one D-Sub (up to 1920×1200@60Hz), one PS/2 port, RJ-45 LAN, and HD audio jacks. Two RGB LED headers (12V/3A) and two addressable LED headers (5V/3A) are provided for lighting control via ASRock Polychrome SYNC. Key Verified Specifications: – Chipset: Intel Z490 – Socket: LGA 1200 (10th Gen Intel Core) – Form Factor: ATX — 30.5 x 22.4 cm – Memory: 4x DDR4 DIMM, max 128 GB, DDR4-2133 to 4400+(OC), XMP 2.0 – Storage: 6x SATA3, 2x Ultra M.2 (PCIe Gen3 x4 / SATA3) – USB: 2x USB 3.2 Gen2 (1x Type-A + 1x Type-C, rear), 6x USB 3.2 Gen1 (4 front + 2 rear) – Display Out: HDMI 1.4, D-Sub – Audio: Realtek ALC1200, 7.1 CH HD – LAN: Intel I219V Gigabit – BIOS: 128Mb AMI UEFI – Certifications: FCC, CE, ErP/EuP ready – Warranty: 3 Years
ASUS Prime B760M-A Wifi DDR5 Intel Motherboard
₹16,390.00
GIGABYTE H610M K V2 DDR5 Intel Motherboard
₹6,450.00
ASROCK Z490 Pro4 DDR4 Intel Motherboard
₹13,290.00
The ASRock Z490 Pro4 is an ATX motherboard for 10th Gen Intel Core CPUs (LGA 1200), featuring a 10-phase digital VRM, 128 GB DDR4 support up to 4400+ MHz (OC), dual Ultra M.2 slots, and USB 3.2 Gen2 connectivity
Out of stock

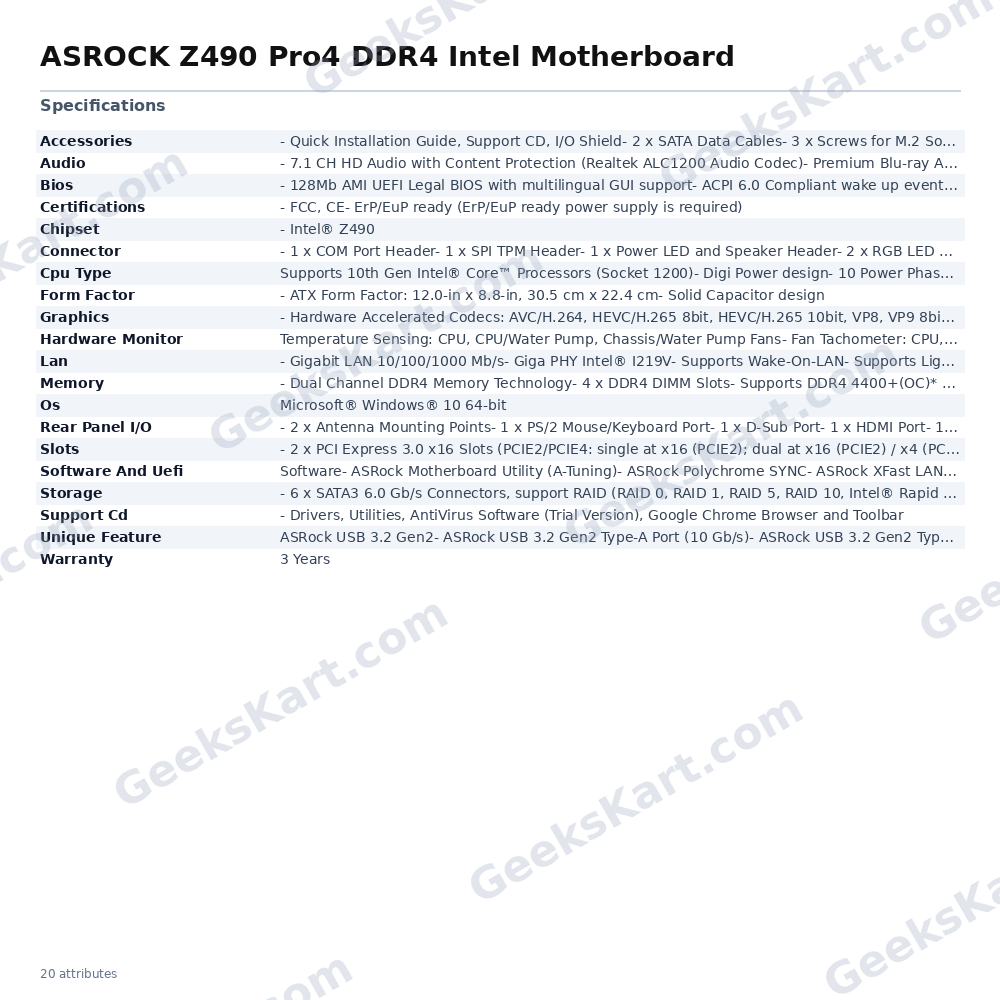

Additional information
| Os | Microsoft® Windows® 10 64-bit |
|---|---|
| Lan | – Gigabit LAN 10/100/1000 Mb/s- Giga PHY Intel® I219V- Supports Wake-On-LAN- Supports Lightning/ESD Protection- Supports Energy Efficient Ethernet 802.3az- Supports PXE |
| Bios | – 128Mb AMI UEFI Legal BIOS with multilingual GUI support- ACPI 6.0 Compliant wake up events- SMBIOS 2.7 Support- CPU Core/Cache, GT, DRAM, PCH, VCCIO, VCCST, VCCSA Voltage Multi-adjustment |
| Audio | – 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)- Premium Blu-ray Audio support- Supports Surge Protection- PCB Isolate Shielding- Individual PCB Layers for R/L Audio Channel- Nahimic Audio |
| Slots | – 2 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4: single at x16 (PCIE2); dual at x16 (PCIE2) / x4 (PCIE4)*- 3 x PCI Express 3.0 x1 Slots- Supports AMD Quad CrossFireX™ and CrossFireX™- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel® CNVi (Integrated WiFi/BT)*Supports NVMe SSD as boot disks |
| Memory | – Dual Channel DDR4 Memory Technology- 4 x DDR4 DIMM Slots- Supports DDR4 4400+(OC)* / 4333(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory- Supports ECC UDIMM memory modules (operate in non-ECC mode)- Max. capacity of system memory: 128GB**- Supports Intel® Extreme Memory Profile (XMP) 2.0- 15μ Gold Contact in DIMM Slots**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation |
| Storage | – 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug*- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**- 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)***If M2_1 is occupied by a SATA-type M.2 device, SATA3_5 will be disabled.If M2_2 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled.If M2_2 is occupied by a PCIe-type M.2 device, SATA3_0 will be disabled.**Supports Intel® Optane™ TechnologySupports NVMe SSD as boot disksSupports ASRock U.2 Kit |
| Graphics | – Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1**- Graphics, Media & Compute: Microsoft® DirectX 12, OpenGL 4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1- Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft® PlayReady 3.0, Intel® SGX Content Protection, UHD Blu-ray Disc- Dual graphics output: support HDMI and D-Sub ports by independent display controllers- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz- Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)- Supports HDCP 2.3 with HDMI 1.4 Port- Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.**VP9 10bit and VC-1 are for decode only.VP8 and VP9 encode are not supported by Windows® OS |
| Connector | – 1 x COM Port Header- 1 x SPI TPM Header- 1 x Power LED and Speaker Header- 2 x RGB LED Headers*- 2 x Addressable LED Headers**- 1 x CPU Fan Connector (4-pin)***- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****- 1 x 24 pin ATX Power Connector- 1 x 8 pin 12V Power Connector- 1 x 4 pin 12V Power Connector- 1 x Front Panel Audio Connector- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC R2.0 Card only)- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)*Support in total up to 12V/3A, 36W LED Strip**Support in total up to 5V/3A, 15W LED Strip***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.*****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use |
| Support Cd | – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories | – Quick Installation Guide, Support CD, I/O Shield- 2 x SATA Data Cables- 3 x Screws for M.2 Sockets- 1 x Standoff for M.2 Socket |
| Certifications | – FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required) |
| Rear Panel I/O | – 2 x Antenna Mounting Points- 1 x PS/2 Mouse/Keyboard Port- 1 x D-Sub Port- 1 x HDMI Port- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)- 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)- 2 x USB 2.0 Ports (Supports ESD Protection)- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)- HD Audio Jacks: Line in / Front Speaker / Microphone |
| Unique Feature | ASRock USB 3.2 Gen2- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)ASRock Super Alloy- Premium 50A Power Choke- Sapphire Black PCB- High Density Glass Fabric PCBASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) TechnologyASRock Steel SlotsASRock Full Coverage M.2 HeatsinkASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)ASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop |
| Hardware Monitor | Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH, VCCSA, VCCST, VCCIO |
| Software And Uefi | Software- ASRock Motherboard Utility (A-Tuning)- ASRock Polychrome SYNC- ASRock XFast LANUEFI- ASRock EZ Mode- ASRock Full HD UEFI- ASRock My Favorites in UEFI- ASRock Instant Flash- ASRock Internet Flash- ASRock Easy RAID Installer |
| Warranty | 3 Years |
| Form Factor | ATX |
| Chipset | – Intel® Z490 |
| CPU Type |
