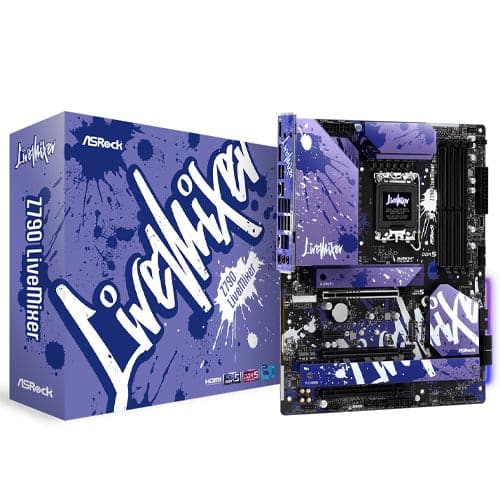

Feature of ASROCK Z790 LiveMixer DDR5 Intel Motherboard
- Supports 13th Gen & 12th Gen Intel® Core™ Processors
- 14+1+1 Phase Power Design, SPS for VCore+GT
- 4 x DDR5 DIMMs, supports up to 7200+(OC)
- 1 PCIe 5.0 x16, 2 PCIe 4.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key-E for WiFi
- Graphics Output Options: 1 HDMI, 1 DisplayPort, eDP
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
- 1 Blazing M.2 (PCIe Gen5x4), 4 Hyper M.2 (PCIe Gen4x4), 4 SATA3
- 1 USB 3.2 Gen2x2 Type-C (Front), 2 USB 3.2 Gen2 Type-C (Rear), 2 USB 3.2 Gen2 Type-A (Rear), 8 USB 3.2 Gen1 (4 Rear, 4 Front), 10 USB 2.0 (6 Rear, 4 Front)
- Realtek 2.5G LAN
LIVE MIX LIFE MAX
ASROCK Z790 LiveMixer DDR5 is designed through current-gen content creators, who need motherboards with great connectivity for streaming and other auxiliary devices. Also, its reliable performance allows us to provide wonderful contents and budget our time.
Broadcasting
Users will never run short. Hook up every peripheral, whether it’s mice, keyboards, microphones, headsets, multiple cameras, fill-lights, macropads, and much more.
Content Creation
Various content creator needs motherboards with superb reliability, cutting-edge performance and an extended connectivity mix for the many auxiliary devices.
– Content Creator
– Video Editing
– Photo Editor
– Game Development
Multiple Streaming Devices
We tested many video capture devices with different interfaces in order to provide the most stable system for content creators.
Optimizes your user experience.
DDR5 Memory
Supports DDR5 memory with max. 128GB capacity
23 USB Ports
Provides great connectivity to multiple USB devices.
Dragon 2.5G LAN
Fulfills requirement of content creators and high-quality streaming media.
Polychrome Sync
Allows users to synchronize RGB LED devices and create their own unique lighting effects.
Nahimic Audio
Offers you the most engaging listening experience, vibrant and rich with details.
Auto Driver Installer
Allow users to download and install all necessary drivers automatically.

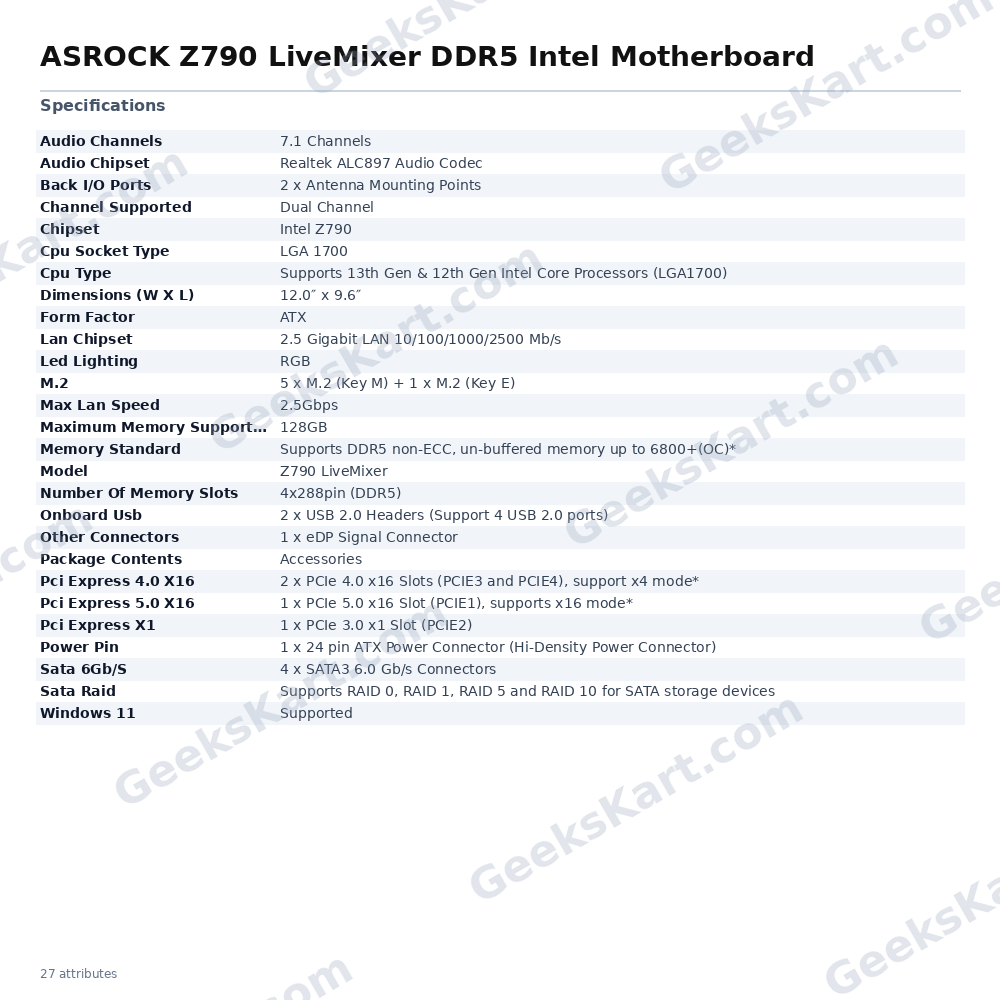

Specifications of ASROCK Z790 LiveMixer DDR5 Intel Motherboard
| Model | |
| Brand | ASRock |
| Model |
Z790 LiveMixer
|
|
Supported CPU
|
|
| CPU Socket Type |
LGA 1700
|
| CPU Type |
Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700).
|
|
Supports Intel Hybrid Technology
|
|
|
Supports Intel Turbo Boost Max 3.0 Technology
|
|
|
Supports Intel Thermal Velocity Boost (TVB)
|
|
|
Supports Intel Adaptive Boost Technology (ABT)
|
|
| Chipsets | |
| Chipset |
Intel Z790
|
| Memory | |
| Number of Memory Slots |
4x288pin (DDR5)
|
| Memory Standard |
Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC)*
|
|
1DPC 1R Up to 6800+ MHz (OC), 4800 MHz Natively.
|
|
|
1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively.
|
|
|
2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively.
|
|
|
2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.
|
|
|
Supports Intel Extreme Memory Profile (XMP) 3.0
|
|
|
* Please refer to Memory Support List on ASRock’s website for more information. (http://www.asrock.com/)
|
|
| Maximum Memory Supported | 128GB |
| Channel Supported |
Dual Channel
|
|
Expansion Slots
|
|
| PCI Express 5.0 x16 |
1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
|
|
* If M2_1 is occupied, PCIE1 will downgrade to x8 mode.
|
|
|
* Supports NVMe SSD as boot disks
|
|
|
Supports AMD CrossFire
|
|
| PCI Express 4.0 x16 |
2 x PCIe 4.0 x16 Slots (PCIE3 and PCIE4), support x4 mode*
|
| PCI Express x1 |
1 x PCIe 3.0 x1 Slot (PCIE2)
|
|
Storage Devices
|
|
| SATA 6Gb/s |
4 x SATA3 6.0 Gb/s Connectors
|
| M.2 |
5 x M.2 (Key M) + 1 x M.2 (Key E)
|
| CPU: | |
|
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*
|
|
|
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
|
|
| Chipset: | |
|
1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
|
|
|
1 x Hyper M.2 Socket (M2_4, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
|
|
|
1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
|
|
|
Supports Intel Volume Management Device (VMD)
|
|
|
* Supports NVMe SSD as boot disks
|
|
|
* If M2_1 is occupied, PCIE1 will downgrade to x8 mode.
|
|
|
* Either M2_1 or M2_2 can be used at a time.
|
|
|
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT)
|
|
| SATA RAID |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
|
|
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
|
|
|
Onboard Audio
|
|
| Audio Chipset |
Realtek ALC897 Audio Codec
|
|
Nahimic Audio
|
|
| Audio Channels |
7.1 Channels
|
|
Onboard LAN
|
|
| LAN Chipset |
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
|
|
Dragon RTL8125BG
|
|
|
Supports Dragon 2.5G LAN Software
|
|
|
Smart Auto Adjust Bandwidth Control
|
|
|
Visual User Friendly UI
|
|
|
Visual Network Usage Statistics
|
|
|
Optimized Default Setting for Game, Browser, and Streaming Modes
|
|
|
User Customized Priority Control
|
|
| Max LAN Speed | 2.5Gbps |
|
Rear Panel Ports
|
|
| Back I/O Ports |
2 x Antenna Mounting Points
|
|
1 x HDMI Port
|
|
|
1 x DisplayPort 1.4
|
|
|
1 x Optical SPDIF Out Port
|
|
|
2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
|
|
|
2 x USB 3.2 Gen2 Type-C Ports (10 Gb/s)
|
|
|
4 x USB 3.2 Gen1 Ports (USB32_23 are Lightning Gaming Ports. USB32_45 support Ultra USB Power.)
|
|
|
6 x USB 2.0 Ports
|
|
|
1 x RJ-45 LAN Port
|
|
|
1 x Line Out Jack (Gold Audio Jack)
|
|
|
1 x Microphone Input Jack (Gold Audio Jack)
|
|
|
Internal I/O Connectors
|
|
| Onboard USB |
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
|
|
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
|
|
|
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
|
|
| Other Connectors |
1 x eDP Signal Connector
|
|
1 x SPI TPM Header
|
|
|
1 x Power LED and Speaker Header
|
|
|
1 x RGB LED Header*
|
|
|
3 x Addressable LED Headers**
|
|
|
1 x CPU Fan Connector (4-pin)***
|
|
|
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
|
|
|
5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
|
|
|
1 x Front Panel Audio Connector
|
|
|
1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
|
|
|
* Supports in total up to 12V/3A, 36W LED Strip
|
|
|
** Support in total up to 5V/3A, 15W LED Strip
|
|
|
*** CPU_FAN1 supports the fan power up to 1A (12W).
|
|
|
**** CPU_FAN2/WP supports the fan power up to 2A (24W).
|
|
|
***** CHA_FAN1~5/WP support the fan power up to 2A (24W).
|
|
|
***** CPU_FAN2/WP and CHA_FAN1~5/WP can auto detect if 3-pin or 4-pin fan is in use.
|
|
|
Physical Spec
|
|
| Form Factor | ATX |
| LED Lighting | RGB |
| Dimensions (W x L) |
12.0″ x 9.6″
|
| Power Pin |
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
|
|
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
|
|
|
Windows Compatibility
|
|
| Windows 11 |
Supported
|
|
Packaging
|
|
| Package Contents |
Accessories
|
|
1 x User Manual
|
|
|
2 x SATA Data Cables
|
|
|
5 x Screws for M.2 Sockets
|
|
| **Features, Price and Specifications are subject to change without notice to customer. |
