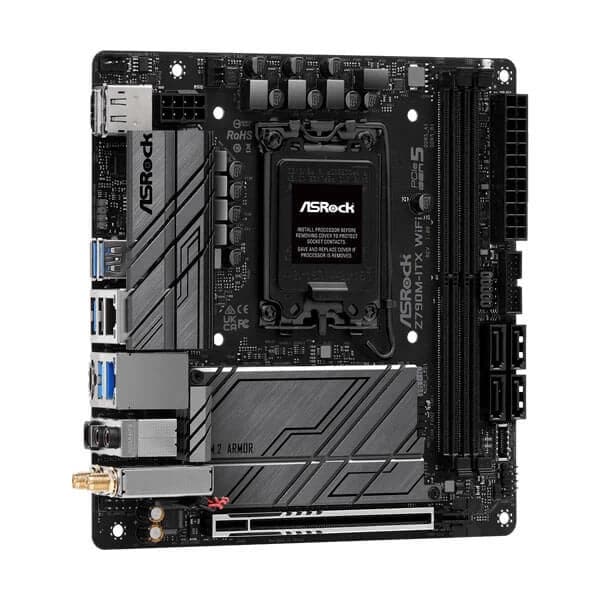

ASROCK Z790M-ITX Wifi DDR5 Intel Motherboard
MPN ASROCK-Z790M-ITX-WIFI-DDR5 · Brand ASROCK · Mini-ITX
The ASRock Z790M-ITX WiFi DDR5 Mini-ITX motherboard supports 12th and 13th Gen Intel LGA1700 CPUs with Intel Z790 chipset, PCIe 5.0, dual-channel DDR5 up to 7000+ MHz, Wi-Fi 6E, dual Intel LAN, and a full-featured rear I/O — all in a 170 mm x 170 mm form factor
Inclusive of GST · GST invoice available

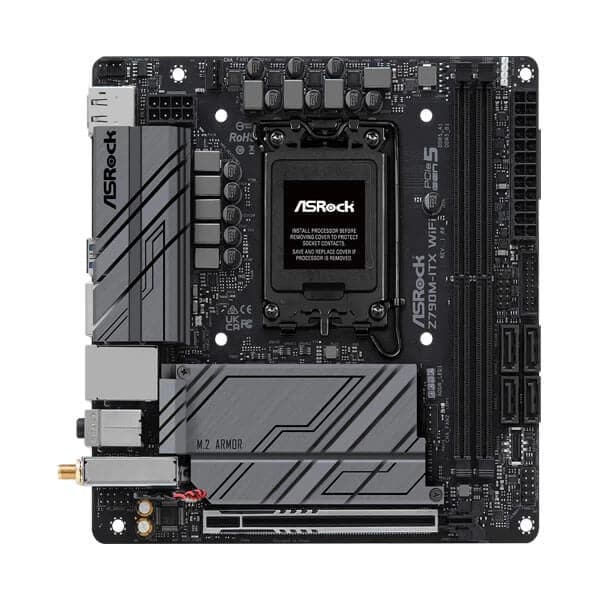

Overview
The ASRock Z790M-ITX WiFi DDR5 is a feature-dense Mini-ITX motherboard built on the Intel Z790 chipset, designed for 12th and 13th Generation Intel Core processors using the LGA1700 socket. Despite its compact 17.0 cm x 17.0 cm (6.7-in x 6.7-in) footprint, this board packs an impressive set of capabilities that rival much larger form factors, making it an ideal platform for space-conscious enthusiasts and compact system builders. At the heart of the power delivery is a 7+1+1 phase design featuring 50A Dr.MOS integrated power stages for the VCore and GT domains. This design enables stable, efficient power to the CPU even under sustained workloads. An 8-layer PCB further supports signal integrity and thermal headroom, particularly during memory overclocking. Memory support comes via two DDR5 DIMM slots capable of holding up to 64 GB total. The board supports DDR5 speeds up to 7000+ MHz (OC) and is compatible with Intel XMP 3.0 profiles for simplified memory tuning. The dual-channel configuration ensures strong bandwidth for content creation and gaming workloads. Storage options are well-suited to a high-performance compact build: two Hyper M.2 slots (both PCIe Gen4 x4, one also supporting SATA3) and four SATA3 6.0 Gb/s connectors. RAID configurations including RAID 0, 1, 5, and 10 for SATA and RAID 0, 1, and 5 for M.2 NVMe are supported. The single PCIe 5.0 x16 slot uses a surface-mount design for improved signal integrity at high transfer speeds. Wireless connectivity is handled by an 802.11ax Wi-Fi 6E module covering 2.4 GHz, 5 GHz, and 6 GHz bands with 2x2 MU-MIMO and Bluetooth 5.3. Wired networking includes dual LAN: Intel I226V (2.5 Gbps) and Intel I219V (1 Gbps). Display outputs include HDMI 2.1 (up to 4K 60Hz), DisplayPort 1.4 with DSC (up to 8K 60Hz), and an eDP 1.4 connector (up to Full HD 60Hz) for the optional ASRock side panel kit. Audio is handled by a Realtek ALC897 codec with 7.1-channel HD output and Nahimic Audio software enhancement. USB connectivity is comprehensive: rear panel includes one USB 3.2 Gen2x2 Type-C (20 Gb/s), four USB 3.2 Gen2 Type-A (10 Gb/s), and one USB 2.0 port. Internal headers add a front USB 3.2 Gen2x2 Type-C, two USB 3.2 Gen1 ports, and two USB 2.0 ports. The board includes RGB and addressable LED headers with ASRock Polychrome SYNC support. Software includes ASRock A-Tuning utility, XFast LAN, and a full-featured AMI UEFI BIOS (128 Mb) with EZ Mode, Instant Flash, and Easy RAID Installer. The board carries a 3-year manufacturer warranty. Verified Specifications: - Form Factor: Mini-ITX, 170 mm x 170 mm, 8-layer PCB - Socket: LGA1700 (12th and 13th Gen Intel Core) - Chipset: Intel Z790 - Memory: 2x DDR5 DIMM, max 64 GB, up to DDR5-7000+(OC), XMP 3.0 - PCIe: 1x PCIe 5.0 x16 (GPU), SMT slot design - Storage: 2x M.2 PCIe Gen4 x4 (one also SATA3), 4x SATA3 6.0 Gb/s - Wired LAN: Intel I226V (2.5G) + Intel I219V (1G) - Wireless: Wi-Fi 6E 802.11ax (2.4/5/6 GHz), 2x2 MU-MIMO, Bluetooth 5.3 - Display: HDMI 2.1 (4K/60Hz), DP 1.4 DSC (8K/60Hz), eDP 1.4 (FHD/60Hz) - Audio: Realtek ALC897, 7.1 CH HD, Nahimic Audio, Optical S/PDIF out - USB Rear: 1x USB 3.2 Gen2x2 Type-C, 4x USB 3.2 Gen2 Type-A, 1x USB 2.0 - Power: 7+1+1 phase, 50A Dr.MOS, 24-pin ATX + 8-pin CPU power - Warranty: 3 Years

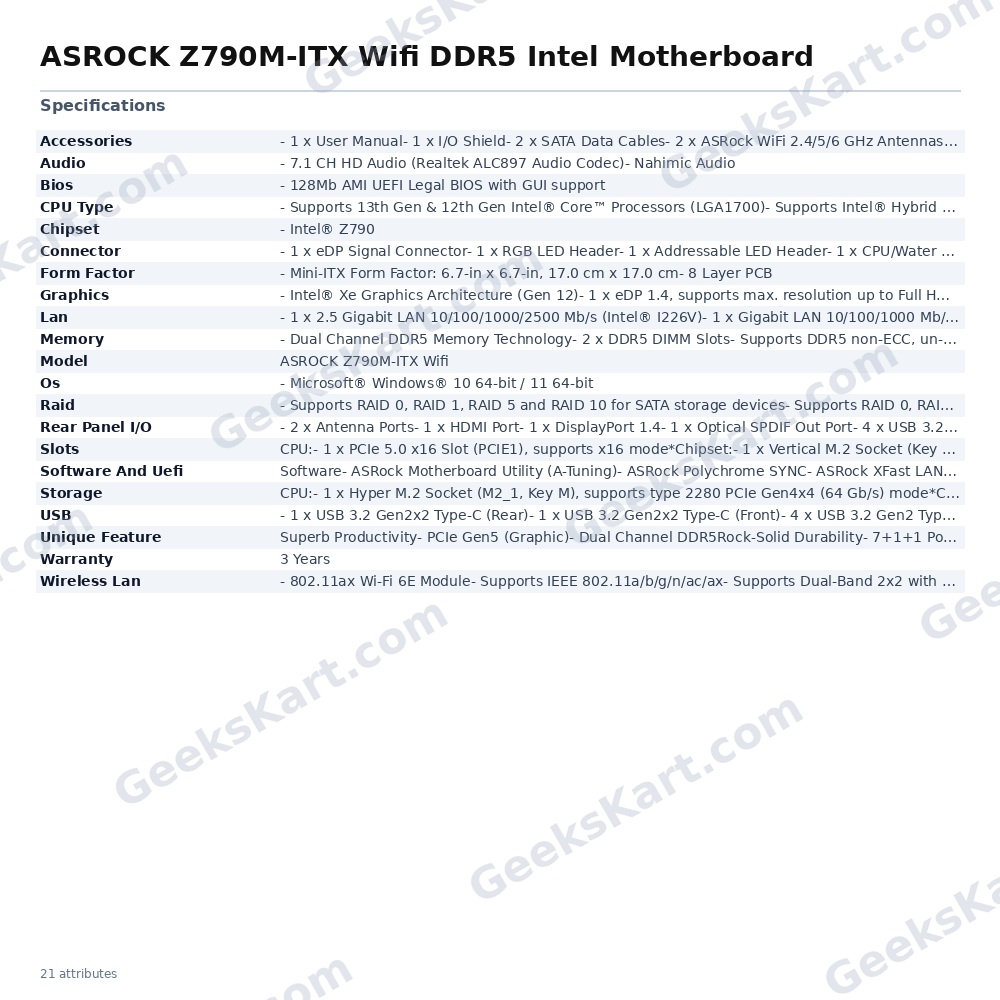

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | Mini-ITX |
| Chipset | – Intel® Z790 |
| CPU Type | |
| Os | – Microsoft® Windows® 10 64-bit / 11 64-bit |
| Lan | – 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Intel® I226V)- 1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V) |
| USB | – 1 x USB 3.2 Gen2x2 Type-C (Rear)- 1 x USB 3.2 Gen2x2 Type-C (Front)- 4 x USB 3.2 Gen2 Type-A (Rear)- 2 x USB 3.2 Gen1 (Front)- 3 x USB 2.0 (1 Rear, 2 Front) |
| Bios | – 128Mb AMI UEFI Legal BIOS with GUI support |
| Raid | – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices- Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices |
| Audio | – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)- Nahimic Audio |
| Model | ASROCK Z790M-ITX Wifi |
| Slots | CPU:- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*Chipset:- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) |
| Memory | – Dual Channel DDR5 Memory Technology- 2 x DDR5 DIMM Slots- Supports DDR5 non-ECC, un-buffered memory up to 7000+(OC)*- Max. capacity of system memory: 64GB- Supports Intel® Extreme Memory Profile (XMP) 3.0 |
| Storage | CPU:- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*Chipset:- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*- 4 x SATA3 6.0 Gb/s Connectors |
| Graphics | – Intel® Xe Graphics Architecture (Gen 12)- 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
| Connector | – 1 x eDP Signal Connector- 1 x RGB LED Header- 1 x Addressable LED Header- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)- 2 x Chassis Fan Connectors (4-pin)- 1 x 24 pin ATX Power Connector- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)- 1 x Front Panel Audio Connector- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) |
| Accessories | – 1 x User Manual- 1 x I/O Shield- 2 x SATA Data Cables- 2 x ASRock WiFi 2.4/5/6 GHz Antennas- 2 x Screws for M.2 Sockets |
| Wireless Lan | – 802.11ax Wi-Fi 6E Module- Supports IEEE 802.11a/b/g/n/ac/ax- Supports Dual-Band 2×2 with extended 6GHz band support*- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology- Supports Bluetooth 5.3 + High speed class II- Supports MU-MIMO |

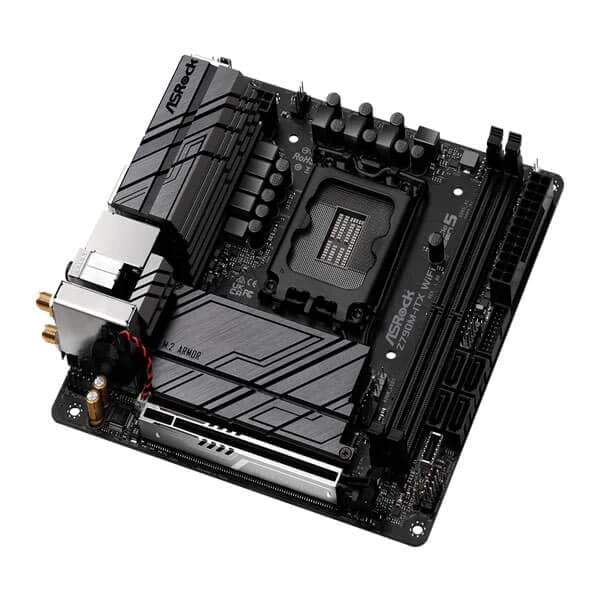

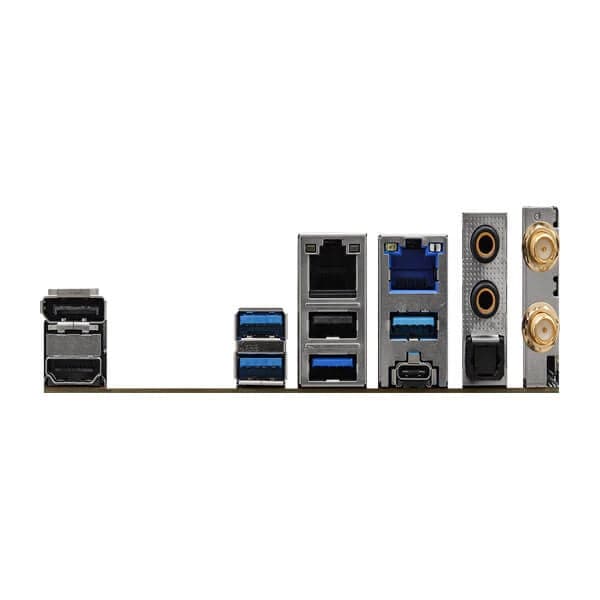

| Rear Panel I/O | – 2 x Antenna Ports- 1 x HDMI Port- 1 x DisplayPort 1.4- 1 x Optical SPDIF Out Port- 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)- 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)- 1 x USB 2.0 Port- 2 x RJ-45 LAN Ports- 1 x Line Out Jack (Gold Audio Jack)- 1 x Microphone Input Jack (Gold Audio Jack) |
| Unique Feature | Superb Productivity- PCIe Gen5 (Graphic)- Dual Channel DDR5Rock-Solid Durability- 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)Ultrafast Connectivity- 2.5G LAN, 802.11ax Wi-Fi 6E ModuleEZ Update- ASRock Auto Driver Installer |
| Software And Uefi | Software- ASRock Motherboard Utility (A-Tuning)- ASRock Polychrome SYNC- ASRock XFast LANUEFI- ASRock EZ Mode- ASRock Full HD UEFI- ASRock My Favorites in UEFI- ASRock Auto Driver Installer- ASRock Instant Flash- ASRock Easy RAID Installer |
