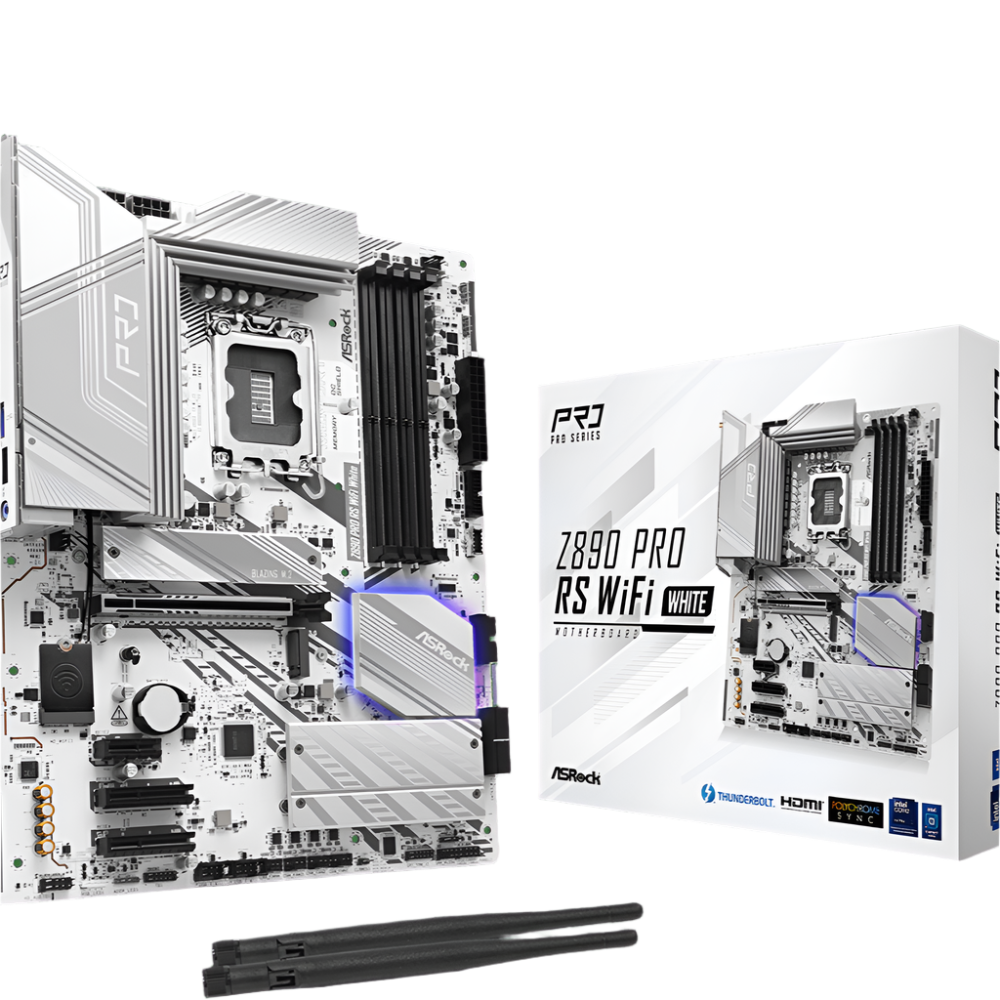

ASROCK Z890 Pro RS WIFI DDR5 Intel Motherboard ( White )

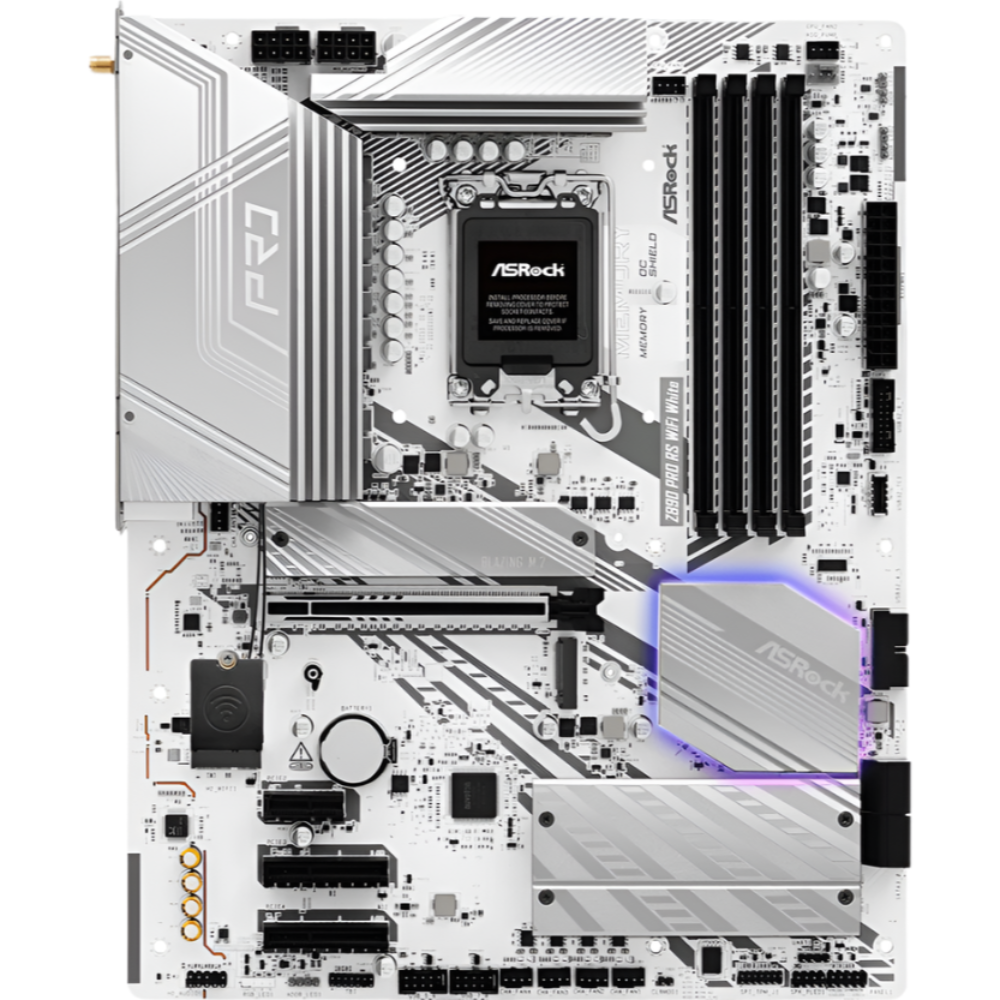

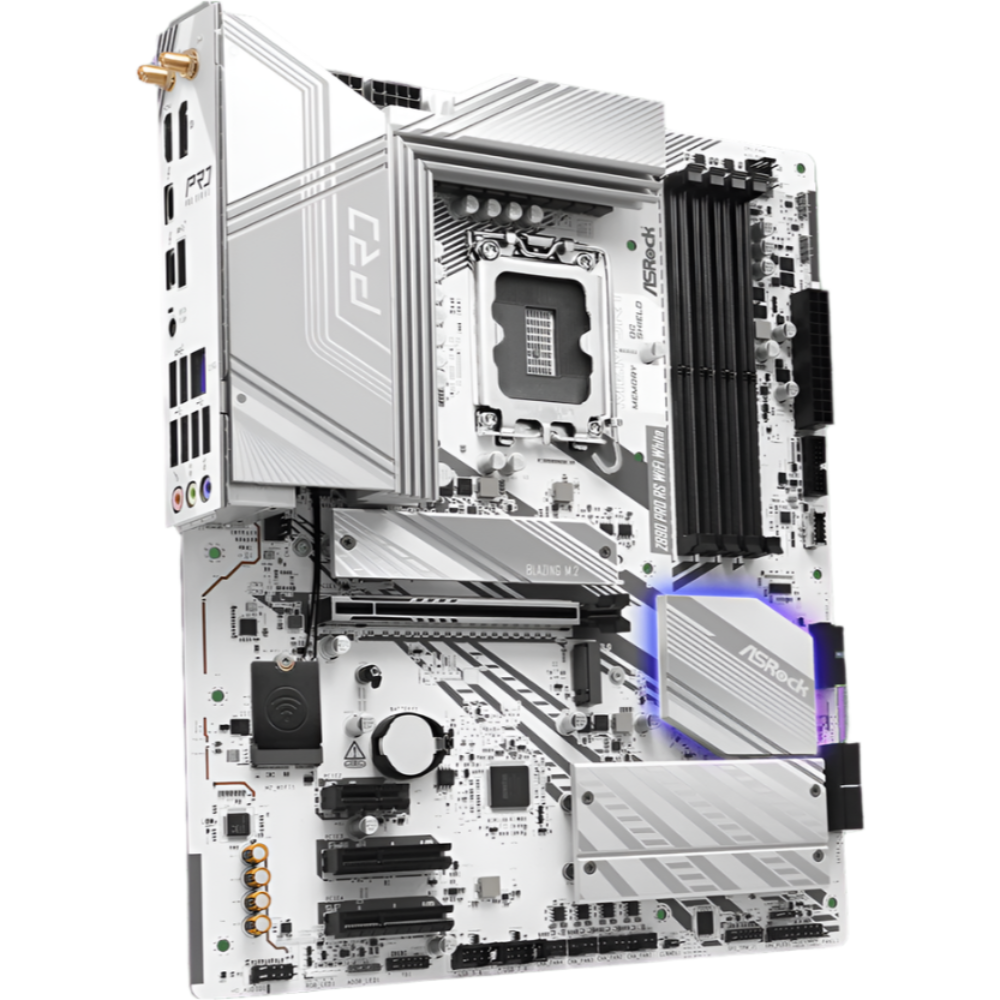

The ASRock Z890 Pro RS WiFi DDR5 Motherboard in White is an ATX-form-factor board built around the Intel Z890 chipset, designed to pair with Intel Core Ultra Processors (Series 2) in the LGA1851 socket. Its clean white aesthetic makes it a standout choice for builders assembling visually themed systems without sacrificing capability. Power delivery centres on a 16+1+1+1+1 phase VRM configuration using Dr. MOS integrated power stages for VCore and GT. Durable capacitors rated at 1000µF capacitance help reduce ripple and maintain stable output current under demanding workloads or overclocking. Two Hi-Density 8-pin 12V CPU power connectors further reinforce stability under high-current conditions. The 2oz copper PCB inner layers contribute to signal integrity and thermal management across the board. Memory support extends to four DDR5 DIMM slots in dual-channel configuration, accommodating up to 256GB of non-ECC unbuffered DDR5 — including CUDIMM — at speeds up to 9066MHz and beyond via XMP 3.0 and EXPO profiles. ASRock's Memory OC Shield, a patented EMI-reduction feature, helps maintain stability during high-frequency memory operation. Storage options are broad: a Blazing M.2 slot (M2_1) runs PCIe Gen5 x4 at up to 128GB/s, while three additional Hyper M.2 slots support PCIe Gen4 x4 (up to 64GB/s each), with one also accepting SATA3. Four SATA3 6Gb/s ports round out the storage array. RAID 0, 1, 5, and 10 are supported for both SATA and NVMe devices. Connectivity is comprehensive: dual Thunderbolt 4 Type-C rear ports deliver 40Gb/s each, a Wi-Fi 6E (802.11axe) module with Bluetooth 5.3 covers wireless needs across 2.4GHz, 5GHz, and 6GHz bands, and Dragon 2.5 Gigabit LAN (Realtek RTL8125BG) handles wired networking. A front-panel USB 3.2 Gen2x2 Type-C header provides 20Gb/s for chassis connectivity. Display output via the integrated Intel Xe LPG graphics includes one HDMI 2.1 port (up to 4K 120Hz) and one DisplayPort 1.4 (up to 8K 60Hz with DSC). Audio is handled by a Realtek ALC897 codec supporting 7.1-channel HD output with Nahimic Audio software. Verified Specifications: - Socket: LGA1851 | Chipset: Intel Z890 - Form Factor: ATX (12.0 in × 9.6 in / 30.5 cm × 24.4 cm) | PCB: 2oz Copper - Memory: 4× DDR5 DIMM, max 256GB, up to 9066MHz+ (OC), XMP 3.0 / EXPO - M.2: 1× PCIe Gen5 x4 (128GB/s) + 3× PCIe Gen4 x4 (64GB/s each, 1 also SATA3) - SATA: 4× SATA3 6Gb/s | RAID: 0/1/5/10 (SATA & NVMe) - PCIe Slots: 1× PCIe 5.0 x16 (GPU), 2× PCIe 4.0 x4, 1× PCIe 4.0 x1 - USB (Rear): 2× TB4 Type-C 40Gb/s, 1× USB 3.2 Gen2 Type-A 10Gb/s, 2× USB 3.2 Gen1, 4× USB 2.0 - Display: 1× HDMI 2.1 (4K 120Hz), 1× DisplayPort 1.4 (8K 60Hz DSC) - Wireless: Wi-Fi 6E 802.11axe, 2×2 MU-MIMO, Bluetooth 5.3 - LAN: 2.5GbE Dragon RTL8125BG | Audio: Realtek ALC897 7.1CH + Nahimic - VRM: 16+1+1+1+1 Phase, Dr. MOS, 1000µF caps, Hi-Density 8-pin ×2 - BIOS: 256Mb AMI UEFI with Flashback Button, EZ Mode, Instant Flash
