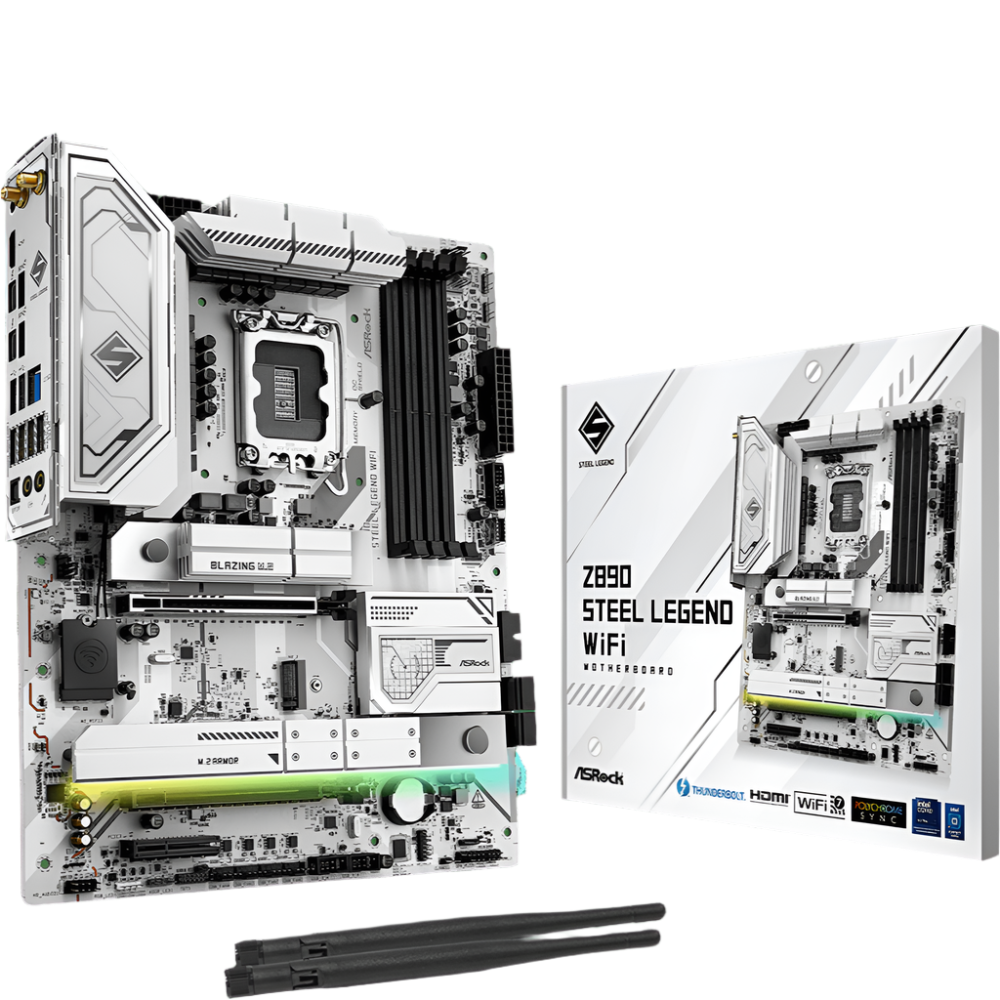

ASROCK Z890 Steel Legend WIFI DDR5 Intel Motherboard
MPN ASROCK-Z890-STEEL-LEGEND-WIFI · Brand ASROCK · ATX
ASRock Z890 Steel Legend WiFi is an ATX motherboard for Intel Core Ultra Series 2 (LGA1851) featuring an 18+1+1+1+1 phase VRM, PCIe 5.0, Wi-Fi 7, dual Thunderbolt 4, and four DDR5 slots supporting up to 256GB at 9466MHz
Inclusive of GST · GST invoice available
Overview

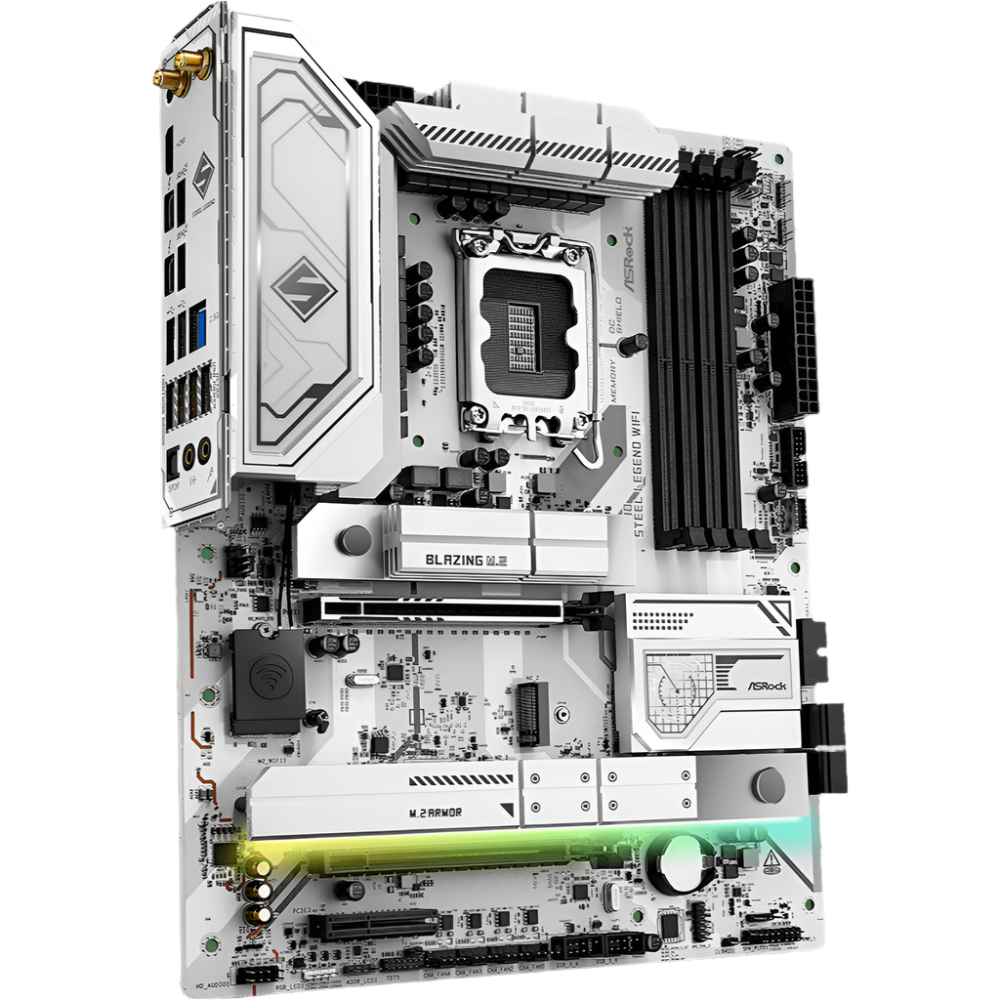

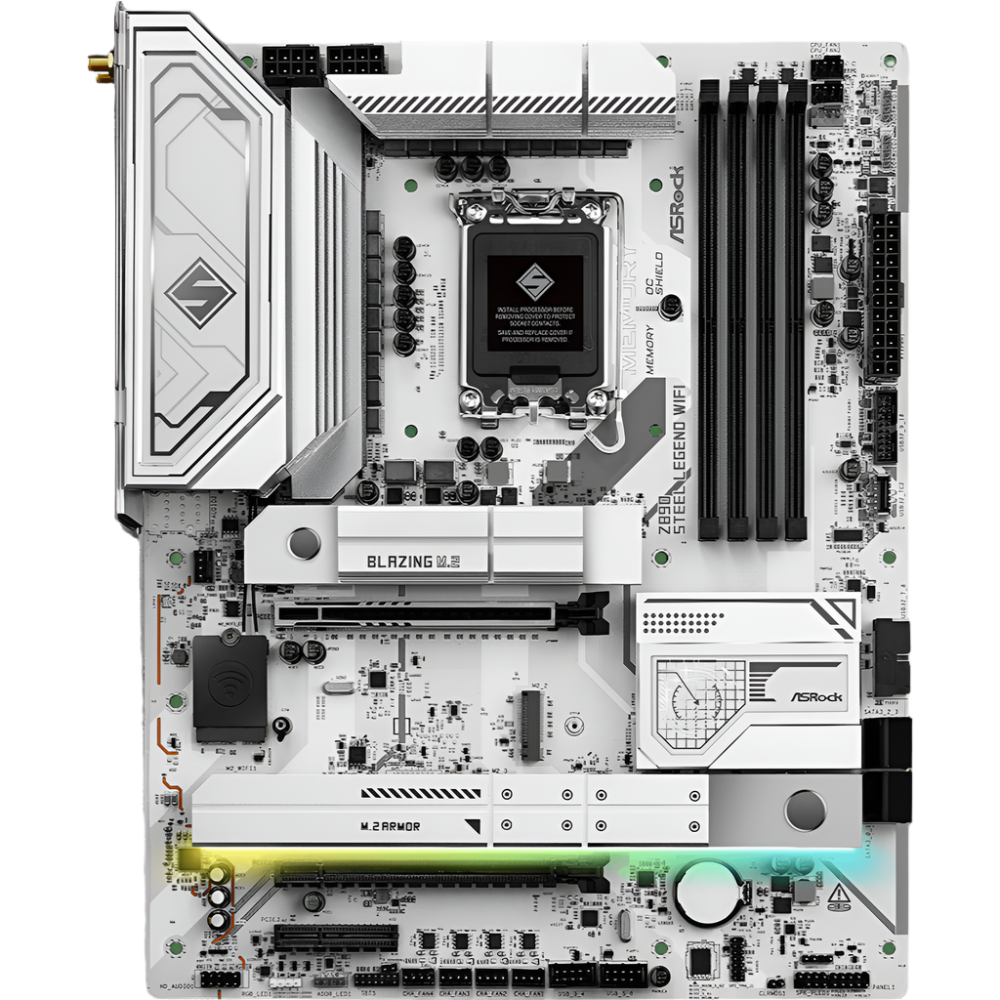

The ASRock Z890 Steel Legend WiFi is a full-size ATX motherboard designed for Intel Core Ultra Series 2 processors using the LGA1851 socket. Built around Intel's Z890 chipset, it targets enthusiasts and performance builders who need robust overclocking headroom, high-speed storage, and modern connectivity under one roof. At the heart of its power delivery sits an 18+1+1+1+1 phase design powered by Dr.MOS Smart Power Stage (SPS) controllers rated at 80A for VCore, GT, and SA rails. ASRock's exclusive 20K Black capacitors raise capacitance from a typical 560uF to 1000uF per unit and carry a rated lifespan of 20,000 hours, helping stabilise voltage under sustained workloads. Hi-Density Power connectors on both the 24-pin ATX and dual 8-pin CPU headers are engineered to handle the elevated current demands of overclocked Intel Core Ultra CPUs. The 2oz copper inner-layer PCB reinforces signal integrity and thermal dissipation across the board. Memory support spans four DDR5 DIMM slots with a maximum capacity of 256GB, certified for speeds up to 9466MHz via XMP 3.0 overclocking profiles. CUDIMM (Clocked Unbuffered DIMM) compatibility is included. ASRock's Memory OC Shield reduces electromagnetic interference around the DIMM slots to improve stability at high frequencies. Storage is led by a Blazing M.2 slot (M2_1) connected directly to the CPU via PCIe Gen 5 x4, delivering up to 128GB/s sequential bandwidth for next-generation NVMe drives. Three additional Hyper M.2 slots operate at PCIe Gen 4 x4 (up to 64GB/s each), and one of those also supports SATA3. Four legacy SATA3 6.0Gb/s ports round out the storage options. RAID 0, 1, 5, and 10 configurations are supported across both SATA and NVMe devices. Connectivity includes a 2x2 Wi-Fi 7 (802.11be) module covering 2.4GHz, 5GHz, and 6GHz bands with 320MHz channel bandwidth and Bluetooth 5.4. Wired networking is handled by a Dragon RTL8125BG 2.5 Gigabit controller. The rear I/O features two Thunderbolt 4 Type-C ports (40Gb/s each, supporting USB4), two USB 3.2 Gen2 Type-A ports, four USB 3.2 Gen1 ports, two USB 2.0 ports, HDMI 2.1 (up to 4K 120Hz), and an optical S/PDIF output. A front-panel USB 3.2 Gen2x2 Type-C header provides 20Gb/s for case connectivity. Audio is handled by a Realtek ALC1220 codec delivering 7.1-channel HD audio with Nahimic software, impedance sensing on the rear output, and separated PCB layers for left and right channels. A BIOS Flashback button enables firmware updates without a CPU or memory installed. Verified Specifications: - Socket: LGA1851 | Chipset: Intel Z890 - Form Factor: ATX, 12.0 x 9.6 in (30.5 x 24.4 cm) - Memory: 4x DDR5, max 256GB, up to 9466MHz (OC), XMP 3.0, CUDIMM - PCIe Slots: 1x PCIe 5.0 x16 (CPU), 1x PCIe 4.0 x16/x4 (chipset), 1x PCIe 4.0 x4 (chipset) - M.2: 1x PCIe 5.0 x4 (128GB/s), 3x PCIe 4.0 x4 (64GB/s each, one with SATA3) - SATA3: 4 ports | RAID: 0/1/5/10 - USB Rear: 2x Thunderbolt 4 Type-C, 2x USB 3.2 Gen2 Type-A, 4x USB 3.2 Gen1, 2x USB 2.0 - Wireless: Wi-Fi 7 (802.11be), Bluetooth 5.4 | LAN: 2.5GbE (Dragon RTL8125BG) - VRM: 18+1+1+1+1 phase, 80A SPS, 20K Black caps (1000uF) - Audio: Realtek ALC1220, 7.1 CH HD, Nahimic - Display: HDMI 2.1 (4K 120Hz), 2x Thunderbolt 4 (8K 60Hz / 5K 120Hz via iGPU)
Datasheet
| Form Factor | ATX |
|---|---|
| Chipset | – Intel® Z890 |
| CPU Type | |
| Lan | – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s – Dragon RTL8125BG – Supports Dragon 2.5G LAN Software – Smart Auto Adjust Bandwidth Control – Visual User Friendly UI – Visual Network Usage Statistics – Optimized Default Setting for Game, Browser, and Streaming Modes – User Customized Priority Control |
| USB | CPU: – 2 x Thunderbolt™ 4 Type-C (Rear) Chipset: – 1 x USB 3.2 Gen2x2 Type-C (Front) – 2 x USB 3.2 Gen2 Type-A (Rear) – 8 x USB 3.2 Gen1 (4 Rear, 4 Front) – 6 x USB 2.0 (2 Rear, 4 Front) |
| Bios | – 256Mb AMI UEFI Legal BIOS with GUI support |
| Raid | – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| Audio | – 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) – Impedance Sensing on Rear Out port – Individual PCB Layers for R/L Audio Channel – Nahimic Audio |
| Slots | CPU: – 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: – 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* – 1 x PCIe 4.0 x4 Slot (PCIE3), supports x4 mode* – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) |
| Memory | – Dual Channel DDR5 Memory Technology – 4 x DDR5 DIMM Slots – Supports DDR5 non-ECC, un-buffered memory up to 9466MHz+(OC)* – Supports Clocked Unbuffered DIMM (CUDIMM) – Max. capacity of system memory: 256GB – Supports Intel® Extreme Memory Profile (XMP) 3.0x |
| Storage | CPU: – 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: – 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* – 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 4 x SATA3 6.0 Gb/s Connectors |
| Graphics | Intel® Xe LPG Graphics Architecture – 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz – 2 x Intel® Thunderbolt™ 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz* |
| Connector | – 1 x Thermistor Cable Header – 1 x SPI TPM Header – 1 x Power LED and Speaker Header – 1 x RGB LED Header* – 3 x Addressable LED Headers** – 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)*** – 5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** – 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** – 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) – 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) – 1 x Front Panel Audio Connector (15μ Gold Audio Connector) – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) – 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) |
| Accessories | – 2 x SATA Data Cables – 2 x ASRock WiFi 2.4/5/6 GHz Antennas – 1 x Thermistor Cable |
| Wireless Lan | – 802.11be 2×2 Wi-Fi 7 Module – Supports IEEE 802.11a/b/g/n/ac/ax/axe/be – Supports 2.4GHz/5GHz/6GHz* frequency band – Supports 320MHz channel bandwidth with 6GHz* frequency band – 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology – Supports Bluetooth 5.4 – Supports MU-MIMO |

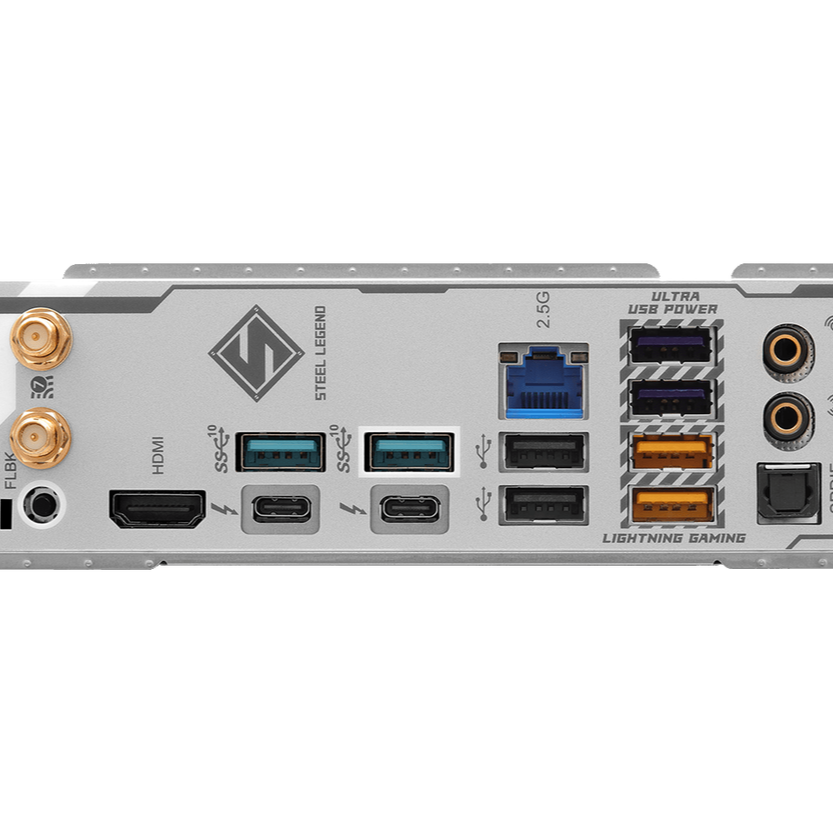

| Rear Panel I/O | – 2 x Antenna Ports – 1 x HDMI Port – 1 x Optical SPDIF Out Port – 2 x Thunderbolt™ 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)* – 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) – 4 x USB 3.2 Gen1 Ports** – 2 x USB 2.0 Ports – 1 x RJ-45 LAN Port – 1 x BIOS Flashback Button – 1 x Line Out Jack (Gold Audio Jack) – 1 x Microphone Input Jack (Gold Audio Jack) |
| Unique Feature | Superb Productivity – PCIe Gen5 (Graphics, M.2) – Dual Channel DDR5 – Thunderbolt™ 4 Type-C Ports (40 Gb/s) Rock-Solid Durability – Server-Grade Low-Loss PCB – 18+1+1+1+1 Power Phase, 80A SPS for VCore+GT+SA with Enlarged Heatsink Armor – Memory OC Shield – Flexible Integrated I/O Shield – 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Connectivity – 2.5G LAN, 802.11be Wi-Fi 7 Module – ASRock Lightning Gaming Ports EZ Update – BIOS Flashback Button – ASRock Auto Driver Installer EZ Troubleshooter |
| Software And Uefi | Software – ASRock Motherboard Utility (A-Tuning) – ASRock Dragon 2.5G LAN Software – ASRock Polychrome SYNC* UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock My Favorites in UEFI – ASRock Auto Driver Installer – ASRock Instant Flash |
