ASUS Dual Geforce RTX 5060 Ti OC Edition 8GB NVIDIA Graphic Card

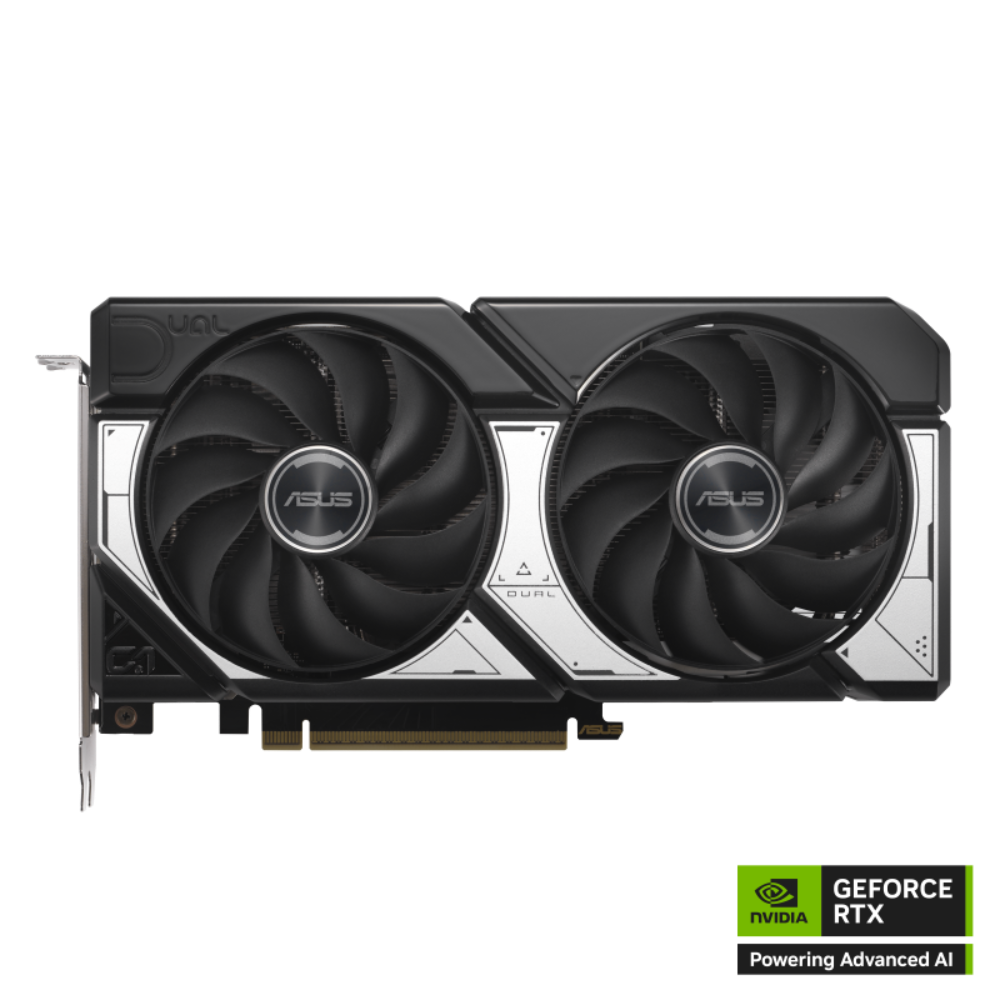

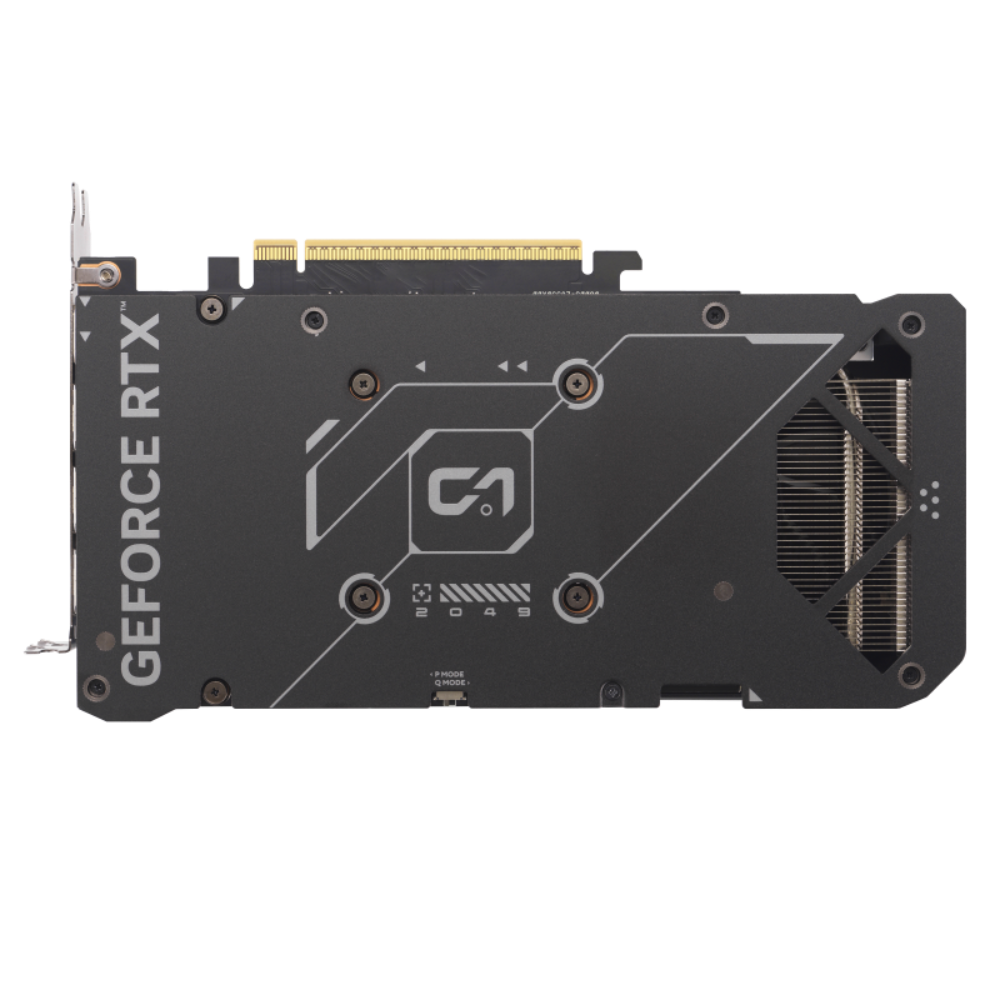

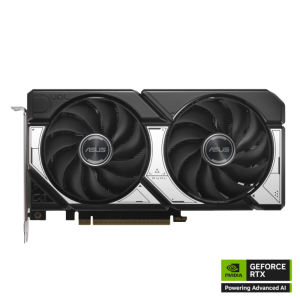

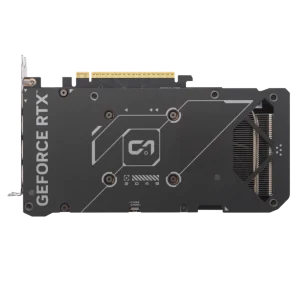

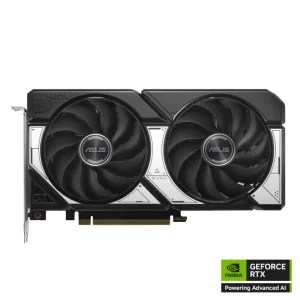

The ASUS Dual GeForce RTX 5060 Ti OC Edition (model DUAL-RTX5060TI-O8G) delivers NVIDIA Blackwell architecture performance in a compact, small-form-factor-ready package. With 4,608 CUDA cores, fifth-generation Tensor Cores supporting FP4 precision and DLSS 4, and fourth-generation Ray Tracing Cores, it is built for demanding gaming and content-creation workloads at high resolutions. Two Axial-tech fans sit at the heart of the cooling solution. A smaller hub allows for longer fan blades, while a barrier ring increases downward air pressure onto the heatsink. The 2.5-slot shroud and heatpipe layout take advantage of chassis side-panel ventilation to manage heat effectively within compact builds. 0dB Technology automatically stops all fans when GPU temperature falls below 50 °C under low-load conditions, keeping the system silent during lighter tasks. Dual-ball fan bearings replace sleeve-bearing designs for improved longevity. A vented backplate aids heat dissipation during sustained workloads, helping to maintain stable temperatures and reduce thermal throttling. The card ships with a Dual BIOS toggle: Performance mode uses a more aggressive fan curve for lower temperatures, while Quiet mode prioritises reduced noise at medium load. Both modes share the same power target and performance settings; further fine-tuning is available through ASUS GPU Tweak III software. Auto-Extreme Technology ensures all soldering is completed in a single manufacturing pass, reducing thermal stress on components and minimising the use of harsh cleaning chemicals. For display connectivity, the card provides one HDMI 2.1b port and three DisplayPort 2.1b ports, supporting up to four simultaneous displays at a maximum digital resolution of 7680 × 4320 (8K). HDCP 2.3 is supported. The ninth-generation NVIDIA Encoder (NVENC) enables fast video exports in applications such as DaVinci Resolve and Adobe Premiere Pro. Verified Specifications: - GPU: NVIDIA GeForce RTX 5060 Ti - CUDA Cores: 4,608 - Video Memory: 8 GB GDDR7 - Memory Interface: 128-bit - Memory Speed: 28 Gbps - Boost Clock (OC mode): 2,632 MHz; Default mode: 2,602 MHz - AI Performance: 767 TOPs - Bus Interface: PCI Express 5.0 - Display Outputs: 1× HDMI 2.1b, 3× DisplayPort 2.1b - Max Resolution: 7680 × 4320 - Max Displays: 4 - Slot Width: 2.5-slot - Dimensions: 229 × 120 × 50 mm - Power Connector: 1× 8-pin - Recommended PSU: 550 W - SFF Ready: Yes - NVLink / CrossFire: Not supported - OpenGL: 4.6 - Part Number: 90YV0MP2-M0AA00
