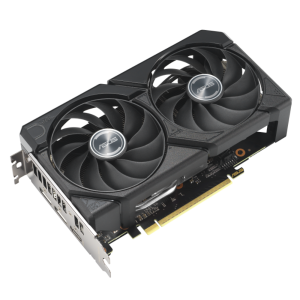

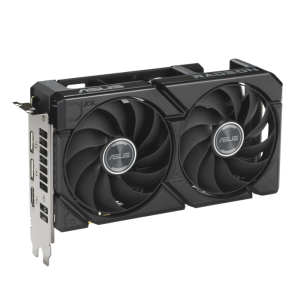

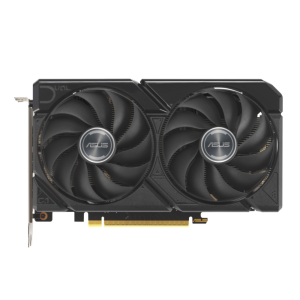

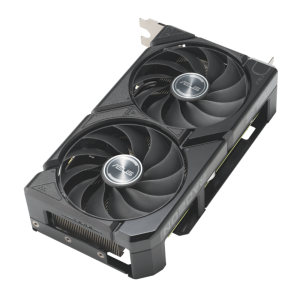

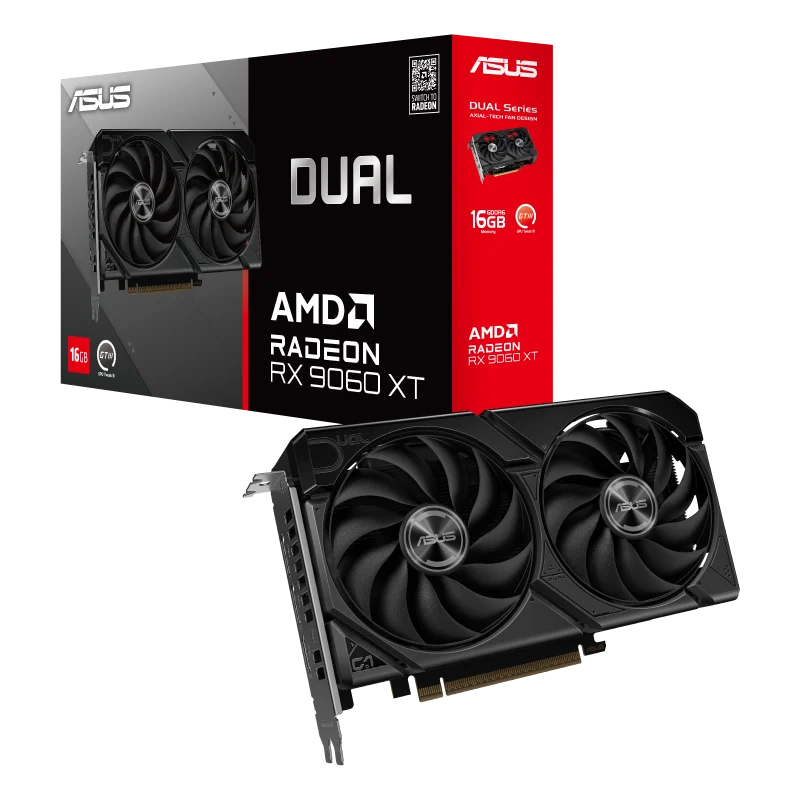

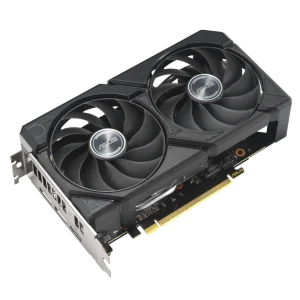

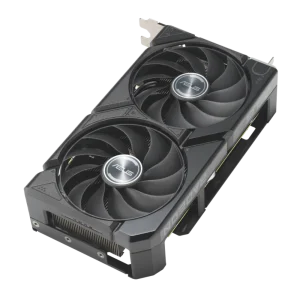

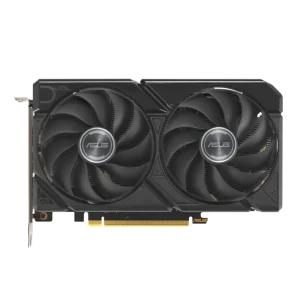

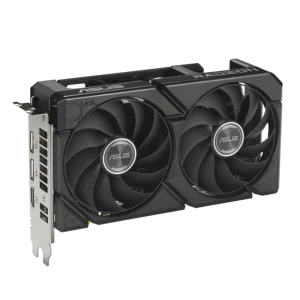

ASUS Dual Radeon RX 9060 XT 16GB AMD Graphic Card

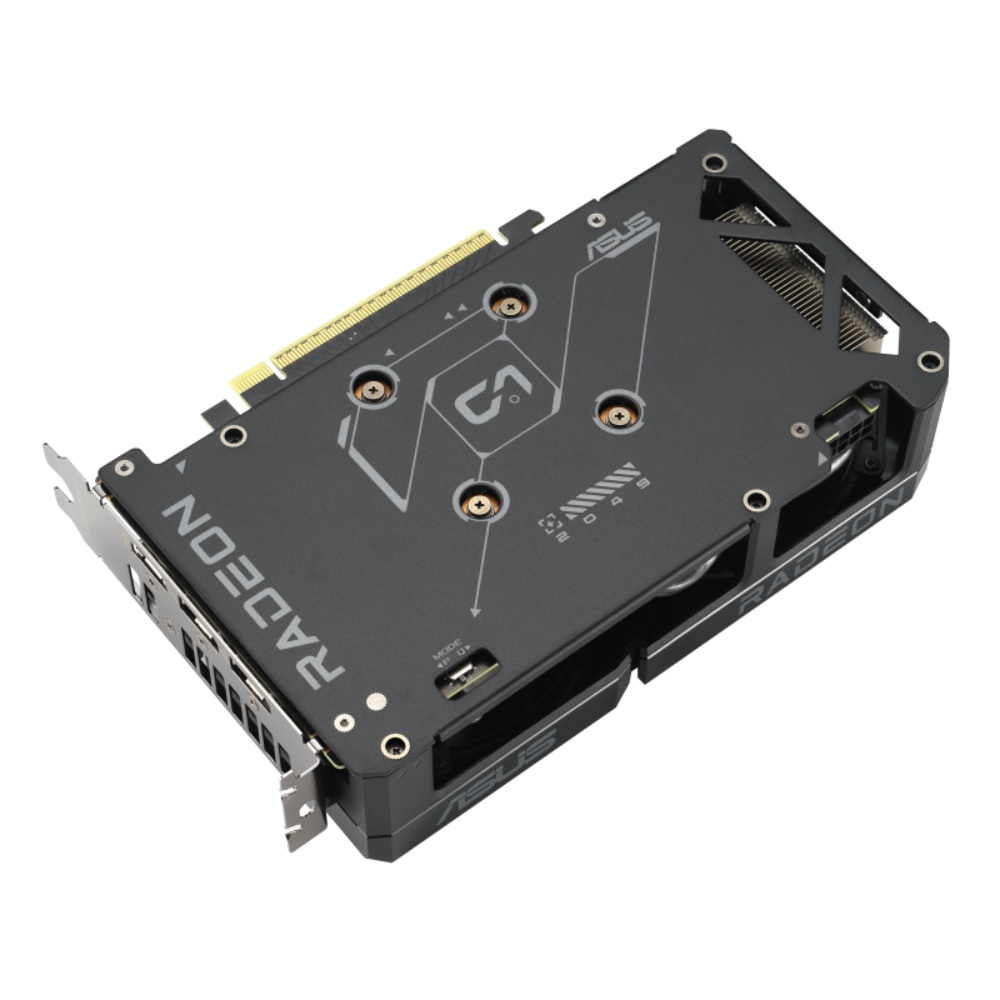

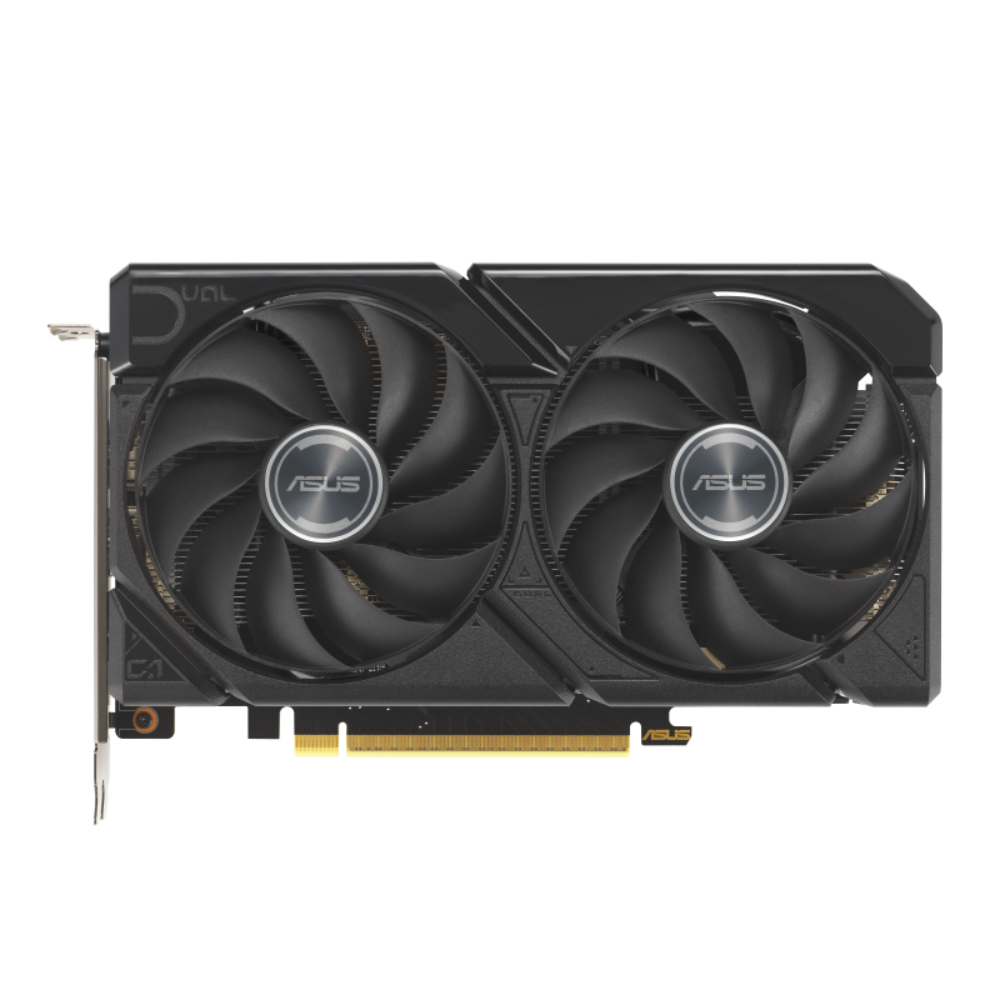

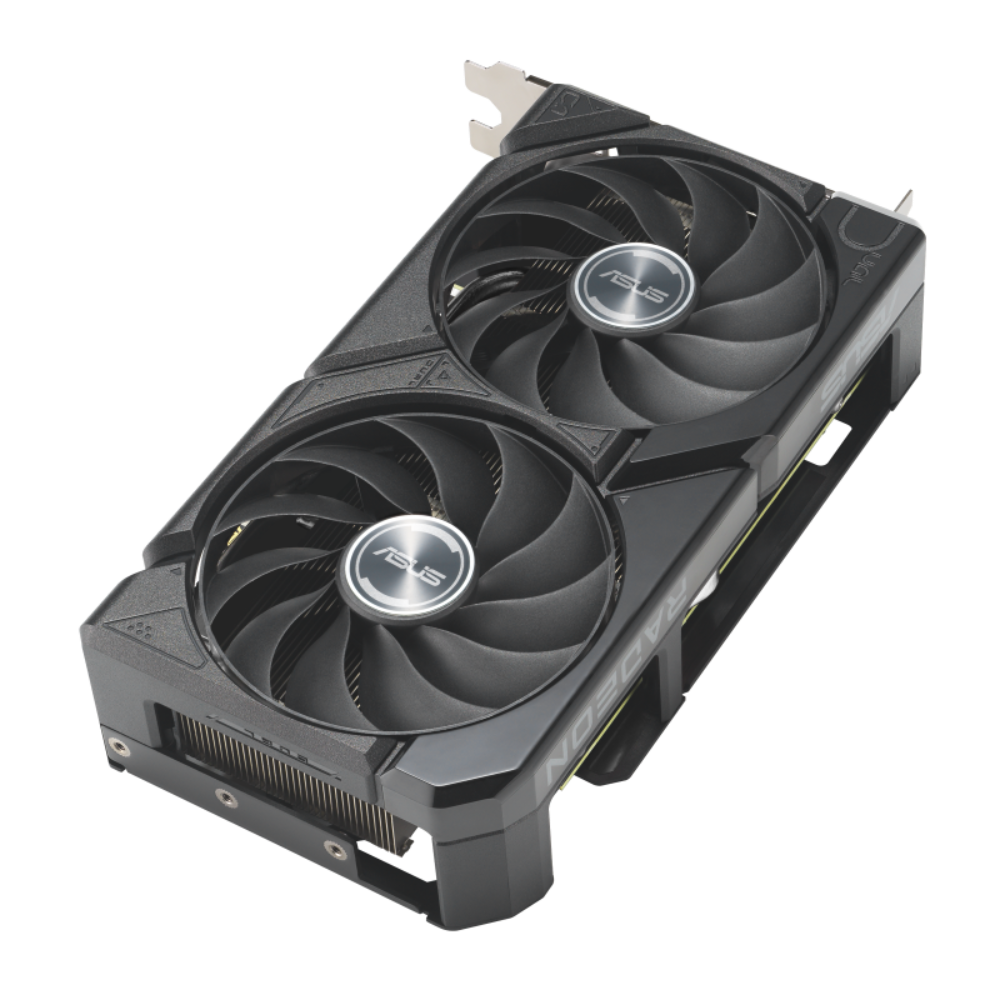

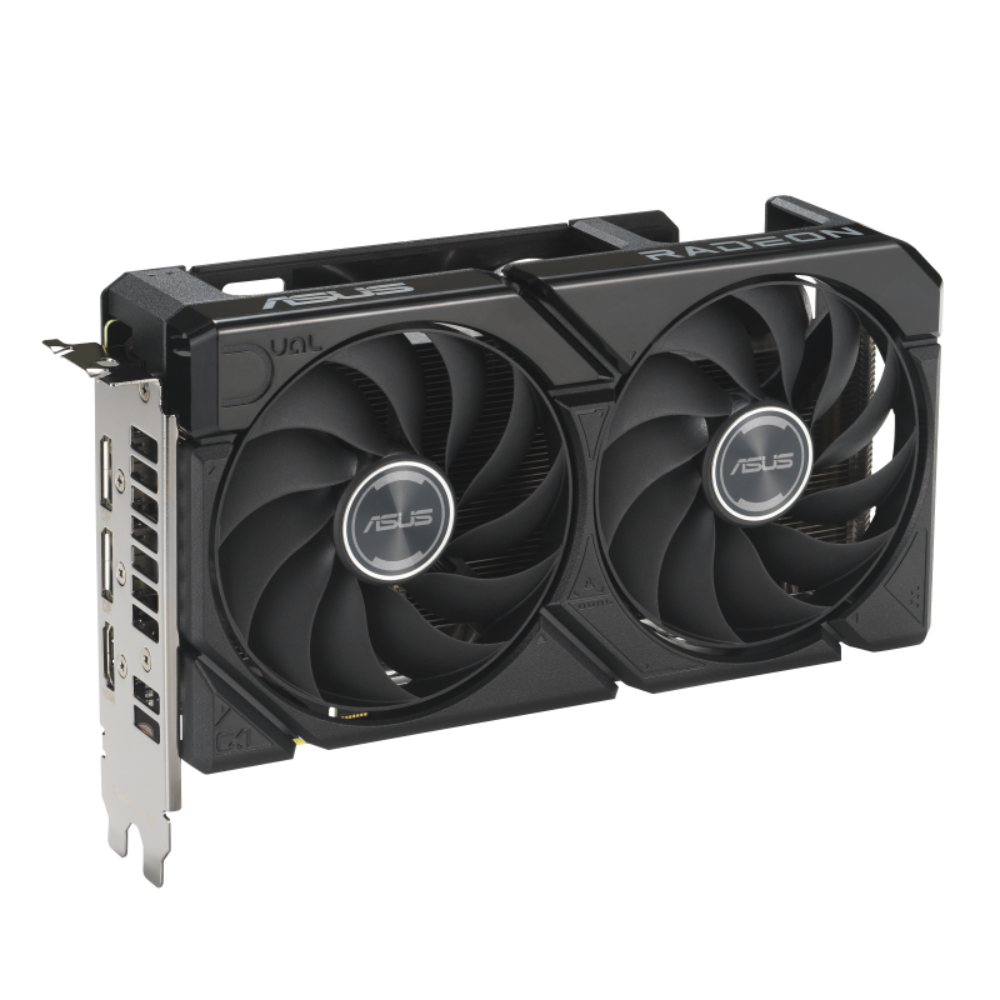

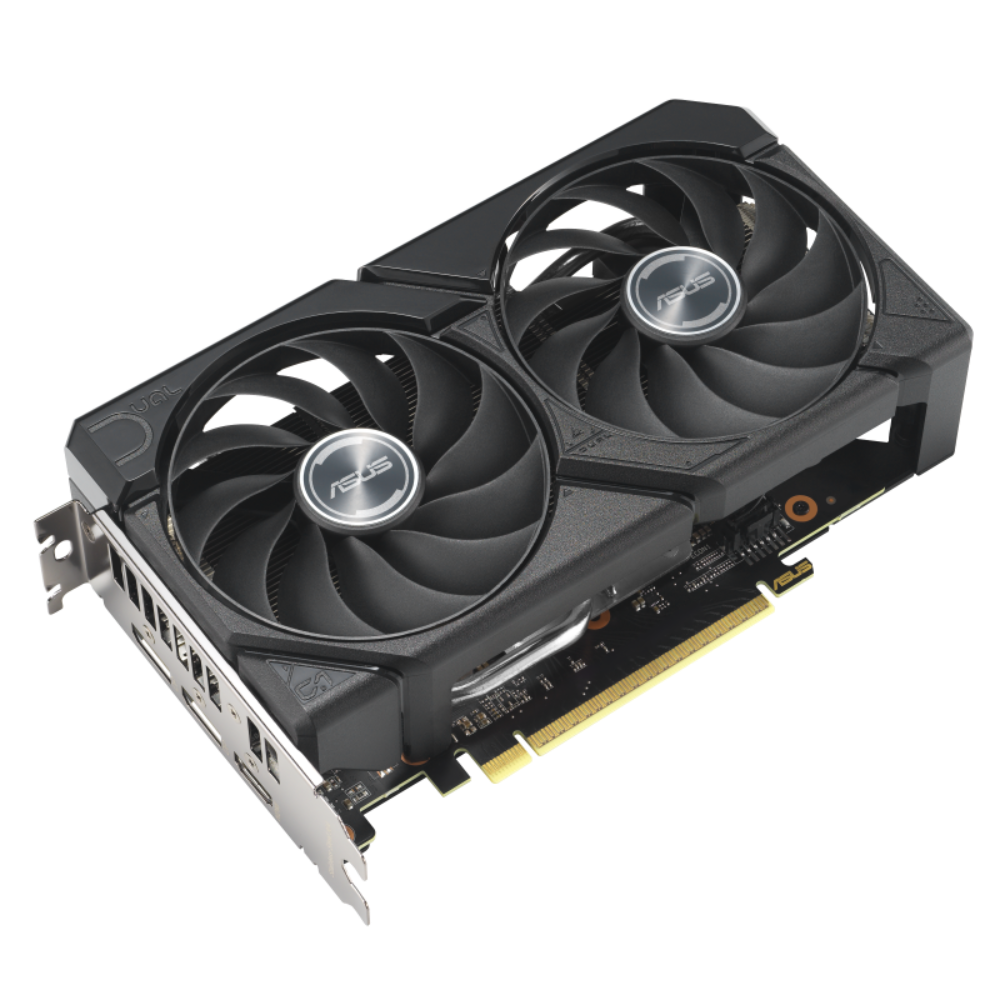

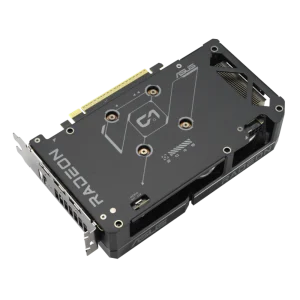

The ASUS Dual Radeon RX 9060 XT 16GB (model DUAL-RX9060XT-16G) is a mid-range to upper-mid graphics card built on the AMD Radeon RX 9060 XT GPU. It is engineered for gamers who want capable performance in a space-efficient build, combining a compact 2.5-slot form factor with a well-developed thermal solution drawn from ASUS’s higher-tier product lines. At the heart of the cooling system are two Axial-tech fans, each featuring a smaller hub that allows for longer blade lengths and a barrier ring designed to concentrate downward airflow onto the heatsink. A vented backplate supplements this by allowing heat to escape from the rear of the card, reducing thermal buildup during extended gaming sessions. ASUS’s 0dB technology puts the fans in a full-stop idle state when the GPU temperature is below 55°C and power draw is low, eliminating fan noise during light workloads or desktop use. The card ships with a Dual BIOS switch, letting users choose between Performance mode — which ramps fans more aggressively to maintain lower temperatures — and Quiet mode, which uses a gentler fan curve for reduced noise at moderate loads. For users who prefer hands-on control, ASUS GPU Tweak III software supports custom fan profiles and performance tuning. Manufactured using ASUS’s Auto-Extreme process, all soldering is completed in a single automated pass, which reduces thermal stress on components during production and avoids harsh cleaning agents, lowering manufacturing environmental impact. Verified Specifications: – GPU: AMD Radeon RX 9060 XT – Video Memory: 16 GB GDDR6 – Memory Interface: 128-bit – Memory Speed: 20 Gbps – Stream Processors: 2048 – Boost Clock (Default): up to 3230 MHz | Game Clock (Default): up to 2620 MHz – Boost Clock (OC via GPU Tweak III): up to 3250 MHz | Game Clock (OC): up to 2640 MHz – Bus Interface: PCI Express 5.0 – Display Outputs: 1× HDMI 2.1b, 2× DisplayPort 2.1a (max 3 displays simultaneously) – Maximum Digital Resolution: 7680×4320 – HDCP: 2.3 – Slot Width: 2.5-slot – Dimensions: 202 × 120 × 49 mm – Power Connector: 1× 8-pin – Recommended PSU: 550 W – OpenGL: 4.6 – CrossFire/NVLink: Not supported – Warranty: 3 years With 16 GB of GDDR6 memory on a 128-bit bus, the RX 9060 XT 16GB is a strong option for 1080p and 1440p gaming, and the generous VRAM headroom supports high-texture assets and emerging workloads. The compact 202 mm card length makes it compatible with a wide range of mid-tower and small-form-factor cases, provided the chassis has a minimum of 2.5 expansion slots available. The single 8-pin power connector and 550 W PSU recommendation keep system build costs accessible. ASUS GPU Tweak III and drivers are available via the ASUS support site
