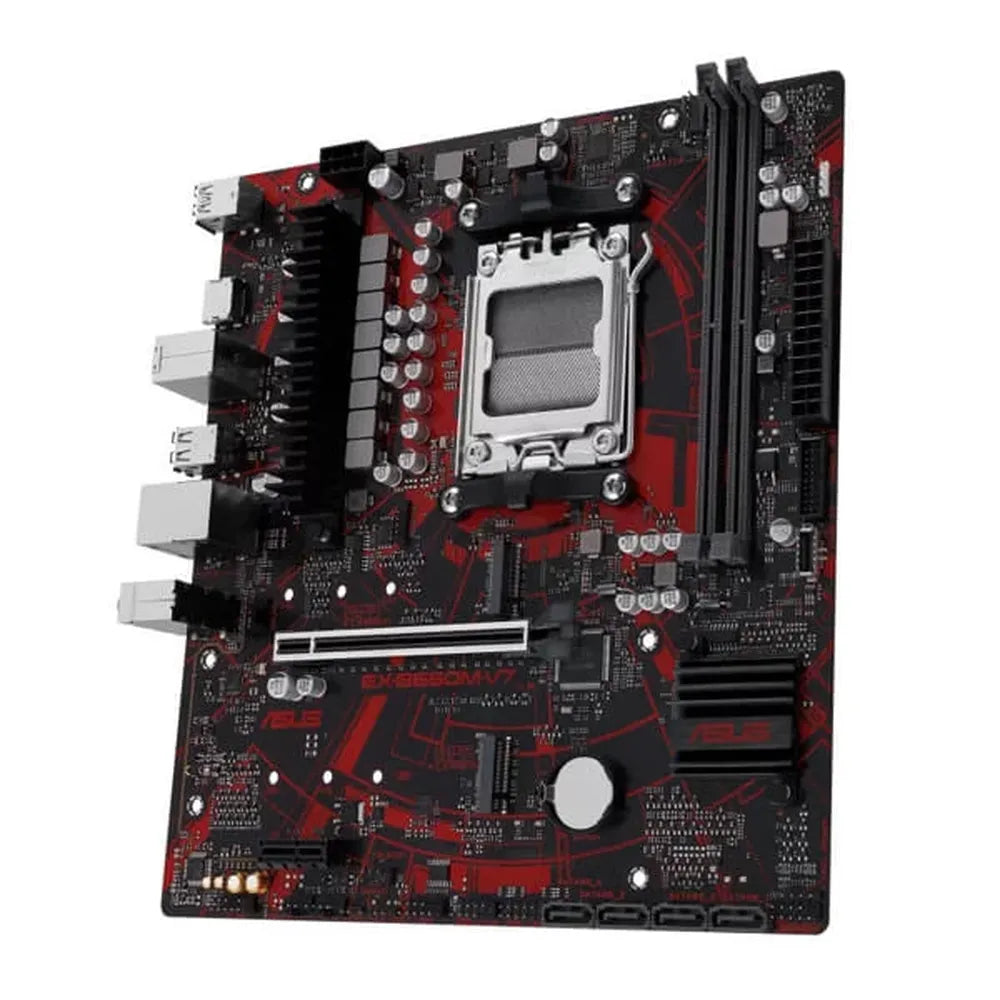

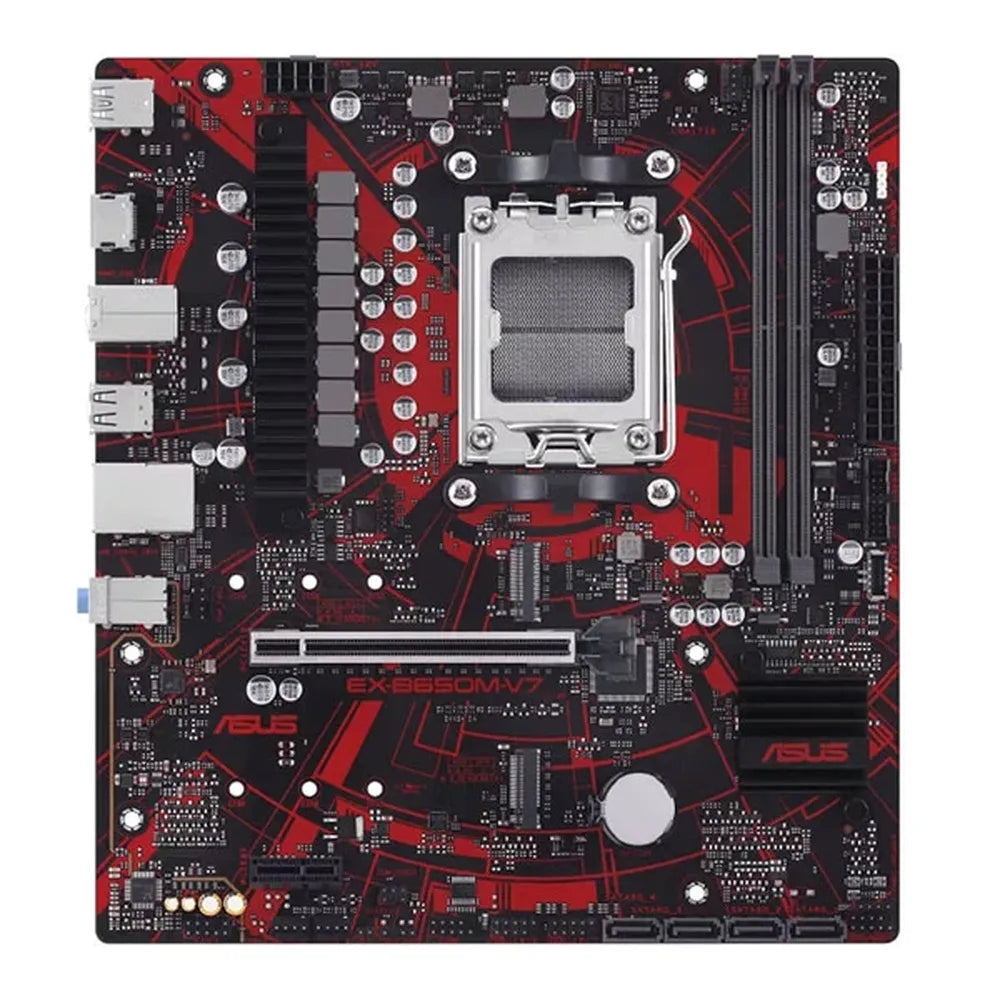

Feature of ASUS EX-B650M-V7 DDR5
ASUS Expedition: Ready for non-stop battle
ASUS EX-B650M-V7 DDR5 Expedition motherboards are made for non-stop action, featuring Lightning Boot for faster BIOS boot-up. These Expedition motherboards are engineered for long-lasting durability to protect against moisture, corrosion and overvoltage damage. They have been subjected to stringent 144-hour diskless-system tests and offer extensive compatibility with top games and over 100 gaming peripherals. Expedition motherboards include Epic gaming audio to complete the gaming experience and provide the best stability, reliability and performance.
Exceptional stability and protection
ASUS Expedition motherboards offer an exclusive package of unbeatable hardware and features to ensure non-stop durability, including a luminous anti-moisture coating, SafeSlot Core+, LANGuard, USBGuard protection for 120%-higher overvoltage toleration, and exclusive 5X Protection III for absolute reliability
Protects against moisture and corrosion
An innovative moisture-resistant coating provides comprehensive protection to prolong the life of your Expedition motherboard. It combats the negative effects of high humidity often found in crowded environments — such as iCafé, data centers and libraries — and minimizes internal corrosion by preventing the adhesion and migration of moisture. The coating even has a luminous effect when viewed under ultraviolet light, letting you clearly see where it is applied.
120% higher overvoltage protection
Exclusive USBGuard technology detects voltage changes in real time, and has 120%-higher overvoltage tolerances than standard to ensure stable and reliable input voltages — minimizing the risk of damage, and protecting your equipment.
VRM Heatsink and Thermal Pad
VRM heatsink and thermal pad improve heat transfer from the MOSFETs for better cooling performance.
SAFESLOT CORE+
SafeSlot Core+ is the ASUS-exclusive PCIe slot fortified with a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards.

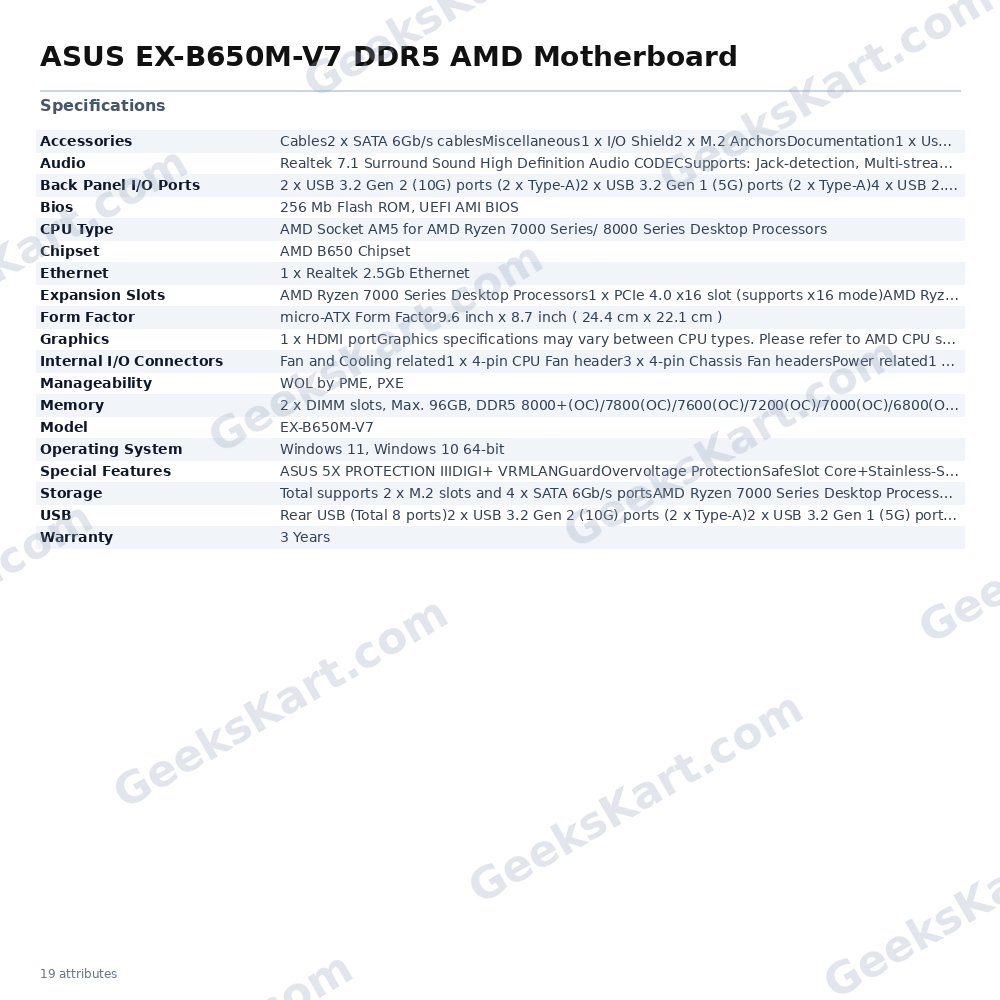

Specifications of ASUS EX-B650M-V7 DDR5
| Model | EX-B650M-V7 |
| CPU | AMD Socket AM5 for AMD Ryzen 7000 Series/ 8000 Series Desktop Processors |
| Chipset | AMD B650 Chipset |
| Memory | 2 x DIMM slots, Max. 96GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO) OptiMem II Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, Non-ECC, un-buffered DDR5 memory supports Die ECC function. |
| Graphics | 1 x HDMI port Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. Supports 4K@60Hz as specified in HDMI 2.1. |
| Expansion Slots | AMD Ryzen 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD B650 Chipset 1 x PCIe 4.0 x1 slot Specifications vary by CPU types. |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) AMD B650 Chipset 4 x SATA 6Gb/s ports AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. Specifications vary by CPU types. |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| USB | Rear USB (Total 8 ports) 2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback Audio Features Audio Shielding Premium audio capacitors Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |

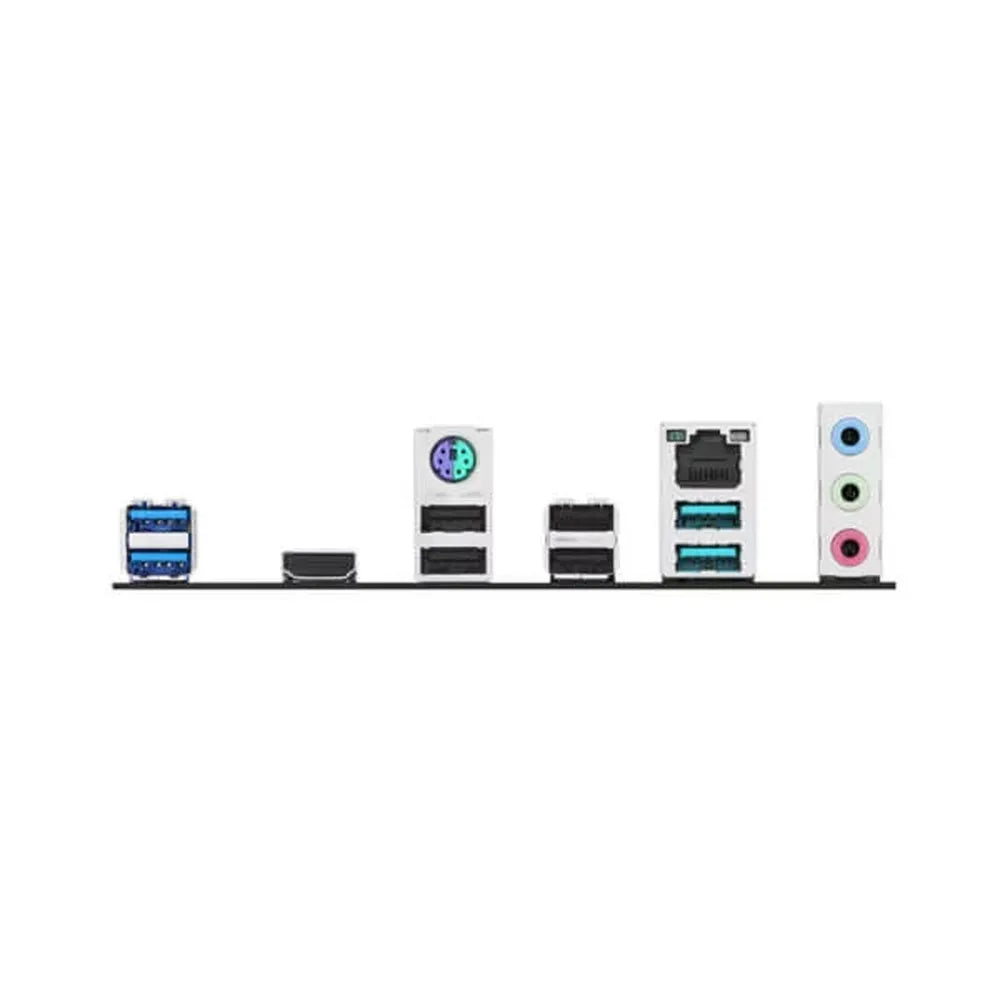

| Back Panel I/O Ports | 2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI™ port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header |
| Special Features | ASUS 5X PROTECTION III DIGI+ VRM LANGuard Overvoltage Protection SafeSlot Core+ Stainless-Steel Back I/O ASUS Q-Design Q-DIMM Q-LED Core Q-Slot ASUS Thermal Solution VRM heatsink design Non-stop Action Lightning Boot Non-stop Challenger ASUS iCafe labs certified Non-stop Durability Luminous anti-moisture coating USBGuard |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 2 x M.2 Anchors Documentation 1 x User guide |
| Operating System | Windows 11, Windows 10 64-bit |
| Form Factor | micro-ATX Form Factor 9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm ) |
| Warranty | 3 Years |
| Note | *** Image use for reference only *** Features, Price, Specifications are subject to change without notice. |
