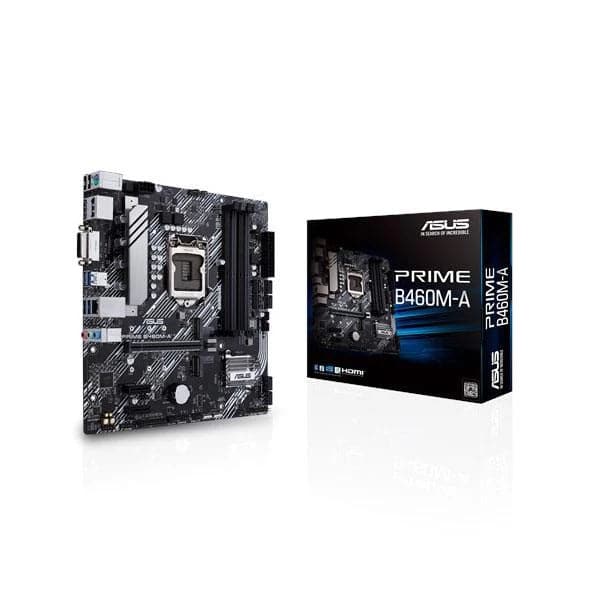

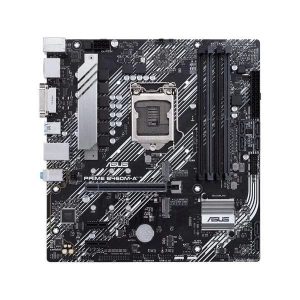

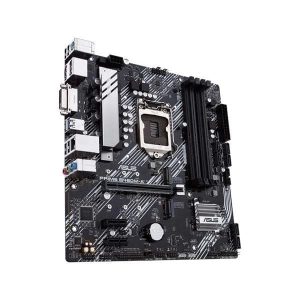

ASUS Prime B460M-A DDR4 Intel Motherboard
MPN ASUS-PRIME-B460M-A · Brand ASUS · mATX
The ASUS Prime B460M-A is a Micro-ATX motherboard for 10th Gen Intel Core processors (LGA 1200), featuring four DDR4 slots up to 128 GB, dual M.2 storage, six SATA ports, and ASUS 5X Protection III hardware safeguards
Inclusive of GST · GST invoice available
Overview
The ASUS Prime B460M-A is a Micro-ATX motherboard built around the Intel B460 chipset, designed to pair with 10th Generation Intel Core, Pentium Gold, and Celeron processors in the LGA 1200 socket. Measuring 9.6 × 9.2 inches (24.4 × 23.4 cm), it fits standard mATX chassis while delivering a capable feature set for home office builds, productivity workstations, and entry-level DIY desktop systems. Memory support spans four DDR4 DIMM slots capable of holding up to 128 GB of Non-ECC Unbuffered RAM at speeds of 2133 / 2400 / 2666 / 2800 / 2933 MHz, with Intel XMP profile support for compatible kits. ASUS OptiMem trace routing is employed to preserve signal integrity and improve memory stability across all four slots. Storage options are generous for the platform: two M.2 Socket 3 (M-key) slots support 2242 / 2260 / 2280 form-factor drives — M.2_1 accepts both SATA and PCIe modes, while M.2_2 operates in PCIe 3.0 x4 mode — alongside six SATA 6 Gb/s ports with RAID 0, 1, 5, and 10 support and Intel Rapid Storage Technology. Note that M.2_1 shares bandwidth with SATA6G_1; enabling M.2_1 in SATA mode disables that SATA port. Expansion is handled by one PCIe 3.0/2.0 x16 slot (running at x16) sourced from the CPU, plus two PCIe 3.0/2.0 x1 slots from the chipset. Display outputs on the rear I/O include DisplayPort 1.4 (up to 4096 × 2304 @ 60 Hz), HDMI 1.4b, and DVI-D, all routed through the Intel UHD Graphics integrated into supported CPUs. Connectivity rear I/O includes four USB 3.2 Gen 1 Type-A ports (up to 5 Gbps), two USB 2.0 Type-A ports, Gigabit Ethernet via Realtek RTL8111H with ASUS LANGuard, three audio jacks, a PS/2 combo port, and a stainless-steel I/O panel. Internal headers add two more USB 3.2 Gen 1 ports and four USB 2.0 ports. Audio is handled by a Realtek ALC887 7.1-channel HD Audio codec supporting up to 24-bit/192 kHz playback, complemented by audio shielding, dedicated audio PCB layers, and Japanese audio capacitors. Cooling management is provided by Fan Xpert 2+, with one CPU fan header, one CPU OPT header, and two chassis fan headers (all 4-pin). Two Aura Sync-compatible standard RGB strip headers allow lighting coordination with other ASUS ecosystem products. The board ships with ASUS 5X Protection III hardware safeguards — including DIGI+ VRM, LANGuard, overvoltage protection, SafeSlot, and stainless-steel back I/O — plus a 128 Mb Flash ROM running UEFI AMI BIOS with CrashFree BIOS 3, EZ Flash 3, and EZ Mode. An SPI TPM header is present for platform security. A 3-year manufacturer warranty applies. Verified Specifications: - Socket: Intel LGA 1200 - Chipset: Intel B460 - Form Factor: mATX (9.6 × 9.2 in / 24.4 × 23.4 cm) - Memory: 4× DDR4 DIMM, up to 128 GB, DDR4-2933/2800/2666/2400/2133, Non-ECC Unbuffered, XMP - Storage: 2× M.2 (PCIe 3.0 x4 / SATA), 6× SATA 6 Gb/s, RAID 0/1/5/10 - Display: 1× DisplayPort 1.4, 1× HDMI 1.4b, 1× DVI-D - LAN: Realtek RTL8111H Gigabit - Audio: Realtek ALC887 7.1-ch HD, 24-bit/192 kHz - USB Rear: 4× USB 3.2 Gen 1, 2× USB 2.0 - USB Front Headers: 2× USB 3.2 Gen 1, 4× USB 2.0 - PCIe: 1× x16 (CPU), 2× x1 (chipset) - BIOS: 128 Mb Flash ROM, UEFI AMI - Warranty: 3 Years

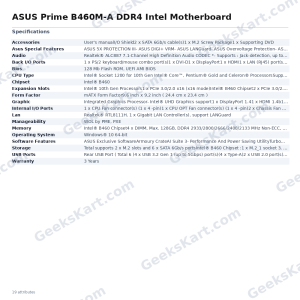

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | Intel® B460 |
| CPU Type | |
| Lan | Realtek® RTL8111H, 1 x Gigabit LAN Controller(s), support LANGuard |
| Bios | 128 Mb Flash ROM, UEFI AMI BIOS |
| Audio | Realtek® ALC887 7.1-Channel High Definition Audio CODEC *- Supports : Jack-detection, up to 24-Bit/192kHz playbackAudio Feature :- Audio Shielding- Dedicated audio PCB layers- Premium Japanese audio capacitors* Choose the chassis with HD audio module in front panel to support 8-channel audio output |
| Memory | Intel® B460 Chipset4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *Supports Intel® Extreme Memory Profile (XMP)OptiMem* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to http://www.asus.com for the Memory QVL (Qualified Vendors Lists) |
| Graphic | Integrated Graphics Processor- Intel® UHD Graphics support1 x DisplayPort 1.41 x HDMI 1.4b1 x DVI-D*Graphics specifications may vary between CPU types.**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz |
| Storage | Total supports 2 x M.2 slots and 6 x SATA 6Gb/s portsIntel® B460 Chipset :1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)6 x SATA 6Gb/s port(s)Support Raid 0, 1, 5, 10Intel® Rapid Storage Technology supportsIntel® Optane™ Memory Ready |
| USB Ports | Rear USB Port ( Total 6 )4 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(4 x Type-A)2 x USB 2.0 port(s)(2 x Type-A)Front USB Port ( Total 6 )2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)4 x USB 2.0 port(s) |
| Accessories | User's manualI/O Shield2 x SATA 6Gb/s cable(s)1 x M.2 Screw Package1 x Supporting DVD |
| Manageability | WOL by PME, PXE |
| Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s)1 x DVI-D1 x DisplayPort1 x HDMI1 x LAN (RJ45) port(s)4 x USB 3.2 Gen 1 Type-A2 x USB 2.03 x Audio jack(s) |
| Expansion Slots | Intel® 10th Gen Processors1 x PCIe 3.0/2.0 x16 (x16 mode)Intel® B460 Chipset2 x PCIe 3.0/2.0 x1 |
| Operating System | Windows® 10 64-bit |
| Software Features | ASUS Exclusive SoftwareArmoury CrateAI Suite 3- Performance And Power Saving UtilityTurboV EVOEPUDigi+ VRMFan Xpert 2+- EZ updateAI ChargerASUS CPU-ZDAEMON ToolsNorton Anti-virus software(Free Trial for 60 days)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode |
| Internal I/O Ports | 1 x CPU Fan connector(s) (1 x 4 -pin)1 x CPU OPT Fan connector(s) (1 x 4 -pin)2 x Chassis Fan connector(s) (2 x 4 -pin)1 x AAFP connector2 x Aura RGB Strip Header(s)1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)2 x M.2 Socket 31 x SPI TPM header1 x LPT header6 x SATA 6Gb/s connector(s)1 x S/PDIF out header(s)1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)1 x System panel(s) (Chassis intrusion header is inbuilt)1 x Clear CMOS jumper(s)1 x COM port header |
| Asus Special Features | ASUS 5X PROTECTION III- ASUS DIGI+ VRM- ASUS LANGuard- ASUS Overvoltage Protection- ASUS Safeslot- ASUS Stainless-Steel Back I/OASUS Q-Design- ASUS Q-DIMMASUS Sync- Standard RGB header(s) |
