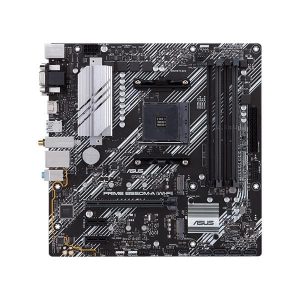

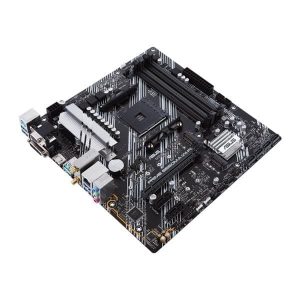

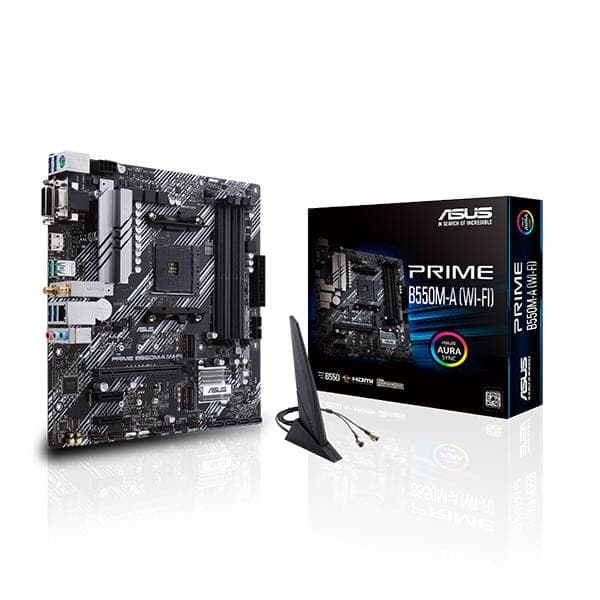

ASUS Prime B550M-A Wifi DDR4 AMD Motherboard
MPN ASUS-PRIME-B550M-A-WI-FI · Brand ASUS · mATX
The ASUS Prime B550M-A WiFi is a Micro-ATX AM4 motherboard featuring the AMD B550 chipset, PCIe 4.0, Intel Wi-Fi 6 (AX200), dual M.2 slots, and support for up to 128 GB of DDR4 memory — a well-rounded foundation for AMD Ryzen builds
Inclusive of GST · GST invoice available
Overview
The ASUS Prime B550M-A WiFi is a Micro-ATX motherboard built on the AMD B550 chipset with an AM4 socket, designed to support 3rd Gen AMD Ryzen processors as well as next-generation AMD Ryzen PRO CPUs. Its compact 9.6 × 9.6-inch (24.4 × 24.4 cm) footprint makes it an ideal choice for space-conscious builds that refuse to compromise on connectivity or performance. At the heart of its storage and expansion story is a PCIe 4.0 x16 SafeSlot for the primary graphics card, backed by two PCIe 3.0 x1 slots from the AMD B550 chipset. Two M.2 Socket 3 slots cater to NVMe SSDs: the first supports Type 2242/2260/2280/22110 drives in PCIe 4.0 x4 or SATA mode, while the second supports Type 2242/2260/2280 drives in PCIe 3.0 x4 or SATA mode. Four SATA 6 Gb/s ports and RAID 0, 1, and 10 support round out the storage options. Wireless connectivity is handled by an Intel Wi-Fi 6 AX200 module delivering 2×2 802.11 a/b/g/n/ac/ax with 1024-QAM, OFDMA, and MU-MIMO support across 2.4 GHz and 5 GHz bands, with a theoretical maximum data rate of 2.4 Gbps. Bluetooth 5.1 is also included. Wired networking is provided by a Realtek RTL8111H Gigabit Ethernet controller. The memory subsystem features four DIMM slots supporting up to 128 GB of unbuffered DDR4 in dual-channel mode, with native speeds of DDR4-2133 through DDR4-3200 and overclocked profiles reaching DDR4-4600 (DDR4-4800 O.C. with Ryzen PRO). ASUS OptiMem trace layout is included to help memory kits achieve higher frequencies at lower voltages. The power delivery section uses an 8+1 DrMOS power stage design paired with high-quality alloy chokes and a VRM heatsink with a thermal pad for improved heat transfer. Fan control is managed through hybrid fan headers configurable via Fan Xpert 2+ software or the UEFI BIOS. Display outputs on the rear I/O include HDMI 2.1 (4K@60 Hz), DVI-D, and D-Sub. USB connectivity consists of six rear ports — two USB 3.2 Gen 2 Type-A and four USB 3.2 Gen 1 Type-A — plus internal headers supporting an additional six front-panel ports. Audio is powered by a Realtek ALC887 codec with 7.1 surround sound, 24-bit/192 kHz playback, dedicated audio PCB layers, audio shielding, and premium Japanese capacitors. ASUS 5X Protection III covers LANGuard surge protection, DRAM overcurrent protection, overvoltage protection, SafeSlot Core reinforcement, and a stainless-steel back I/O panel. Aura Sync RGB is supported via two standard RGB headers and one Addressable Gen 2 RGB header. The BIOS uses a 256 Mb Flash ROM with UEFI AMI BIOS including CrashFree BIOS 3 and EZ Flash 3. Key Specifications: - Socket: AMD AM4 | Chipset: AMD B550 - Form Factor: Micro-ATX, 9.6 × 9.6 in (24.4 × 24.4 cm) - Memory: 4× DIMM, max 128 GB DDR4 (up to DDR4-4600 O.C.) - Expansion: 1× PCIe 4.0 x16, 2× PCIe 3.0 x1 - Storage: 2× M.2 (PCIe 4.0 x4 + PCIe 3.0 x4), 4× SATA 6 Gb/s, RAID 0/1/10 - Wireless: Intel Wi-Fi 6 AX200, up to 2.4 Gbps; Bluetooth 5.1 - LAN: Realtek RTL8111H 1 GbE - Display: HDMI 2.1 (4K@60 Hz), DVI-D, D-Sub - USB: 2× USB 3.2 Gen 2 + 4× USB 3.2 Gen 1 (rear); front headers for 2× USB 3.2 Gen 1 + 4× USB 2.0 - Audio: Realtek ALC887, 7.1 CH, 24-bit/192 kHz - Warranty: 3 Years
Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | AMD B550 |
| CPU Type | Build in AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors |
| Lan | Realtek RTL8111H 1Gb Ethernet |
| Bios | 256 Mb Flash ROM, UEFI AMI BIOS |
| Audio | Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playbackAudio Feature :- LED-illuminated design- Audio Shielding- Dedicated audio PCB layers- Premium Japanese audio capacitors |
| Memory | 3rd Gen AMD Ryzen™ Processors4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *Next Generation AMD Ryzen PRO Processors4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.) /4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.) /3200/3000/2800 /2666/2400/2133 MHz Un-buffered Memory *Dual Channel Memory ArchitectureECC Memory (ECC mode) support varies by CPU |
| Graphic | 1 x D-Sub1 x DVI-D1 x HDMI 2.1(4K@60HZ) |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports3rd Gen AMD Ryzen™ Processors :1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices supportAMD B550 Chipset :1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support4 x SATA 6Gb/s port(s),Support Raid 0, 1, 10 |
| Bluetooth | Bluetooth v5.1**BT 5.1 function will be ready in Windows 10 build 19041 or later |
| USB Ports | Rear USB Port ( Total 6 )2 x USB 3.2 Gen 2 port(s)(2 x Type-A)4 x USB 3.2 Gen 1 port(s)(4 x Type-A)Front USB Port ( Total 6 )2 x USB 3.2 Gen 1 port(s)(2 x Type-A)4 x USB 2.0 port(s)(4 x Type-A) |
| Manageability | WOL by PXE |
| Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s)1 x DVI-D1 x D-Sub1 x HDMI1 x LAN (RJ45) port(s)2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A)4 x USB 3.2 Gen 1 (blue) Type-A3 x Audio jack(s)1 x ASUS Wi-Fi Module |
| Expansion Slots | 3rd Gen AMD Ryzen™ Processors1 x PCIe 4.0 x16 (x16 mode)AMD B550 Chipset2 x PCIe 3.0 x1 |
| Operating System | Windows® 10 64-bit |
| Software Features | ASUS Exclusive SoftwareArmoury Crate- Aura Creator- Aura SyncAI Suite 3- Performance And Power Saving UtilityTurboV EVOEPUDigi VRMFan Xpert 2- EZ updateASUS CPU-ZAI ChargerDAEMON ToolsNorton Anti-virus software (Free Trial for 60 days)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode |
| Internal I/O Ports | 1 x CPU Fan connector(s)1 x CPU OPT Fan connector(s)2 x Chassis Fan connector(s)2 x Aura RGB Strip Headers1 x Addressable Gen 2 header(s)1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)1 x SPI TPM header4 x SATA 6Gb/s connector(s)1 x S/PDIF out header(s)1 x 24-pin EATX Power connector(s)1 x 8-pin EATX 12V Power connectors1 x Front panel audio connector(s) (AAFP)1 x Clear CMOS jumper(s)1 x System panel connector1 x COM port header1 x Speaker connector |
| Asus Special Features | ASUS 5X PROTECTION III- ASUS DIGI VRM- ASUS LANGuard- ASUS Overvoltage Protection- ASUS SafeSlot Core- ASUS Stainless-Steel Back I/OASUS Q-Design- ASUS Q-DIMM- ASUS Q-SlotASUS Thermal Solution- Aluminum heatsink designAURA Sync- Standard RGB headers- Addressable Gen 2 RGB headerASUS Lighting Control |
| Wireless Data Network | Intel® Wi-Fi 6 AX2002x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMOSupports up to 2.4Gbps max data rateSupports dual band frequency 2.4/5 GHzSupports channel bandwidth: HT20/HT40/HT80/HT160Supports PCIe interface |
