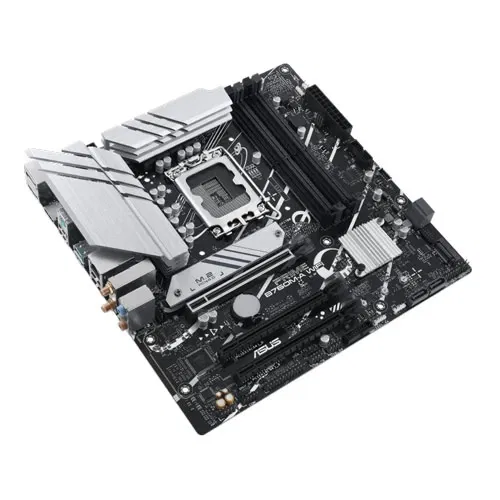

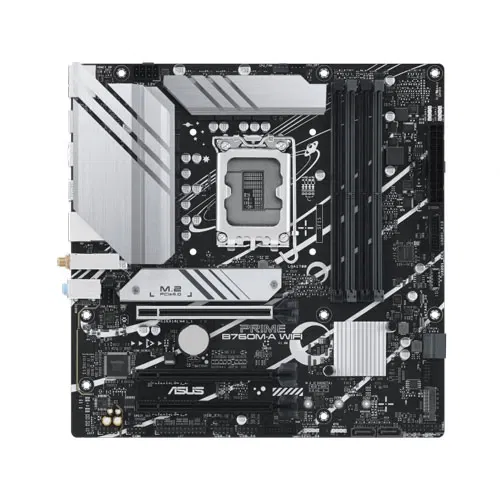

ASUS PRIME B760M-A WIFI-CSM M-ATX Motherboard

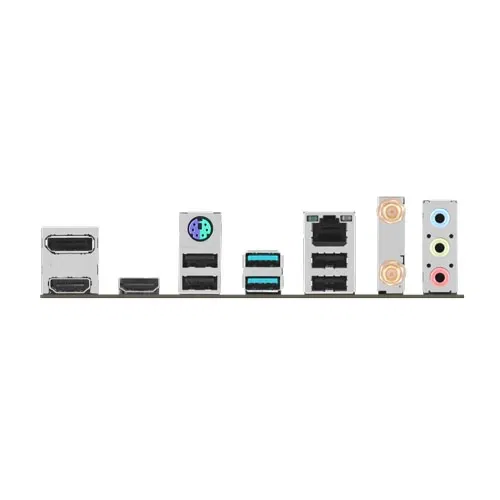

The ASUS PRIME B760M-A WIFI-CSM is a Micro-ATX (mATX) motherboard built on the Intel B760 chipset for the LGA1700 socket. It is designed for mid-range Intel desktop builds and supports 14th, 13th and 12th Gen Intel Core processors, along with compatible Pentium Gold and Celeron CPUs, making it a flexible base for a new system or a CPU upgrade. Memory is handled through dual-channel DDR5 slots that accept up to 128GB of RAM, with speeds rated up to 7200+ (OC); the actual supported speed depends on the installed CPU and memory configuration. For expansion and storage, the board offers a PCIe 4.0 x16 slot for graphics, two M.2 slots (Key M) with a dedicated M.2 heatsink, and four SATA 6Gb/s ports. Connectivity includes onboard Wi-Fi, Bluetooth 5.2 and a Realtek 2.5Gb Ethernet port, plus rear USB 3.2 Gen 2 Type-A ports, a front USB 3.2 Gen 1 Type-C header, DisplayPort and dual HDMI video outputs. Comprehensive cooling — VRM heatsinks, an M.2 heatsink, a PCH heatsink and hybrid fan headers — helps keep the system stable under sustained workloads, while Addressable Gen 2 and Aura RGB headers support synced lighting. As part of the ASUS Corporate Stable Model (CSM) program, this board ships with ASUS Control Center Express IT-management software and is backed by a 3-year warranty, making it well suited to both home builders and small-business systems. Verifiable specifications: Socket — Intel LGA1700; Chipset — Intel B760; Form factor — Micro-ATX; Memory — DDR5, dual-channel, up to 128GB, up to 7200+ (OC); Storage — 2 x M.2 (Key M), 4 x SATA 6Gb/s; Networking — Realtek 2.5Gb Ethernet, onboard Wi-Fi, Bluetooth 5.2; Display — 1 x DisplayPort, 2 x HDMI; Warranty — 3 years (ASUS CSM)
