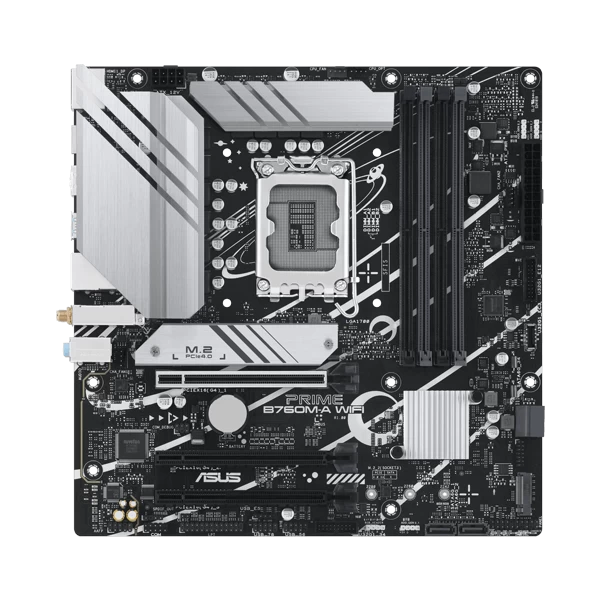

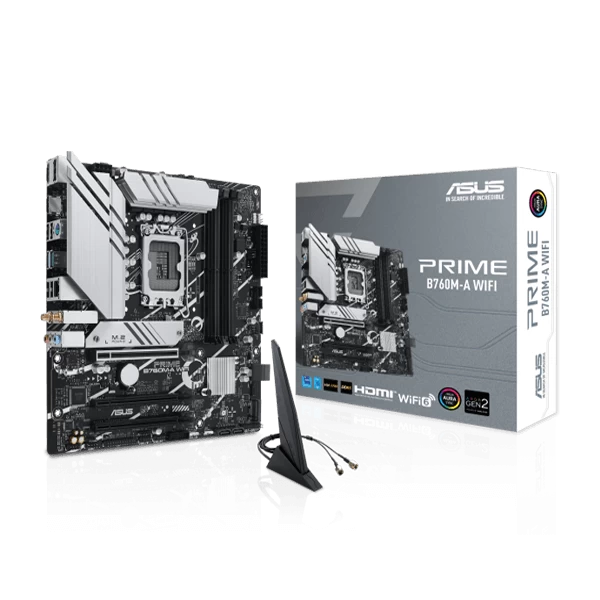

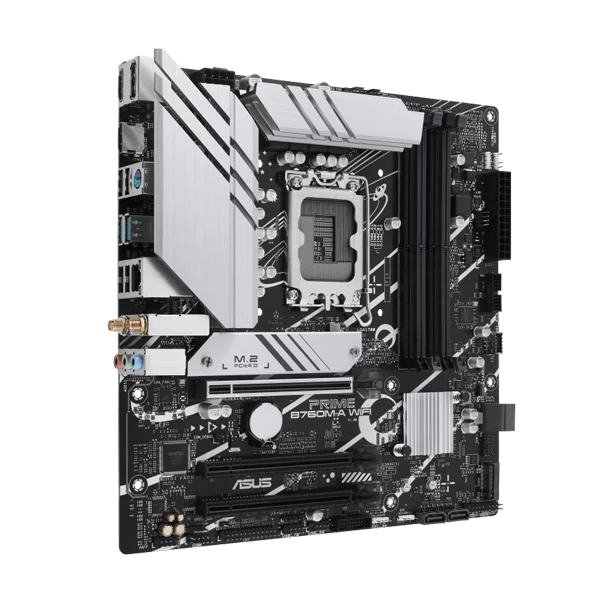

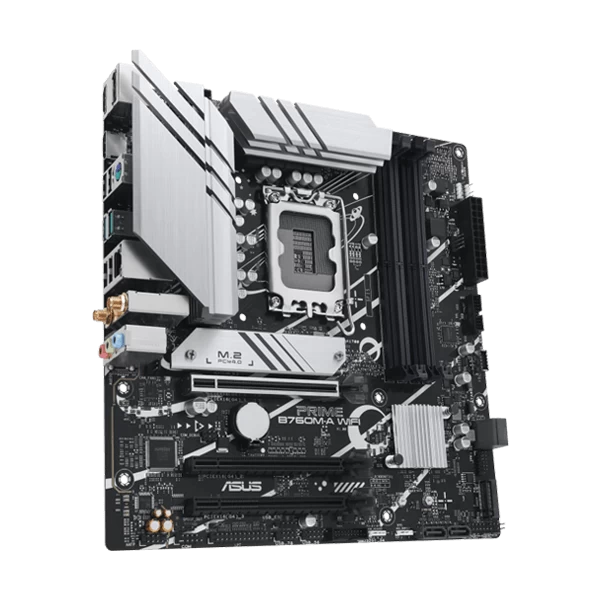

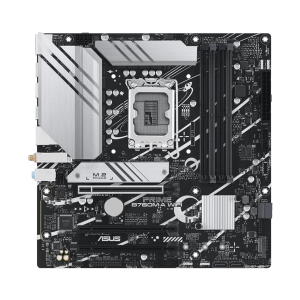

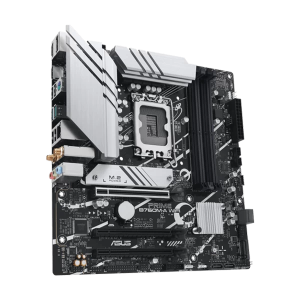

ASUS Prime B760M-A Wifi DDR5 Intel Motherboard

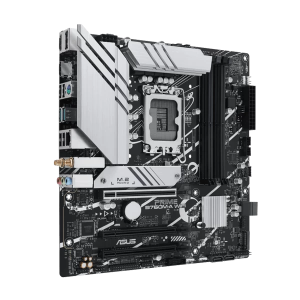

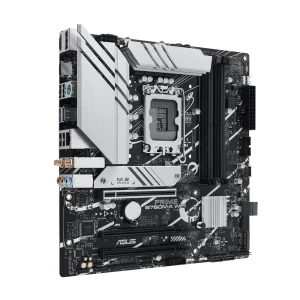

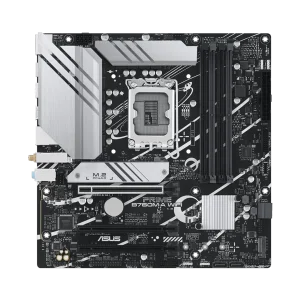

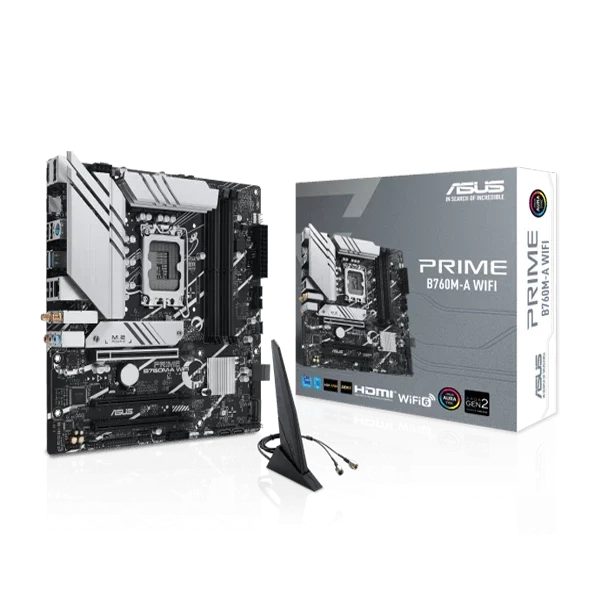

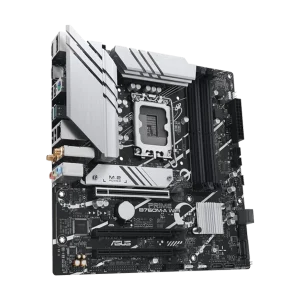

The ASUS Prime B760M-A WiFi DDR5 is a Micro-ATX motherboard built on the Intel B760 chipset and designed for Intel LGA1700 processors, supporting both 12th Gen and 13th Gen Intel Core, Pentium Gold, and Celeron families. It is a practical and feature-rich platform for PC builders who want DDR5 performance, wireless connectivity, and comprehensive I/O in a compact form factor. On the memory side, the board offers four DDR5 DIMM slots capable of housing up to 128 GB of Non-ECC Unbuffered RAM. Supported speeds span from 4800 MHz (native) through overclocked profiles reaching DDR5-7200+, with Intel XMP and ASUS OptiMem II support enabling easy memory tuning via the UEFI BIOS. Storage is handled by two M.2 Key-M slots, both operating in PCIe 4.0 x4 mode and supporting 2242, 2260, and 2280 form factors, complemented by four SATA 6 Gb/s ports. The primary PCIe x16 slot draws bandwidth directly from the CPU (PCIe 4.0), making it well-suited for contemporary discrete graphics cards, while two additional chipset-fed slots offer x4 and x1 modes respectively. Wireless connectivity is delivered by an integrated 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) module supporting 2.4 GHz and 5 GHz bands, paired with Bluetooth 5.2. Wired networking is handled by a Realtek 2.5 Gigabit Ethernet controller. The rear I/O panel includes two USB 3.2 Gen 2 Type-A ports, four USB 2.0 Type-A ports, a DisplayPort output, two HDMI ports, three audio jacks, and a PS/2 combo port. Front-panel headers provide extensive expansion: two USB 3.2 Gen 1 headers (four ports total), one USB 3.2 Gen 1 Type-C connector, and additional USB 2.0 headers. Audio is managed by a Realtek 7.1-channel HD CODEC supporting up to 24-bit/192 kHz playback, with audio shielding, premium capacitors, and dedicated audio PCB layers for cleaner signal separation. The board ships with Aura Sync RGB support via three Addressable Gen 2 headers and one standard Aura RGB header. ASUS 5X Protection III features include DIGI+ VRM, LANGuard, SafeSlot Core+, and Overvoltage Protection. Thermal management is addressed through VRM and M.2 heatsinks, plus four 4-pin PWM/DC fan headers managed by Fan Xpert 2+ software. Verified Specifications: Chipset: Intel B760 | Socket: LGA1700 | Form Factor: mATX, 9.6 x 9.6 in (24.4 x 24.4 cm) | Memory: 4x DDR5 DIMM, max 128 GB, DDR5-4800 to DDR5-7200+(OC) | Storage: 2x M.2 PCIe 4.0 x4, 4x SATA 6 Gb/s | Expansion: 1x PCIe 4.0 x16 (CPU), 1x PCIe 4.0 x4, 1x PCIe 4.0 x1 | Networking: Realtek 2.5 GbE, Wi-Fi 6 (802.11ax), Bluetooth 5.2 | Audio: Realtek 7.1 HD, 24-bit/192 kHz | BIOS: 128 Mb Flash ROM, UEFI AMI | OS Support: Windows 11, Windows 10 64-bit | Warranty: 3 Years
