Asus Prime B850-Plus WIFI-CSM Motherboard
MPN PRIME-B850-PLUS-WIFI-CSM · Brand ASUS · ATX
The ASUS Prime B850-Plus WIFI-CSM is an ATX motherboard for AMD AM5, supporting Ryzen 9000/8000/7000 series with DDR5 up to 8000+ MT/s, PCIe 5.0, three M.2 slots, Wi-Fi 6E, and Realtek 2.5 Gb Ethernet
Inclusive of GST · GST invoice available
Overview
The ASUS Prime B850-Plus WIFI-CSM is an ATX form-factor motherboard built on the AMD B850 chipset for the AM5 socket, designed to work with AMD Ryzen 9000, 8000, and 7000 series desktop processors. It balances capable feature coverage with everyday usability, making it a solid platform for PC builders who want modern connectivity without moving to a flagship chipset. At the heart of its power delivery is an 8+2+1 phase digital power design with discrete MOSFETs, providing stable voltage regulation for AM5 processors across varied workloads. Four DDR5 DIMM slots support up to 256 GB of memory, with speeds up to 8000+ MT/s (OC) achievable on Ryzen 9000 and 8000 series processors. The board supports AMD EXPO profiles for XMP-equivalent out-of-box overclocking, and ASUS's own AEMP technology helps optimize performance on modules without native EXPO support. Storage options are generous: three M.2 slots (all Key-M) provide fast NVMe connectivity — one via PCIe 5.0 at up to 128 Gbps, and two via PCIe 4.0 — complemented by four SATA 6 Gb/s ports. The primary x16 PCIe slot runs at PCIe 5.0 x16 on Ryzen 9000 and 7000 processors, supporting current and upcoming discrete graphics cards. Wireless connectivity comes via an integrated Wi-Fi 6E module alongside Bluetooth 5.3. Wired networking is handled by a Realtek 2.5 Gb Ethernet controller for reduced CPU overhead on high-throughput transfers. The rear I/O panel is well-stocked: one USB 10 Gbps Type-C, three USB 10 Gbps Type-A, two USB 5 Gbps Type-A, two USB 2.0 Type-A, DisplayPort, HDMI, three audio jacks, and a BIOS FlashBack button for firmware recovery without a CPU installed. Internal headers add further expansion: a front-panel USB 5 Gbps Type-C connector, additional USB 5 Gbps and USB 2.0 headers, three Addressable RGB Gen 2 headers, a Thunderbolt (USB4) header, and a full complement of fan and AIO pump headers managed through ASUS Fan Xpert 2+ software. Verified Specifications: - Socket: AMD AM5 - Chipset: AMD B850 - Form Factor: ATX - Compatible CPUs: AMD Ryzen 9000, 8000, 7000 series - Memory: 4 x DDR5 DIMM, dual-channel, max 256 GB, up to 8000+ MT/s (OC), EXPO and AEMP support - M.2 Slots: 3 x Key-M (1 x PCIe 5.0 up to 128 Gbps; 2 x PCIe 4.0) - SATA: 4 x SATA 6 Gb/s - PCIe: 1 x PCIe 5.0 x16 (Ryzen 9000/7000); 1 x PCIe 4.0 x16 (Ryzen 8000, x8/x4); 1 x PCIe 4.0 x16 (B850 chipset, x4); 2 x PCIe 3.0 x16 (x1 mode) - Wireless: Wi-Fi 6E, Bluetooth 5.3 - LAN: Realtek 2.5 Gb Ethernet - Rear USB: 1x USB 10 Gbps Type-C, 3x USB 10 Gbps Type-A, 2x USB 5 Gbps Type-A, 2x USB 2.0 Type-A - Video Out: 1 x DisplayPort, 1 x HDMI - Warranty: 3 Years

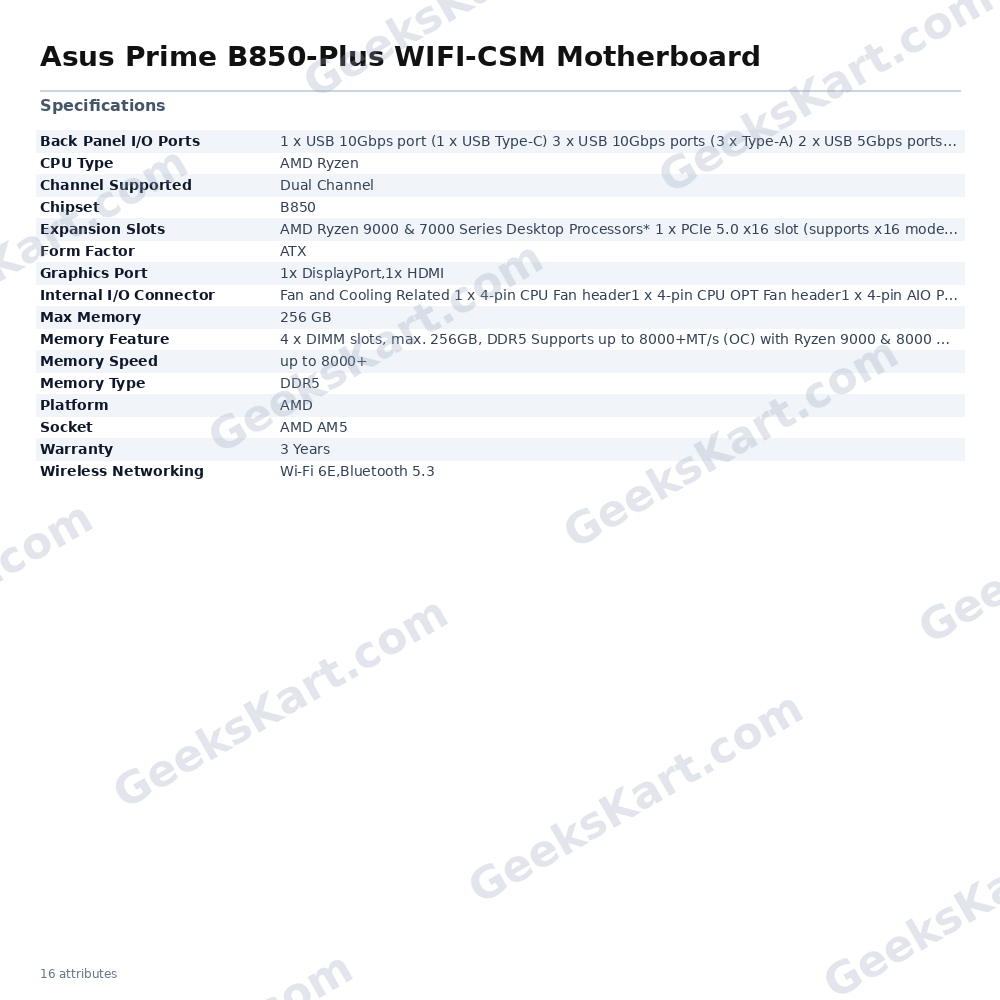

Datasheet
| Memory Type | DDR5 |
|---|---|
| Warranty | 3 Years |
| Form Factor | ATX |
| Chipset | B850 |
| Socket | AM5 |
| CPU Type | AMD Ryzen |
| Max Memory | 256 GB |
| Memory Speed | up to 8000+ |
| Platform | AMD |
| Graphics Port | 1x DisplayPort,1x HDMI |
| Memory Feature | 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO) ASUS Enhanced Memory Profile (AEMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function |
| Expansion Slots | AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B850 Chipset 1 x PCIe 4.0 x16 slot (support x4 mode) 2 x PCIe 3.0 x16 slots (support x1 mode)*** * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). ** Specifications vary by CPU types. *** The PCIEX16(G3)_1/2 share bandwidth with SATA6G_1/2. The SATA6G_1/2 will be disabled when The PCIEX16(G3)_1 or PCIEX16(G3)_2 runs. – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported |
| Channel Supported | Dual Channel |
| Wireless Networking | Wi-Fi 6E,Bluetooth 5.3 |
| Back Panel I/O Ports | 1 x USB 10Gbps port (1 x USB Type-C) 3 x USB 10Gbps ports (3 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button |
| Internal I/O Connector | Fan and Cooling Related 1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header4 x 4-pin Chassis Fan headersPower Related 1 x 24-pin Main Power connector1 x 8-pin +12V CPU Power connectors1 x 4-pin +12V CPU Power connectorsStorage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s portsUSB 1 x USB 5Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports3 x USB 2.0 headers support 6 additional USB 2.0 portsMiscellaneous3 x Addressable RGB Gen 2 headers1 x Clear CMOS header1 x Chassis Intrusion header1 x COM Port header1 x Front Panel Audio header (F_AUDIO)1 x S/PDIF Out header1 x SPI TPM header (14-1 pin)1 x 10-1 pin System Panel header1 x Thunderbolt™ (USB4®) header |
