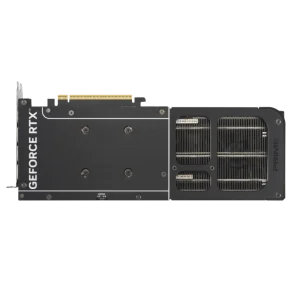

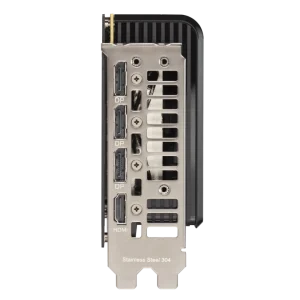

ASUS Prime GeForce RTX 5060 Ti OC Edition 16GB NVIDIA Graphic Card

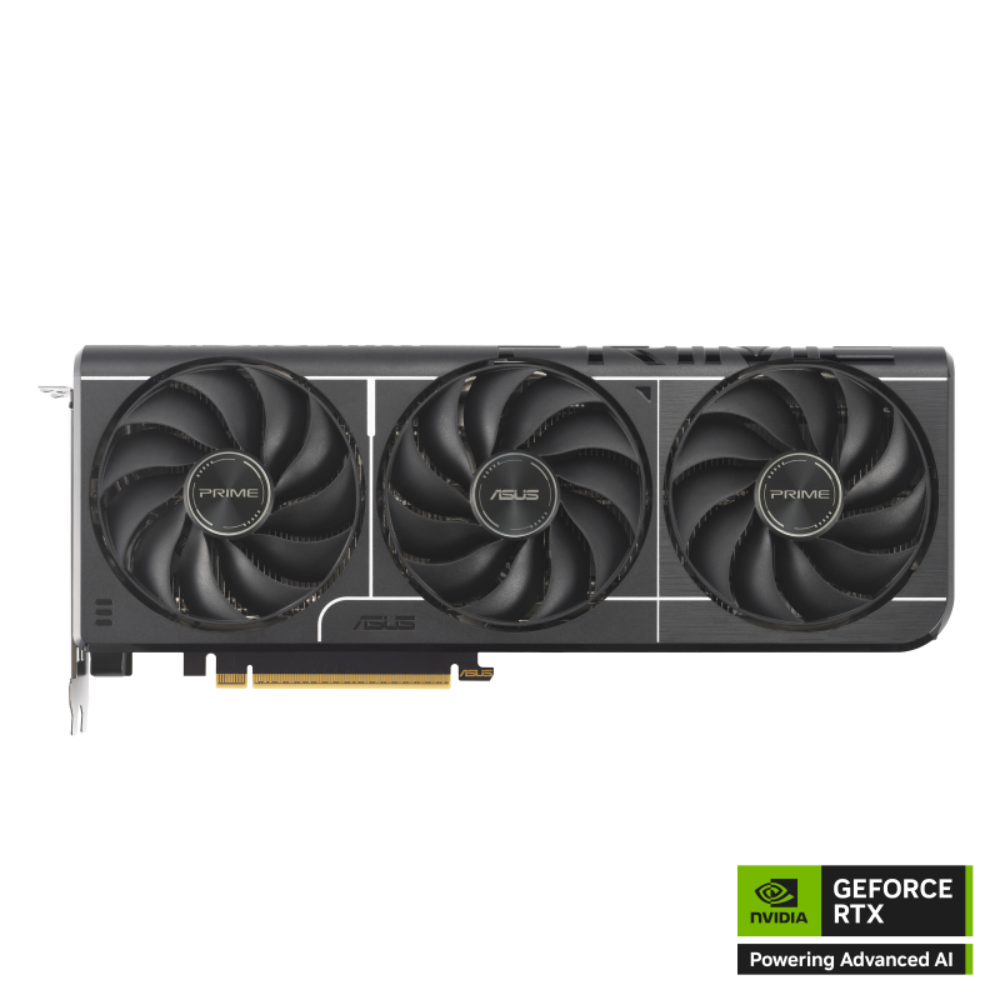

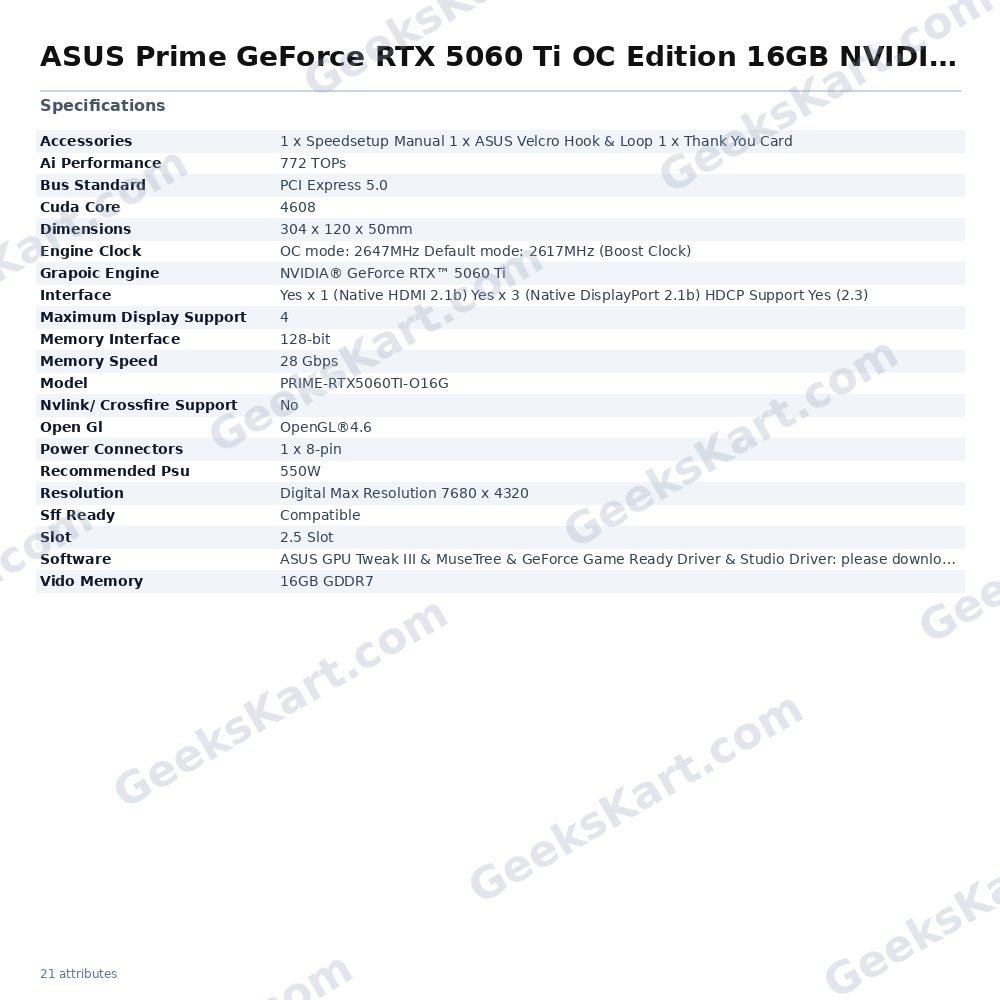

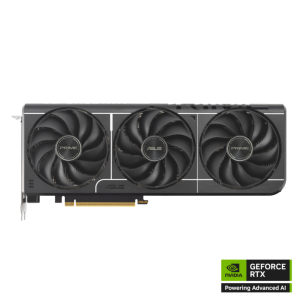

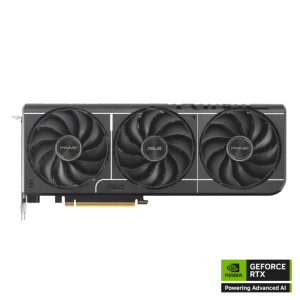

The ASUS Prime GeForce RTX 5060 Ti OC Edition brings NVIDIA’s Blackwell architecture to a compact, SFF-ready package without compromising on thermal performance or feature depth. Built around the GeForce RTX 5060 Ti GPU, it combines a thoughtfully engineered cooling solution with the raw compute power expected from the RTX 50 Series platform. At the heart of the card sit 4608 CUDA Cores running at a boost clock of 2647 MHz in OC mode (2617 MHz in Default mode), paired with 16 GB of GDDR7 memory operating at 28 Gbps across a 128-bit interface. The result is a card well-suited to high-refresh 1080p and capable 1440p gaming, as well as AI-accelerated creative workloads rated at 772 TOPs. ASUS designed the Prime line to fit a wide range of builds. The 2.5-slot footprint — measuring 304 x 120 x 50 mm — keeps the card compatible with small-form-factor chassis, while the triple Axial-Tech fan array delivers efficient airflow through longer blades and a barrier ring that increases downward air pressure. Dual-ball fan bearings underpin long-term reliability, offering up to twice the operational lifespan of sleeve-bearing alternatives. The 0dB Technology feature stops all three fans entirely when GPU temperature stays below 50 °C, restarting them above 55 °C for a balanced acoustic profile during lighter workloads. A vented backplate aids heat dissipation from the rear of the PCB, and a Dual BIOS switch lets users choose between Performance mode — which allows a more aggressive fan curve for maximum cooling — and Quiet mode, which softens the fan response while maintaining the same power target. On the software side, ASUS Auto-Extreme Technology uses a single-pass automated soldering process, reducing thermal stress on components and avoiding harsh chemical cleaning agents during production. The card ships with ASUS GPU Tweak III and MuseTree utilities for monitoring and overclocking, alongside support for GeForce Game Ready and NVIDIA Studio drivers. The RTX 5060 Ti platform supports fifth-generation Tensor Cores with FP4 precision and DLSS 4 Multi Frame Generation, fourth-generation RT Cores for ray tracing, and a ninth-generation NVENC encoder for hardware-accelerated video export in applications such as DaVinci Resolve and Adobe Premiere Pro. Verified Specifications: • GPU: NVIDIA GeForce RTX 5060 Ti • CUDA Cores: 4608 • Video Memory: 16 GB GDDR7 • Memory Speed: 28 Gbps • Memory Interface: 128-bit • Boost Clock (OC mode): 2647 MHz | Default mode: 2617 MHz • AI Performance: 772 TOPs • Bus Interface: PCI Express 5.0 • Display Outputs: 1× HDMI 2.1b, 3× DisplayPort 2.1b (max 4 displays) • Max Resolution: 7680 × 4320 • HDCP: 2.3 • Power Connector: 1× 8-pin • Recommended PSU: 550 W • Slot Width: 2.5-slot • Dimensions: 304 × 120 × 50 mm • OpenGL: 4.6 • Model No.: 90YV0MH2-M0AA00
