ASUS Prime Geforce RTX 5060 Ti OC Edition 8GB NVIDIA Graphic Card

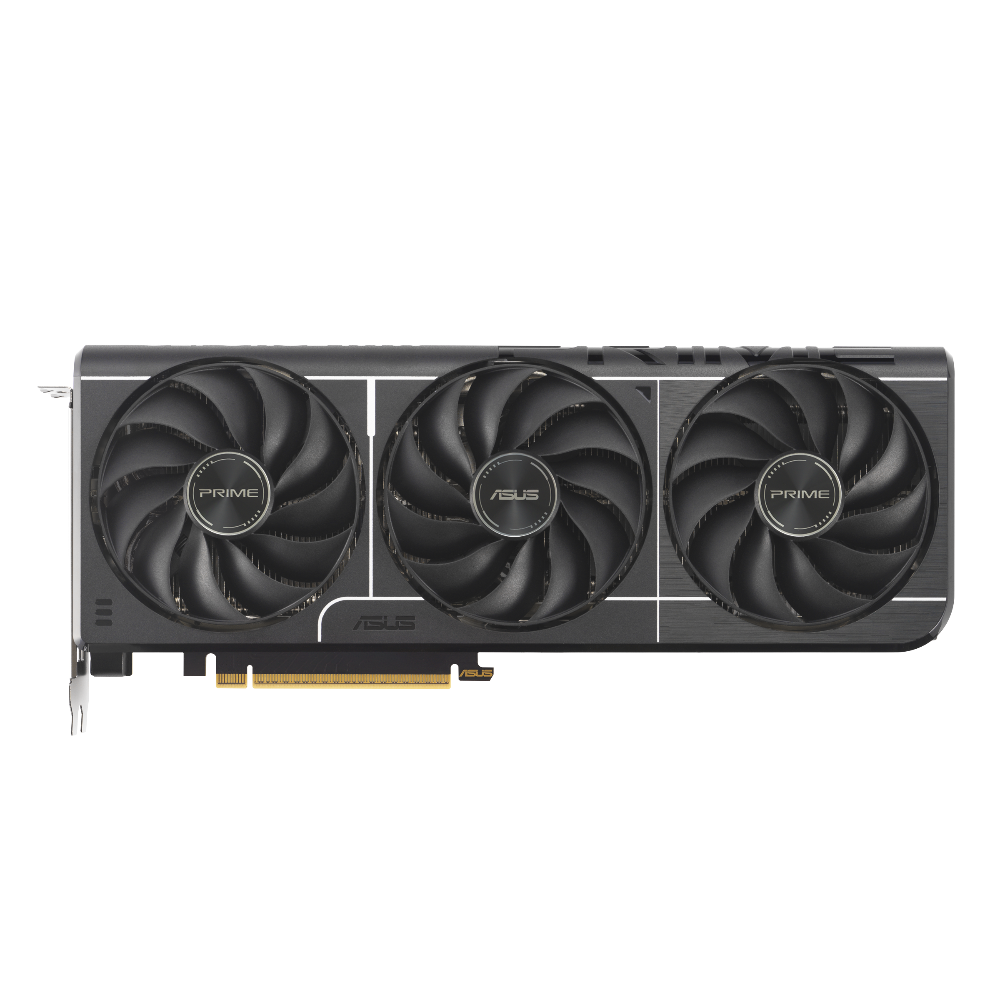

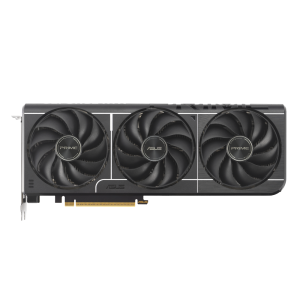

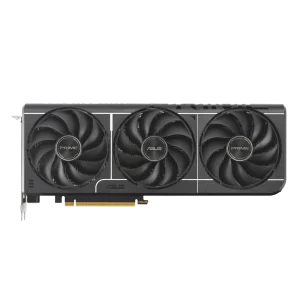

The ASUS Prime GeForce RTX 5060 Ti OC Edition (model PRIME-RTX5060TI-O8G, part number 90YV0MP0-M0AA00) is a mid-range to enthusiast-class discrete graphics card built on NVIDIA’s GeForce RTX 5060 Ti GPU. With 4,608 CUDA cores, Fifth-Generation Tensor Cores, and Fourth-Generation Ray Tracing Cores, it is designed to handle both high-framerate gaming and AI-accelerated creative workloads. The card carries 8 GB of GDDR7 memory running at 28 Gbps across a 128-bit interface, delivering the fast bandwidth needed for modern titles and content-creation applications. Its OC mode boost clock is rated at 2,647 MHz, while Default mode sits at 2,617 MHz. ASUS has engineered the Prime line for broad system compatibility. The 2.5-slot form factor and SFF-Ready designation mean it can fit in small-form-factor chassis that support this footprint, not just traditional mid-towers. The triple Axial-Tech fan array features a smaller hub design with longer blades and a barrier ring that channels increased downward air pressure toward the heatsink, lowering temperatures and reducing acoustic output. 0dB Technology lets all three fans stop completely when GPU temperatures stay below 50 °C during light workloads; they resume automatically above 55 °C. Dual-ball fan bearings are used throughout, offering a longer service life compared with sleeve-bearing alternatives. A vented backplate adds a supplementary exhaust path to further reduce thermal build-up during extended sessions. A dual-BIOS switch gives you immediate, hardware-level control: Performance mode runs a more aggressive fan curve for sustained peak thermals, while Quiet mode uses a gentler curve for reduced noise at moderate load levels without changing the power or frequency targets. ASUS Auto-Extreme Technology handles PCB assembly in a single automated soldering pass, minimising thermal stress on components and avoiding harsh chemical cleaning agents during manufacture. Connectivity covers up to four displays simultaneously via one native HDMI 2.1b port and three native DisplayPort 2.1b ports, with HDCP 2.3 support. Maximum digital resolution reaches 7,680 × 4,320 (8K). The card connects via PCI Express 5.0 and draws supplementary power through a single 8-pin connector; ASUS recommends a minimum 550 W system PSU. The board is managed through ASUS GPU Tweak III software alongside compatibility with NVIDIA GeForce Game Ready and Studio drivers. Verified Specifications: • GPU: NVIDIA GeForce RTX 5060 Ti • CUDA Cores: 4,608 • Video Memory: 8 GB GDDR7 • Memory Speed: 28 Gbps • Memory Interface: 128-bit • Boost Clock (OC mode): 2,647 MHz | (Default mode): 2,617 MHz • AI Performance: 772 TOPs • Bus Interface: PCI Express 5.0 • Display Outputs: 1× HDMI 2.1b, 3× DisplayPort 2.1b • Max Displays: 4 • Max Resolution: 7,680 × 4,320 • Slot Width: 2.5 • Dimensions: 304 × 120 × 50 mm • Power Connector: 1× 8-pin • Recommended PSU: 550 W • NVLink / CrossFire: Not supported • OpenGL: 4.6
