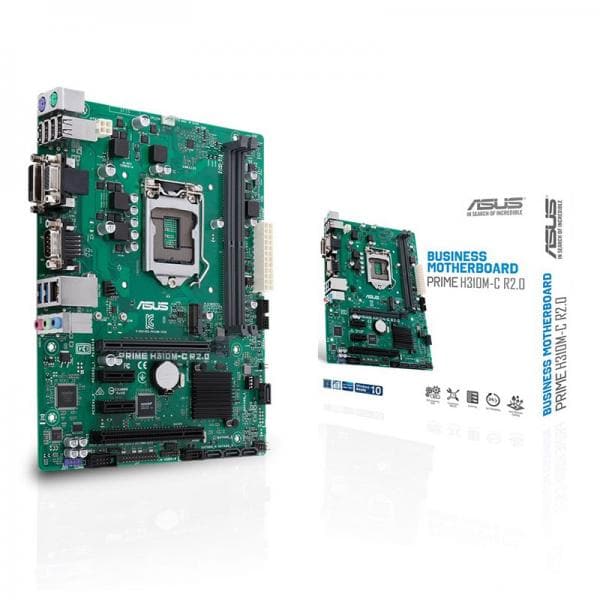

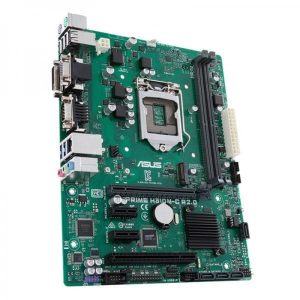

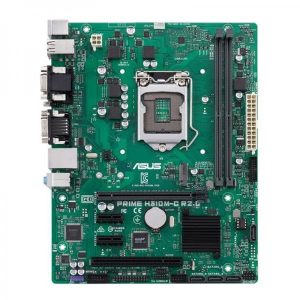

ASUS Prime H310M-C R2.0 DDR4 Intel Motherboard
MPN ASUS-PRIME-H310M-C-R2.0 · Brand ASUS · uATX Form Factor9.6 inch x 7.6 inch (24.4 cm x 19.3 cm)
The ASUS Prime H310M-C R2.0 is a commercial-grade uATX motherboard with Intel H310 chipset, support for 8th Gen Intel processors, up to 32 GB DDR4, M.2 storage, self-recovering BIOS, and moisture-resistant design for 24/7 business reliability
Inclusive of GST · GST invoice available
Overview
The ASUS Prime H310M-C R2.0 is a Micro-ATX motherboard designed specifically for commercial and business computing environments. Built on the Intel H310 chipset, it supports 8th Generation Intel Core i7, Core i5, Core i3, Pentium, and Celeron processors using Intel's 14 nm fabrication process. With two DDR4 DIMM slots supporting up to 32 GB of non-ECC, unbuffered memory at speeds of 2133, 2400, or 2666 MHz, it provides a stable and scalable memory foundation for office and enterprise workloads. Intel Extreme Memory Profile (XMP) is also supported. Storage flexibility is covered by a single M.2 Socket 3 (M-Key, type 2260/2280) that accepts both SATA and PCIe x2 devices, complemented by four SATA 6 Gb/s ports. Expansion options include one PCIe 3.0/2.0 x16 slot, two PCIe 2.0 x1 slots, and one legacy PCI slot — accommodating a wide range of add-in cards for business environments that still rely on older peripherals. Display output is handled through the integrated Intel HD Graphics processor via DVI-D and D-Sub (RGB) ports, each supporting resolutions up to 1920×1200 at 60 Hz, with simultaneous dual-display capability. Connectivity on the rear I/O panel includes two USB 3.1 Gen 1 ports, four USB 2.0 Type-A ports, PS/2 keyboard and mouse connectors, a Gigabit LAN port (Realtek RTL8111H), and three audio jacks backed by the Realtek ALC887 8-channel HD Audio CODEC. ASUS has equipped this board with several business-centric reliability features. The self-recovering BIOS automatically restores the firmware from a verified backup if an update fails, reducing downtime. An anti-moisture coating protects internal circuitry from humidity and corrosion. The board is tested for continuous operation at temperatures up to 45°C and humidity up to 80%. A dedicated LPC debug header with LCD display and an event log in the BIOS simplify IT troubleshooting and maintenance. TPM connector support (14-1 pin) enables hardware-based security for data protection and platform integrity. The BIOS is 128 Mb Flash ROM running UEFI AMI, compliant with SM BIOS 3.1 and ACPI 6.1, and is NIST SP 800-147 certified. Wake- LAN and PXE network boot are supported for remote management. Verified Specifications: - Form Factor: uATX, 9.6 in × 7.6 in (24.4 cm × 19.3 cm) - Chipset: Intel H310 - CPU Support: Intel 8th Gen Core i7/i5/i3, Pentium, Celeron (LGA 1151) - Memory: 2 × DIMM, max 32 GB, DDR4 2666/2400/2133 MHz, Non-ECC Unbuffered - Storage: 1 × M.2 (2260/2280, SATA & PCIe x2), 4 × SATA 6 Gb/s - Display: DVI-D + D-Sub, max 1920×1200 @ 60 Hz, dual-display - LAN: Realtek RTL8111H Gigabit - Audio: Realtek ALC887 8-Channel HD - USB: 2 × USB 3.1 Gen 1 (rear), 4 × USB 2.0 (rear), 2 × USB 3.1 Gen 1 header, 2 × USB 2.0 header - BIOS: 128 Mb Flash ROM, UEFI AMI, NIST SP 800-147 certified - Warranty: 3 Years

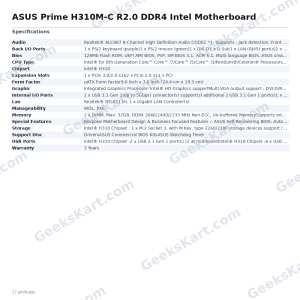

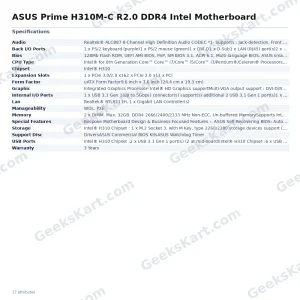

Datasheet
| Warranty | 3 Years |
|---|---|
| Chipset | Intel® H310 |
| CPU Type | |
| Lan | Realtek® RTL8111H, 1 x Gigabit LAN Controller(s) |
| Bios | 128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS smart recovering BIOS, ASUS Event log, ASUS Commercial Kit |
| Audio | Realtek® ALC887 8-Channel High Definition Audio CODEC *1- Supports : Jack-detection, Front Panel Jack-retasking |
| Memory | 2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered MemorySupports Intel® Extreme Memory Profile (XMP)* Hyper DIMM support is subject to the physical characteristics of individual CPUs.* The maximum memory frequency supported varies by processor.** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors |
| Graphic | Integrated Graphics Processor- Intel® HD Graphics supportMulti-VGA output support : DVI-D/RGB ports- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz- Supports RGB with max. resolution 1920 x 1200 @ 60 HzMaximum shared memory of 1024 MB (for iGPU exclusively)Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™Supports up to 2 displays simultaneously |
| Storage | Intel® H310 Chipset : 1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (both SATA & PCIE mode)4 x SATA 6Gb/s port(s) |
| USB Ports | Intel® H310 Chipset :2 x USB 3.1 Gen 1 port(s) (2 at mid-board)Intel® H310 Chipset :6 x USB 2.0 port(s) (4 at back panel, , Type-A, 2 at mid-board) |
| Support Disc | DriversASUS Commercial BIOS KitsASUS Watchdog Timer |
| Manageability | WOL, PXE |
| Back I/O Ports | 1 x PS/2 keyboard (purple)1 x PS/2 mouse (green)1 x DVI-D1 x D-Sub1 x LAN (RJ45) port(s)2 x USB 3.1 Gen 1 ,4 x USB 2.03 x Audio jack(s) |
| Expansion Slots | 1 x PCIe 3.0/2.0 x162 x PCIe 2.0 x11 x PCI |
| Special Features | Bespoke Motherboard Design & Business Focused Features :- ASUS Self Recovering BIOS: Automatically recover BIOS update once crash happen- ASUS Event Log: Record activities of system and provides information in BIOS- ASUS Commercial BIOS kit: Speed up BIOS update solutionby partial BIOS design- Anti-Moisture: Against moisture and corrosion — prolonging the life of your motherboard- 24/7 Reliability: Tested under temperature up to 45°C and humidity up to 80% to ensure handle diverse environmentEasy Assembly Design:- Fixed-position&Color-coded Connectors: Enable easy identification and cable-matching, speeding up the production line- Box Headers: USB headers are box style, enabling fast connector installation and preventing pin damageDigi VRM |
| Internal I/O Ports | 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)1 x M.2 Socket 3 with M key, type 2260/2280 storage devices support (SATA & PCIE x2 mode)1 x LPT header2 x COM port(s) connector(s)4 x SATA 6Gb/s connector(s)1 x CPU Fan connector(s) (1 x 4 -pin)1 x Chassis Fan connector(s) (1 x 4 -pin)1 x 24-pin EATX Power connector(s)1 x 4-pin ATX 12V Power connector(s)1 x Front panel audio connector(s) (AAFP)1 x System panel(s)1 x Chassis Intrusion connector(s)1 x Clear CMOS jumper(s)1 x 14-1 pin TPM connector1 x LPC Debug header1 x Speaker connector |
| Form Factor | uATX Form Factor9.6 inch x 7.6 inch (24.4 cm x 19.3 cm) |
