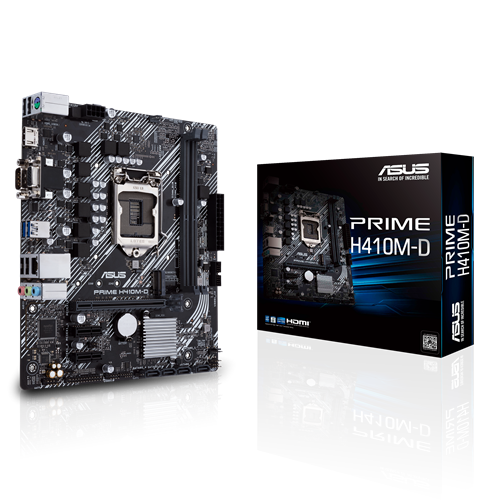

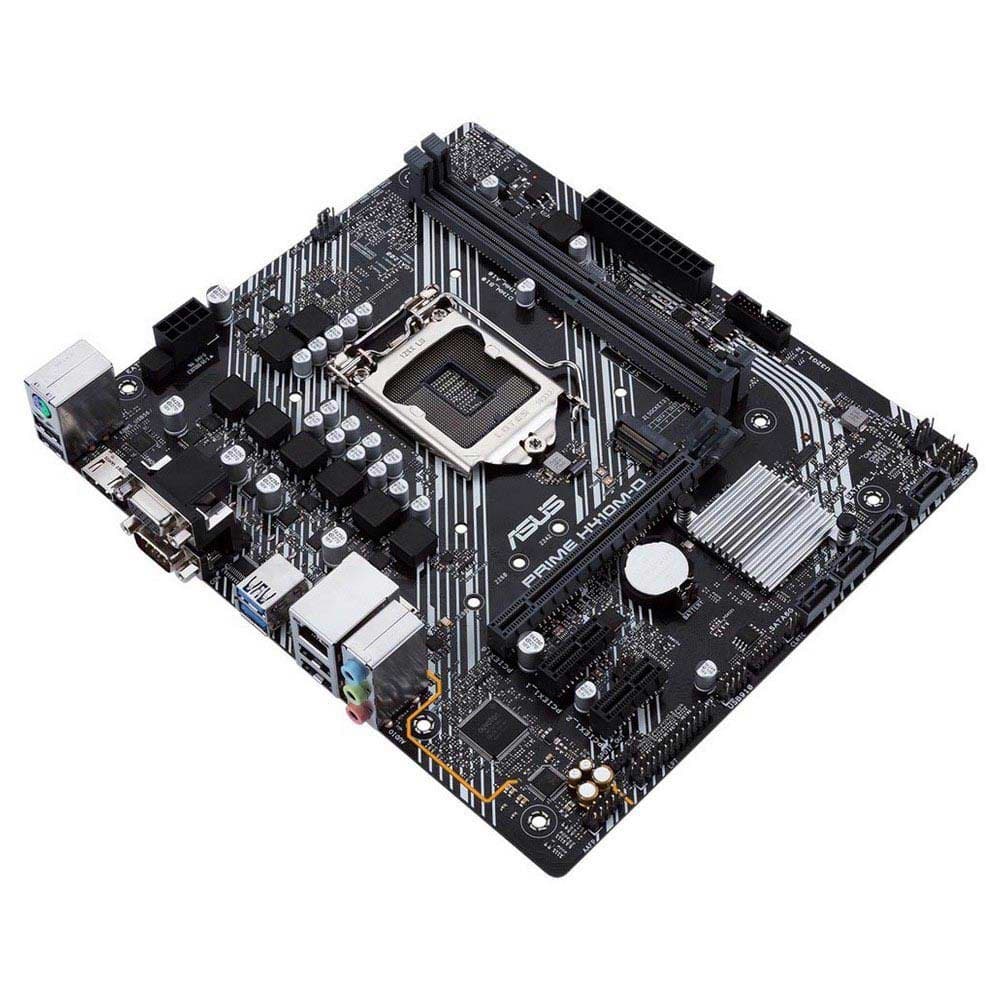

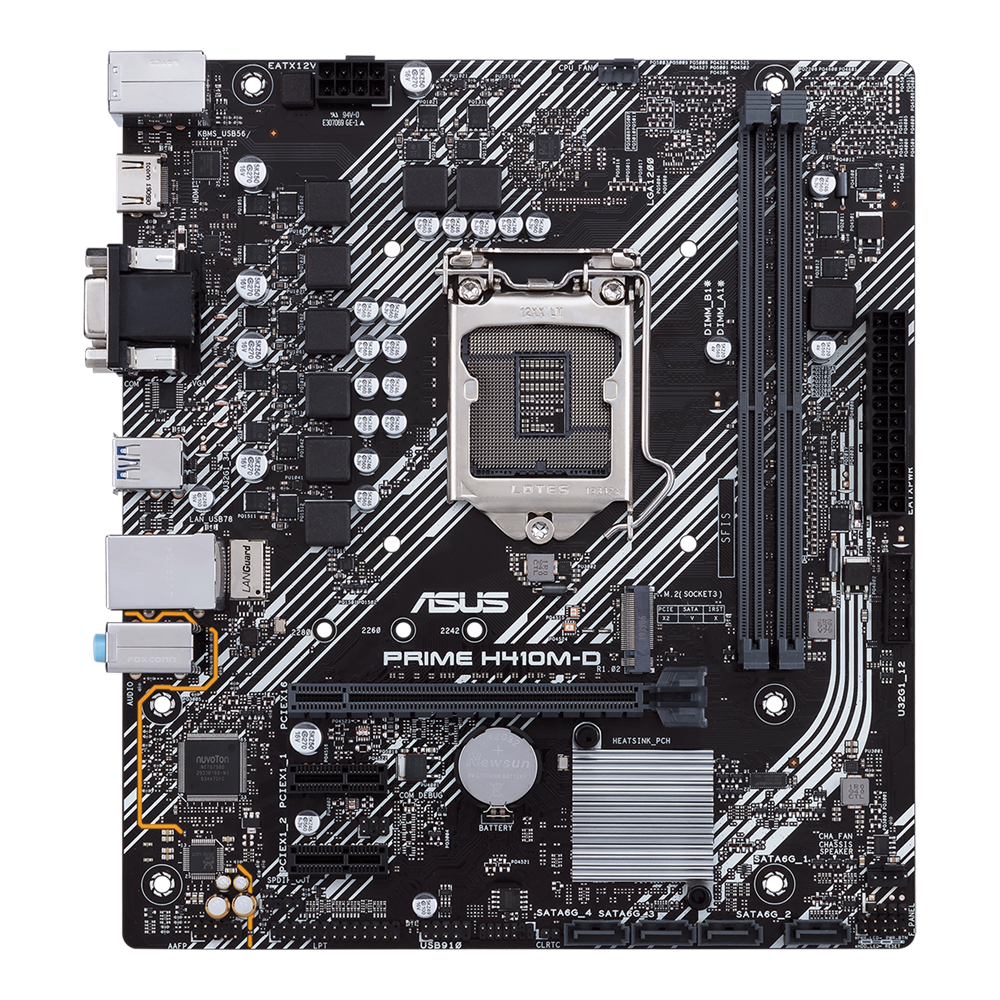

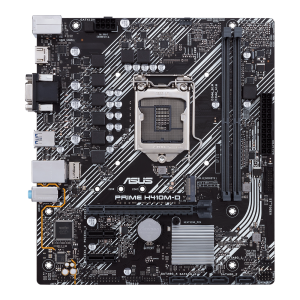

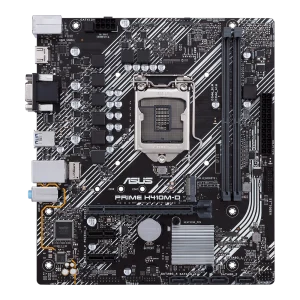

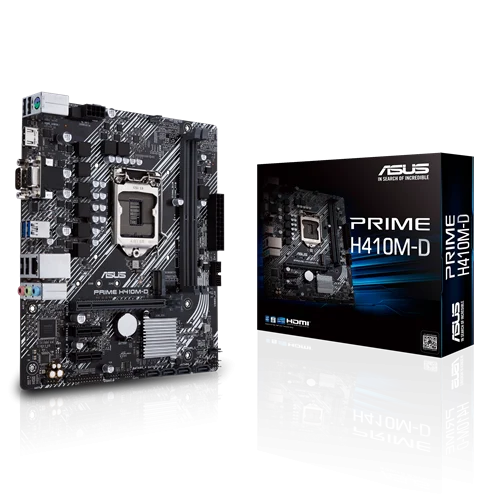

ASUS Prime H410M-D DDR4 Intel Motherboard

The ASUS Prime H410M-D is a Micro-ATX motherboard built on the Intel H410 chipset, designed to support 10th Generation Intel Core, Pentium Gold, and Celeron processors via the LGA 1200 (Socket 1200) interface. Its compact mATX footprint — 22.6 cm x 20.1 cm (8.9 x 7.9 inches) — makes it a practical choice for space-conscious desktop builds without sacrificing connectivity or reliability. For memory, the board provides two DIMM slots supporting up to 64 GB of DDR4 RAM across speeds ranging from 2133 MHz up to 2933 MHz (Non-ECC, Unbuffered) in a dual-channel configuration. It also supports Intel Extreme Memory Profile (XMP) and ASUS OptiMem technology for stable memory compatibility. Storage flexibility is covered by one M.2 Socket 3 (M Key, supporting 2242/2260/2280 SATA and PCIe 3.0 x2 devices) alongside four SATA 6 Gb/s ports. Note that using a SATA-mode device in the M.2 slot disables the SATA6G_2 port. Display output is handled by the integrated graphics processor via one D-Sub and one HDMI 1.4b port. Expansion is served by one PCIe 3.0 x16 slot (running at x16 mode) and two PCIe 3.0 x1 slots from the H410 chipset. Audio is powered by the Realtek ALC887 codec, delivering 7.1-channel High Definition Audio (requires HD audio front panel chassis) with up to 24-bit/192 kHz playback, audio shielding, dedicated audio PCB layers, and premium Japanese audio capacitors. Networking is handled by the Realtek RTL8111H Gigabit LAN controller with ASUS LANGuard protection. USB connectivity totals 10 ports — 4 USB 3.2 Gen 1 and 6 USB 2.0, split across rear and front panel headers. The board ships with ASUS 5X Protection III (including DIGI+ VRM, overvoltage protection, SafeSlot Core, and stainless-steel back I/O), Q-Design features (Q-DIMM, Q-Slot), and an aluminum heatsink thermal solution. BIOS is a 128 Mb Flash ROM UEFI AMI implementation with CrashFree BIOS 3, EZ Flash 3, and EZ Mode. The board carries a 3-year warranty and is officially supported on Windows 10 64-bit. Verified Specifications: - Chipset: Intel H410 - Socket: LGA 1200 (10th Gen Intel Core / Pentium Gold / Celeron) - Memory: 2 x DIMM, Max 64 GB, DDR4 2133–2933 MHz, Non-ECC Unbuffered, Dual Channel, XMP - Form Factor: mATX, 22.6 cm x 20.1 cm - Storage: 1 x M.2 (PCIe 3.0 x2 / SATA), 4 x SATA 6 Gb/s - Expansion: 1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1 - Display: 1 x D-Sub, 1 x HDMI 1.4b - USB: 4 x USB 3.2 Gen 1 + 6 x USB 2.0 (rear + front headers) - Audio: Realtek ALC887, 7.1-ch HD Audio, 24-bit/192 kHz - LAN: Realtek RTL8111H Gigabit - BIOS: 128 Mb Flash ROM, UEFI AMI - OS Support: Windows 10 64-bit - Warranty: 3 Years
