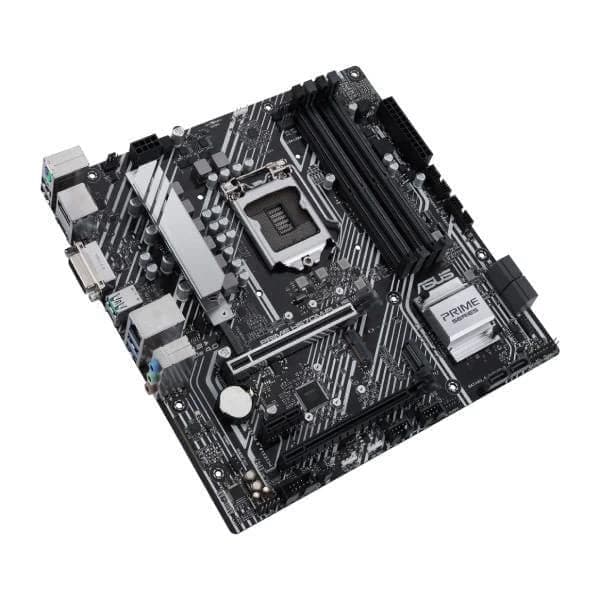

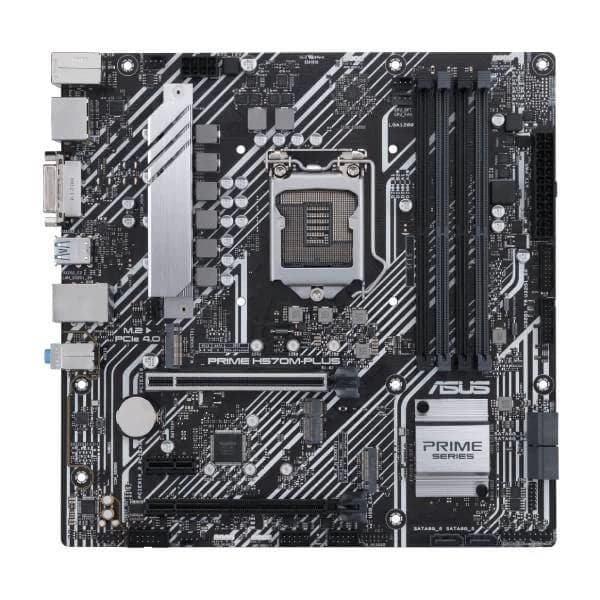

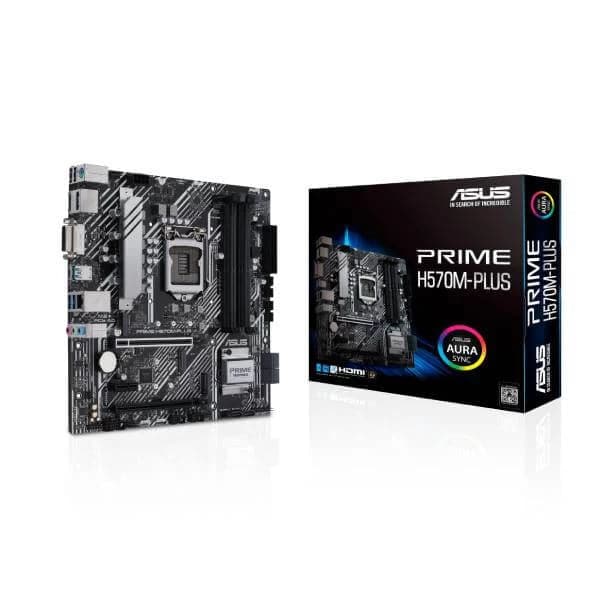

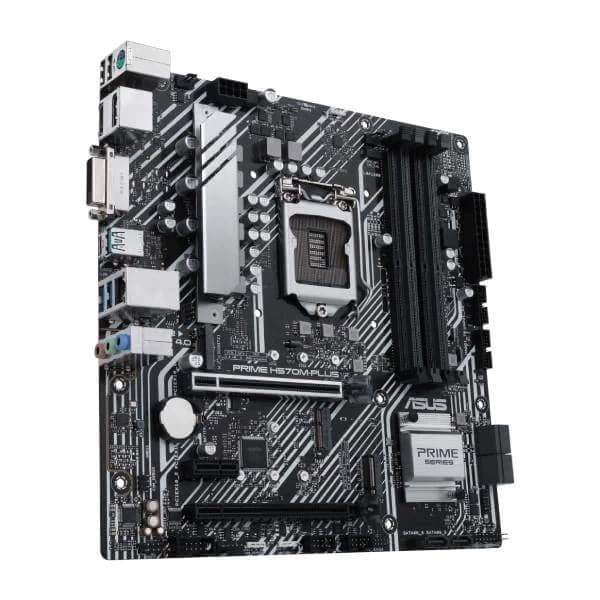

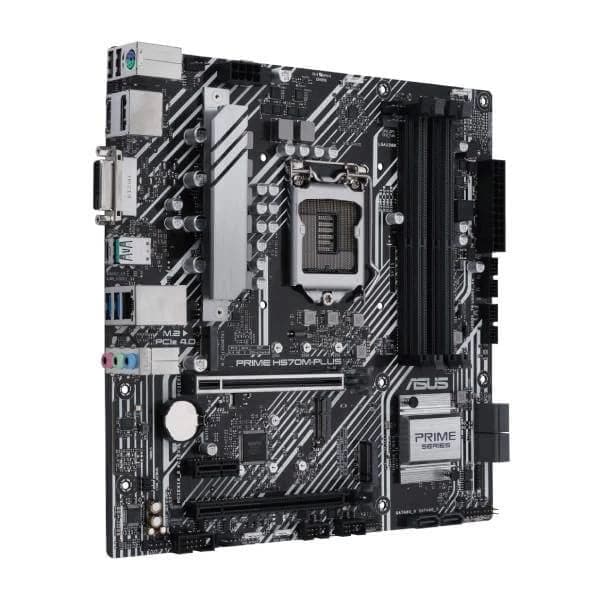

Feature of ASUS Prime H570M Plus DDR4
- Intel® LGA 1200 socket: Ready for 11th and 10th gen Intel® Core™ processors
- Enhanced power solution: 8 power stages, alloy chokes and durable capacitors for stable power delivery
- Comprehensive cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability
- Ultrafast connectivity: PCIe® 4.0, Dual M.2, Intel® 1 Gb Ethernet, USB 3.2 Gen 2 Type-C® and Thunderbolt™ 4 header support
Overview
ASUS Prime H570M Plus DDR4 series motherboards are expertly engineered to unleash the full potential of 10th and 11th Generation Intel® Core™ processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H570M-PLUS provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
Tune It Your Way
Comprehensive controls form the foundation of the ASUS Prime series. The Prime H570 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity.
Cool to the Core
Prime H570 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
Build on a Solid Foundation
Prime H570 series is built to handle the additional cores and increased bandwidth of 11th Generation Intel® Core™ processors. ASUS H570 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
Two M.2 slots (up to 64 Gbps)
Prime H570M-PLUS offers a total of two M.2 slots, with one slot supporting data-transfer speeds of up to 64 Gbps via PCI Express® 4.0, enabling quicker boot-up and app load times with OS or application drives.
* Actual transmission speeds will be lower than the theoretical maximum speed.
** The M.2_1 supports PCIe 4.0, and the M.2_2 supports PCIe 3.0.
PCIe® 4.0 Slot
ASUS H570 motherboards are designed specifically for 11th Generation Intel® Core™ CPUs and offer PCIe® 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.
Specifications of ASUS Prime H570M Plus DDR4
| Brand | ASUS |
| Manufacturer | Asus |
| Model | 90MB16W0-M0EAY0 |
| Model Name | PRIME H570-PLUS |
| Model Year | 2021 |
| Product Dimensions | 24.4 x 4 x 24.4 cm; 940 Grams |
| Batteries | 1 A batteries required. |
| Item model number | 90MB16W0-M0EAY0 |
| Memory Storage Capacity | 128 GB |
| Memory Slots Available | 4 |
| Maximum Memory Supported | 128 GB |
| Ram Memory Technology | DDR4 |
| Computer Memory Type | DDR4 SDRAM |
| Operating System | Windows |
| Processor Socket | LGA 1200 |
| Compatible Processor Types | Intel Celeron, 10th Generation Intel Core, Intel Pentium Gold |
| Graphics Card Interface | PCI-Express x16 |
| Special Features | Thunderbolt 4, Aura Sync |
| Chipset Type | Intel H570 |
| Number Of Items | 1 |
| Batteries Included | No |
| Batteries Required | No |
| Total Usb Ports | 10 |
| Includes Rechargable Battery | No |
| Manufacturer | Asus |
| Country of Origin | China |
| Item Weight | 940 g |
