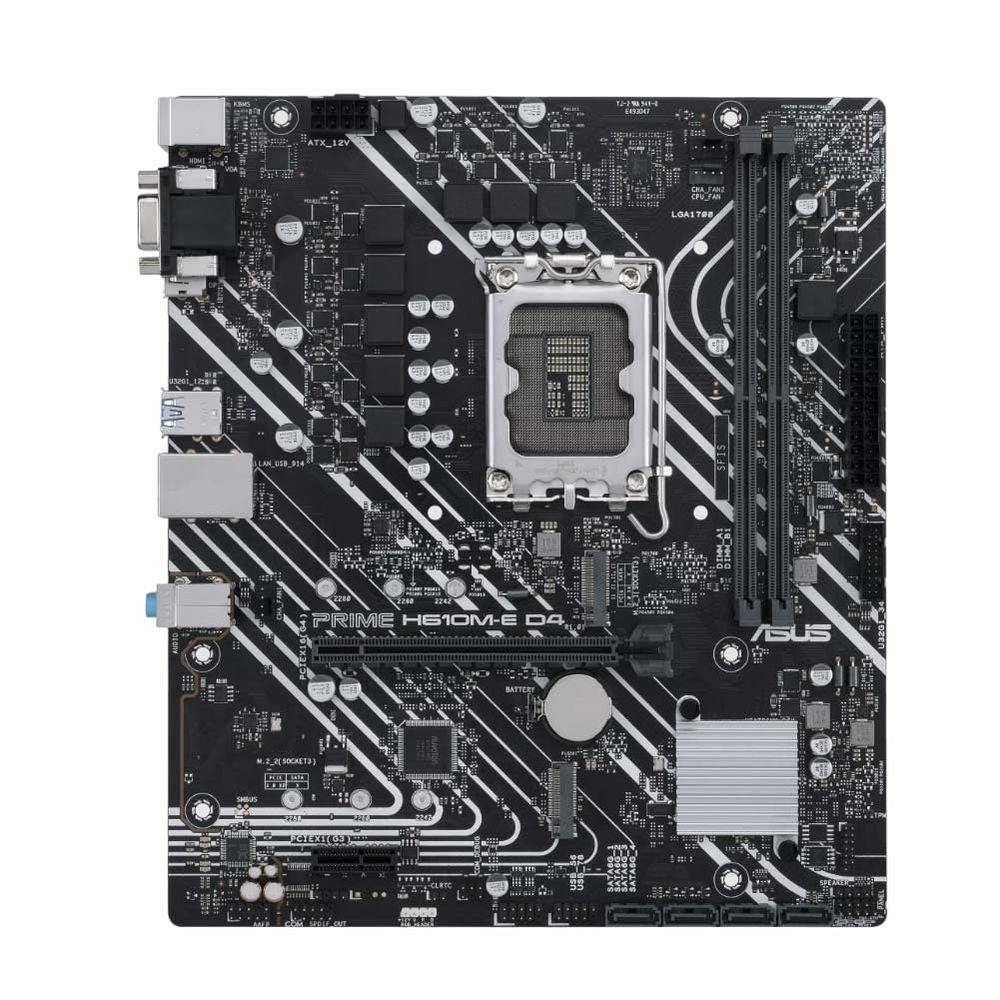

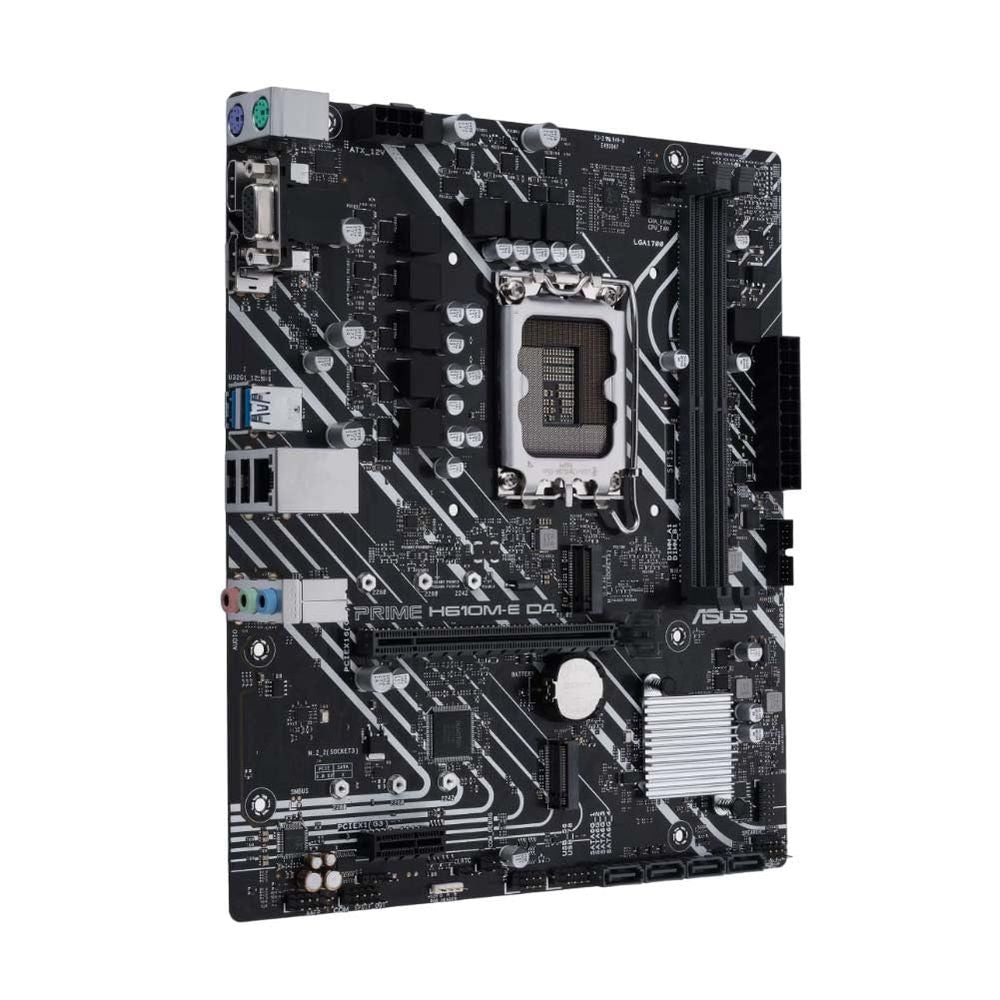

ASUS PRIME H610M-E D4-CSM DDR4 Intel Motherboard

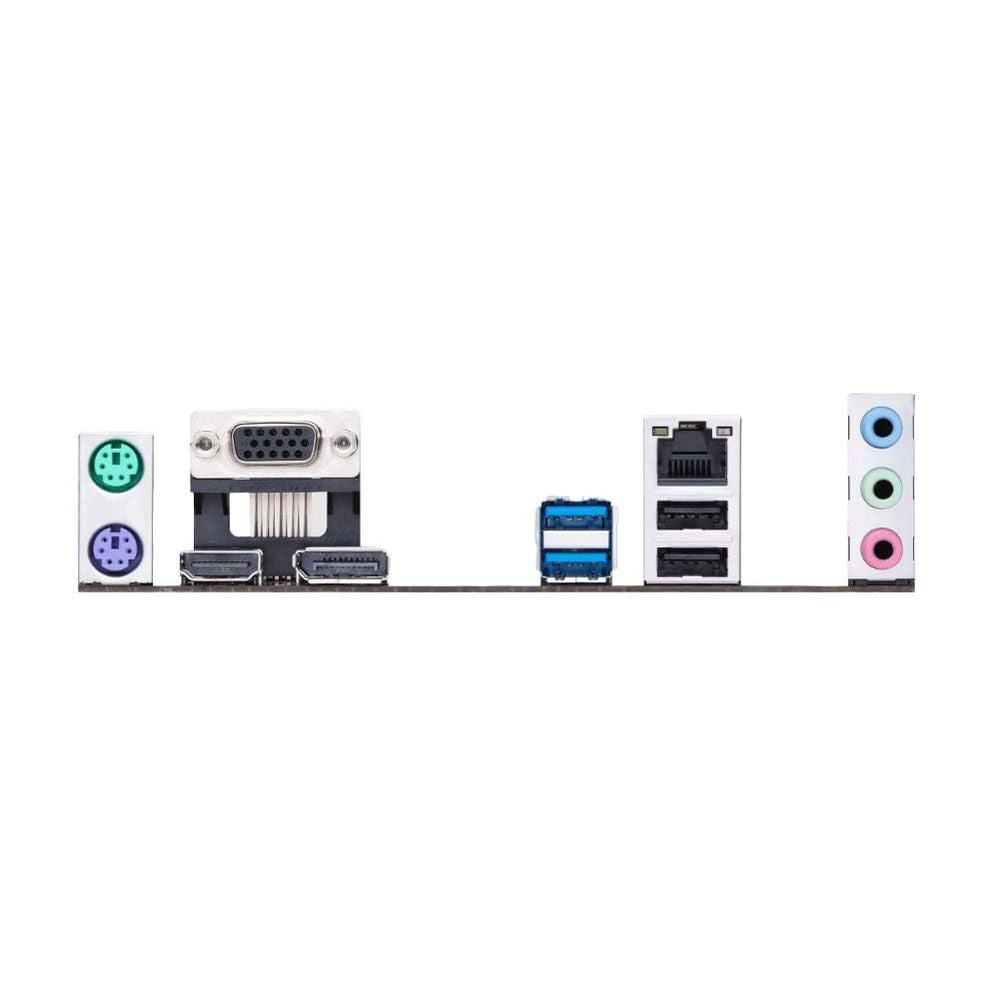

The ASUS PRIME H610M-E D4-CSM is a Micro-ATX motherboard built on the Intel H610 chipset, designed to support 12th Generation Intel Core, Pentium Gold, and Celeron processors as well as 13th Generation Intel Core processors via the LGA1700 socket. It brings together a dependable feature set suited to home office users, small form-factor builders, and commercial system integrators who need a stable, manageable platform without unnecessary complexity. The board accommodates up to 64 GB of DDR4 memory across two DIMM slots in a dual-channel configuration, with support for speeds ranging from DDR4 2133 up to DDR4 3200 (Non-ECC, Unbuffered). For storage, it provides two M.2 Key-M slots — M.2_1 running PCIe 3.0 x4 and M.2_2 running PCIe 3.0 x2 — alongside four SATA 6 Gb/s ports, giving builders plenty of flexibility for NVMe SSDs and traditional drives simultaneously. Expansion is handled by one PCIe 4.0 x16 slot for the primary graphics card (when using 12th or 13th Gen Intel processors) and one PCIe 3.0 x1 slot sourced from the H610 chipset. Display output options on the rear panel include D-Sub (VGA), HDMI, and DisplayPort, enabling multi-monitor setups using integrated graphics. Rear-panel connectivity extends to two USB 3.2 Gen 1 Type-A ports and two USB 2.0 Type-A ports, plus legacy PS/2 ports for keyboard and mouse. Audio is delivered by a Realtek High Definition Audio CODEC supporting 7.1 surround sound, with audio shielding and separate PCB layers for left and right channels to reduce crosstalk and interference. A single S/PDIF optical output and three 3.5 mm audio jacks complete the audio rear panel. Networking is provided by Realtek Gigabit Ethernet. The ASUS Fan Xpert 2+ software and UEFI BIOS allow flexible fan speed management across multiple headers with multi-temperature-source mapping. The Digi+ VRM delivers precise digital voltage control for CPU stability. The CSM (Compatibility Support Module) designation means this board retains legacy BIOS boot support, making it suitable for managed commercial deployments. Key Verified Specifications: - Chipset: Intel H610 - Socket: LGA1700 - Supported CPUs: 12th & 13th Gen Intel Core, Pentium Gold, Celeron - Memory: 2 x DIMM, DDR4 2133–3200, Non-ECC Unbuffered, Max 64 GB, Dual Channel - Storage: 2 x M.2 (PCIe 3.0 x4 / PCIe 3.0 x2), 4 x SATA 6 Gb/s - Expansion: 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1 - Display Out: D-Sub, HDMI, DisplayPort - USB (rear): 2 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A - Audio: Realtek 7.1 HD Audio, 3 x audio jacks, S/PDIF out - LAN: Realtek 1 Gb Ethernet - Form Factor: mATX (244 mm x 211 mm) - Power: 24-pin ATX + 8-pin +12V
