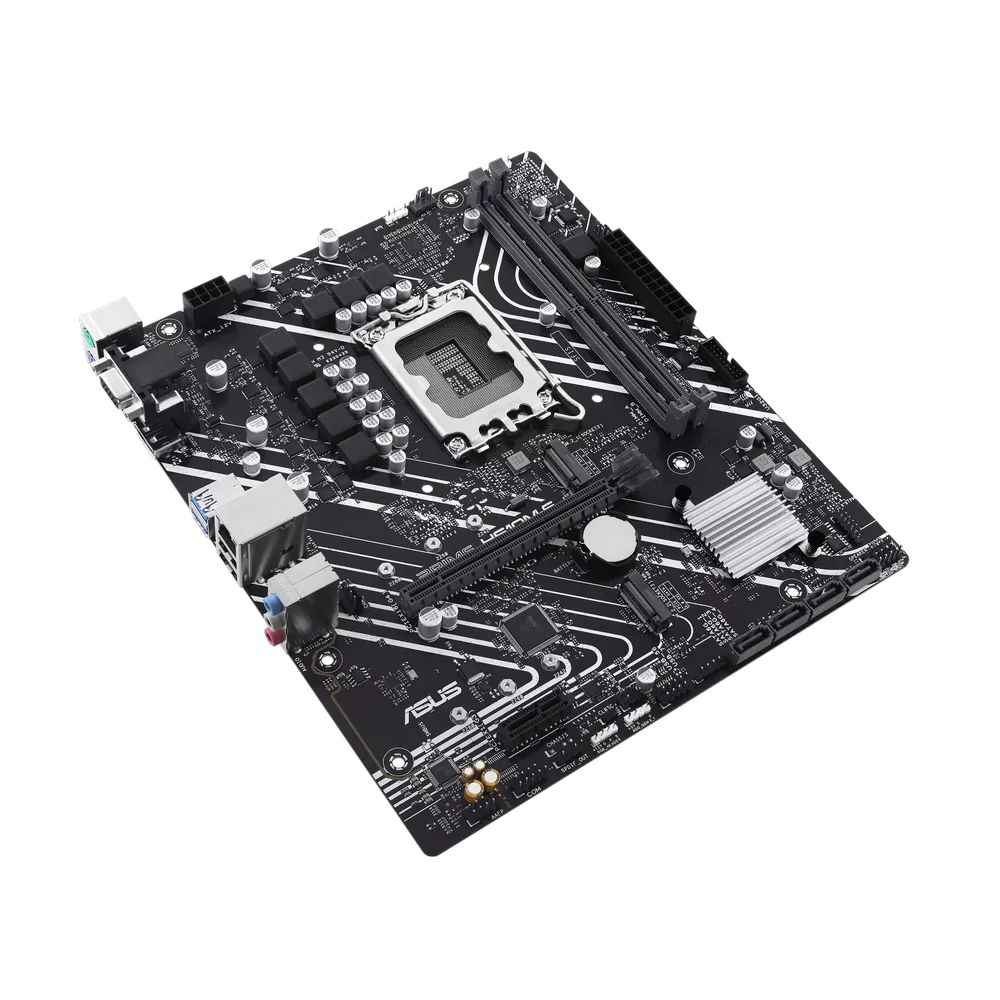

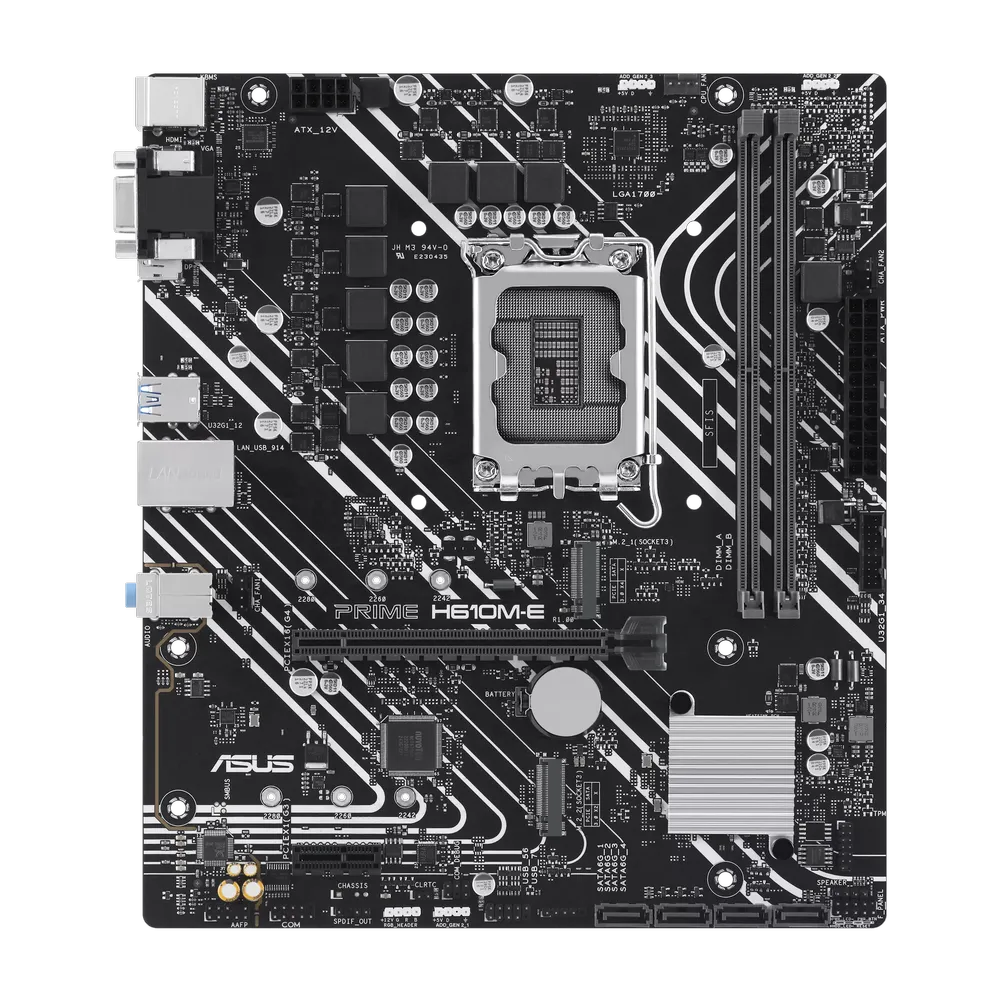

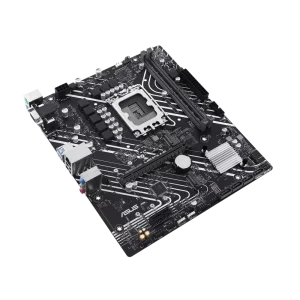

ASUS Prime H610M-E DDR5 Intel Motherboard
MPN ASUS-PRIME-H610M-E-DDR5 · Brand ASUS · mATX
The ASUS Prime H610M-E DDR5 is an Intel H610 mATX motherboard for LGA1700 processors (12th–14th Gen) featuring DDR5 memory support up to 96 GB, dual M.2 slots, PCIe 4.0, triple display outputs, and Aura Sync RGB
Inclusive of GST · GST invoice available
Overview
The ASUS Prime H610M-E DDR5 is a Micro-ATX motherboard built on the Intel H610 chipset and compatible with Intel LGA1700 socket processors spanning the 12th, 13th, and 14th generation Core lineup, as well as Pentium Gold and Celeron processors. It is an accessible yet feature-rich platform that balances everyday productivity with thoughtful expandability for builders who want reliable performance without overbuying. Memory support extends to two DDR5 DIMM slots with a maximum capacity of 96 GB, running at speeds of DDR5-4800 up to DDR5-5600 in Non-ECC unbuffered configuration with dual-channel architecture. Intel XMP profiles are supported for straightforward memory tuning via a single BIOS toggle. Storage flexibility is delivered through two M.2 Key-M slots (accommodating 2242, 2260, and 2280 form factors) alongside four SATA 6 Gb/s ports. The primary M.2 slot operates at PCIe 3.0 x4 bandwidth, while the secondary slot runs at PCIe 3.0 x2. The expansion slot layout includes one PCIe 4.0 x16 slot for discrete graphics and one PCIe 3.0 x1 slot for add-in cards. Display outputs on the rear I/O cover three interfaces — DisplayPort 1.4 (up to 4K@60Hz), HDMI 2.1 (up to 4K@60Hz), and a legacy VGA port — making it well-suited for multi-monitor office setups using integrated graphics. Connectivity is rounded out by Realtek 1 Gb Ethernet, two USB 3.2 Gen 1 (5Gbps) Type-A ports, two USB 2.0 Type-A ports, three audio jacks, PS/2 keyboard and mouse ports, and legacy COM header support. Audio quality is handled by a Realtek HD codec with 7.1 surround sound, audio shielding, premium capacitors, and dedicated PCB layers supporting up to 24-bit/192 kHz playback. ASUS 5X Protection III safeguards cover overvoltage protection, LANGuard, SafeSlot Core, and stainless-steel back I/O. Thermal management is assisted by an aluminum PCH heatsink and the Fan Xpert 2+ software for precise fan curve control. Aura Sync RGB ecosystem integration is provided through one Aura RGB header and three Addressable Gen 2 headers, enabling synchronized lighting across compatible peripherals and components. The UEFI AMI BIOS (128 Mb Flash ROM) features an EZ Mode for beginners and an Advanced Mode for experienced builders, along with ASUS CrashFree BIOS 3 and EZ Flash 3 for safe firmware updates. Verified Specifications: - Form Factor: mATX, 24.4 cm x 21.1 cm (9.6" x 8.3") - Socket: Intel LGA1700 - Chipset: Intel H610 - CPU Support: Intel Core 12th / 13th / 14th Gen, Pentium Gold, Celeron - Memory: 2x DDR5 DIMM, max 96 GB, DDR5-4800 to DDR5-5600, Non-ECC Unbuffered, Dual Channel, XMP - Storage: 2x M.2 Key-M (PCIe 3.0 x4 + PCIe 3.0 x2), 4x SATA 6 Gb/s - Expansion: 1x PCIe 4.0 x16, 1x PCIe 3.0 x1 - Display: 1x DisplayPort 1.4 (4K@60Hz), 1x HDMI 2.1 (4K@60Hz), 1x VGA - Ethernet: Realtek 1 Gb - USB Rear: 2x USB 3.2 Gen 1 Type-A, 2x USB 2.0 Type-A - Audio: Realtek 7.1 HD, 24-bit/192 kHz - BIOS: 128 Mb Flash ROM, UEFI AMI - OS Support: Windows 11 64-bit, Windows 10 64-bit - Warranty: 3 years
Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | Intel H610 Chipset |
| CPU Type | |
| USB | Rear USB (Total 4 ports)2 x USB 3.2 Gen 1 ports (2 x Type-A)2 x USB 2.0 ports (2 x Type-A)Front USB (Total 5 ports)1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 3 USB 2.0 ports |
| Bios | 128 Mb Flash ROM, UEFI AMI BIOS |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODECSupports: Jack-detection, Multi-streaming, Front Panel Jack-retaskingSupports up to 24-Bit/192 kHz playbackAudio FeaturesAudio ShieldingPremium audio capacitorsDedicated audio PCB layers |
| Model | PRIME H610M-E |
| Memory | 2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered MemoryDual Channel Memory ArchitectureSupports Intel Extreme Memory Profile (XMP)Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to http://www.asus.com for the Memory QVL (Qualified Vendors Lists) |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s portsIntel Core Processors (14th & 13th & 12th Gen)Intel H610 ChipsetM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 1Gb Ethernet |
| Graphics | 1 x DisplayPort1 x VGA port1 x HDMI portGraphics specifications may vary between CPU types.Supports max. 4K@60Hz as specified in DisplayPort 1.4.Supports 4K@60Hz as specified in HDMI2.1 |
| Accessories | Cables2 x SATA 6Gb/s cablesMiscellaneous1 x I/O Shield1 x M.2 SSD screw packageDocumentation1 x User guide |
| Manageability | WOL by PME, PXE |
| Expansion Slots | Intel Core Processors (14th & 13th & 12th Gen)1 x PCIe 4.0 x16 slotIntel H610 Chipset1 x PCIe 3.0 x1 slot |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Special Features | ASUS 5X PROTECTION IIIDIGI+ VRMLANGuardOvervoltage ProtectionSafeSlot CoreStainless-Steel Back I/OASUS Q-DesignQ-DIMMQ-SlotQ-LED CoreASUS Thermal SolutionAluminum heatsink designAura SyncAura RGB headerAddressable Gen 2 RGB headers |
| Software Features | ASUS Exclusive SoftwareArmoury CrateAura CreatorAura SyncFan Xpert 2+Two-Way AI Noise CancellationAI Suite 3Performance And Power Saving UtilityEPUDIGI+ VRMASUS CPU-ZNorton 360 Deluxe (60 Days Free Trial)WinRARUEFI BIOSASUS EZ DIYASUS CrashFree BIOS 3ASUS EZ Flash 3ASUS UEFI BIOS EZ Mode |
| Back Panel I/O Ports | 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x DisplayPort1 x VGA port1 x HDMITM port1 x Realtek 1Gb Ethernet port3 x Audio jacks1 x PS/2 Keyboard (purple) port1 x PS/2 Mouse (green) port |
| Internal I/O Connectors | Fan and Cooling related1 x 4-pin CPU Fan header2 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connectorStorage related2 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 3 USB 2.0 portsMiscellaneous1 x Aura RGB header3 x Addressable Gen 2 headers1 x Clear CMOS header1 x Front Panel Audio header (AAFP)1 x COM Port header1 x S/PDIF Out header1 x Speaker header1 x SPI TPM header (14-1pin)1 x 10-1 pin System Panel header |
