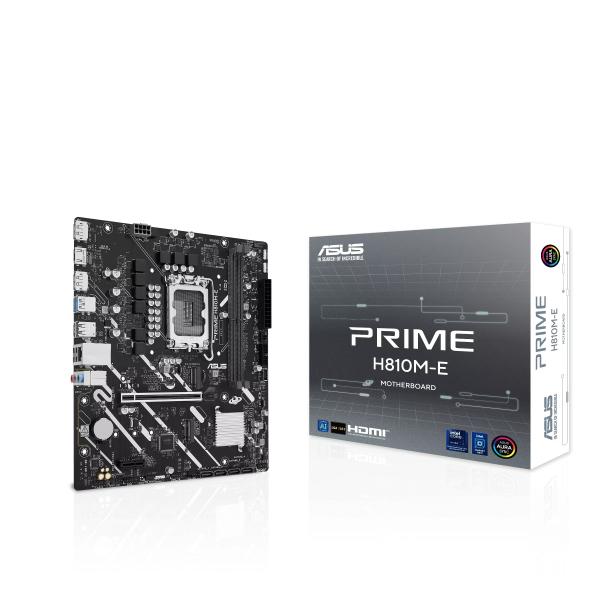

Asus Prime H810M-E DDR5 M-ATX Motherboard
MPN PRIME-H810M-E · Brand Asus · mATX
Asus Prime H810M-E DDR5 M-ATX Motherboard. Highlights: up to 6400
Inclusive of GST · GST invoice available
Overview
The Asus Prime H810M-E DDR5 M-ATX Motherboard is a motherboard aimed at buyers looking for a dependable everyday option from a recognised source. Typical use cases include mid-range desktop builds, upgrade-friendly setups. Key verified specifications: Socket: LGA1851; Chipset: H810; Form Factor: Micro-ATX; Memory Type: DDR5; Memory Speed: up to 6400. Buyer-relevant takeaways: the listed capacity/speed gives buyers a concrete reference for compatibility. Best suited to mid-range desktop builds buyers; less ideal where requirements go materially beyond the listed specs. Listed at ₹8599 subject to availability — confirm at checkout
Datasheet
| Motherboard Series | Asus Prime |
|---|---|
| Memory Speed | up to 6400 |
| Platform | INTEL |

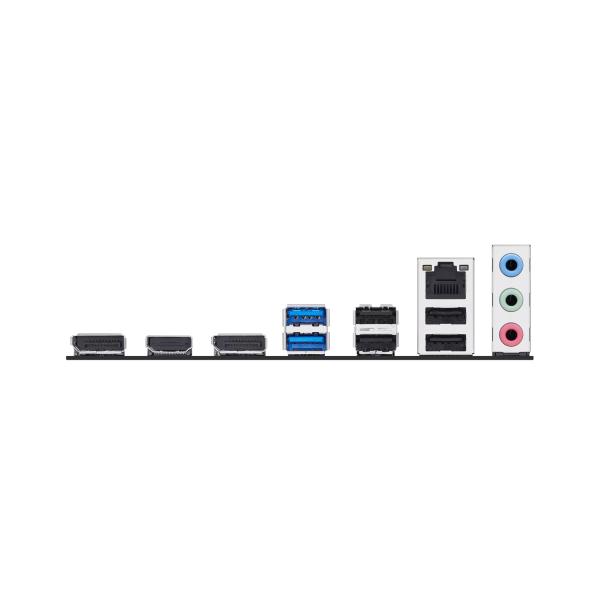

| Back Panel I/O Ports | 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 2 x DisplayPort 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks |
| Memory Feature | Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile II (AEMP II) |
| Expansion Slots | Intel Core Ultra Processors (Series 2) 1 x PCIe 4.0 x16 slot Intel H810 Chipset 1 x PCIe 4.0 x1 slot |
| Channel Supported | Dual Channel |
| Internal I/O Connector | Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front Panel System header |
| Graphics Port | 2 x DisplayPort,1 x HDMI |
| Memory Type | DDR5 |
| Warranty | 3 Years |
| Form Factor | mATX |
| Chipset | H810 |
| Socket | LGA1851 |
| CPU Type | Core Ultra |
| Max Memory | 128 GB |
