ASUS PRIME Radeon RX 9070 XT OC 16GB AMD Graphic Card

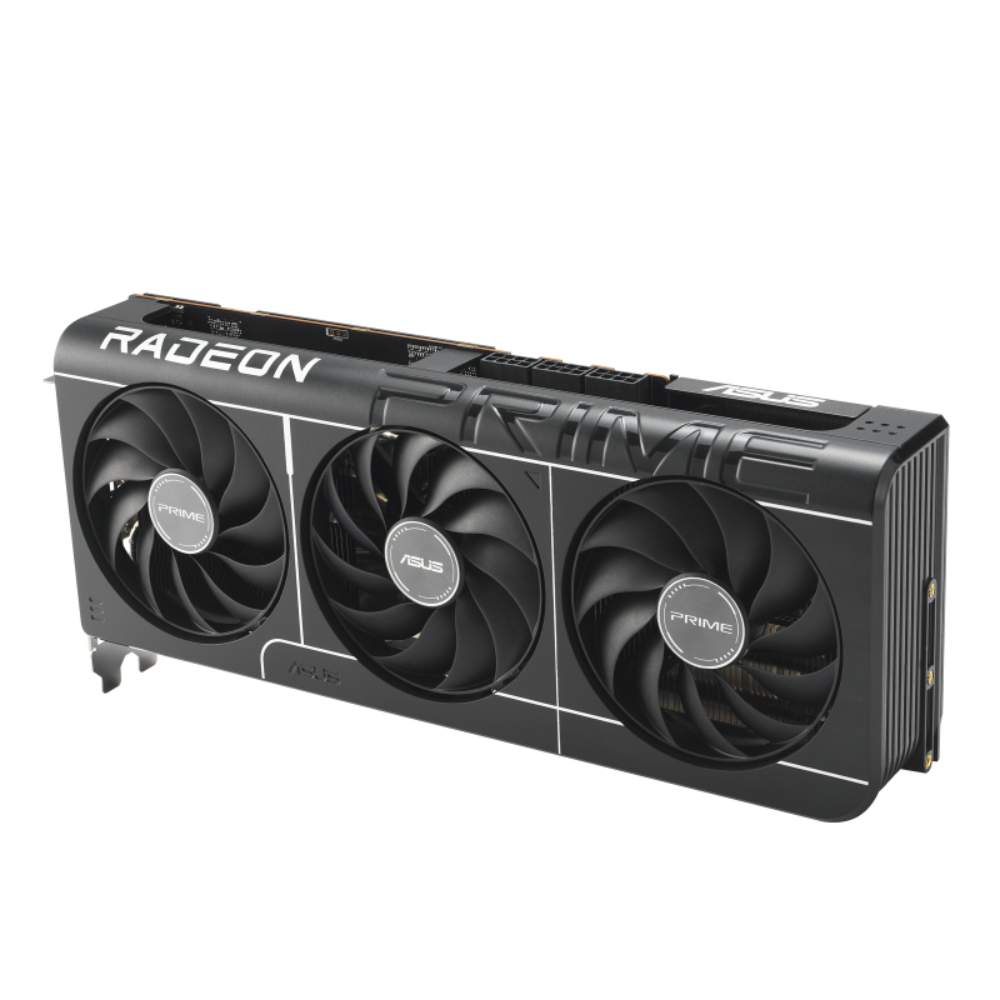

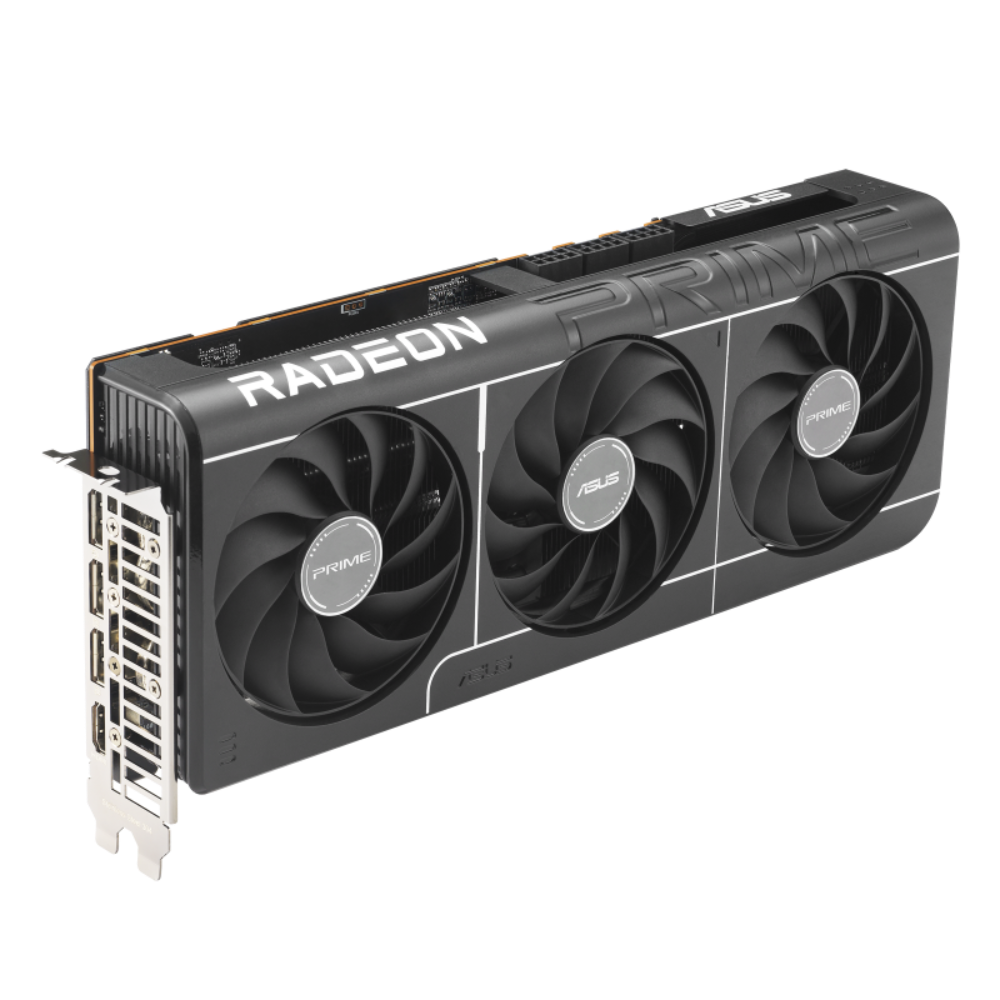

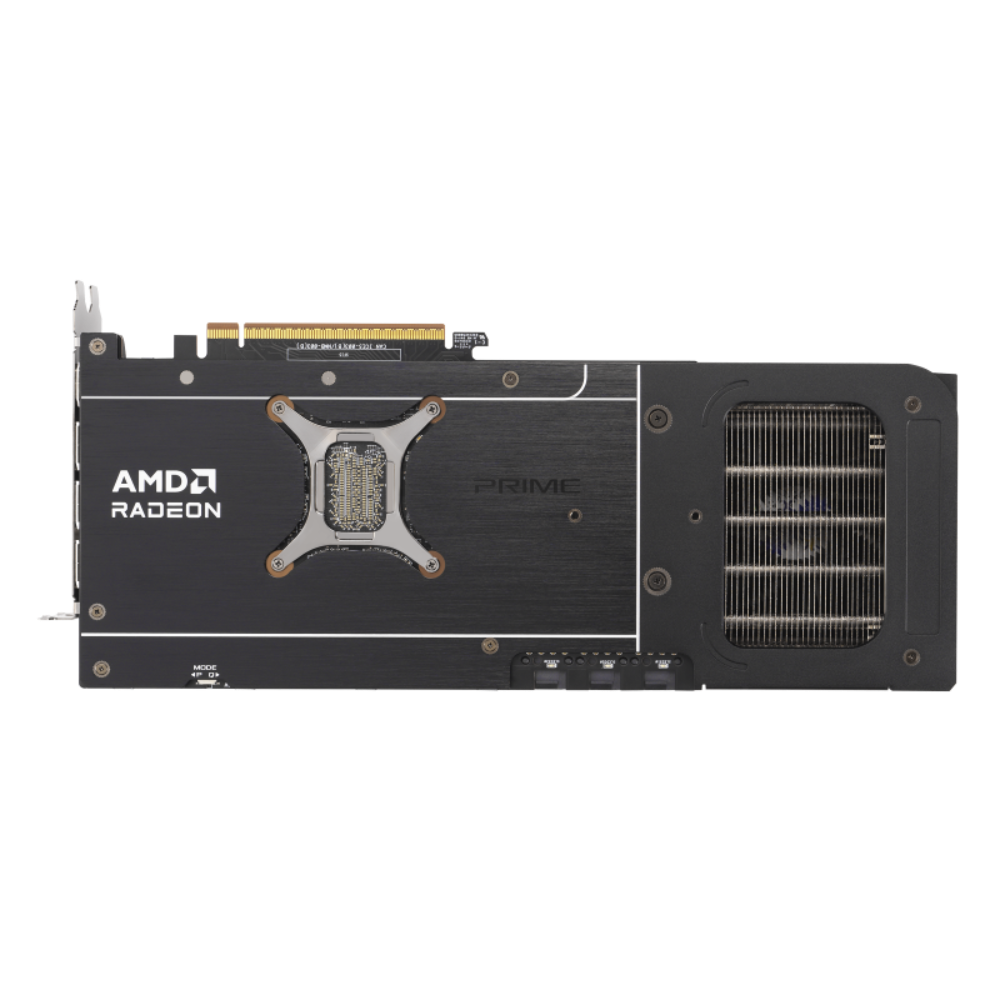

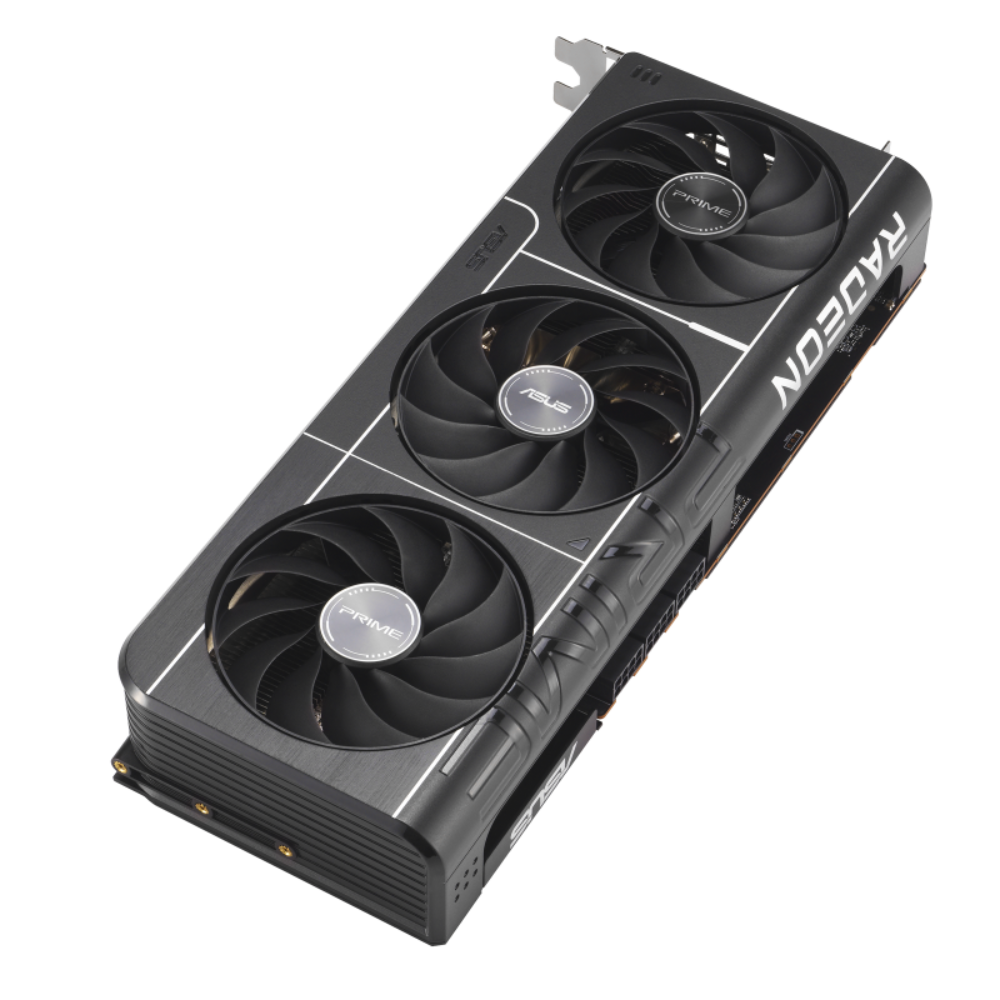

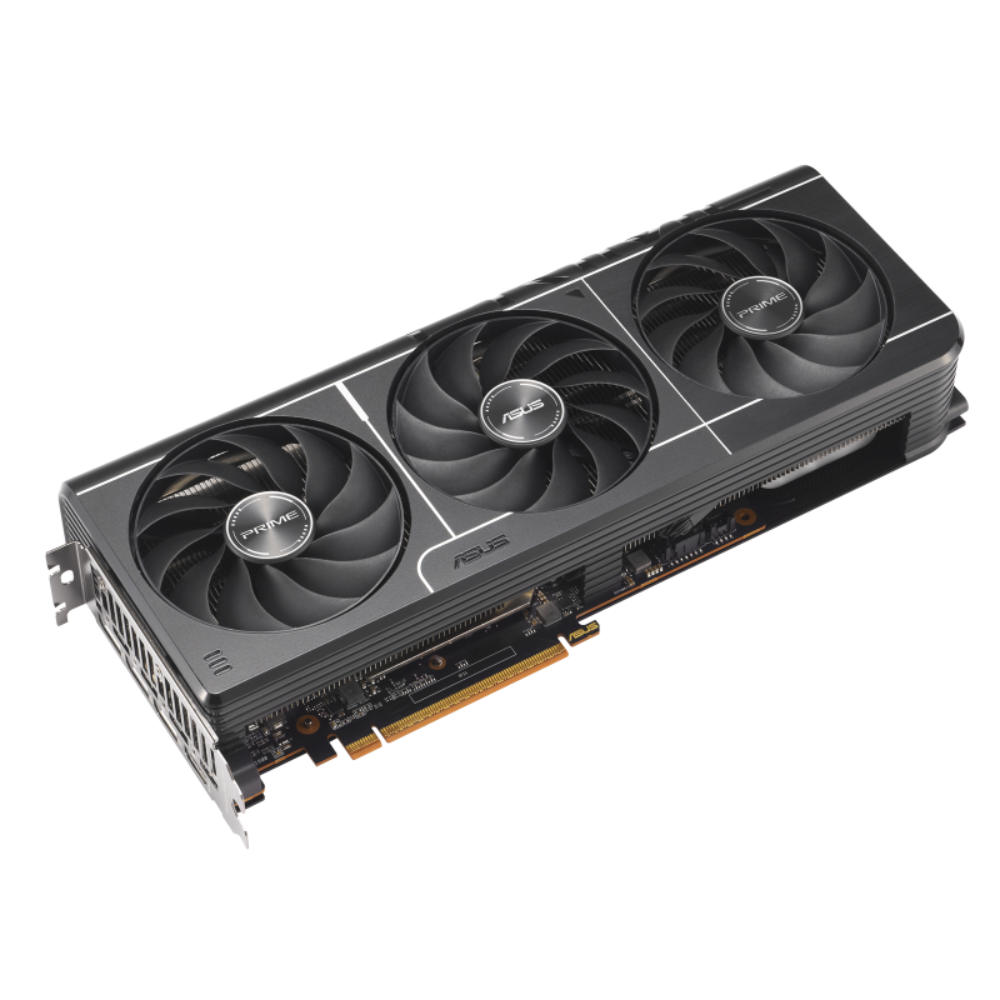

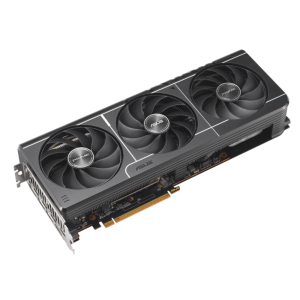

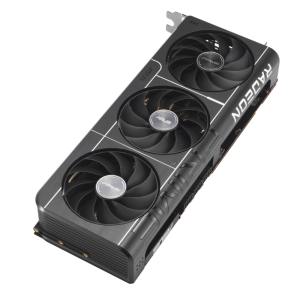

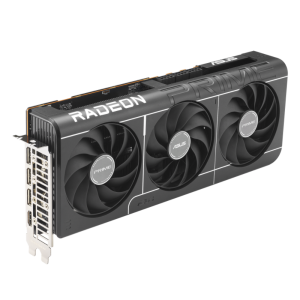

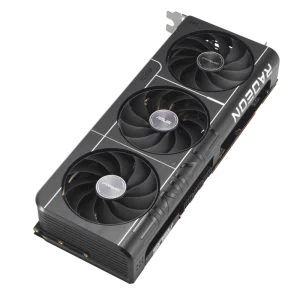

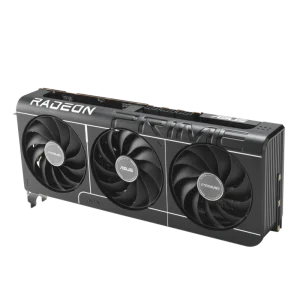

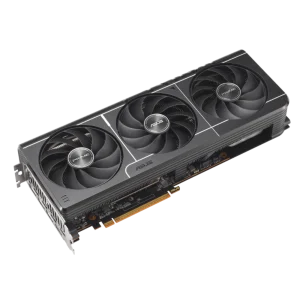

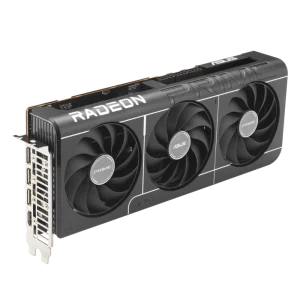

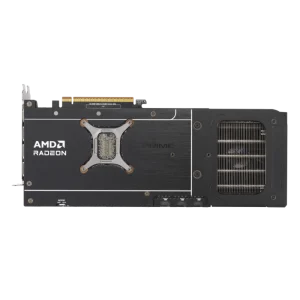

The ASUS PRIME Radeon RX 9070 XT OC (model PRIME-RX9070XT-O16G) is a factory-overclocked graphics card built around the AMD Radeon RX 9070 XT GPU. It sits in a compact 2.5-slot form factor measuring 312 × 130 × 50 mm, making it a practical fit for a wide range of mid-tower and full-tower chassis without sacrificing thermal headroom. The card ships with 16 GB of GDDR6 memory running at 20 Gbps across a 256-bit interface, giving it substantial bandwidth for high-resolution gaming and creative workloads. With 4096 stream processors and boost clocks reaching up to 3030 MHz in OC mode (via GPU Tweak III) or 3010 MHz in Default mode, the card is tuned to push consistent frame rates at 1440p and 4K resolutions. The maximum digital output resolution is 7680 × 4320. Cooling is handled by three Axial-Tech fans, each equipped with a smaller hub to allow longer blades and a barrier ring that increases downward airflow. At GPU temperatures below 55 °C all three fans stop completely thanks to ASUS 0 dB Technology, and they resume automatically when the GPU climbs above 60 °C. A phase-change GPU thermal pad improves contact between the die and heatsink, while large backplate vents assist in exhausting residual heat. Fan longevity is addressed through dual-ball bearings, which ASUS notes can outlast sleeve-bearing alternatives. A physical Dual BIOS switch lets you choose between Performance mode, which runs a more aggressive fan curve to keep temperatures low, and Quiet mode, which uses a gentler curve for reduced acoustic output at moderate loads. The card is manufactured using ASUS Auto-Extreme Technology, an automated single-pass soldering process designed to reduce thermal stress on components during production. Connectivity is provided by one native HDMI 2.1b port and three native DisplayPort 2.1a ports, supporting up to four simultaneous displays with HDCP 2.3. The card connects to the host system via PCI Express 5.0 and requires three 8-pin power connectors. ASUS recommends a minimum 750 W power supply based on a fully overclocked GPU and CPU configuration. Multi-GPU (NVLink/CrossFire) is not supported. Software support is provided by ASUS GPU Tweak III. Verified Specifications: • GPU: AMD Radeon RX 9070 XT • Stream Processors: 4096 • Memory: 16 GB GDDR6, 20 Gbps, 256-bit interface • Boost Clock (OC mode): up to 3030 MHz | Game Clock: up to 2480 MHz • Boost Clock (Default mode): up to 3010 MHz | Game Clock: up to 2460 MHz • Bus Interface: PCI Express 5.0 • Display Outputs: 1 × HDMI 2.1b, 3 × DisplayPort 2.1a (max 4 displays) • Max Resolution: 7680 × 4320 • Dimensions: 312 × 130 × 50 mm (2.5-slot) • Power Connectors: 3 × 8-pin • Recommended PSU: 750 W • OpenGL: 4.6
