ASUS Prime X870-P-CSM ATX Motherboard
MPN PRIME-X870-P-CSM · Brand ASUS · ATX
The ASUS Prime X870-P-CSM is an ATX motherboard for AMD AM5 processors (Ryzen 9000/8000/7000), featuring DDR5 memory up to 8000+ MHz, a PCIe 5.0 x16 primary slot, four M.2 slots, dual USB4 40Gbps Type-C ports, and Realtek 2.5Gb Ethernet
Inclusive of GST · GST invoice available
Overview
The ASUS Prime X870-P-CSM is a full-size ATX motherboard built on the AMD X870 chipset with an AM5 socket, designed to support AMD Ryzen 9000, Ryzen 8000, and Ryzen 7000 series desktop processors. Its power delivery system comprises 14+2+1 power stages, each rated at 80 amperes, integrating high-side and low-side MOSFETs with gate drivers in a single package to provide stable current to high-core-count CPUs under sustained workloads. Memory support is exclusively DDR5 in a dual-channel configuration, with compatibility up to 8000+ MHz via EXPO overclocking profiles. ASUS Enhanced Memory Profile (AEMP) offers additional optimised profiles for modules that do not carry native EXPO certification. Maximum addressable RAM is 256 GB across the board's DIMM slots. Non-ECC unbuffered DDR5 modules with Die ECC are also supported. Storage expansion is served by four M.2 Key-M slots: one operating at PCIe 5.0 x4 for transfers up to 128 Gbps, two at PCIe 4.0 x4 for up to 64 Gbps each, and one at PCIe 3.0. Two SATA 6Gb/s ports round out onboard storage connectivity. Note that PCIEX16(G4)_1 and PCIEX16(G4)_2 share bandwidth with M.2_3 and are disabled when M.2_3 is populated. The back panel provides two USB4 (40 Gbps) Type-C ports — each capable of driving up to two external 4K displays — one USB 10Gbps Type-A port, three USB 5Gbps Type-A ports, four USB 2.0 Type-A ports, one HDMI output, a Realtek 2.5Gb Ethernet jack, three analogue audio jacks, and a dedicated BIOS FlashBack button for CPU-less firmware updates. Thermal management is assisted by onboard VRM heatsinks and a comprehensive header array: one CPU fan, one CPU OPT fan, one AIO pump, and four chassis fan headers — all manageable through ASUS Fan Xpert 4 software or directly in UEFI. AI Cooling II dynamically adjusts fan curves based on real-time CPU temperature data. Builder-convenience features include PCIe Slot Q-Release (lever-actuated card removal), M.2 Q-Latch (screwless SSD retention), Q-LED Core POST diagnostic LEDs, a pre-mounted I/O shield, and a reinforced SafeSlot PCIe 5.0 x16 primary slot. Three Addressable Gen 2 (ARGB) headers allow RGB lighting integration. A COM port header and SPI TPM header (14-1 pin) serve commercial and managed deployment scenarios, consistent with the -CSM (Commercial and Small and Medium Business) designation. Key Verified Specifications: • Socket: AM5 | Chipset: AMD X870 | Form Factor: ATX • CPU Compatibility: Ryzen 9000, 8000, 7000 series • Memory: DDR5, Dual Channel, up to 256 GB, up to 8000+ MHz (EXPO/AEMP) • Primary PCIe Slot: PCIe 5.0 x16 (Ryzen 9000/7000) or PCIe 4.0 x16 (Ryzen 8000) • M.2 Slots: 4 × (1× PCIe 5.0 128Gbps, 2× PCIe 4.0 64Gbps, 1× PCIe 3.0) • SATA: 2 × 6Gb/s • Rear USB: 2× USB4 40Gbps Type-C, 1× USB 10Gbps Type-A, 3× USB 5Gbps Type-A, 4× USB 2.0 Type-A • Network: Realtek 2.5Gb Ethernet • Display Output: 1× HDMI (rear panel) • ARGB Headers: 3× Addressable Gen 2 • Warranty: 3 Years

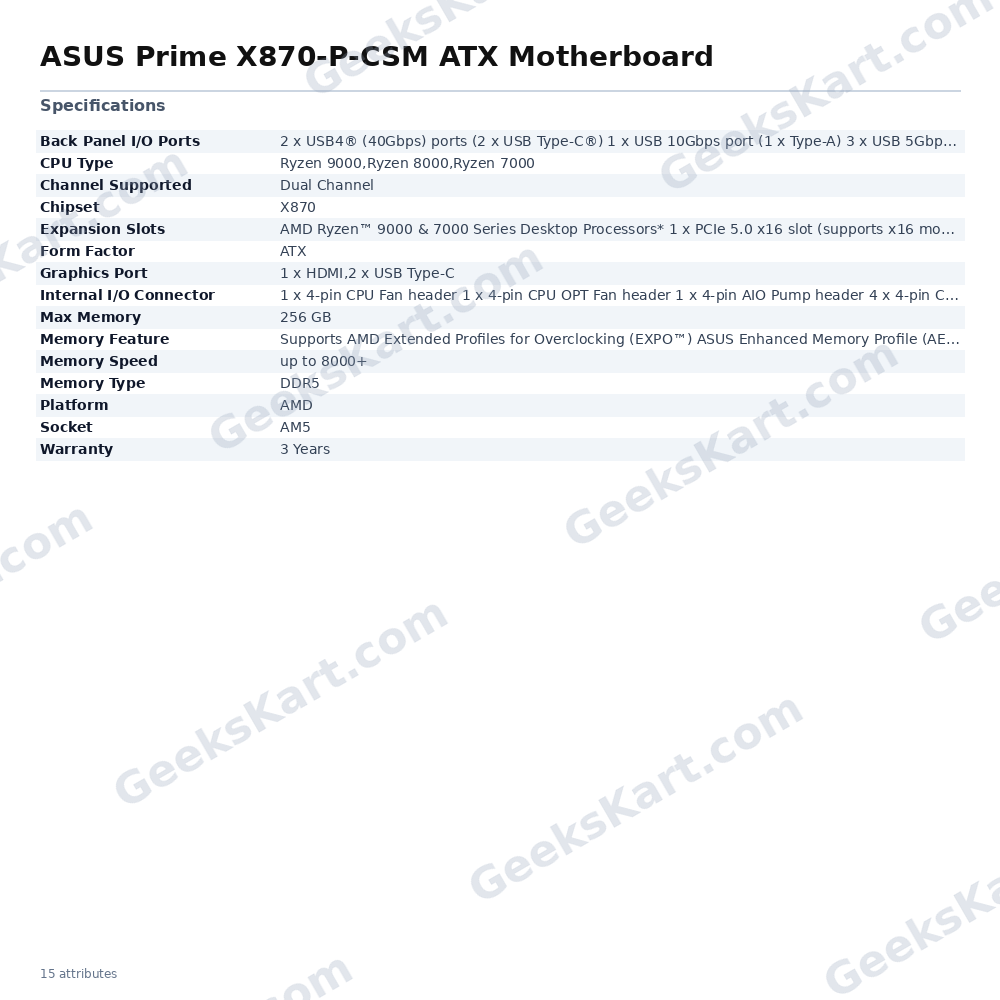

Datasheet
| Memory Type | DDR5 |
|---|---|
| Warranty | 3 Years |
| Form Factor | ATX |
| Chipset | X870 |
| Socket | AM5 |
| CPU Type | Ryzen 9000,Ryzen 8000,Ryzen 7000 |
| Max Memory | 256 GB |
| Memory Speed | up to 8000+ |
| Platform | AMD |
| Graphics Port | 1 x HDMI,2 x USB Type-C |
| Memory Feature | Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) ECC and Non-ECC, Un-buffered DIMM* * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site |
| Expansion Slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD X870 Chipset 2 x PCIe 4.0 x16 slots (support x1 mode)*** * Please check the PCIe bifurcation table on the brand support site. ** Specifications vary by CPU types. *** PCIEX16(G4)_1 and PCIEX16(G4)_2 share bandwidth with M.2_3. PCIEX16(G4)_1 and PCIEX16(G4)_2 will be disabled when M.2_3 runs. – To ensure compatibility of the device installed, please refer to official site for the list of supported peripherals |
| Channel Supported | Dual Channel |
| Back Panel I/O Ports | 2 x USB4® (40Gbps) ports (2 x USB Type-C®) 1 x USB 10Gbps port (1 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI™ port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack™ button |
| Internal I/O Connector | 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors 4 x M.2 slots (Key M) 2 x SATA 6Gb/s ports 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header |
