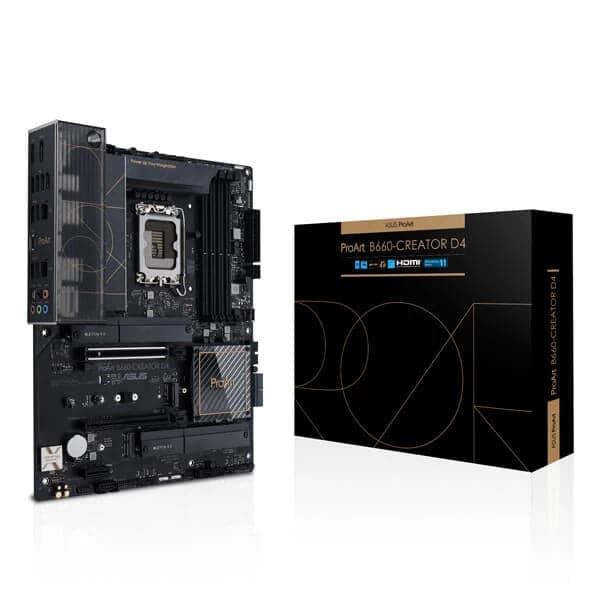

ASUS ProArt B660 Creator DDR4 Intel Motherboard
MPN ASUS-PROART-B660-CREATOR-D4 · Brand ASUS · ATX
The ASUS ProArt B660 Creator DDR4 is an ATX motherboard for Intel 12th Gen processors (LGA1700) featuring PCIe 5.0 readiness, dual Ethernet (2.5 Gb + 1 Gb), three M.2 slots, USB-C DisplayPort output, and a 20 Gbps USB 3.2 Gen 2x2 front-panel connector with Quick Charge 4+
Inclusive of GST · GST invoice available
Overview

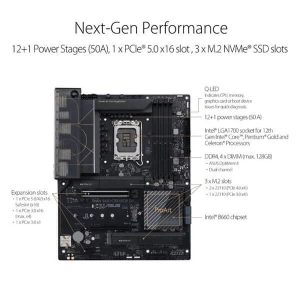

The ASUS ProArt B660 Creator DDR4 is an ATX motherboard built on Intel's B660 chipset, designed to handle intensive content-creation workloads such as 3D rendering and 4K/8K video editing. It uses the LGA1700 socket to support 12th Gen Intel Core, Pentium Gold, and Celeron processors, and its power delivery system features a 12+1 DrMOS VRM rated at 50 amps per stage — delivering clean, stable power for sustained multi-threaded tasks. Connectivity is a clear focus. The board carries a Realtek 2.5 Gb Ethernet port and an Intel I219-V 1 Gb Ethernet port simultaneously, enabling users to separate internet and local NAS traffic. For high-speed storage, three M.2 slots (Key M) are provided: M.2_1 runs PCIe 4.0 x4 via the CPU, M.2_3 runs PCIe 4.0 x4 via the chipset, and M.2_2 supports PCIe 3.0 x4. All three slots are backed by aluminum heatsinks and ASUS M.2 Q-Latch for tool-free drive installation. Four SATA 6 Gb/s ports round out storage, with Intel Rapid Storage Technology supporting RAID 0/1/5/10. Display output options include one HDMI 2.1 port (4K at 60 Hz) and one rear USB Type-C port with DisplayPort 1.4 alternate mode (up to 8K at 60 Hz). The front-panel USB 3.2 Gen 2x2 Type-C connector delivers up to 20 Gbps data transfer and supports Quick Charge 4+ at up to 60 W via a dedicated 6-pin PCIe power cable. An onboard Thunderbolt header accommodates the optional ASUS ThunderboltEX 4 add-in card. Thermal management includes dedicated VRM and chipset heatsinks, flexible M.2 heatsinks, six 4-pin PWM fan headers, one CPU fan header, one CPU OPT fan header, and one AIO pump header. The main PCIe x16 slot is protected by ASUS SafeSlot reinforcement. Audio is handled by a Realtek HD codec supporting 7.1 surround sound at up to 24-bit/192 kHz, with premium capacitors and dedicated PCB layers to reduce interference. Software includes ProArt Creator Hub with CreationFirst mode for workload prioritisation, Two-Way AI Noise Cancelation for online communication, Fan Xpert 4, ASUS Control Center Express for IT asset management, AURA Sync for addressable RGB headers, and the full ASUS AI Suite 3 toolkit. Wi-Fi is not included but can be added via the onboard M.2 Key E slot. Verified Specifications: - Socket: LGA1700 | Chipset: Intel B660 - Form Factor: ATX, 12 in x 9.6 in (30.5 cm x 24.4 cm) - Memory: 4x DIMM, DDR4 Non-ECC Unbuffered, max 128 GB, up to DDR4-5333 (OC), dual-channel, XMP supported - Expansion: 1x PCIe 5.0/4.0/3.0 x16 (CPU), 1x PCIe 3.0 x16 (x4 mode, chipset), 1x PCIe 3.0 x1 - Storage: 3x M.2 (Key M) + 4x SATA 6 Gb/s - Ethernet: Realtek 2.5 Gb + Intel I219-V 1 Gb - Rear USB: 1x USB 3.2 Gen 2 Type-C (w/ DP Alt), 4x USB 3.2 Gen 1 Type-A, 4x USB 2.0 Type-A - Front USB: 1x USB 3.2 Gen 2x2 Type-C (20 Gbps, 60 W QC4+), 2x USB 3.2 Gen 1, 4x USB 2.0 - Audio: Realtek 7.1 HD, 24-bit/192 kHz, optical S/PDIF out - BIOS: 128 Mb flash - OS Support: Windows 11 64-bit, Windows 10 64-bit - Warranty: 3 Years

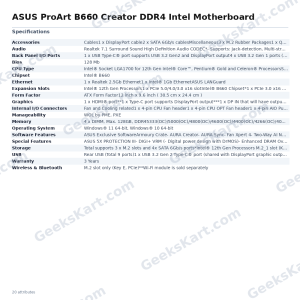

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | Intel® B660 |
| CPU Type | |
| USB | Rear USB (Total 9 ports)1 x USB 3.2 Gen 2 Type-C® port (shared with DisplayPort graphic output)4 x USB 3.2 Gen 1 ports (4 x Type-A)4 x USB 2.0 ports (6 x Type-A)Front USB (Total 7 ports)1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® with 60W PD/QC4+)1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Bios | 128 Mb |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features – Power pre-regulator reduces power input noise to ensure consistent performance- Premium audio capacitors- Dedicated audio PCB layers- Audio cover- Unique de-pop circuit* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output |
| Memory | 4 x DIMM, Max. 128GB, DDR45333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)OptiMem II* Actual Memory frequency support depends on the CPU types and DRAM modules |
| Storage | Total supports 3 x M.2 slots and 4x SATA 6Gb/s ports*Intel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110- Intel® 12th Gen processors support PCIe 4.0 x4 mode.Intel® B660 Chipset**M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)***M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports**** Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.*** M.2_2 slot shares bandwidth with PCIe X1 and WiFi Key E. M.2_2 will run at PCI 3.0 x2 mode either a device is detected at PCIe x1 or WiFi Key E slot |
| Ethernet | 1 x Realtek 2.5Gb Ethernet1 x Intel® 1Gb EthernetASUS LANGuard |
| Graphics | 1 x HDMI® port**1 x Type-C port supports DisplayPort output***1 x DP IN that will have output through Type-C port* Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates.** Support 4K@60Hz as specified in HDMI 2.1.*** Support 8K@60Hz as specified in DisplayPort 1.4.**** Output at the USB Type-C® ports left under RJ45 ports requires a USB-C to DisplayPort adapter cable. VGA resolution support depends on graphic cards' resolution |

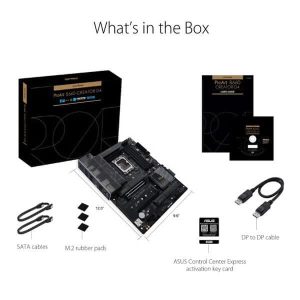

| Accessories | Cables1 x DisplayPort cable2 x SATA 6Gb/s cablesMiscellaneous3 x M.2 Rubber Packages1 x Q-connectorInstallation Media1 x Support DVDDocumentation1 x ACC Express Activation Key Card1 x User guide |
| Manageability | WOL by PME, PXE |
| Expansion Slots | Intel® 12th Gen Processors1 x PCIe 5.0/4.0/3.0 x16 slotIntel® B660 Chipset*1 x PCIe 3.0 x16 slot (supports x4 mode)1 x PCIe 3.0 x1 slot*** Supports Intel® Optane Memory H Series on PCH-attached PCIE slot** PCIe X1 shares bandwidth with M.2_2. PCIe X1 will be disable when M.2_2 runs at PCIe x4 mode by manually enabled |
| Operating System | Windows® 11 64-bit, Windows® 10 64-bit |

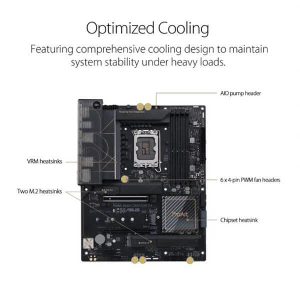

| Special Features | ASUS 5X PROTECTION III- DIGI+ VRM (- Digital power design with DrMOS)- Enhanced DRAM Overcurrent Protection- ESD Guards- LANGuard- Overvoltage Protection- SafeSlot- Stainless-Steel Back I/OASUS Q-Design- M.2 Q-Latch- Q-Connector- Q-DIMM- Q-LED (CPU , DRAM , VGA , Boot Device )- Q-SlotASUS Thermal Solution – Flexible M.2 heatsink- VRM heatsink designASUS EZ DIY- ProCool- Pre-mounted I/O shieldAURA Sync- AURA RGB header- Addressable Gen 2 headers |
| Software Features | ASUS Exclusive SoftwareArmoury Crate- AURA Creator- AURA Sync- Fan Xpert 4- Two-Way AI Noise CancelationAI Suite 3- Performance And Power Saving UtilityEPUDIGI+ VRMTurbo appASUS CPU-ZIT Management software supported- ASUS Control Center Express(ACCE)ProArt Creator HubCreationFirstWinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode |

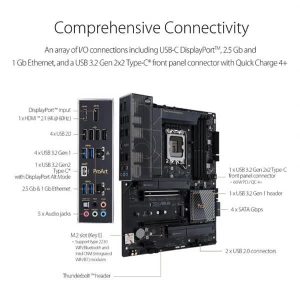

| Back Panel I/O Ports | 1 x USB Type-C® port supports USB 3.2 Gen2 and DisplayPort output4 x USB 3.2 Gen 1 ports (4 x Type-A)4 x USB 2.0 ports (4 x Type-A)1 x DisplayPort (Input only)1 x HDMI® port1 x Realtek 2.5Gb Ethernet port1 x Intel® 1Gb Ethernet port5 x Audio jacks1 x Optical S/PDIF out port |
| Wireless & Bluetooth | M.2 slot only (Key E, PCIe)**Wi-Fi module is sold separately |
| Internal I/O Connectors | Fan and Cooling related1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header4 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connector1 x 4-pin +12V Power connectorStorage related3 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® with 60W PD/QC4+)1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports2 x USB 2.0 headers support additional 4 USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x AURA RGB header1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x M.2 slot (Key E)1 x SPI TPM header (14-1pin)1 x 20-3 pin System Panel header with Chassis intrude function1 x Thermal Sensor header1 x Thunderbolt™ header |
