Features of ASUS ProArt RTX 5080 16GB OC NVIDIA Graphic Card
The ASUS ProArt RTX 5080 combines a compact 2.5-slot design with potent cooling – three Axial-tech fans, a vapor chamber, and a phase-change GPU thermal pad – to deliver GeForce RTX 50 Series performance to both full-scale towers and space-saving SFF builds. A USB Type-C® port enhances versatility for content creation workflows, while a wood-patterned laminate trim and low-key Aura-lit logo help deliver a refined aesthetic.
USB Type-C Support
ProArt GeForce RTX 5080 comes with a USB Type-C output for connecting to a monitor capable of using the port to receive video. It also features two DisplayPort™ 2.1b ports and one HDMI® 2.1b port for multiple high-resolution displays, boosting productivity across creative workflows.
Efficient Cooling in Compact 2.5-Slot Design
The ProArt GeForce RTX 5080 features a 2.5-slot design and an advanced cooling system with Axial-tech fans plus heatpipes and a vapor chamber for efficient heat dissipation. This combination helps ensure low temperatures, low noise, and high performance.
PC Power Supply Calculator
Use our wattage calculator to estimate how much power you’ll need to fuel your rig, and then pick a compatible ROG, TUF Gaming or Prime power supply for ultimate performance.
The Ultimate in Ray Tracing and AI
RTX is the most advanced platform for full ray tracing and neural rendering technologies that are revolutionizing the ways we play and create. Over 700 games and applications use RTX to deliver realistic graphics and incredibly fast performance with cutting-edge AI features like DLSS Multi Frame Generation.
Part No: 90YV0N30-M0AA00

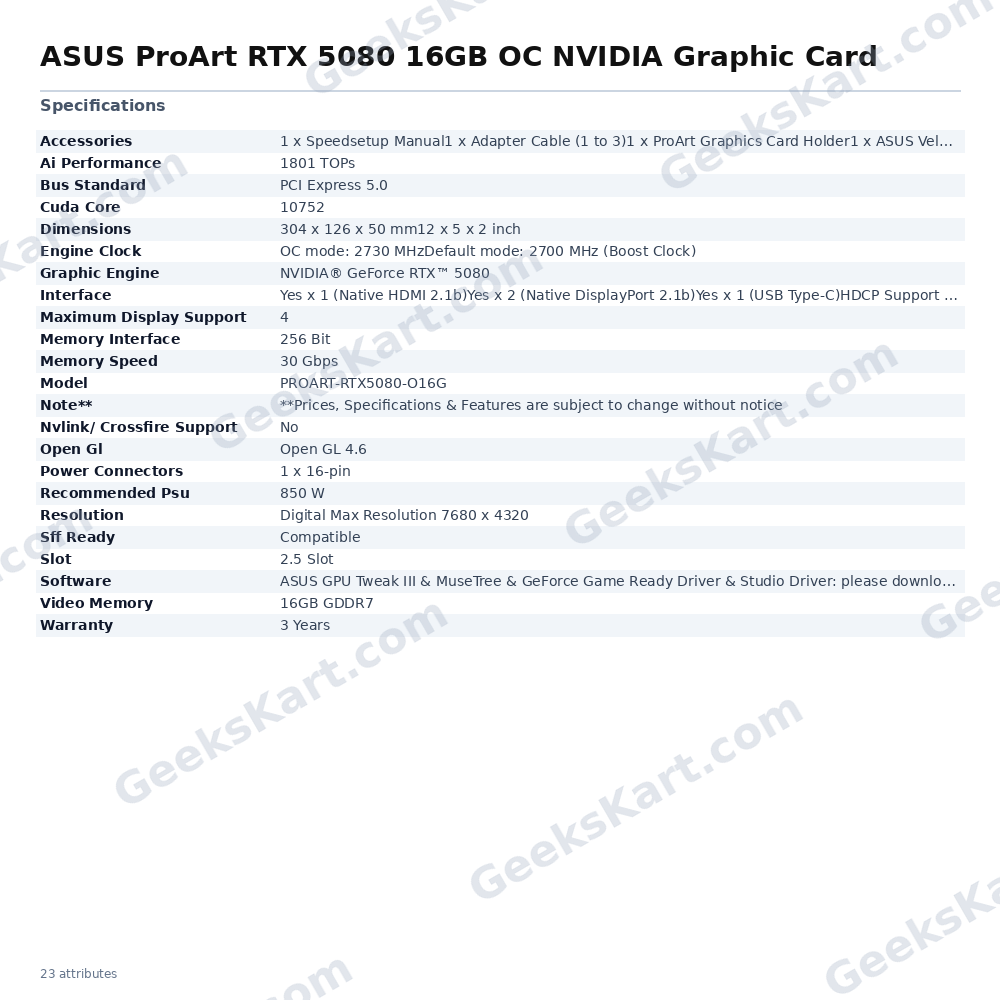

Specification of ASUS ProArt RTX 5080 16GB OC NVIDIA Graphic Card
| Model | PROART-RTX5080-O16G |
| Graphic Engine | NVIDIA® GeForce RTX™ 5080 |
| AI Performance | 1801 TOPs |
| Bus Standard | PCI Express 5.0 |
| Open GL | Open GL 4.6 |
| Video Memory | 16GB GDDR7 |
| Engine Clock | OC mode: 2730 MHz Default mode: 2700 MHz (Boost Clock) |
| Cuda Core | 10752 |
| Memory Speed | 30 Gbps |
| Memory Interface | 256 Bit |
| Resolution | Digital Max Resolution 7680 x 4320 |
| Interface | Yes x 1 (Native HDMI 2.1b) Yes x 2 (Native DisplayPort 2.1b) Yes x 1 (USB Type-C) HDCP Support Yes (2.3) |
| Maximum Display Support | 4 |
| NVlink/ Crossfire Support | No |
| Accessories | 1 x Speedsetup Manual 1 x Adapter Cable (1 to 3) 1 x ProArt Graphics Card Holder 1 x ASUS Velcro Hook & Loop 1 x Thank you Card |
| Software | ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. |
| Dimensions | 304 x 126 x 50 mm 12 x 5 x 2 inch |
| Recommended PSU | 850 W |
| Power Connectors | 1 x 16-pin |
| Slot | 2.5 Slot |
| SFF Ready | Compatible |
| Warranty | 3 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
