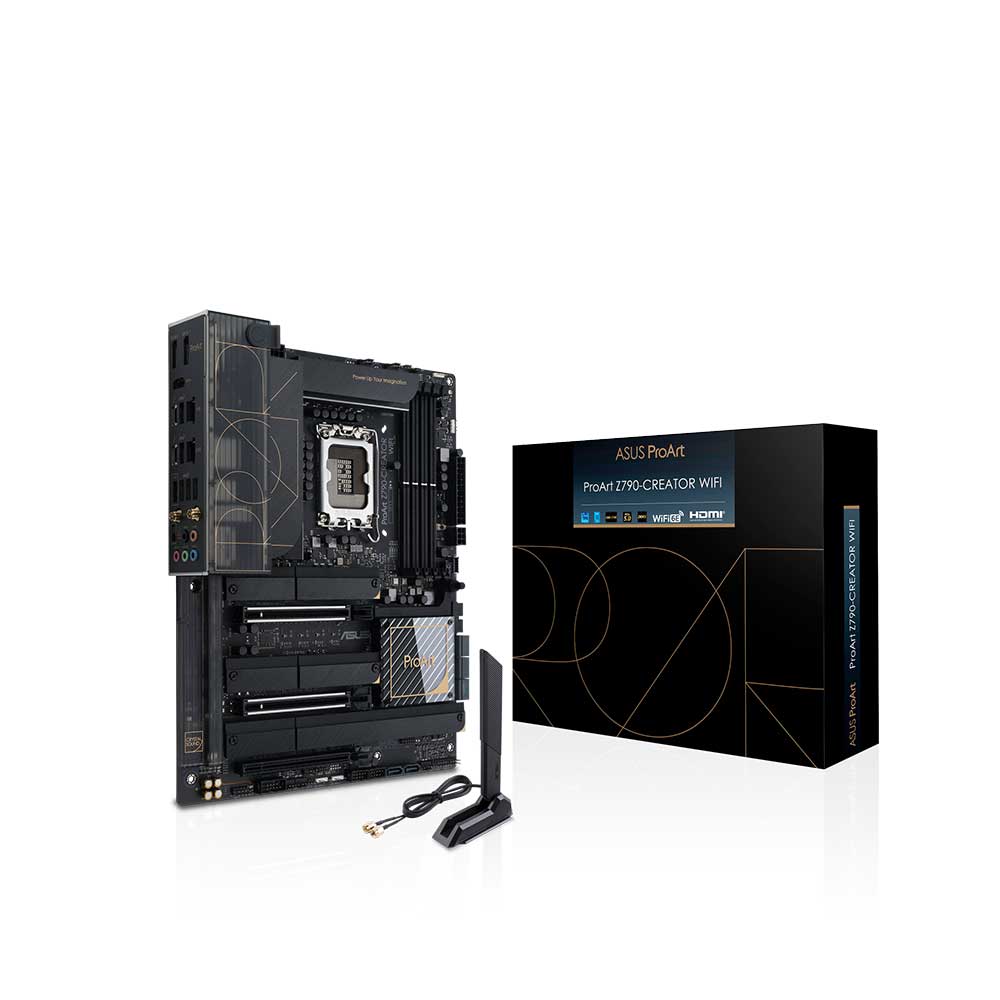

ASUS ProArt Z790 Creator Wifi DDR5 Intel Motherboard
MPN ASUS-PROART-Z790-CREATOR-WI-FI-DDR5 · Brand ASUS · ATX
The ASUS ProArt Z790-Creator WiFi is an ATX DDR5 motherboard for Intel LGA1700 (12th/13th Gen) featuring dual Thunderbolt 4, PCIe 5.0, Wi-Fi 6E, dual Ethernet (10 Gb + 2.5 Gb), four M.2 slots, and up to 128 GB DDR5 — purpose-built for professional content creators
Inclusive of GST · GST invoice available
Overview

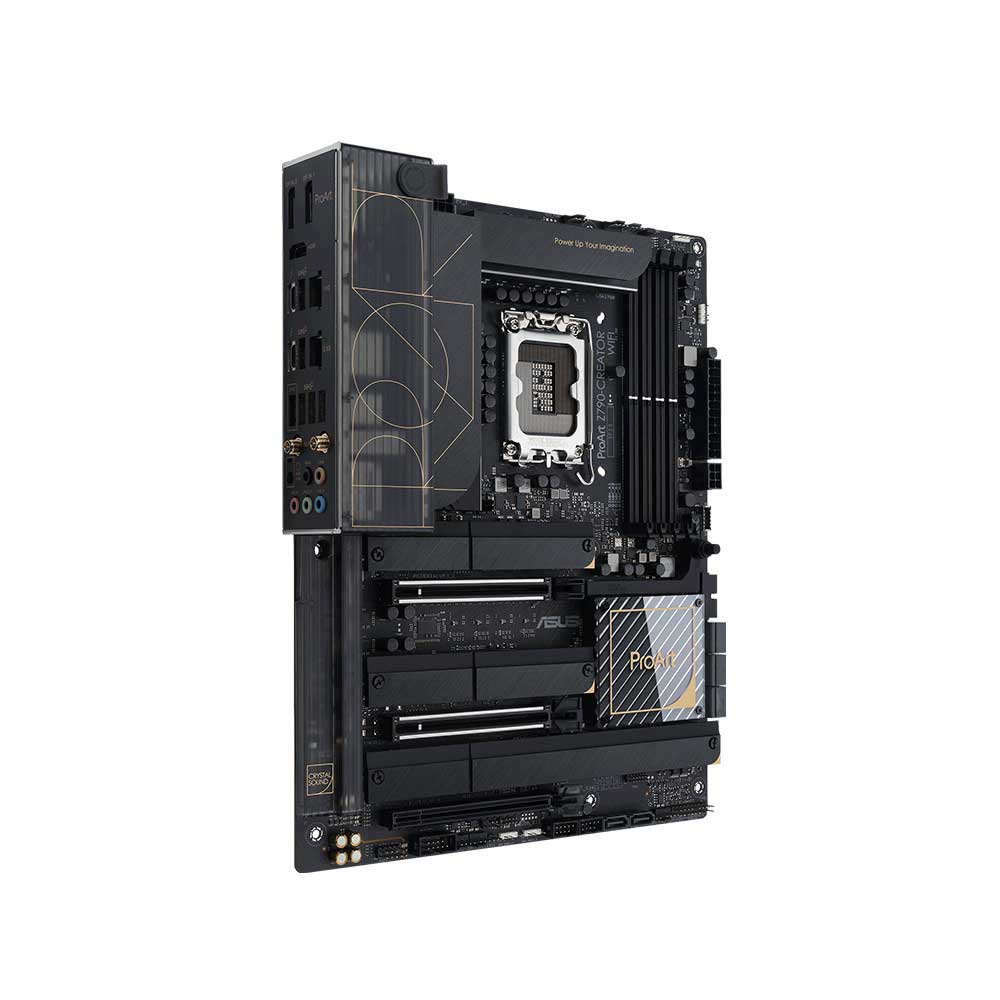

The ASUS ProArt Z790-Creator WiFi is an ATX motherboard built around the Intel Z790 chipset, designed to pair with 12th and 13th Gen Intel Core, Pentium Gold, and Celeron processors using the LGA1700 socket. It is aimed at content creators who need high-throughput connectivity, robust power delivery, and extensive storage options in a single platform. Connectivity is a standout feature. Two rear-panel Thunderbolt 4 ports (USB4 compliant) deliver up to 40 Gbps bi-directional bandwidth and can drive up to two 4K or one 8K display via a USB-C to DisplayPort adapter, supplemented by a dedicated DisplayPort input on the back I/O. Dual Ethernet — a Marvell AQtion 10 Gb controller and an Intel 2.5 Gb controller — run simultaneously, enabling high-speed local NAS access alongside internet streaming without bandwidth conflicts. Wireless connectivity is handled by an onboard 2×2 Wi-Fi 6E module supporting 2.4 GHz, 5 GHz, and 6 GHz bands (802.11 a/b/g/n/ac/ax) paired with Bluetooth 5.3. Memory support spans four DDR5 DIMM slots accommodating up to 128 GB, with speeds from 4800 MHz native up to 7200 MHz (OC) via Intel XMP and ASUS AEMP II profiles in dual-channel configuration. Storage consists of four M.2 slots (all PCIe 4.0 x4, Key M) supporting sizes up to 22110, plus eight SATA 6 Gb/s ports, with Intel RST enabling NVMe RAID 0/1/5 and SATA RAID 0/1/5/10. Two PCIe 5.0 x16 expansion slots (configurable as x16 or x8/x8) serve discrete GPUs, reinforced with SafeSlot metal retention brackets and a Q-Release button. USB ports total 15: rear panel provides 2× Thunderbolt 4 Type-C and 6× USB 3.2 Gen 2 Type-A; the front panel adds a USB 3.2 Gen 2×2 Type-C header with 60 W Power Delivery 3.0 / Quick Charge 4+, one USB 3.2 Gen 1 header, and two USB 2.0 headers. Audio is driven by a Realtek S1220A codec offering 7.1 surround sound, 120 dB SNR playback, 113 dB SNR recording, and up to 32-bit/192 kHz output. Software includes ProArt Creator Hub for workflow management, AI Suite 3 with AI Overclocking, Fan Xpert 4 with AI Cooling II, Two-Way AI Noise Cancelation, and AURA Sync RGB lighting control. Protection features under ASUS 5X Protection III cover DrMOS DIGI+ VRM, LANGuard, SafeSlot, ESD guards, and overvoltage protection. Verified Specifications: — Chipset: Intel Z790 — Socket: LGA1700 (12th & 13th Gen Intel Core) — Form Factor: ATX, 12 in × 9.6 in (30.5 cm × 24.4 cm) — Memory: 4× DDR5 DIMM, max 128 GB, up to 7200 MHz (OC), dual-channel, XMP / AEMP II — PCIe Slots: 2× PCIe 5.0 x16 (CPU); 1× PCIe 4.0 x16 (chipset, x4 mode) — M.2 Slots: 4× PCIe 4.0 x4 (Key M), up to 22110 — SATA: 8× SATA 6 Gb/s — Thunderbolt 4: 2× rear (USB4 compliant, 40 Gbps, 15 W charging) — USB Front Header: 1× USB 3.2 Gen 2×2 Type-C (60 W PD 3.0 / QC 4+) — Ethernet: 1× Marvell AQtion 10 Gb + 1× Intel 2.5 Gb — Wi-Fi: 2×2 Wi-Fi 6E (802.11ax), 2.4/5/6 GHz; Bluetooth 5.3 — Audio: Realtek S1220A, 7.1 surround, 120 dB SNR — BIOS Flash: 256 MB, BIOS FlashBack button — Warranty: 3 Years — OS Support: Windows 11 64-bit, Windows 10 64-bit

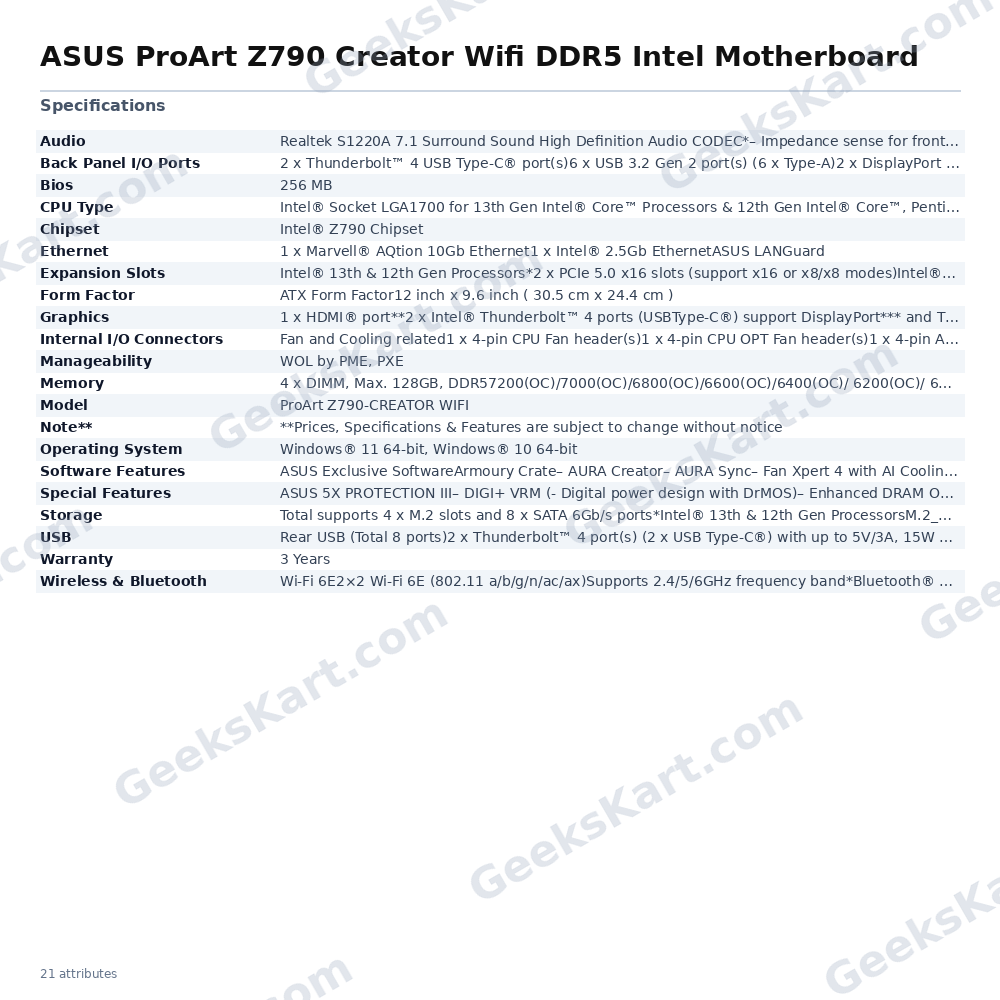

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | Intel® Z790 Chipset |
| CPU Type | |
| USB | Rear USB (Total 8 ports)2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support6 x USB 3.2 Gen 2 port(s) (6 x Type-A)Front USB (Total 7 ports)1 x USB 3.2 Gen 2×2 connector(s) (support(s) USB Type-C® with 60W PD 3.0 / QC 4+)1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
| Bios | 256 MB |
| Audio | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*– Impedance sense for front and rear headphone outputs– Internal audio Amplifier to enhance the highest quality sound for headphone and speakers– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)– Supports up to 32-Bit/192 kHz playback*Audio Features– Premium audio capacitors– Dedicated audio PCB layers– Audio cover– Unique de-pop circuit* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output |
| Model | ProArt Z790-CREATOR WIFI |
| Memory | 4 x DIMM, Max. 128GB, DDR57200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)OptiMem II* Refer to http://www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types |
| Note** | **Prices, Specifications & Features are subject to change without notice |
| Storage | Total supports 4 x M.2 slots and 8 x SATA 6Gb/s ports*Intel® 13th & 12th Gen ProcessorsM.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)Intel® Z790 ChipsetM.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)**8 x SATA 6Gb/s ports*** Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.** M.2_4 slot shares bandwidth with SATA6G_5~8. SATA6G5~8 will be suspended once either a SATA or NVMe device is detected at M.2_4 |
| Ethernet | 1 x Marvell® AQtion 10Gb Ethernet1 x Intel® 2.5Gb EthernetASUS LANGuard |
| Graphics | 1 x HDMI® port**2 x Intel® Thunderbolt™ 4 ports (USBType-C®) support DisplayPort*** and Thunderbolt™ video outputs***** Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates.** Support 4K@60Hz as specified in HDMI 2.1.*** Support 8K@60Hz as specified in DisplayPort 1.4.**** Output at TBT4_E1 and TBT4_E2, the USB Type-C® ports right under RJ45 ports, each requires a USB-C to DisplayPort adapter cable. For display connection and video output configuration regarding DP IN and Intel® Thunderbolt™ 4 ports, please refer to the user manual for more details. VGA resolution support depends on processors’ or graphic cards’ resolution |
| Manageability | WOL by PME, PXE |
| Expansion Slots | Intel® 13th & 12th Gen Processors*2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)Intel® Z790 Chipset**1 x PCIe 4.0 x16 slot (supports x4 mode)* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals |
| Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
| Special Features | ASUS 5X PROTECTION III– DIGI+ VRM (- Digital power design with DrMOS)– Enhanced DRAM Overcurrent Protection– ESD Guards– LANGuard– Overvoltage Protection– SafeSlot– Stainless-Steel Back I/OASUS Q-Design– M.2 Q-Latch– Q-Connector– Q-DIMM– Q-LED (CPU , DRAM , VGA , Boot Device )– Q-SlotASUS Thermal Solution– M.2 heatsink– VRM heatsink designASUS EZ DIY– BIOS FlashBack™ button– BIOS FlashBack™ LED– Box Headers– ProCool II– Pre-mounted I/O shieldAURA Sync– AURA RGB header(s)– Addressable Gen 2 header(s) |
| Software Features | ASUS Exclusive SoftwareArmoury Crate– AURA Creator– AURA Sync– Fan Xpert 4 with AI Cooling II– Two-Way AI Noise Cancelation– Power SavingAI Suite 3– Easy Optimization with AI Overclocking– TPU– DIGI+ Power Control– Turbo app– PC CleanerASUS CPU-ZIT Management software supported– ASUS Control Center Express(ACCE)ProArt Creator HubCreationFirstMyAsusNorton 360 Deluxe (60 Days Free Trial)WinRARUEFI BIOSAI Overclocking GuideASUS EZ DIY– ASUS CrashFree BIOS 3– ASUS EZ Flash 3– ASUS UEFI BIOS EZ ModeFlexKeyMemTest86 |

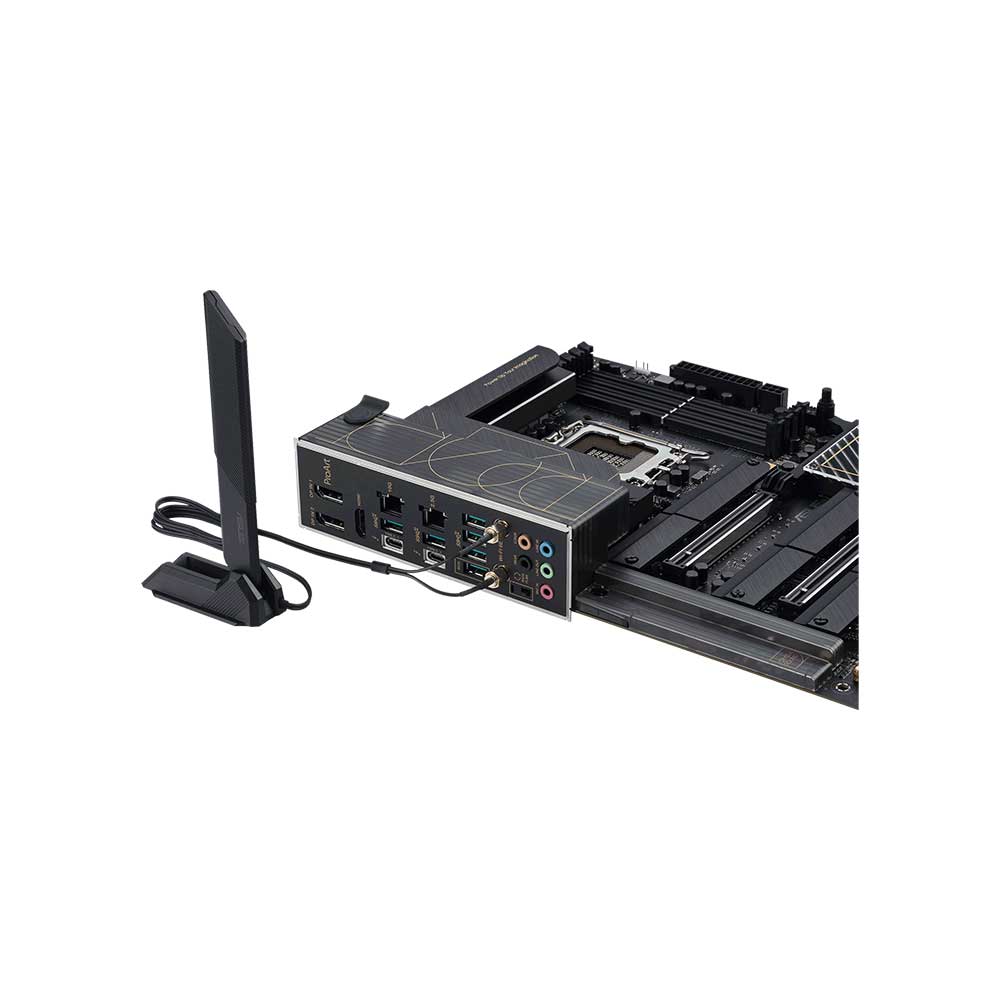

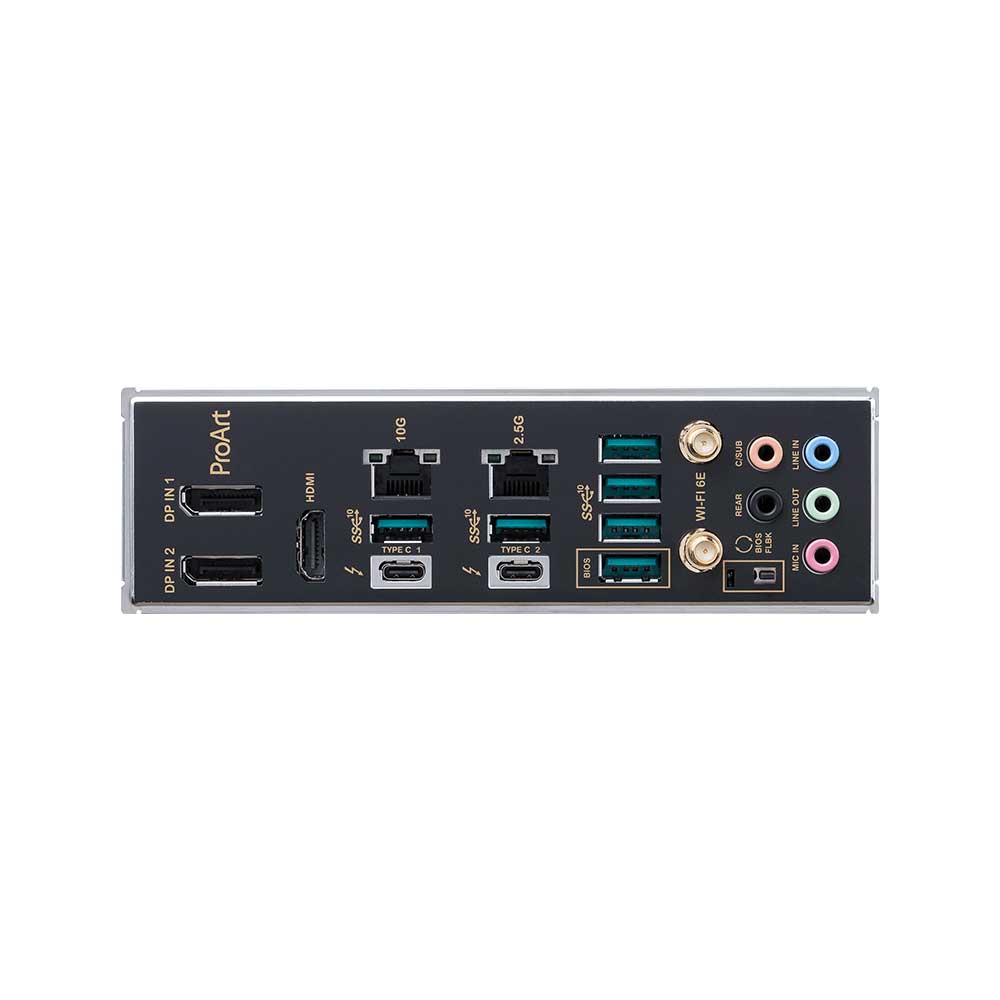

| Back Panel I/O Ports | 2 x Thunderbolt™ 4 USB Type-C® port(s)6 x USB 3.2 Gen 2 port(s) (6 x Type-A)2 x DisplayPort (Input only)1 x HDMI® port1 x ASUS Wi-Fi Module1 x Marvell® AQtion 10Gb Ethernet port1 x Intel® 2.5Gb Ethernet port5 x Audio jacks1 x BIOS FlashBack™ button |
| Wireless & Bluetooth | Wi-Fi 6E2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)Supports 2.4/5/6GHz frequency band*Bluetooth® v5.3*** WiFi 6E 6GHz regulatory may vary between countries.** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications |
| Internal I/O Connectors | Fan and Cooling related1 x 4-pin CPU Fan header(s)1 x 4-pin CPU OPT Fan header(s)1 x 4-pin AIO Pump header(s)5 x 4-pin Chassis Fan header(s)Power related1 x 24-pin Main Power connector1 x 8-pin +12V Power connector1 x 4-pin +12V Power connector1 x 6-pin +12V Power connectorStorage related4 x M.2 slots (Key M)8 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 2×2 (support(s) USB Type-C®)1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 portsMiscellaneous3 x Addressable Gen 2 header(s)1 x AURA RGB header(s)1 x Clear CMOS header1 x COM Port header1 x CPU Over Voltage jumper1 x Front Panel Audio header (AAFP)1 x M.2 slot (Key E)1 x SPI TPM header (14-1pin)1 x 20-3 pin System Panel header with Chassis intrude function1 x Thermal Sensor header |
