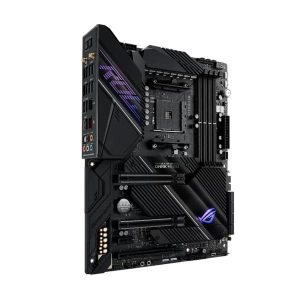

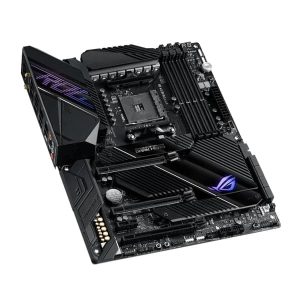

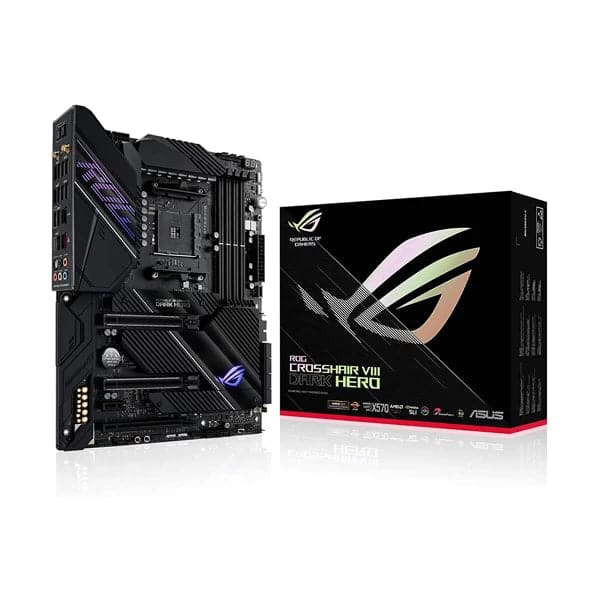

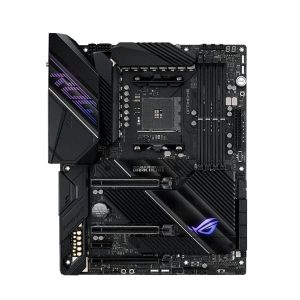

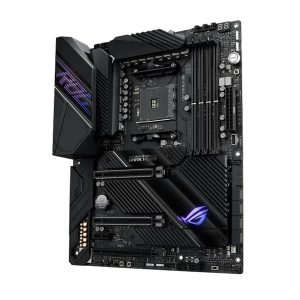

ASUS ROG Crosshair VIII Dark Hero DDR4 AMD Motherboard
MPN ASUS-ROG-CROSSHAIRVIII-DARKHERO · Brand ASUS · mATX
The ASUS ROG Crosshair VIII Dark Hero is an AM4 mATX motherboard supporting AMD Ryzen processors with PCIe 4.0, dual M.2 slots, Intel Wi-Fi 6 (AX200), 2.5 Gb Ethernet, and SupremeFX 7.1 audio
Inclusive of GST · GST invoice available
Overview
The ASUS ROG Crosshair VIII Dark Hero is a high-performance AM4 socket motherboard purpose-built for AMD Ryzen processors, including the Ryzen 5000 series (Zen 3). Designed with a stealthy aesthetic and passive chipset cooling, it combines robust power delivery with a comprehensive cooling infrastructure to sustain demanding workloads and extended gaming sessions. The board accommodates up to 128 GB of DDR4 memory across four DIMM slots, supporting speeds up to DDR4 4600 MHz (overclocked) on 3rd Gen AMD Ryzen processors and up to DDR4 4800 MHz (overclocked) on next-generation AMD Ryzen PRO processors, operating in dual-channel unbuffered configuration. ECC memory support varies by CPU. Connectivity is a standout feature. Onboard Intel Wi-Fi 6 (AX200) delivers 802.11ax performance with 2x2 MU-MIMO, OFDMA, and 1024QAM support, achieving theoretical maximum data rates of up to 2.4 Gbps across dual-band 2.4 GHz and 5 GHz frequencies. Wired networking is handled by a Realtek RTL8125B 2.5 Gb Ethernet controller. Bluetooth 5.1 is also included. Storage options include two M.2 slots — one PCIe 4.0 x4 (types 2242/2260/2280) and one PCIe 3.0 x4 (types 2242/2260/2280/22110) — alongside four SATA 6 Gb/s ports supporting RAID 0, 1, and 10. The primary PCIe slot runs at PCIe 4.0 x16 for the graphics card, sourced from the CPU. Audio is handled by the Realtek ALC S1220A codec with SupremeFX technology, delivering 7.1-channel surround sound at up to 24-bit/192kHz. The audio subsystem features a dedicated ESS ES9023P DAC for front-panel output, audio line shielding, dedicated PCB audio layers, and premium Nichicon capacitors for low-distortion output. An optical S/PDIF output is included on the rear I/O. USB connectivity provides 14 total ports: rear I/O includes 2x USB 3.2 Gen 2 (one Type-A, one Type-C), 4x USB 3.2 Gen 1 Type-A, and 2x USB 2.0; front-panel headers support an additional 2x USB 3.2 Gen 1 and 4x USB 2.0. Verified Specifications: - Socket: AMD AM4 - Form Factor: mATX, 9.6 x 9.6 inches (24.4 x 24.4 cm) - Memory: 4x DIMM, max 128 GB, DDR4 up to 4600 MHz OC (Ryzen 3rd Gen) / 4800 MHz OC (Ryzen PRO) - Storage: 2x M.2 (PCIe 4.0 x4 + PCIe 3.0 x4), 4x SATA 6 Gb/s, RAID 0/1/10 - PCIe: 1x PCIe 4.0 x16 (CPU), 1x PCIe 3.0 x16 (x4 mode, chipset), 1x PCIe 3.0 x1 - Networking: Intel Wi-Fi 6 AX200 (up to 2.4 Gbps), Realtek 2.5 Gb Ethernet, Bluetooth 5.1 - Audio: Realtek ALC S1220A, 7.1-channel, 24-bit/192kHz, optical S/PDIF - USB (rear): 2x Gen 2, 4x Gen 1, 2x USB 2.0 - BIOS: 256 Mb Flash ROM, UEFI AMI - Warranty: 3 Years
Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| CPU Type | Build in AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors |
| Lan | Realtek RTL8125B 2.5Gb EthernetTUF LANGuard |
| Bios | 256 Mb Flash ROM, UEFI AMI BIOS |
| Audio | Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODECSupports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playbackAudio Feature :Exclusive DTS Custom for GAMING Headsets.Optical S/PDIF out port(s) at back panel Audio coverAudio ShieldingDedicated audio PCB layersPremium Japanese audio capacitors |
| Memory | 3rd Gen AMD Ryzen™ Processors4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *Next Generation AMD Ryzen PRO Processors4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/ 2400/2133 MHz Un-buffered Memory *Dual Channel Memory ArchitectureECC Memory (ECC mode) support varies by CPU |
| Graphic | 1 x DisplayPort 1.21 x HDMI 2.1(4K@60HZ) |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports3rd Gen AMD Ryzen™ Processors :1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices supportAMD B550 Chipset :1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x4 and SATA modes) storage devices support4 x SATA 6Gb/s port(s),Support Raid 0, 1, 10 |
| Cheapest | AMD B550 |
| Bluetooth | Bluetooth v5.1**BT 5.1 function will be ready in Windows 10 build 19041 or later |
| USB Ports | Rear USB Port ( Total 8 )2 x USB 3.2 Gen 2 port(s)(1 x Type-A 1 x USB Type-C®)4 x USB 3.2 Gen 1 port(s)(4 x Type-A)2 x USB 2.0 port(s)(2 x Type-A)Front USB Port ( Total 6 )2 x USB 3.2 Gen 1 port(s)(2 x Type-A)4 x USB 2.0 port(s)(4 x Type-A) |
| Manageability | WOL by PXE |
| Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s)1 x DisplayPort1 x HDMI1 x LAN (2.5G) port(s)2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A 1 x USB Type-C®)4 x USB 3.2 Gen 1 (blue) Type-A2 x USB 2.01 x Optical S/PDIF out5 x Audio jack(s)1 x BIOS FlashBack™ Button(s)1 x ASUS Wi-Fi Module |
| Expansion Slots | 3rd Gen AMD Ryzen™ Processors1 x PCIe 4.0 x16 (x16 mode)AMD B550 Chipset1 x PCIe 3.0 x16 (x4 mode) *11 x PCIe 3.0 x1 *1* Support PCIe bifurcation for RAID on CPU function |
| Operating System | Windows® 10 64-bit |
| Multi-Gpu Support | Supports AMD 2-Way CrossFireX Technology |
| Software Features | ASUS Exclusive SoftwareArmoury CrateAura CreatorAura SyncAI Noise Cancelling MicrophoneAI Suite 3Performance And Power Saving UtilityTurboV EVOEPUDigi VRMFan Xpert 2EZ updateTUF GAMING CPU-ZAI ChargerASUS Turbo LANDAEMON ToolsDTS Custom for GAMING HeadsetsNorton Anti-virus software (Free Trial for 60 days)WinRARUEFI BIOSASUS EZ DIYASUS CrashFree BIOS 3ASUS EZ Flash 3ASUS UEFI BIOS EZ Mode |
| Internal I/O Ports | 1 x CPU Fan connector(s)1 x CPU OPT Fan connector(s)2 x Chassis Fan connector(s)2 x Aura RGB Strip Headers1 x Addressable Gen 2 header(s)1 x USB 3.2 Gen 1(up to 5Gbps) connector(s)support(s) additional 2 USB 3.2 Gen 1 port(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 4.0 x 4 mode)1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)1 x SPI TPM header4 x SATA 6Gb/s connector(s)1 x 24-pin EATX Power connector(s)1 x 8-pin EATX 12V Power connectors1 x Front panel audio connector(s) (AAFP)1 x Clear CMOS jumper(s)1 x System panel connector1 x COM port header1 x Speaker connector |
| Asus Special Features | ASUS TUF PROTECTIONASUS DIGI VRM (Digital power design with Dr. MOS)ASUS Enhanced DRAM Overcurrent ProtectionASUS ESD GuardsTUF LANGuardASUS Overvoltage ProtectionASUS SafeSlotASUS Stainless-Steel Back I/OASUS Q-DesignASUS Q-DIMMASUS Q-LED (CPU , DRAM , VGA , Boot Device )ASUS Q-SlotASUS Thermal SolutionAluminum M.2 heatsinkASUS EZ DIYBIOS FlashBack™ buttonBIOS FlashBack™ LED ProcoolAURA SyncStandard RGB headersAddressable Gen 2 RGB header |
| Wireless Data Network | Intel® Wi-Fi 6 AX2002x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)support 1024QAM/OFDMA/MU-MIMOSupports up to 2.4Gbps max data rateSupports dual band frequency 2.4/5 GHzSupports channel bandwidth: HT20/HT40/HT80/HT160Supports PCIe interface |
