ASUS ROG Hyperion GR701 ARGB EATX Full Tower Cabinet (Black)
MPN ROG-HYPERION-GR701 · Brand ASUS

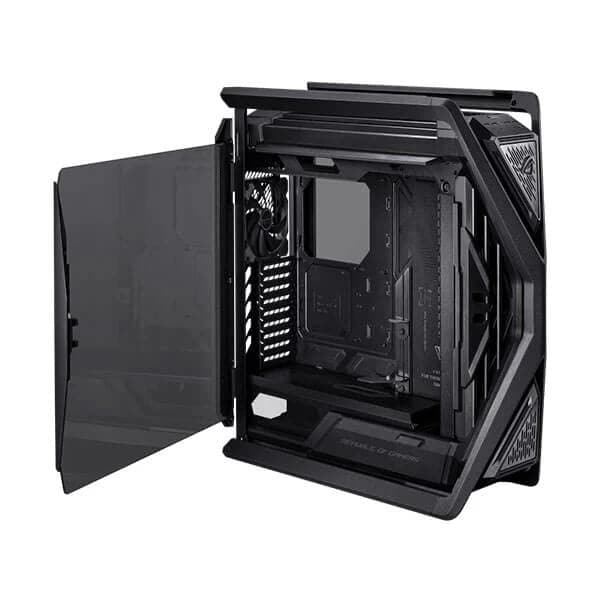

The ASUS ROG Hyperion GR701 ARGB is a premium E-ATX full tower cabinet featuring dual 420 mm radiator support, four pre-installed 140 mm PWM fans, 60 W USB-C fast charging, tool-free hinged tempered glass panels, and a die-cast aluminium frame with integrated GPU holder
Inclusive of GST · GST invoice available
Overview

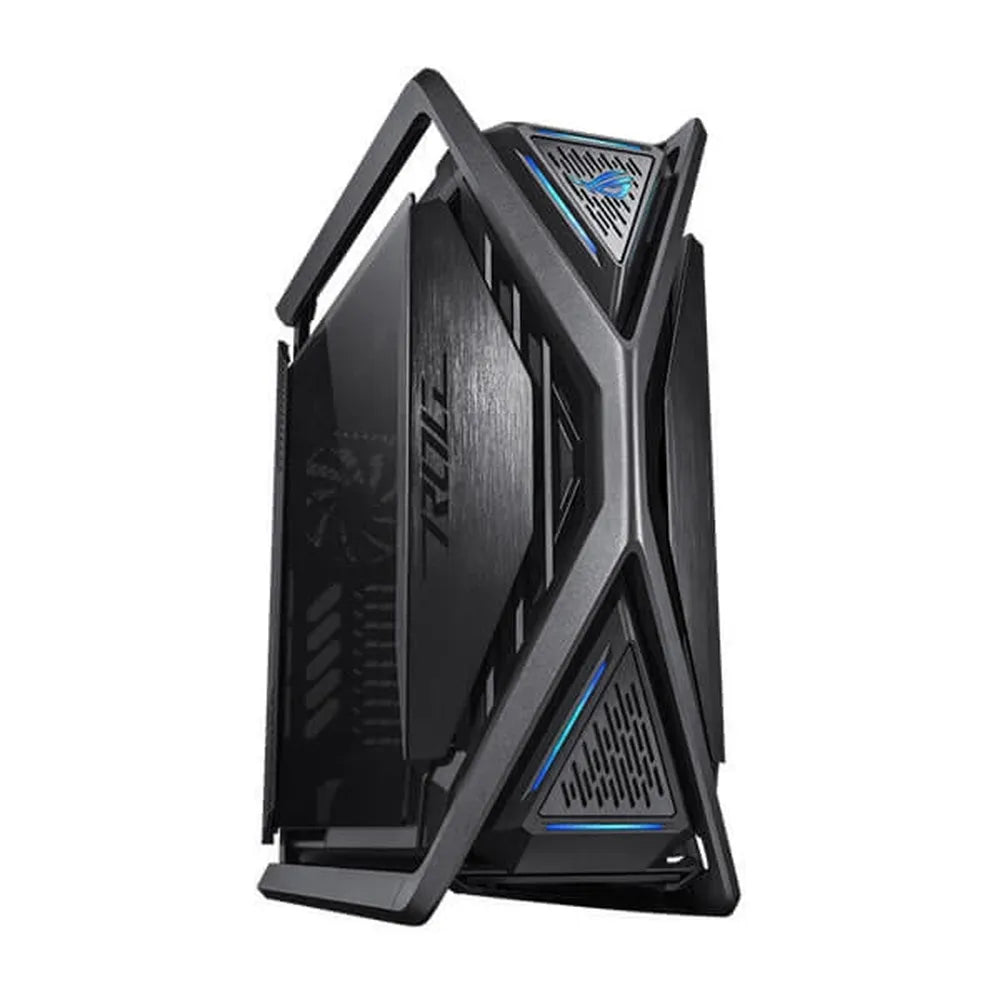

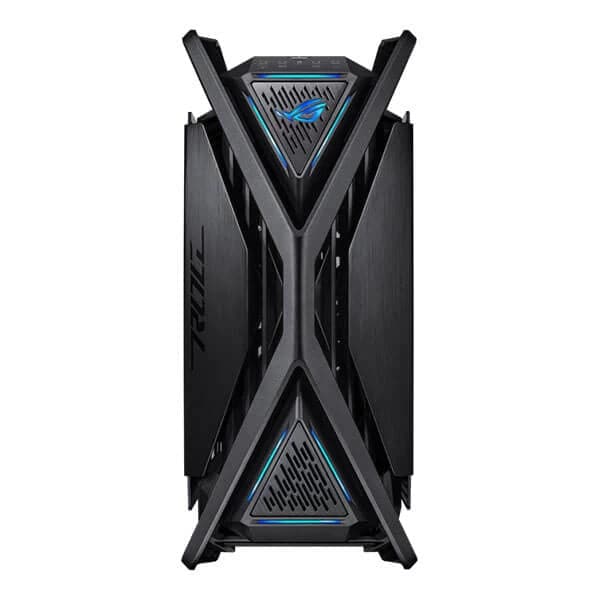

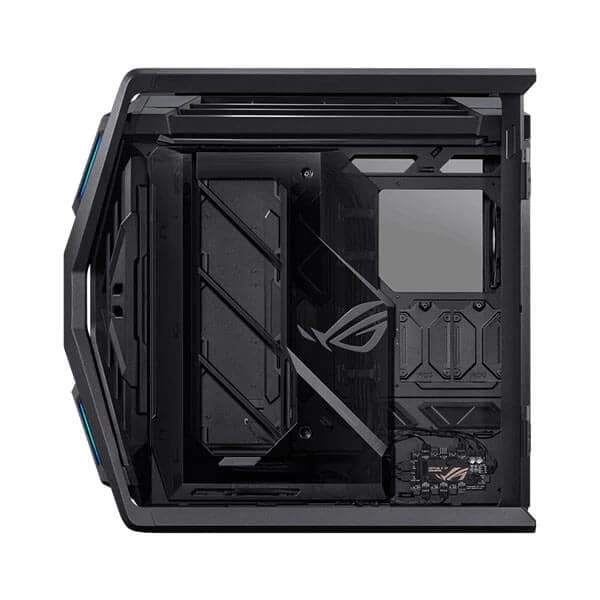

The ASUS ROG Hyperion GR701 ARGB is a premium E-ATX full tower cabinet engineered for builders who need maximum headroom for high-end components. Built around a die-cast aluminium alloy frame shaped into a distinctive X-brace that extends from the chassis centre to its perimeter, the GR701 blends structural rigidity with visual identity. The frame doubles as carry handles rated to support up to 80 kg of hardware, making transport straightforward even with a fully loaded system inside. Cooling potential is a clear highlight. The chassis ships with four pre-installed 140 mm PWM fans — three at the front and one at the rear — all connected to an integrated Aura Sync ARGB fan hub that supports up to eight ARGB components and six PWM fans in total. Both the front and top positions accept radiators up to 420 mm, enabling dual 420 mm liquid cooling configurations for the most demanding thermal loads. The rear supports radiators up to 140 mm. A multi-function vertical installation area between the motherboard tray and the front panel provides mounting space for additional case fans, 2.5-inch SSDs, a 360 mm radiator, a liquid cooling distribution panel, or an ROG ARGB lighting panel — giving builders meaningful flexibility to evolve the build over time. Graphics card accommodation is generous: the GR701 accepts GPUs up to 460 mm in length. A fully integrated two-way anodized aluminium GPU holder prevents sag and can be used horizontally or vertically, with additional compatibility for the ROG Herculx external GPU support bracket. The front I/O panel includes four USB 3.2 Gen 1 Type-A ports, one USB 3.2 Gen 2 Type-C port, one USB 4.0 Type-C (or USB 3.2 Gen 2×2 Type-C, varies by region), a combined headphone/microphone jack, an LED control button, and a reset button. Both Type-C ports collectively support up to 60 W of fast charging with a compatible motherboard. Both side panels are tinted tempered glass and are mounted on hinges for tool-free access — they swing open and can be lifted free entirely. A built-in hidden storage drawer at the base of the chassis keeps PCIe brackets, screws, and cable ties within reach. The cable management chamber behind the motherboard tray measures 34 mm deep, and the routing channel is 46 mm wide, secured by ROG-branded Velcro straps. A translucent cable cover conceals rear wiring while allowing RGB lighting to pass through. Aura Sync RGB lighting is present on the front panel section and is controllable via the hub. The chassis carries a 2-year manufacturer warranty. Verified Specifications: Model: ROG Hyperion GR701 | Motherboard Support: E-ATX (12"×10.9"), ATX, Micro-ATX, Mini-ITX | Dimensions: 268×639×659 mm | Weight: 20.8 kg | Drive Bays: 5×2.5", 2×2.5"/3.5" combo | Expansion Slots: 9 standard + 3 vertical | Radiator Support Front/Top: up to 420 mm | Radiator Support Rear: up to 140 mm | Pre-installed Fans: 3×140 mm PWM (front), 1×140 mm PWM (rear) | Max GPU Length: 460 mm | Max CPU Cooler Height: 190 mm | Max PSU Length: 240 mm | Cable Management Depth: 34 mm | Tempered Glass: left and right side panels | Removable Dust Filters: front, top, bottom | Warranty: 2 years
Datasheet
| Warranty | 2 Years |
|---|---|
| Model | ROG Hyperion GR701 |
| Weight | 20.8 Kg |
| Dimensions | 268x639x659 mm |
| Drive Bays | 5 x 2.5" Bay2 x 2.5"/3.5" Combo Bay |

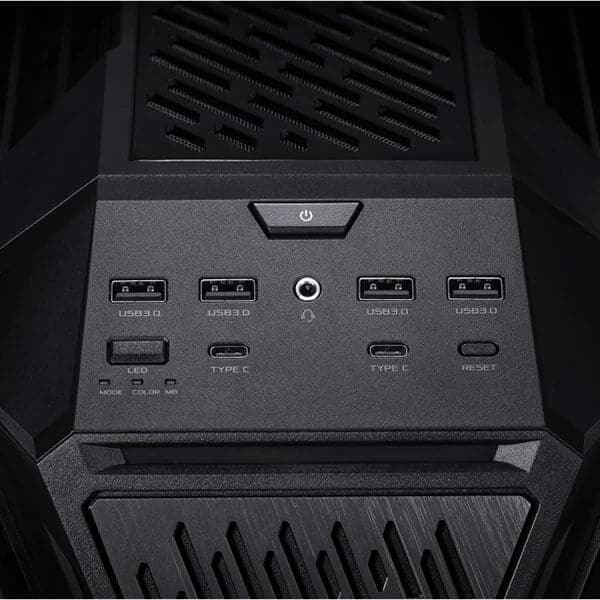

| Front I/O Port | 1 x headphone / Microphone4 x USB 3.2Gen11 x USB 3.2 Gen2 Type CLED Control ButtonReset Button1 x USB 4.0 Type C or 1 x USB 3.2 Gen 2×2 Type Cthis spec might vary by region |
| Tempered Glass | Left SideRight Side |
| Expansion Slots | 93 (additional vertical) |
| Maximum GPU Length | 460 mm |
| Maximum Psu Length | 240 mm |
| Motherboard Support | EATX (12"x10.9")ATXMicro-ATXMini-ITX |
| Cooling Support (Top) | 3 x 120 mm3 x 140 mm |
| Cooling Support (Rear) | 1 x 120 mm1 x 140 mm |
| Radiator Support (Top) | 120 mm140 mm240 mm280 mm360 mm420 mm |
| Removable Dust Filters | FrontTopBottom |
| Cooling Support (Front) | 3 x 120 mm3 x 140 mm |
| Radiator Support (Rear) | 120 mm140 mm |
| Radiator Support (Front) | 120 mm140 mm240 mm280 mm360 mm420 mm |
| Maximum CPU Cooler Height | 190 mm |
| Pre-Installed Fans (Rear) | 1 x 140 mmPWM |
| Pre-Installed Fans (Front) | 3 x 140 mmPWM |
| Maximum Cable Management Space | 34 mm |
