ASUS ROG Hyperion GR701 ARGB EATX Full Tower Cabinet (White)
MPN ROG-HYPERION-GR701-WHITE · Brand ASUS · ATX, E-ATX, mATX, Mini-ITX
The ASUS ROG Hyperion GR701 White is a premium E-ATX full tower case featuring dual 420 mm radiator support, four 140 mm PWM fans, a 60 W USB-C fast-charging front panel, and a die-cast aluminium frame with dual tempered-glass panels and Aura Sync ARGB lighting
Inclusive of GST · GST invoice available
Overview
The ASUS ROG Hyperion GR701 in White is a full-tower E-ATX chassis engineered for high-performance builds that demand extreme cooling headroom, premium aesthetics, and long-term expandability. Built around a die-cast aluminium alloy X-frame that doubles as carry handles rated for up to 80 kg, every surface communicates the Republic of Gamers identity – from the anodized metal and hairline finishes to the distinctive diamond-shaped ROG badge on the front panel. Cooling is a central strength of the GR701. Dual 420 mm radiator positions – front and top – can accommodate the largest all-in-one liquid coolers available, while an innovative mid-chassis vertical installation zone accepts radiators up to 360 mm, additional fans, 2.5-inch SSDs, a liquid-cooling distribution panel, or an ROG-themed ARGB lighting panel. Four pre-installed 140 mm PWM fans (three front, one rear) come pre-wired to a built-in fan and ARGB hub that supports up to six PWM fans and eight ARGB devices, with full Aura Sync compatibility for unified lighting control. Spacious internals mean even the longest multi-slot graphics cards fit with room to spare. The chassis accepts GPUs up to 460 mm long and 130 mm thick in both horizontal and vertical orientations, and a refined integrated two-way anodized aluminium GPU holder prevents sag without obscuring your build. CPU tower coolers up to 190 mm tall and PSUs up to 240 mm long are supported. The cable management chamber behind the motherboard tray runs 34 mm deep with a 46 mm wide routing channel secured by ROG-branded Velcro straps, while a translucent cable cover keeps wiring tidy under the dual tempered-glass side panels. Front I/O is generous: a combined headphone/microphone jack, four USB 3.2 Gen 1 Type-A ports, one USB 3.2 Gen 2 Type-C port, and one USB 4.0 Type-C (or USB 3.2 Gen 2×2 Type-C depending on region) that delivers up to 20 Gbps data transfer and 60 W of fast charging with a compatible motherboard. Removable dust filters cover the front, top, and bottom intakes to simplify maintenance. Verified Specifications: • Form factor: Full Tower | Motherboard support: E-ATX (12″×10.9″), ATX, Micro-ATX, Mini-ITX • Dimensions: 268 × 639 × 659 mm | Weight: 20.8 kg • Pre-installed fans: 3 × 140 mm PWM (front) + 1 × 140 mm PWM (rear) • Radiator support – Front & Top: up to 420 mm; Rear: up to 140 mm • Max GPU length: 460 mm | Max CPU cooler height: 190 mm | Max PSU length: 240 mm • Expansion slots: 9 standard + 3 additional vertical • Drive bays: 5 × 2.5″ + 2 × 2.5″/3.5″ combo • Front I/O: 4 × USB 3.2 Gen 1, 1 × USB 3.2 Gen 2 Type-C, 1 × USB 4.0 / USB 3.2 Gen 2×2 Type-C, combo audio • Fan/ARGB hub: up to 6 PWM fans + 8 ARGB devices, Aura Sync compatible • Tempered glass: left and right side panels | Dust filters: front, top, bottom • Cable management depth: 34 mm | Cable routing channel: 46 mm wide • Warranty: 2 Years

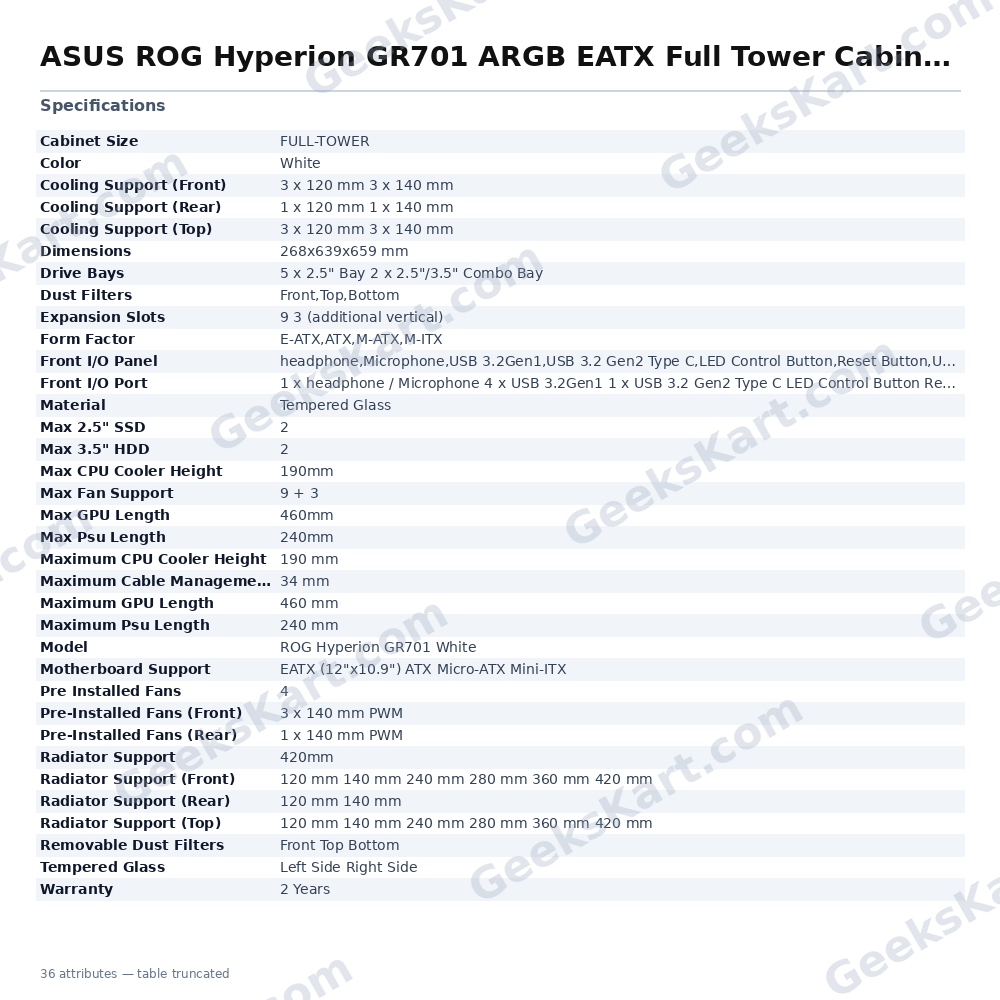

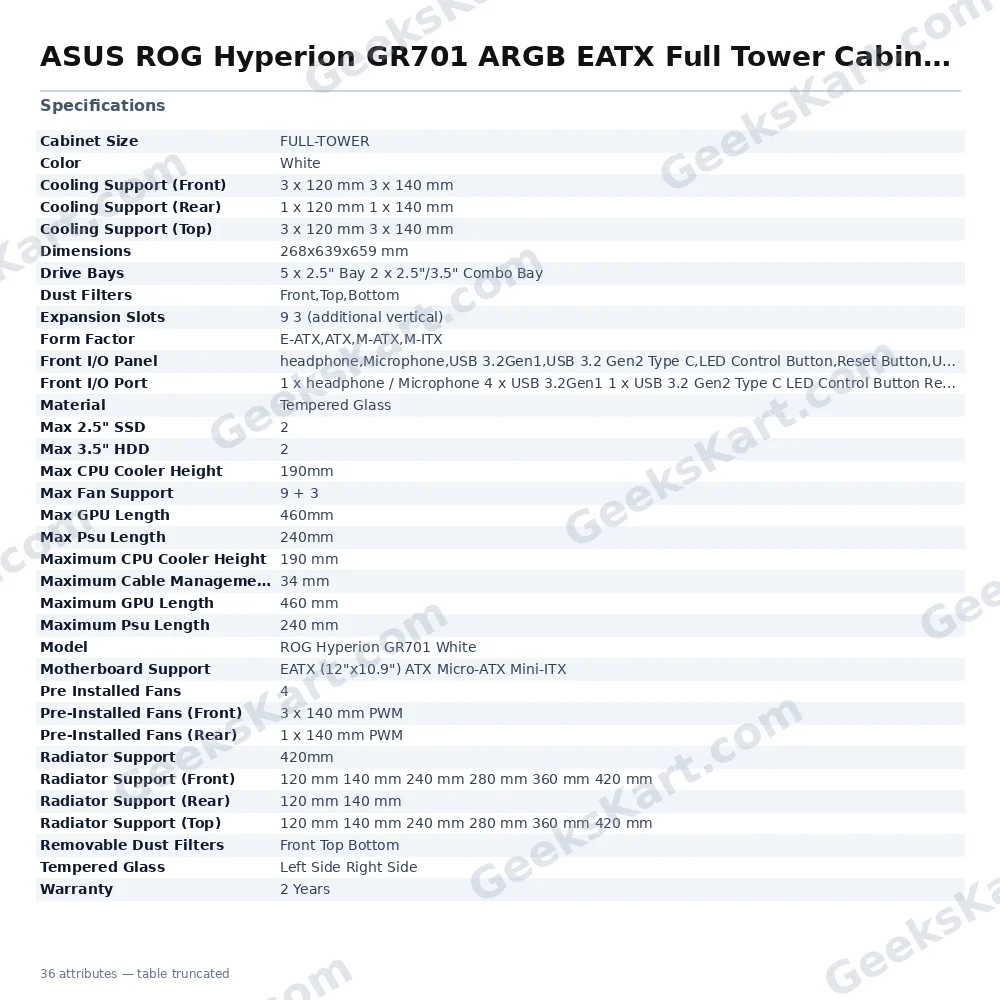

Datasheet
| Warranty | 2 Years |
|---|---|
| Form Factor | ATX, E-ATX, mATX, Mini-ITX |
| color | White |
| Model | ROG Hyperion GR701 White |
| Weight | 20.8 Kg |
| Material | Tempered Glass |
| Dimensions | 268x639x659 mm |
| Drive Bays | 5 x 2.5" Bay 2 x 2.5"/3.5" Combo Bay |
| Cabinet Size | FULL-TOWER |
| Dust Filters | Front,Top,Bottom |
| Max 2.5" SSD | 2 |
| Max 3.5" HDD | 2 |
| Front I/O Port | 1 x headphone / Microphone 4 x USB 3.2Gen1 1 x USB 3.2 Gen2 Type C LED Control Button Reset Button 1 x USB 4.0 Type C or 1 x USB 3.2 Gen 2×2 Type C this spec might vary by region |
| Max GPU Length | 460mm |
| Max Psu Length | 240mm |
| Tempered Glass | Left Side Right Side |
| Expansion Slots | 9 3 (additional vertical) |
| Front I/O Panel | headphone,Microphone,USB 3.2Gen1,USB 3.2 Gen2 Type C,LED Control Button,Reset Button,USB 4.0 Type C,USB 3.2 Gen 2×2 Type C |
| Max Fan Support | 9 + 3 |
| Radiator Support | 420mm |
| Maximum GPU Length | 460 mm |
| Maximum Psu Length | 240 mm |
| Pre Installed Fans | 4 |
| Motherboard Support | EATX (12"x10.9") ATX Micro-ATX Mini-ITX |
| Cooling Support (Top) | 3 x 120 mm 3 x 140 mm |
| Max CPU Cooler Height | 190mm |
| Cooling Support (Rear) | 1 x 120 mm 1 x 140 mm |
| Radiator Support (Top) | 120 mm 140 mm 240 mm 280 mm 360 mm 420 mm |
| Removable Dust Filters | Front Top Bottom |
| Cooling Support (Front) | 3 x 120 mm 3 x 140 mm |
| Radiator Support (Rear) | 120 mm 140 mm |
| Radiator Support (Front) | 120 mm 140 mm 240 mm 280 mm 360 mm 420 mm |
| Maximum CPU Cooler Height | 190 mm |
| Pre-Installed Fans (Rear) | 1 x 140 mm PWM |
| Pre-Installed Fans (Front) | 3 x 140 mm PWM |
| Maximum Cable Management Space | 34 mm |
