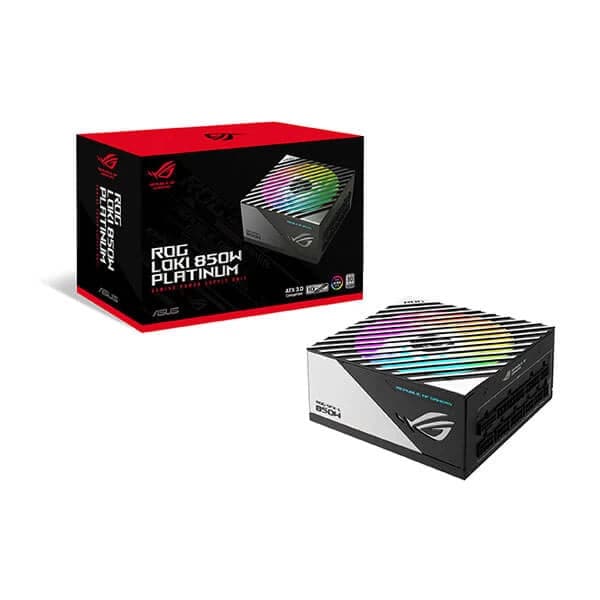

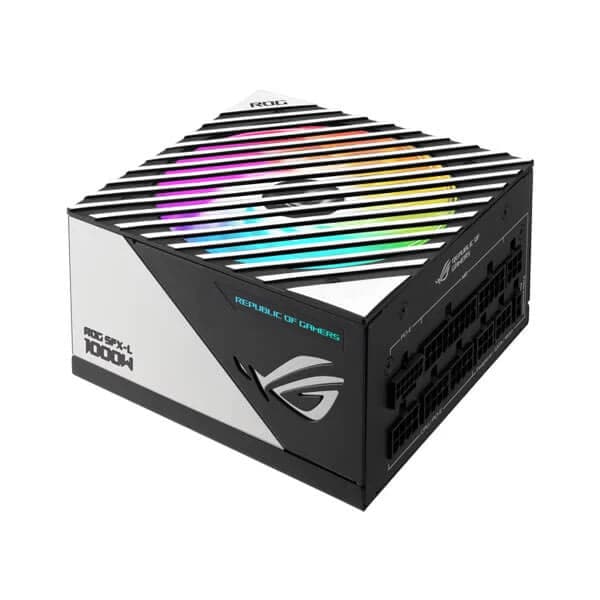

Features of ASUS ROG Loki SFX-L 850W
The Quietest SFX-L PSU
Taking after the ROG Thor, the Asus Power Supply brandishes the same enthusiast-grade components and features, all packed into an SFX-L form factor. Boasting quiet operation and high performance, the Loki is primed to power your next SFF build.
- Axial-Tech Cooling 120mm fan with PWM control for low noise and thermals kept in check

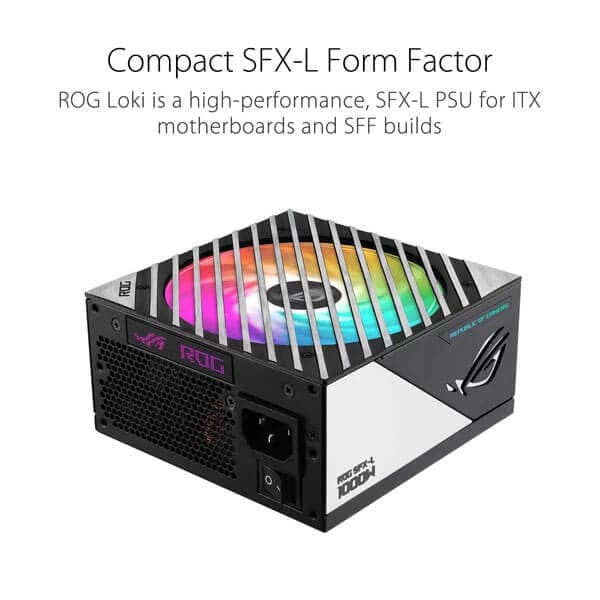

- Compact Form Factor SFX-L: 125 x 125 x 63.5 mm
- PCIe Gen 5.0 Ready 16-pin cable included to pipe up to 600W power to PCIe 5.0 graphics cards
- Future Ready Tighter voltage and current regulation
- Lambda A Certification Certified low noise levels, below 25 dB
- 80 PLUS Platinum Certified Up to 92% efficient for low heat and noise, and increased reliability
- ARGB-Illuminated Fan & Aura Sync Ready to synchronize lighting effects across your gaming setup
ROG Heatsinks
Cool under pressure
ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.

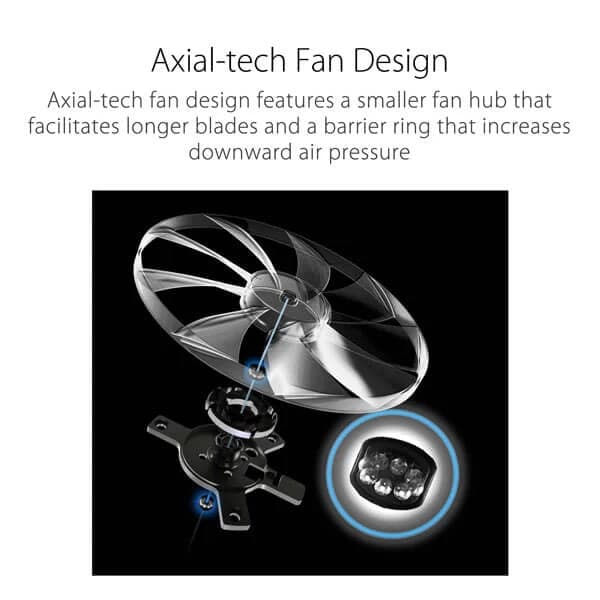

Axial-tech Fan Design
Better, faster, stronger
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For ROG Loki PSUs, we’ve scaled that design to 120mm so it keeps things cool at low RPMs while producing less noise.
Dual Ball Fan Bearings
2x longer lifespan
The fan impeller spins on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.
0dB Technology
Quiet intelligence
To reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 40% or below.
Lambda A Certification
Quietly deviant
On average, ROG Loki emits less than 25 dB of noise – earning a coveted Cybenetics Lambda A certification.

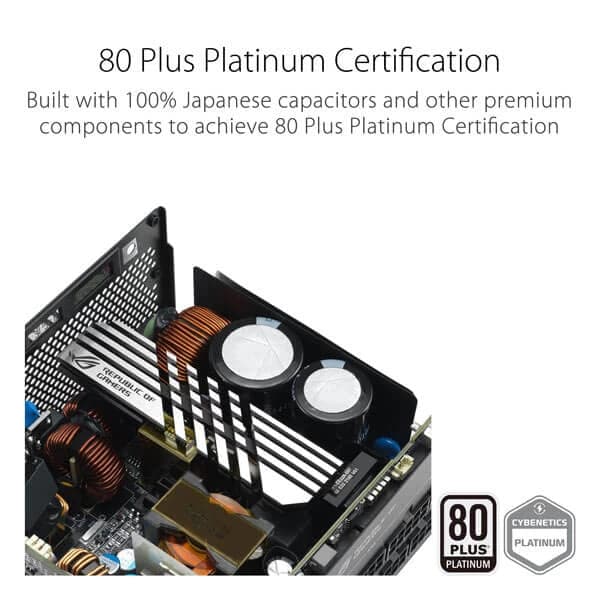

80 PLUS Platinum Certified
Effortless output
Low-ESR Japanese capacitors further improve efficiency and reduce heat, readying ROG Loki to reliably fuel your build for years to come.

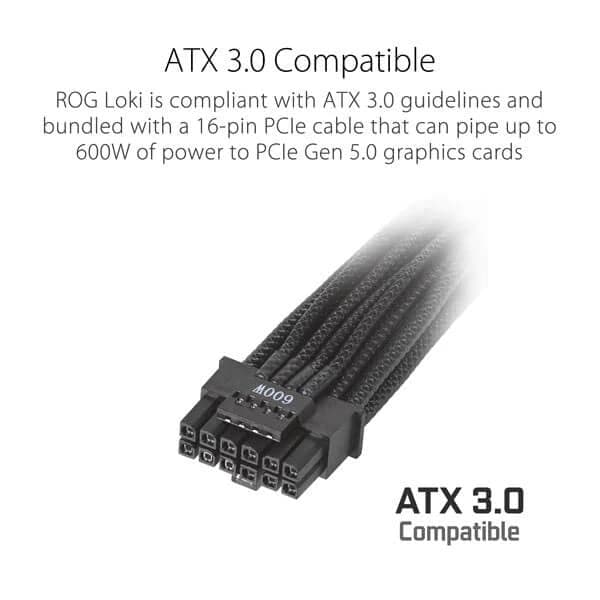

ATX 3.0 Compatible
Step into the future
The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware – and ROG Loki steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities to SFF rigs.

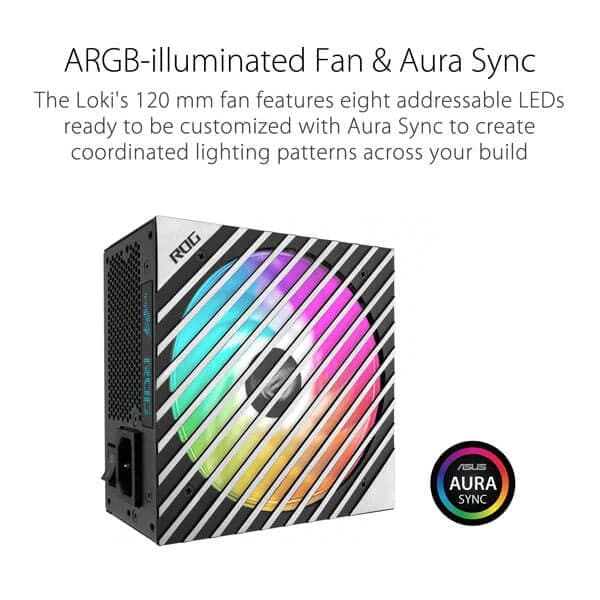

ARGB-illuminated Fan & Aura Sync
Magical glow
The Loki’s 120 mm fan features eight addressable LEDs ready to be customized with Aura Sync to create coordinated lighting patterns across your build.
10-Year Warranty
A decade of power
We’re so confident about the reliability of the ROG Loki SFX-L 850W Power Supply that we back it with a 10-year worldwide warranty.
Get the best 80 Plus Platinum psu power supply price from us today!
Specifications of ASUS ROG Loki SFX-L 850W
| Model | ROG LOKI SFX-L 850W Platinum |
| Intel Form Factor | SFX-L |
| ATX 3.0 | Yes |
| Dimensions | 125 x 125 x 63.5 mm |
| Efficiency | 80Plus Platinum |
| Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
| Hazardous Materials | ROHS |
| AC Input Range | 100-240Vac |
| DC Output Voltage | #ERROR! |
| Maximum Load | 20A 20A 83.3A 0.8A 2.5A |
| Combined Load | 110W 110W 1000W 9.6W 12.5W |
| Total Output | 850W |
| Connectors | MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 PCI-E 8-pin x 3 SATA x 6 PERIPHERAL x 4 |

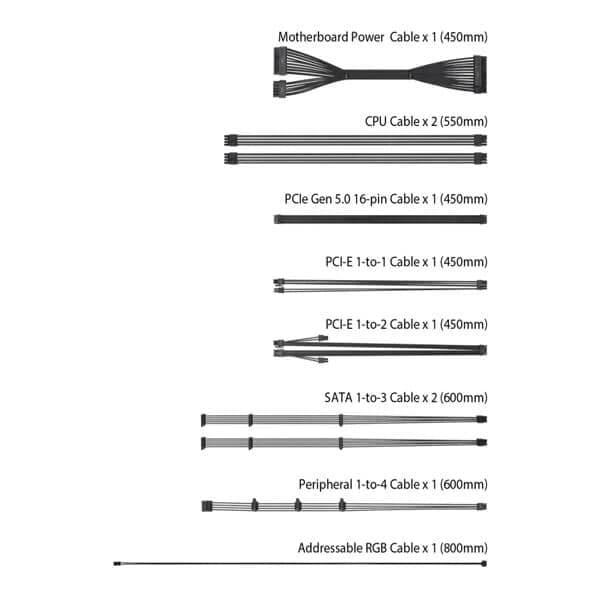

| Package Contents |
Power Cord x 1
Motherboard Power Cable x 1 (450mm) CPU Cable x 2 (550mm) PCI-E Gen 5 16-pin Cable x 1 (450mm) PCI-E 1-to-1 Cable x 1 (450mm) PCI-E 1-to-2 Cable x 1 (450mm) SATA 1-to-3 Cable x 2 (300+200+100mm) Peripheral 1-to-4 Cable x 1 (300+100+100+100mm) Addressable RGB Cable x 1 (800mm) User Manual x 1 ATX to SFX adapter bracket x 1 |
| Weight | 1.815kg (single PSU) |
| AURA SYNC | ARGB |
| 0dB Fan Button | No |
| Cybenetics Noise Level Certification | A |
| Warranty | 10 Years |
| Note |
*** Features, Price, Specifications are subject to change without notice.
|
