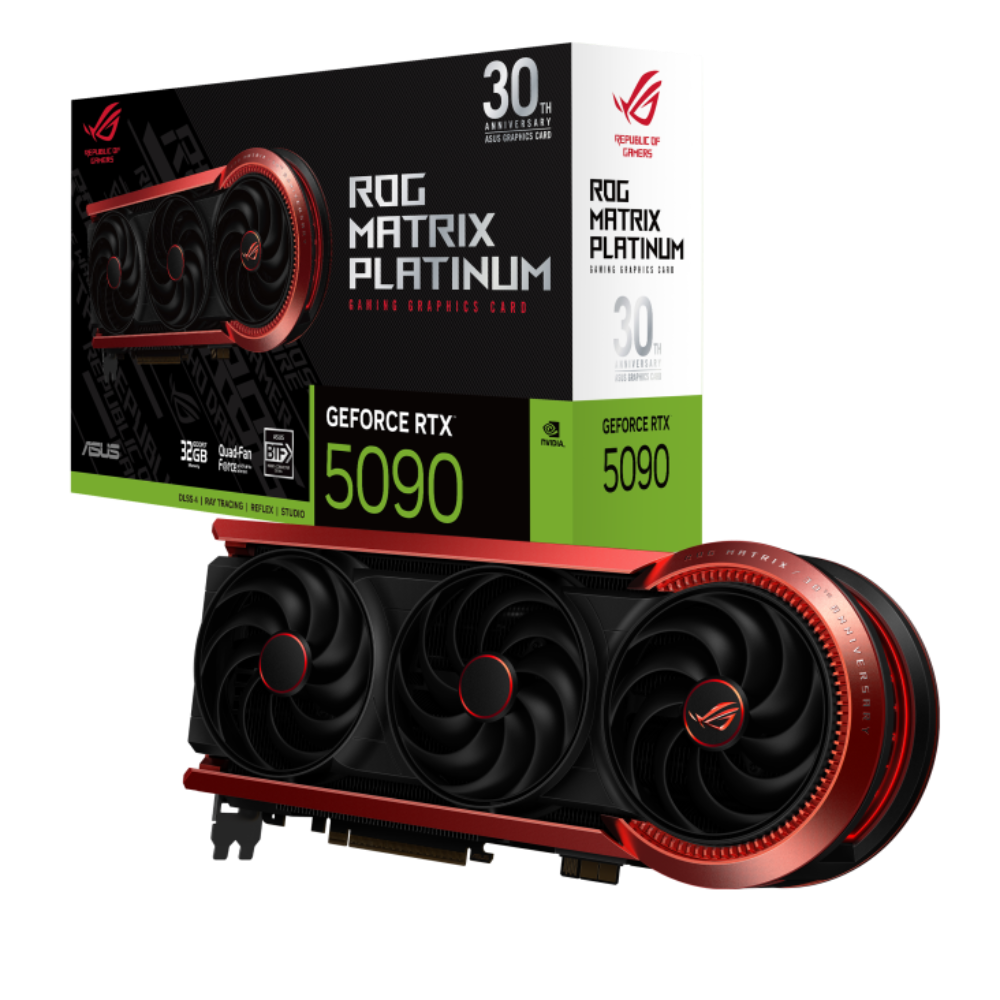

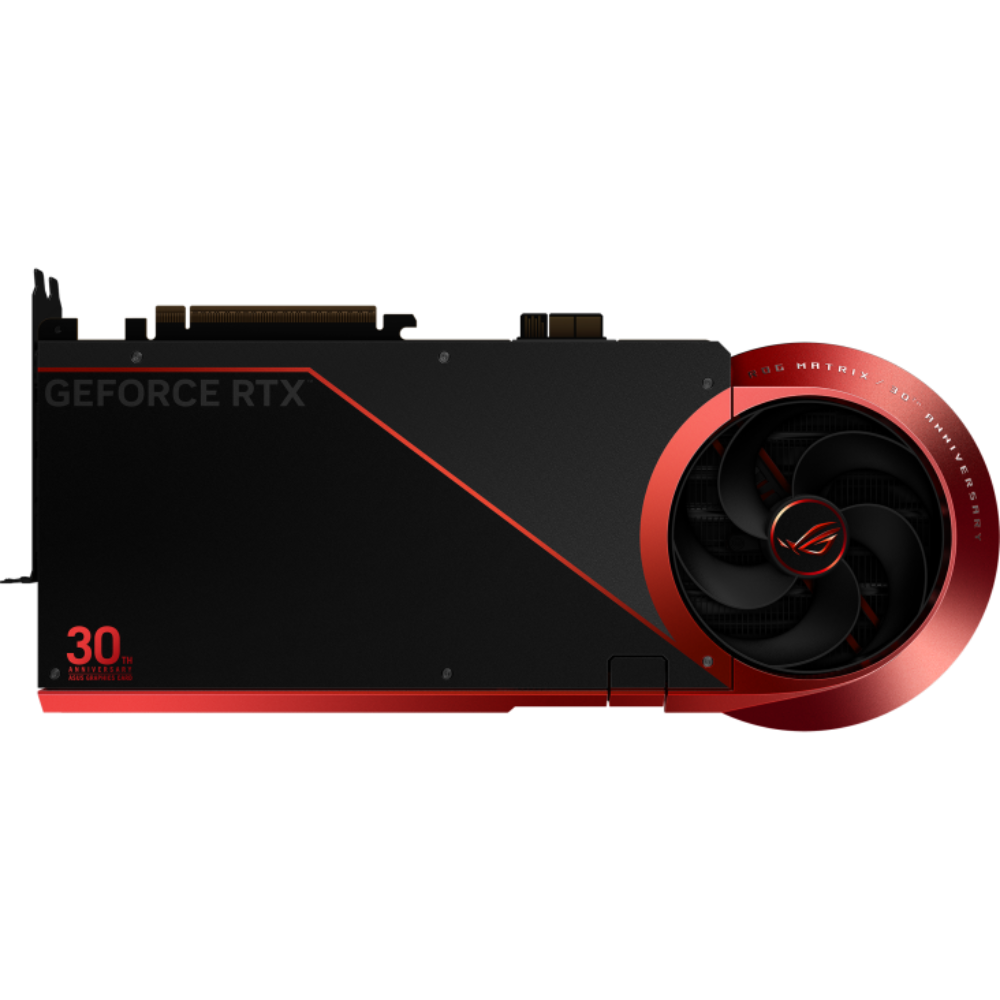

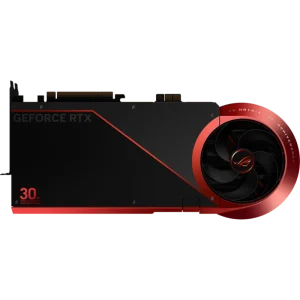

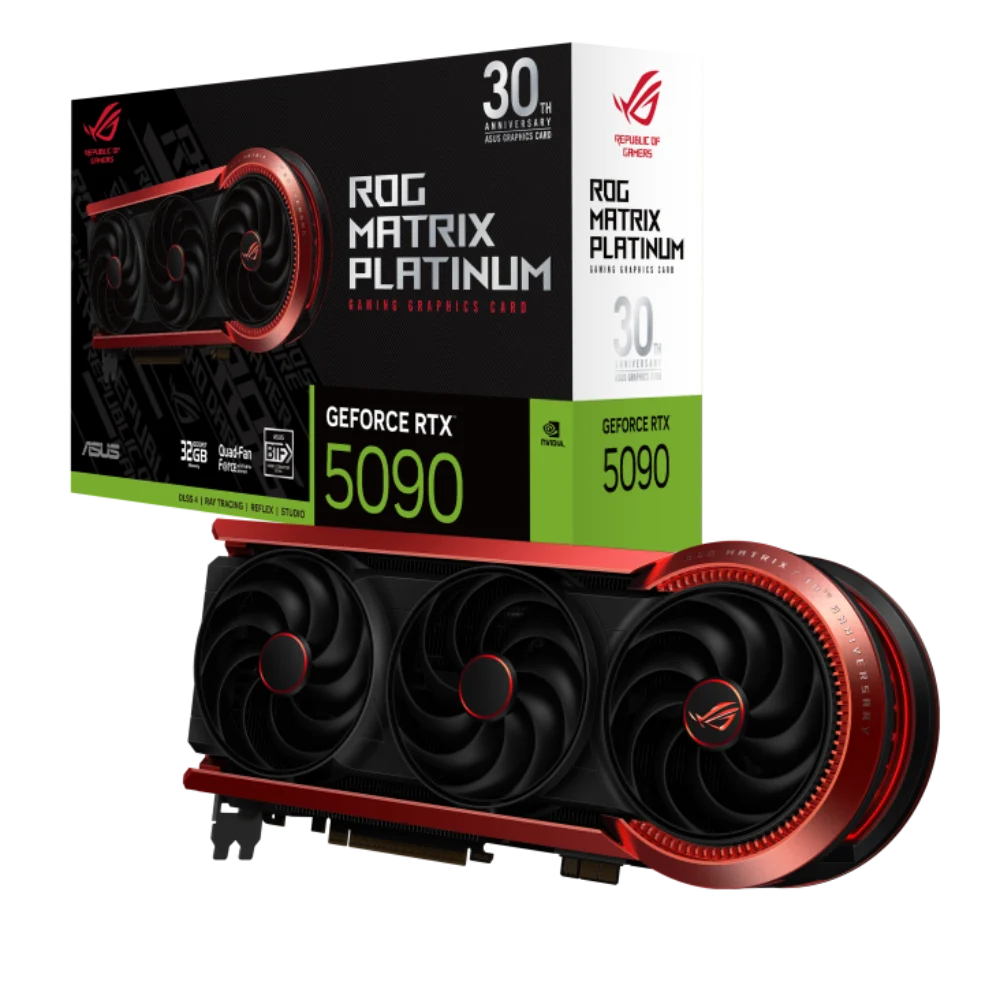

Features of ASUS ROG Matrix Platinum Geforce RTX 5090 32GB 30th Anniversary Edition NVIDIA Graphic Card
Celebrating three decades of ASUS innovation, the ROG Matrix GeForce RTX 5090 graphics card delivers unmatched gaming and thermal performance. When paired with an advanced BTF motherboard and a 12V-2×6 power supply connection, this ROG Matrix GeForce RTX 5090 can draw up to 800 watts and achieve 10% higher performance. The card features a quad-fan design, a copper vapor chamber, liquid metal thermal compound, a 3-ounce copper PCB for efficient GPU cooling and higher boost clocks, plus Memory Defroster for extreme LN2 overclocking. Combining legacy with cutting-edge technology, this card stakes its claim for GPU supremacy.
Quad-Fan Force
20% more airflow and pressure and 10% better thermal performance
Vapor Chamber and Heatpipes
Boost heat dissipation, lowering GPU temperatures by over 5%.
Memory Defroster
LN2 overclocking aided by enhanced VRAM freeze recovery
Dual Power Input
Featuring a groundbreaking dual-power input design, the ROG Matrix RTX 5090 can draw up to 800 watts when connected to both an advanced BTF motherboard via the BTF Graphics Card High-Power Adapter and directly to a power supply via a 12V-2×6 cable. This innovative approach unleashes the card’s full potential, providing up to 10% more headroom for the most demanding gaming and overclocking pursuits.
Ultimate Cooling
The ROG Matrix GeForce RTX 5090 conquers heat with its ultimate cooling features, including quad fans for maximum airflow, a vapor chamber for rapid heat transfer, and liquid metal for superior GPU thermal conductivity. This potent combination ensures exceptional thermal performance, empowering the card to achieve the highest clock speeds and unwavering stability for an unparalleled gaming experience

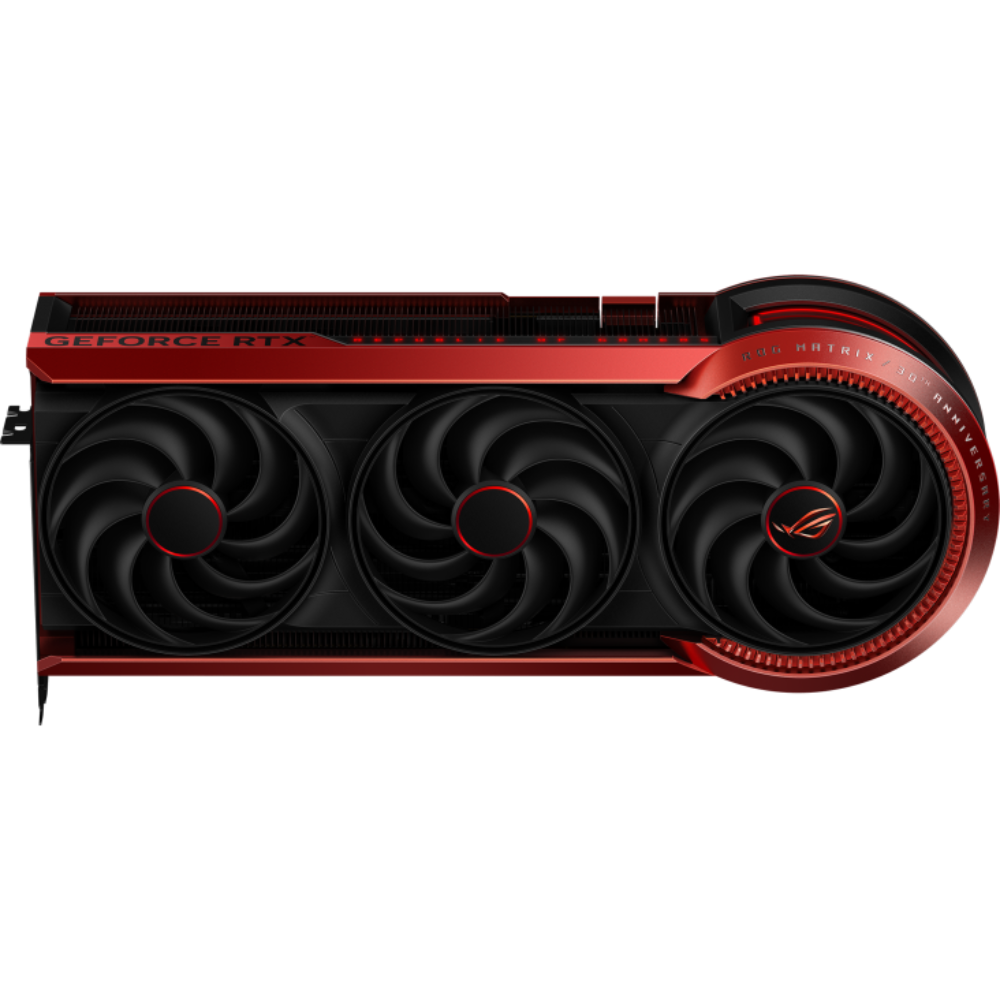

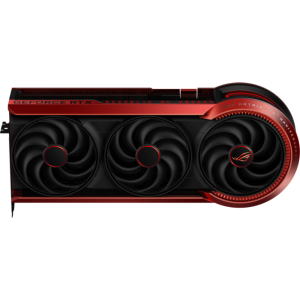

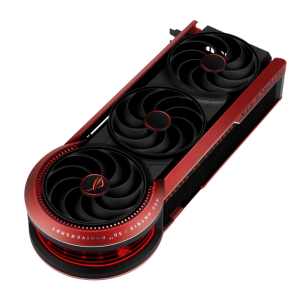

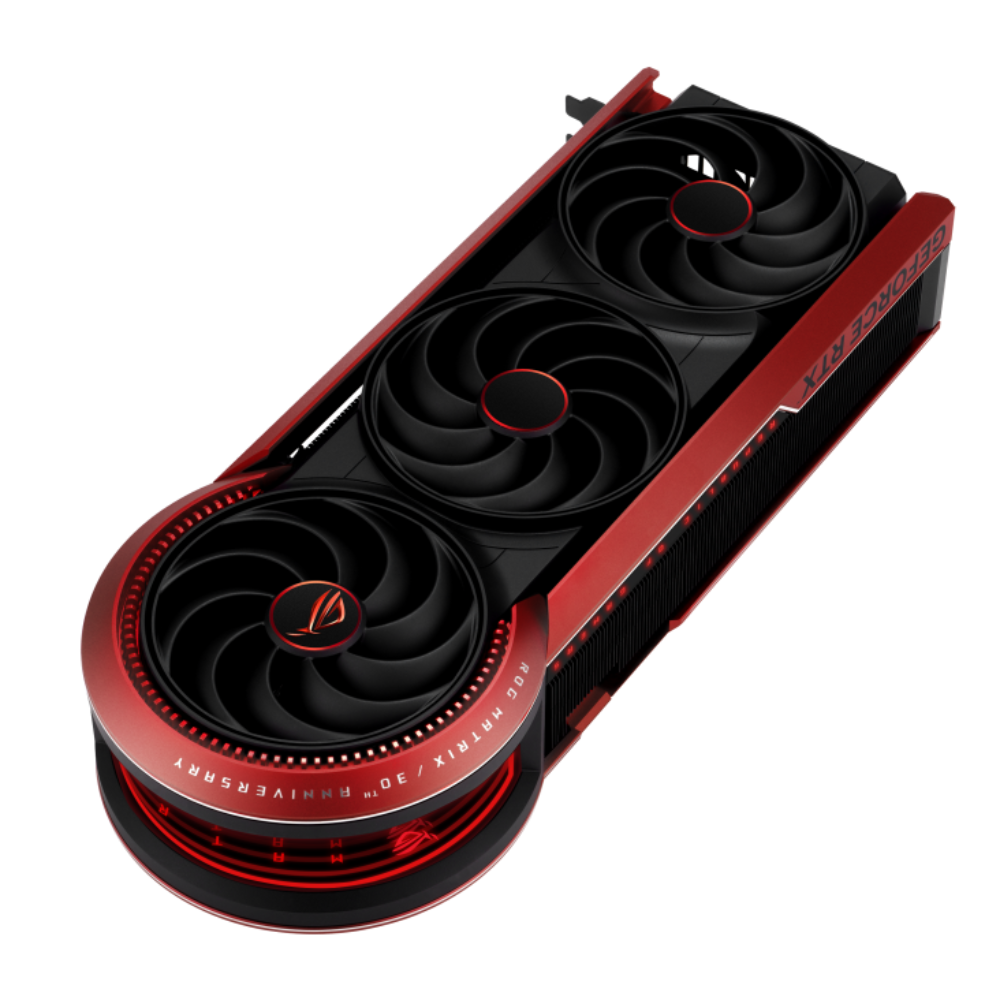

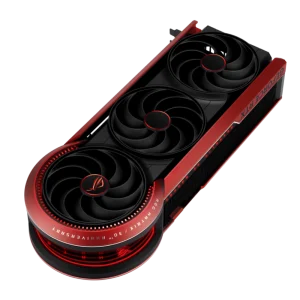

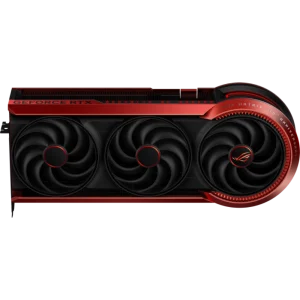

Quad-Fan Force
Four-fan design creates a powerful vertical airflow channel that boosts air pressure by up to 20%. This results in an overall 10% better thermal performance that dramatically lowers GPU temperatures and minimizes hotspots.

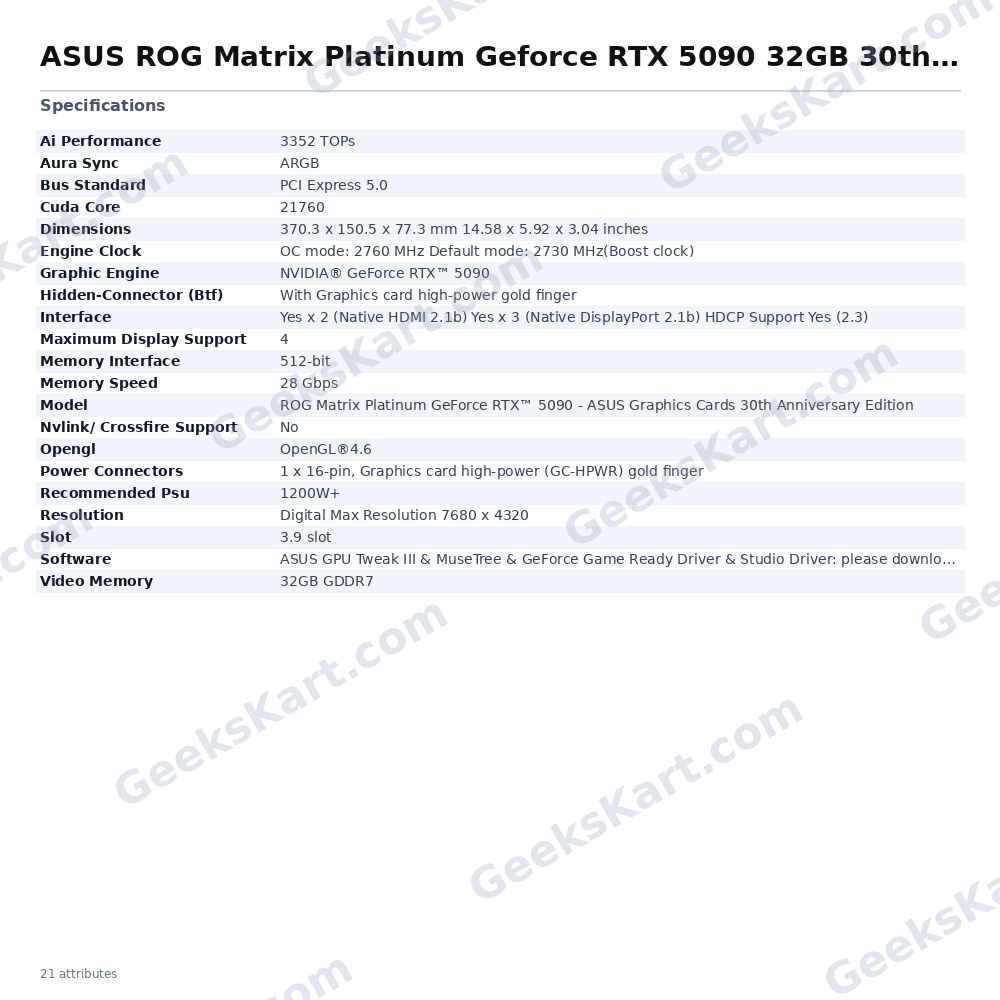

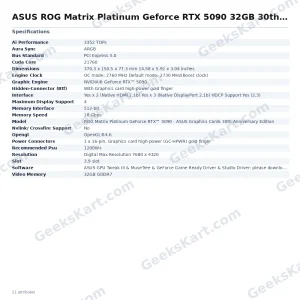

Specification of ASUS ROG Matrix Platinum Geforce RTX 5090 32GB 30th Anniversary Edition NVIDIA Graphic Card
| Model | ROG Matrix Platinum GeForce RTX™ 5090 – ASUS Graphics Cards 30th Anniversary Edition |
| Graphic Engine | NVIDIA® GeForce RTX™ 5090 |
| AI Performance | 3352 TOPs |
| Bus Standard | PCI Express 5.0 |
| OpenGL | OpenGL®4.6 |
| Video Memory | 32GB GDDR7 |
| Engine Clock | OC mode: 2760 MHz Default mode: 2730 MHz(Boost clock) |
| CUDA Core | 21760 |
| Memory Speed | 28 Gbps |
| Memory Interface | 512-bit |
| Resolution | Digital Max Resolution 7680 x 4320 |

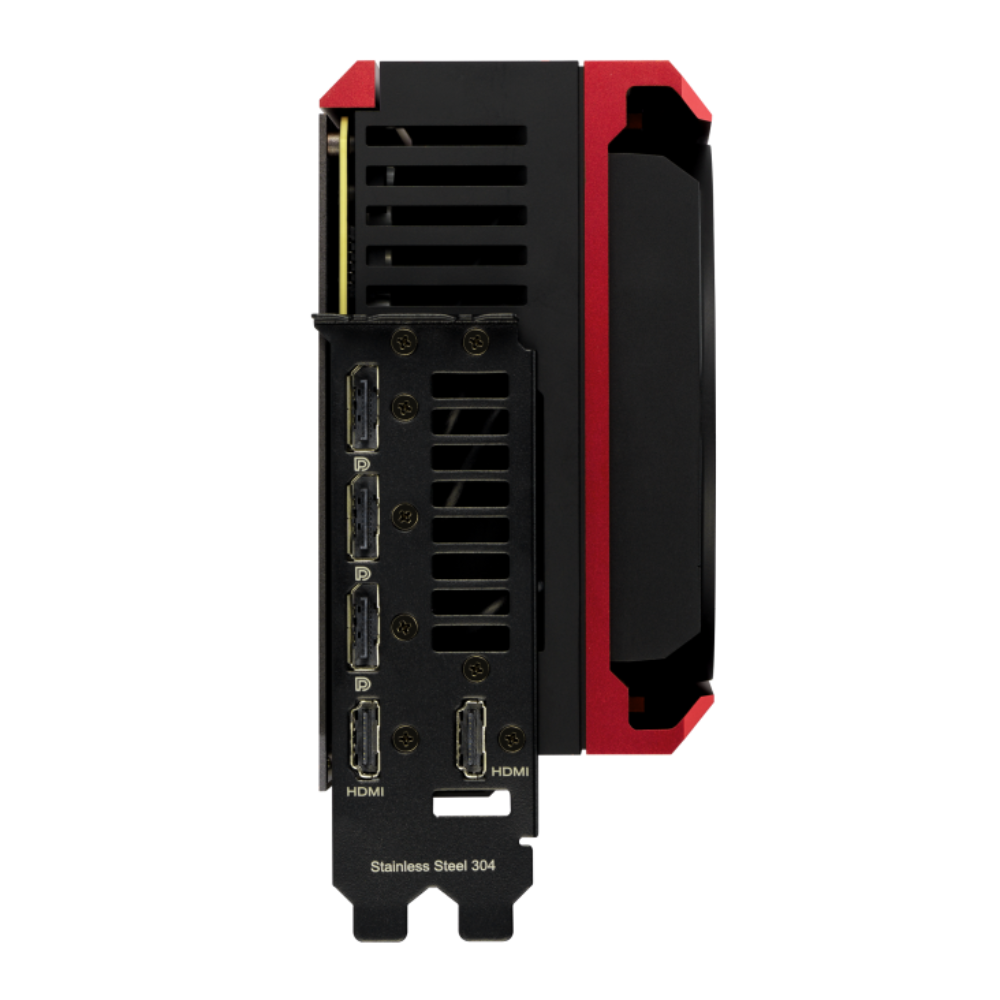

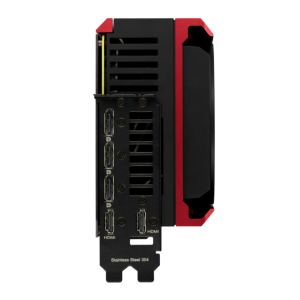

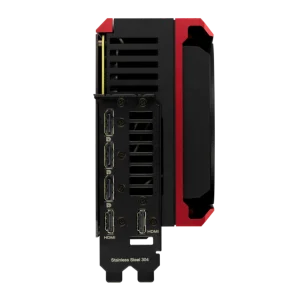

| Interface | Yes x 2 (Native HDMI 2.1b) Yes x 3 (Native DisplayPort 2.1b) HDCP Support Yes (2.3) |
| Maximum Display Support | 4 |
| NVlink/ Crossfire Support | No |
| Software | ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. |
| Dimensions | 370.3 x 150.5 x 77.3 mm 14.58 x 5.92 x 3.04 inches |
| Recommended PSU | 1200W+ |
| Power Connectors | 1 x 16-pin, Graphics card high-power (GC-HPWR) gold finger |
| Slot | 3.9 slot |
| AURA SYNC | ARGB |
| Hidden-connector (BTF) | With Graphics card high-power gold finger |
