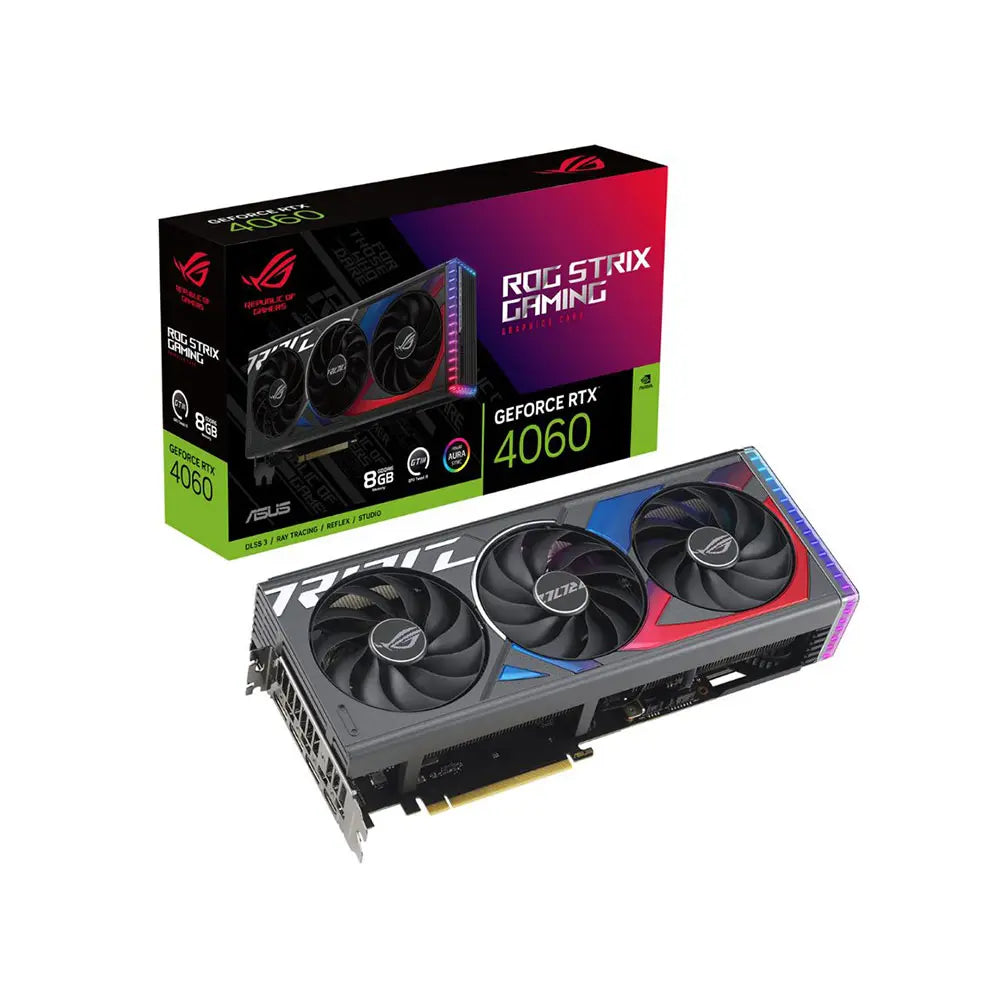

ASUS Rog Strix GeForce RTX 4060 8GB Nvidia Graphic Card
MPN ASUS-ROG-STRIX-RTX-4060-8GB · Brand ASUS
Features of ASUS Rog Strix GeForce RTX 4060 8GB Nvidia Graphic Card ROG Strix GeForce RTX™ 4060 8GB GDDR6 with DLSS 3 and chart-topping thermal performance AI Performance: 242 AI TOPS NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2X performance and power efficiency 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering 3rd Generation RT Cores: Up to 2x ray tracing performance Axial-tech fan d esign features a smaller fan hub to increase airflow through the
Inclusive of GST · GST invoice available
Overview
Features of ASUS Rog Strix GeForce RTX 4060 8GB Nvidia Graphic Card
ROG Strix GeForce RTX™ 4060 8GB GDDR6 with DLSS 3 and chart-topping thermal performance
- AI Performance: 242 AI TOPS
- NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2X performance and power efficiency
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2x ray tracing performance

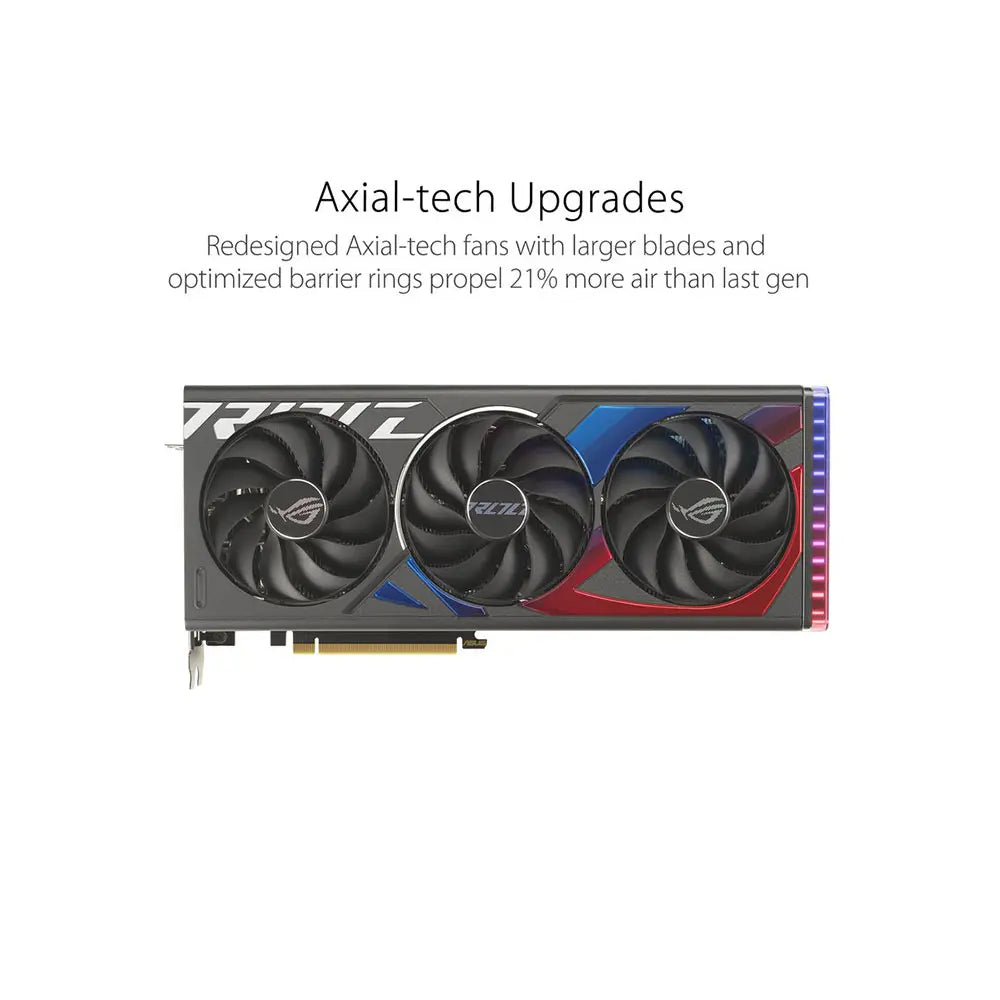

- Axial-tech fan design features a smaller fan hub to increase airflow through the cooling array.
- 3.1-slot design: massive fin array optimized for airflow from the three Axial-tech fans.

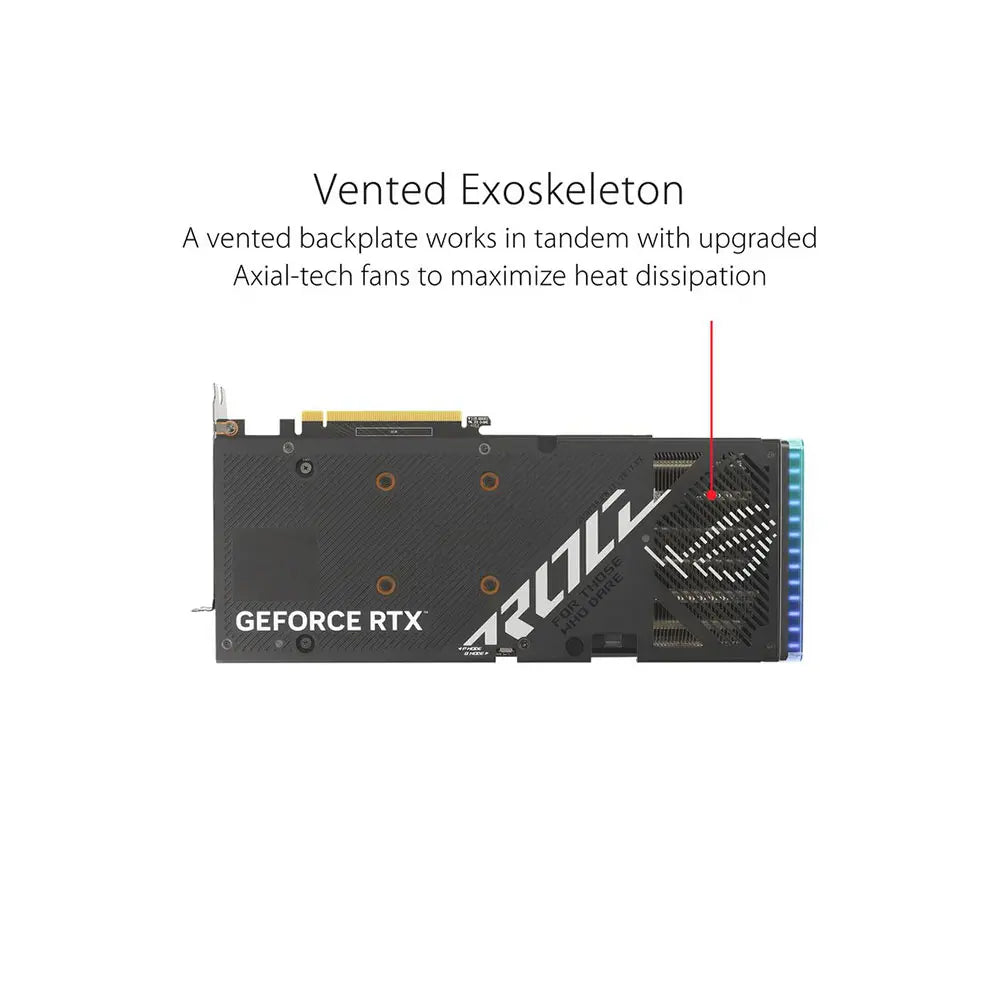

- Vented backplate works in tandem with upgraded Axial-tech fans to maximize heat dissipation
- Digital power control with high-current power stages and 15K capacitors to fuel maximum performance
- Auto-Extreme precision automated manufacturing for higher reliability
- GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring
Specifications of ASUS Rog Strix GeForce RTX 4060 8GB Nvidia Graphic Card
| Model No | 90YV0JB1-M0AA00 |
| Model Name | ROG-STRIX-RTX4060-8G-GAMING |
| Graphics Engine | NVIDIA GeForce RTX™ 4060 |
| CUDA cores | 3072 |
| OpenGL® | OpenGL® 4.6 |
| Engine Clock | OC Mode: 2700 MHz Default Mode: 2670 MHz (Boost) |
| Memory Interface | 128-bit |
| Video Memory | 8GB GDDR6 |
| Memory Clock | 17 Gbps |
| Power Connector | 1x 8 pin |

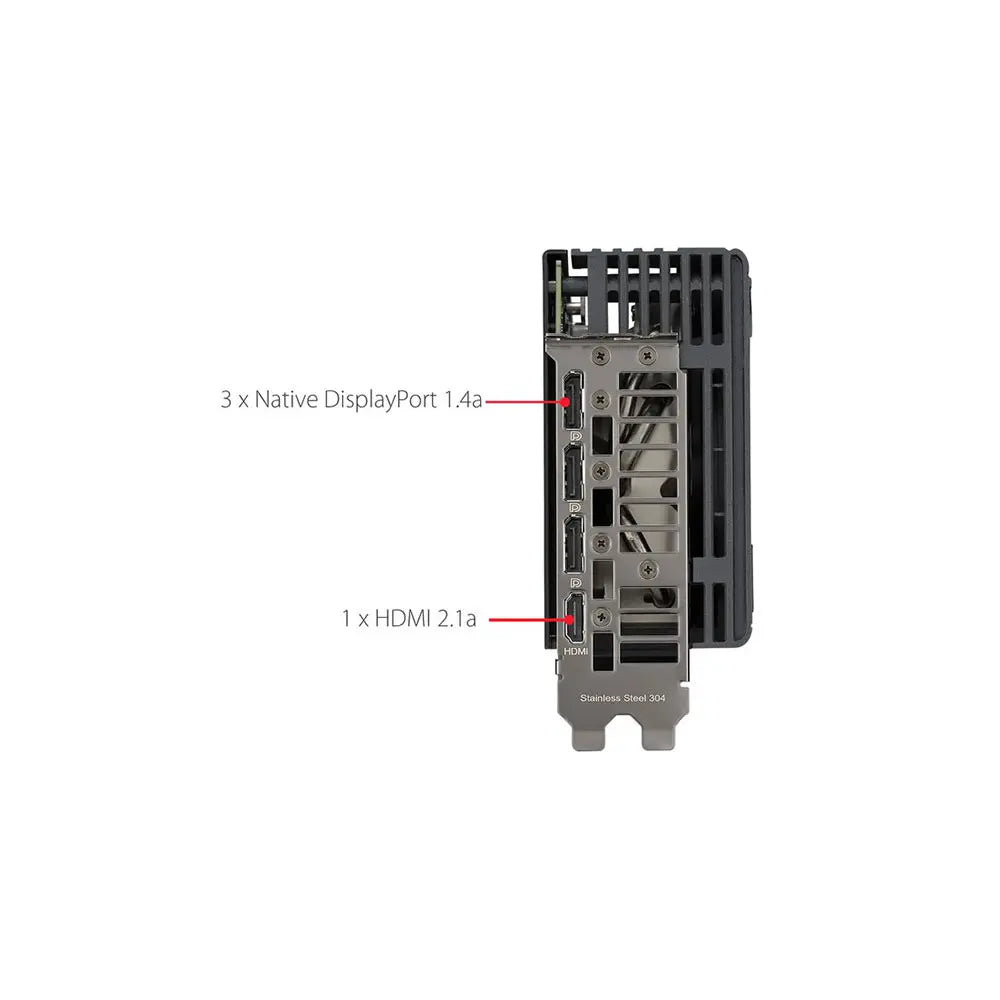

| I/O | 1 x Native HDMI 2.1a 3 x Native DisplayPort 1.4a |
| HDCP Compliant | HDCP 2.3 |
| Digital Max. Resolution | 7680 x 4320 |
| Maximum Display Support | 4 |
| NVLink/Crossfire Support | NA |
| Recommended PSU | 550W |
| Bus Standard | PCIE 4.0 |
| Package Contents | 1 x Collection Card 1 x Speedsetup Manual 1 x ROG Velcro Hook & Loop 1 x Thank you Card |
| Software Bundled | ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver (Please download all software from the support site.) |
| Slot | 3.1-slot |
| Dimension | |
| Card Size (mm/inch) | 311.4 x 133.5 x 61.9mm 12.26 x 5.26 x 2.44 inches |
| Color Box (mm) | 427 x 227 x 88 mm |
| Weight | |
| Single Card (KG) | 1.065 |
| Product Weight (with packing) (KG) |
1.808 |
| Warranty | 3 Years |
| Notes | **Prices, Specifications & Features are subject to change without notice |

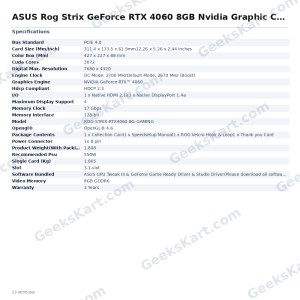

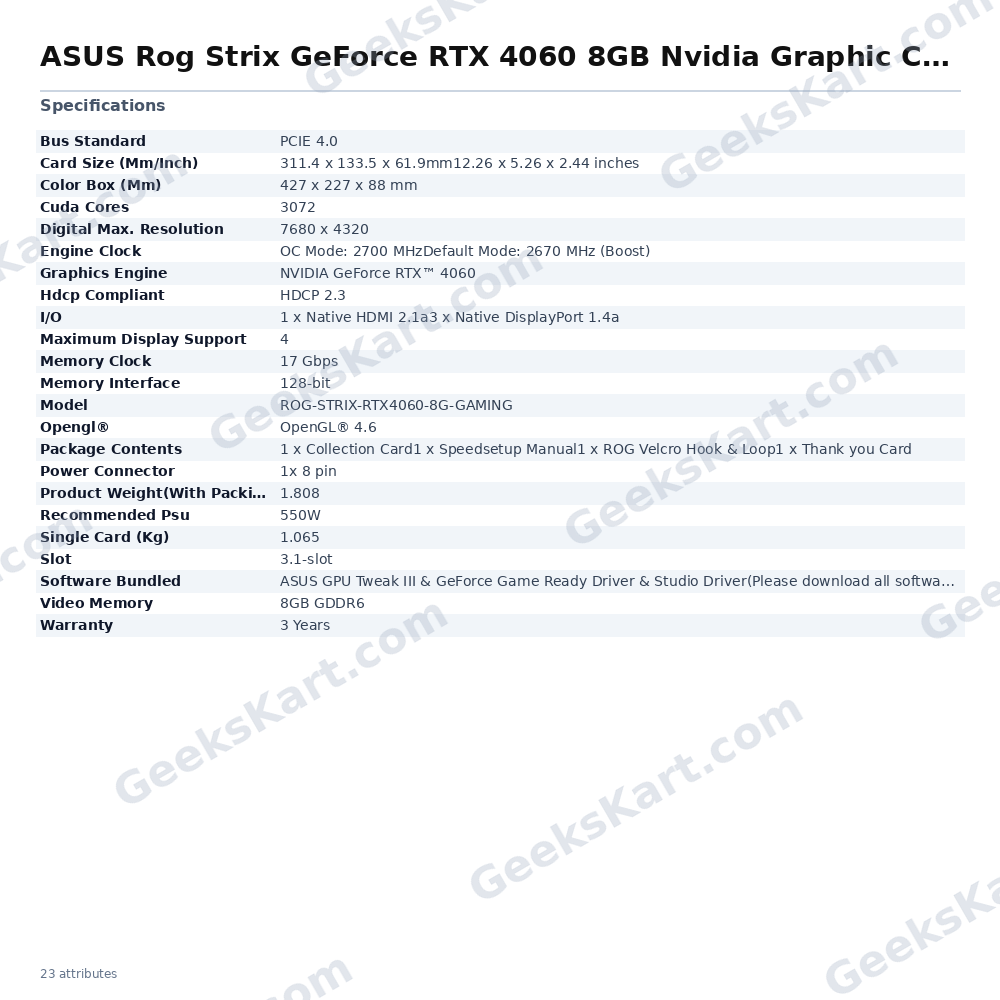

Datasheet
| Warranty | 3 Years |
|---|---|
| Memory Clock | 17 Gbps |
| Recommended PSU | 550W |
| I/O | 1 x Native HDMI 2.1a3 x Native DisplayPort 1.4a |
| Slot | 3.1-slot |
| Model | ROG-STRIX-RTX4060-8G-GAMING |
| Opengl® | OpenGL® 4.6 |
| Cuda Cores | 3072 |
| Bus Standard | PCIE 4.0 |
| Engine Clock | OC Mode: 2700 MHzDefault Mode: 2670 MHz (Boost) |
| Video Memory | 8GB GDDR6 |
| Color Box (Mm) | 427 x 227 x 88 mm |
| Hdcp Compliant | HDCP 2.3 |
| Graphics Engine | NVIDIA GeForce RTX™ 4060 |
| Power Connector | 1x 8 pin |
| Memory Interface | 128-bit |
| Package Contents | 1 x Collection Card1 x Speedsetup Manual1 x ROG Velcro Hook & Loop1 x Thank you Card |
| Single Card (Kg) | 1.065 |
| Software Bundled | ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver(Please download all software from the support site.) |
| Card Size (Mm/Inch) | 311.4 x 133.5 x 61.9mm12.26 x 5.26 x 2.44 inches |
| Digital Max. Resolution | 7680 x 4320 |
| Maximum Display Support | 4 |
| Product Weight(With Packing) (Kg) | 1.808 |
