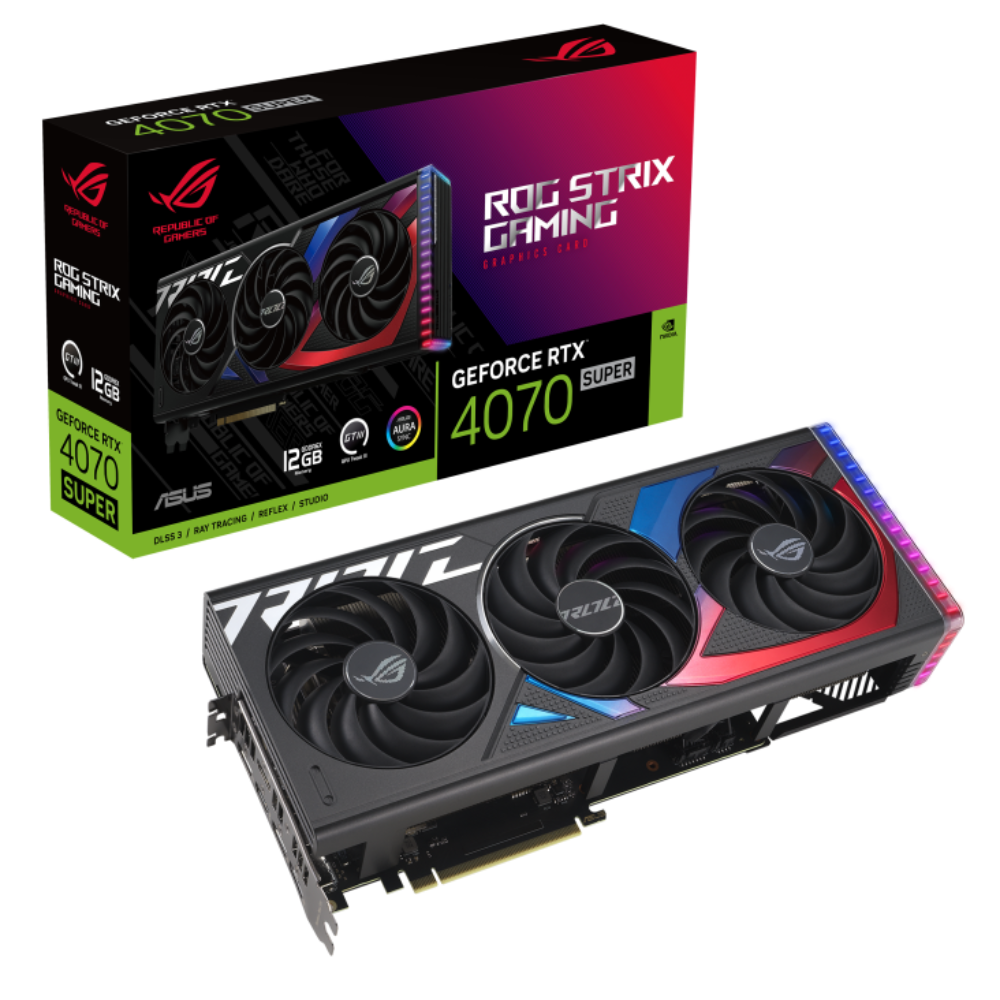

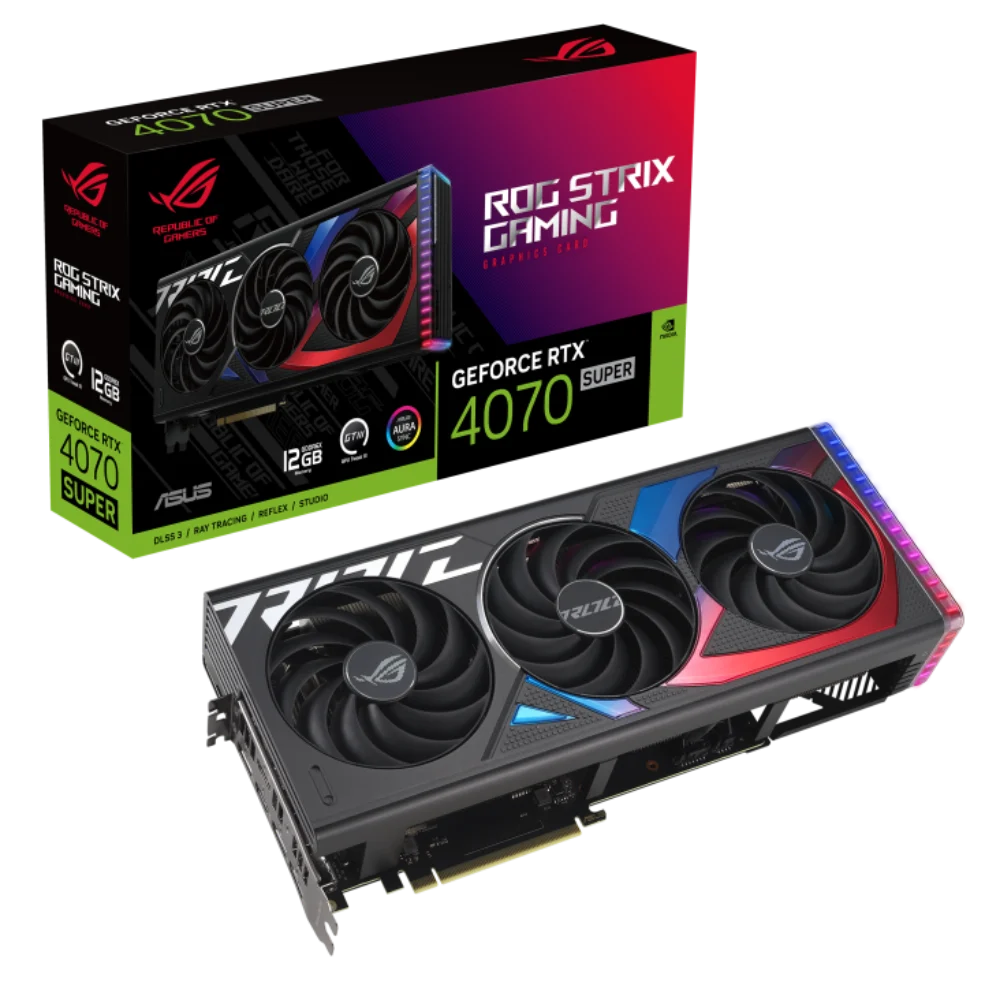

Features of ASUS ROG Strix GeForce RTX 4070 Super 12GB NVIDIA Graphic Card
- AI Performance: 568 AI TOPS
- Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2x ray tracing performance
- Axial-tech fans scaled up for 31% more airflow
- 3.12-slot design: massive fin array optimized for airflow from the three Axial-tech fans
- Diecast shroud, frame, and backplate add rigidity and are vented to further maximize airflow and heat dissipation
- Digital power control with high-current power stages and 15K capacitors to fuel maximum performance
- Auto-Extreme precision automated manufacturing for higher reliability
- GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring
A Fresh Spin

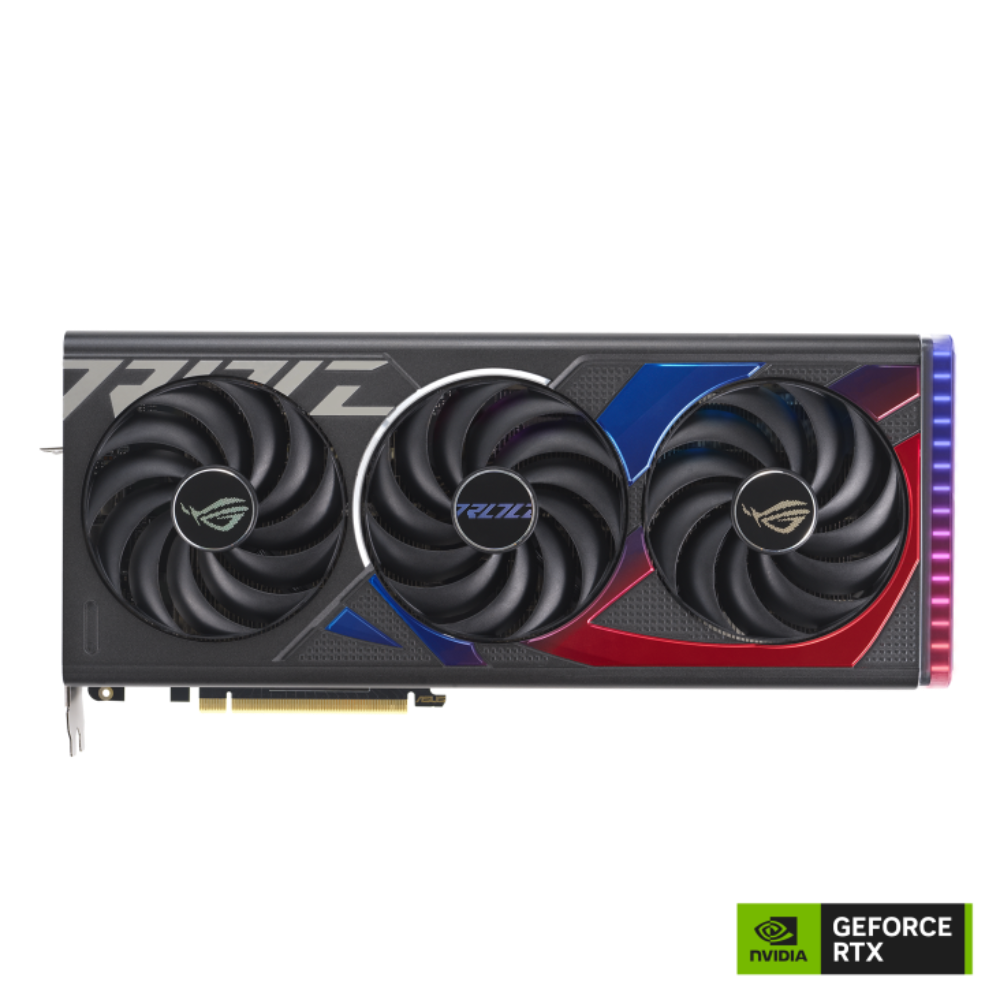

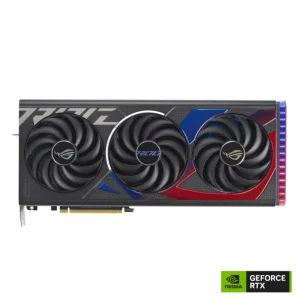

Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 31% more air through the card, setting the stage for lower temperatures, less noise, and higher performance.
Reverse Rotation and 0dB Technology
Orchestrated Chill
The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 50 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 55°C, referencing a speed curve that balances performance and acoustics for work or play.
3.12-slot Design
Through Thick and Fin
The custom sink is generously sized and structured to soak up heat from the GeForce RTX 4070 SUPER GPU so that it can be efficiently whisked away by the three Axial-tech fans.
Premium Power Delivery
1st Responder
Digital power control, an array of high-current power stages, and a lineup of 15K caps ensure massive reserves to reliably push performance boundaries.
Compact PCB
Packs a Punch
Component and trace layouts have been optimized onto a short PCB to reduce power losses and let heat escape through a massive backplate vent.

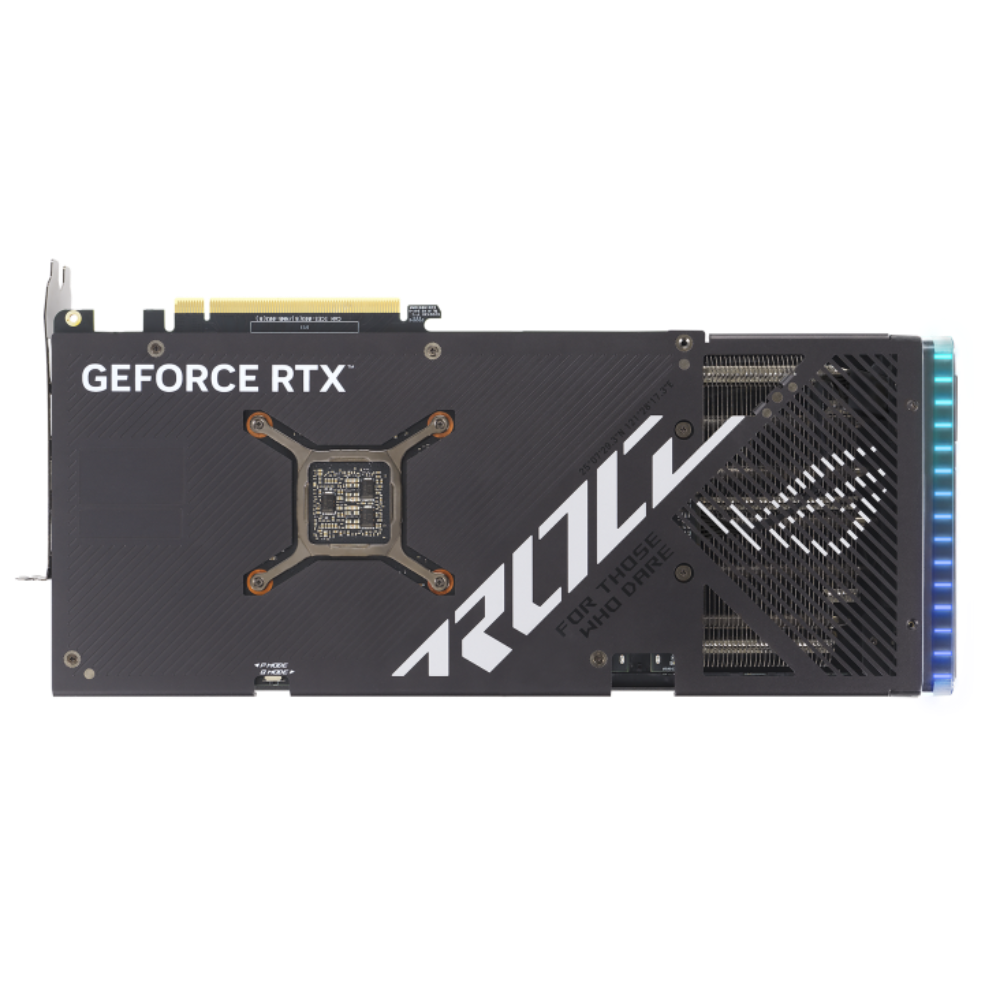

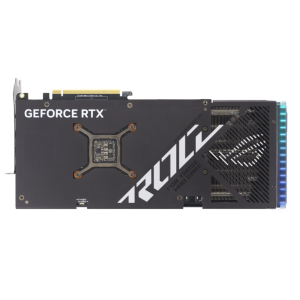

Metal Exoskeleton
Ultra-rigid

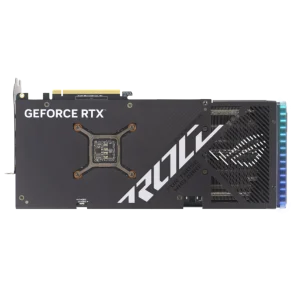

A high-quality diecast frame, shroud, and backplate tightly brace the PCB and strategically steer airflow.

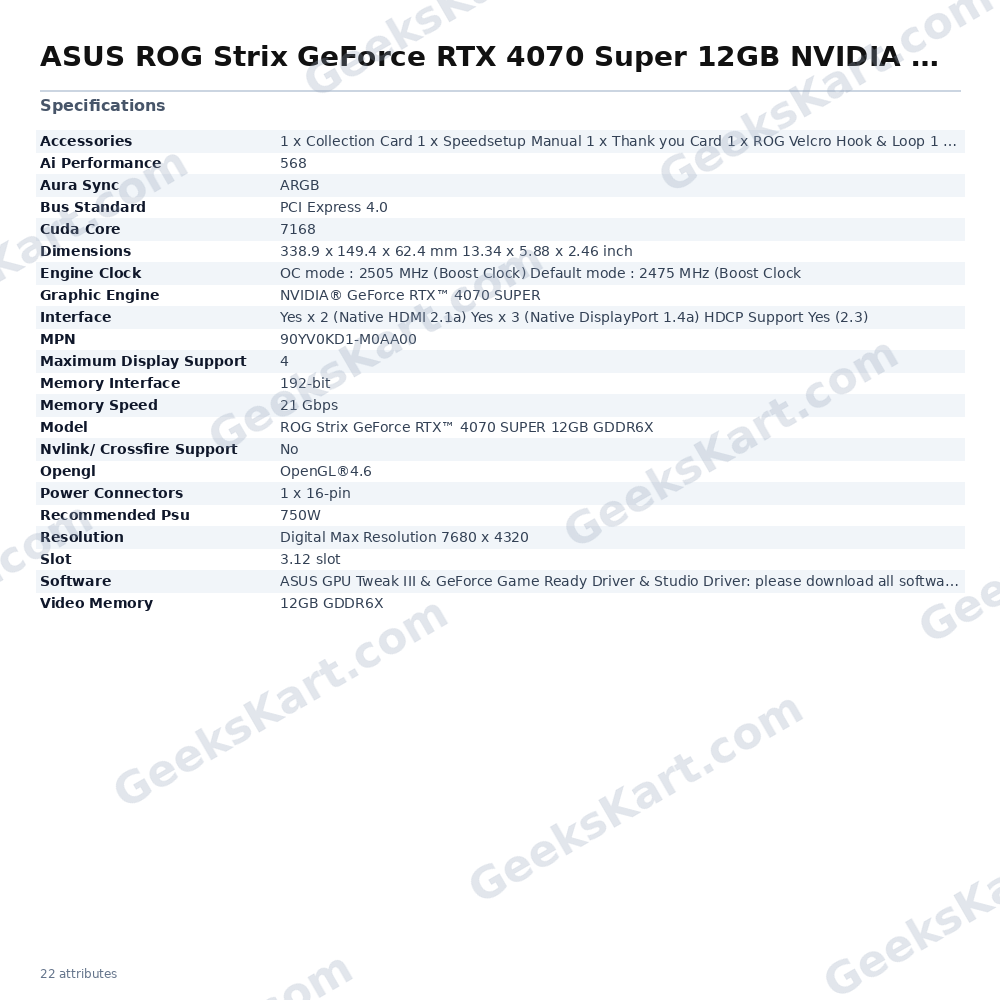

Specification of ASUS ROG Strix GeForce RTX 4070 Super 12GB NVIDIA Graphic Card
| Part No | 90YV0KD1-M0AA00 |
| Model | ROG Strix GeForce RTX™ 4070 SUPER 12GB GDDR6X |
| Graphic Engine | NVIDIA® GeForce RTX™ 4070 SUPER |
| AI Performance | 568 |
| Bus Standard | PCI Express 4.0 |
| OpenGL | OpenGL®4.6 |
| Video Memory | 12GB GDDR6X |
| Engine Clock | OC mode: 2505 MHz (Boost Clock) Default mode: 2475 MHz (Boost Clock |
| CUDA Core | 7168 |
| Memory Speed | 21 Gbps |
| Memory Interface | 192-bit |
| Resolution | Digital Max Resolution 7680 x 4320 |

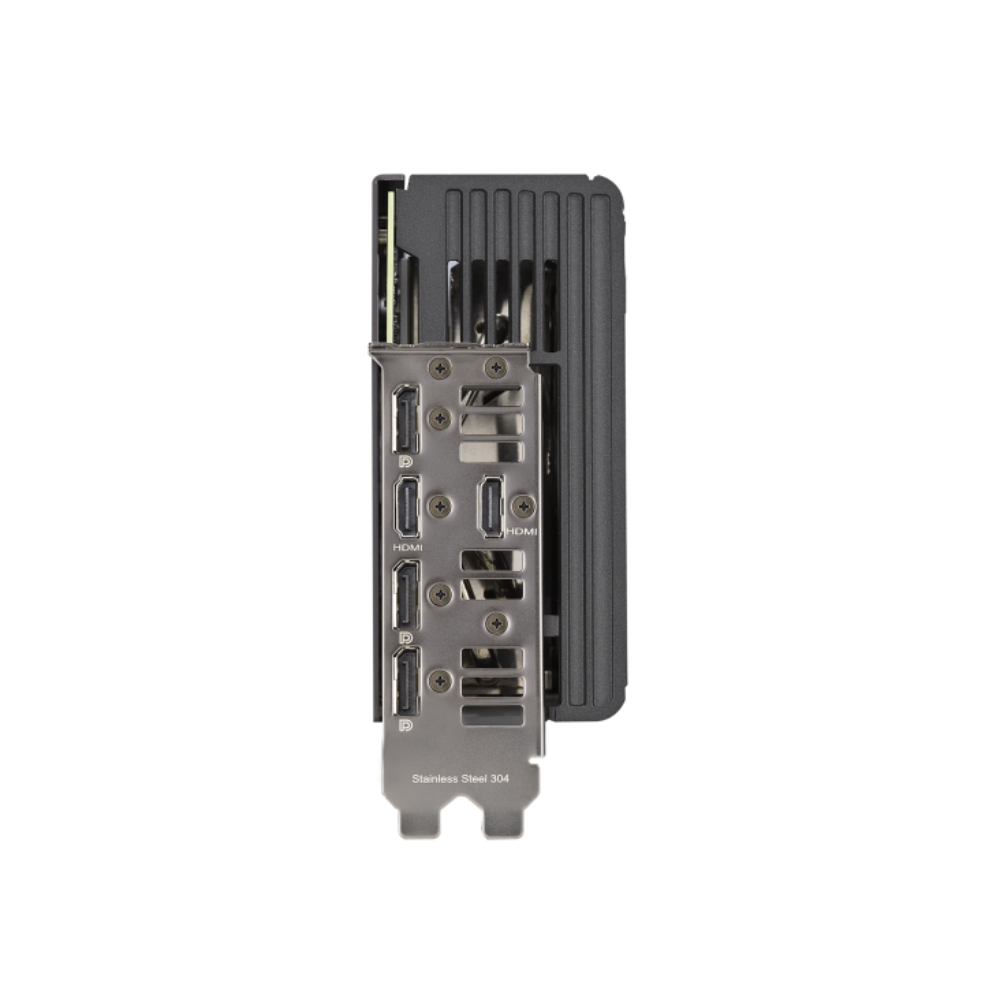

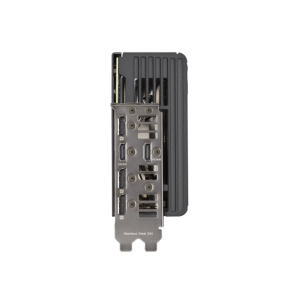

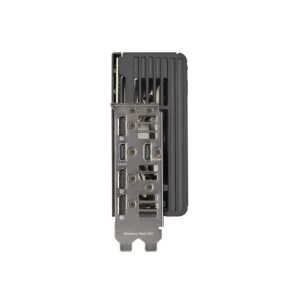

| Interface | Yes x 2 (Native HDMI 2.1a) Yes x 3 (Native DisplayPort 1.4a) HDCP Support Yes (2.3) |
| Maximum Display Support | 4 |
| NVlink/ Crossfire Support | No |
| Accessories | 1 x Collection Card 1 x Speedsetup Manual 1 x Thank you Card 1 x ROG Velcro Hook & Loop 1 x ROG Graphics card holder 1 x Adapter cable (1 to 2) |
| Software | ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. |
| Dimensions | 338.9 x 149.4 x 62.4 mm 13.34 x 5.88 x 2.46 inch |
| Recommended PSU | 750W |
| Power Connectors | 1 x 16-pin |
| Slot | 3.12 slot |
| AURA SYNC | ARGB |
